Gate Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) | Input Type | High Side Voltage - Max (Bootstrap) | Rise / Fall Time (Typ) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LTC7000JMSE#TRPBFIC GATE DRVR HIGH-SIDE 16MSOP |
0 |
|
Datasheet | - | 16-TFSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Not Verified | High-Side | Single | 1 | N-Channel MOSFET | 3.5V ~ 135V | 1.8V, 1.7V | - | Non-Inverting | - | 90ns, 40ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 16-MSOP-EP |
|
EL7155CSZ-T13IC GATE DRVR HI/LOW SIDE 8SOIC |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | High-Side or Low-Side | Synchronous | 2 | IGBT | 4.5V ~ 16.5V | 0.8V, 2.4V | 3.5A, 3.5A | Non-Inverting | - | 14.5ns, 15ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
EL7156CSZ-T13IC GATE DRVR HI/LOW SIDE 8SOIC |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | High-Side or Low-Side | Single | 1 | IGBT | 4.5V ~ 16.5V | 0.8V, 2.4V | 3.5A, 3.5A | Non-Inverting | - | 14.5ns, 15ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
ISL6609ACRZIC GATE DRVR HALF-BRIDGE 8QFN |
14 |
|
Datasheet | - | 8-VQFN Exposed Pad | Tube | Obsolete | Not Verified | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 4.5V ~ 5.5V | 1V, 2V | -, 4A | Non-Inverting | 36 V | 8ns, 8ns | 0°C ~ 125°C (TJ) | - | - | Surface Mount | 8-QFN (3x3) |
|
LTC7000JMSE-1#WTRPBFIC GATE DRVR HIGH-SIDE 16MSOP |
0 |
|
Datasheet | - | 16-TFSOP (0.118", 3.00mm Width), 12 Leads, Exposed Pad | Tape & Reel (TR) | Active | Not Verified | High-Side | Single | 1 | N-Channel MOSFET | 3.5V ~ 135V | 1.8V, 1.7V | - | Non-Inverting | - | 90ns, 40ns | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 16-MSOP-EP |
|
TC4626COEIC GATE DRVR HI/LOW SIDE 16SOIC |
0 |
|
Datasheet | - | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Not Verified | High-Side or Low-Side | Single | 1 | N-Channel, P-Channel MOSFET | 4V ~ 6V | 0.8V, 2.4V | 1.5A, 1.5A | Inverting | - | 33ns, 27ns | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
TC4626COE713IC GATE DRVR HI/LOW SIDE 16SOIC |
0 |
|
Datasheet | - | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Not Verified | High-Side or Low-Side | Single | 1 | N-Channel, P-Channel MOSFET | 4V ~ 6V | 0.8V, 2.4V | 1.5A, 1.5A | Inverting | - | 33ns, 27ns | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
TC4627COE713IC GATE DRVR HI/LOW SIDE 16SOIC |
0 |
|
Datasheet | - | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Not Verified | High-Side or Low-Side | Single | 1 | N-Channel, P-Channel MOSFET | 4V ~ 6V | 0.8V, 2.4V | 1.5A, 1.5A | Non-Inverting | - | 33ns, 27ns | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
LTC7000HMSE-1#TRPBFIC GATE DRVR HIGH-SIDE 16MSOP |
0 |
|
Datasheet | - | 16-TFSOP (0.118", 3.00mm Width), 12 Leads, Exposed Pad | Tape & Reel (TR) | Active | Not Verified | High-Side | Single | 1 | N-Channel MOSFET | 3.5V ~ 135V | 1.8V, 1.7V | - | Non-Inverting | 135 V | 90ns, 40ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 16-MSOP-EP |
|
TC428IJAIC GATE DRVR LOW-SIDE 8CERDIP |
0 |
|
Datasheet | - | 8-CDIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 1.5A, 1.5A | Inverting, Non-Inverting | - | 30ns, 30ns | -25°C ~ 85°C (TA) | - | - | Through Hole | 8-CERDIP |
|

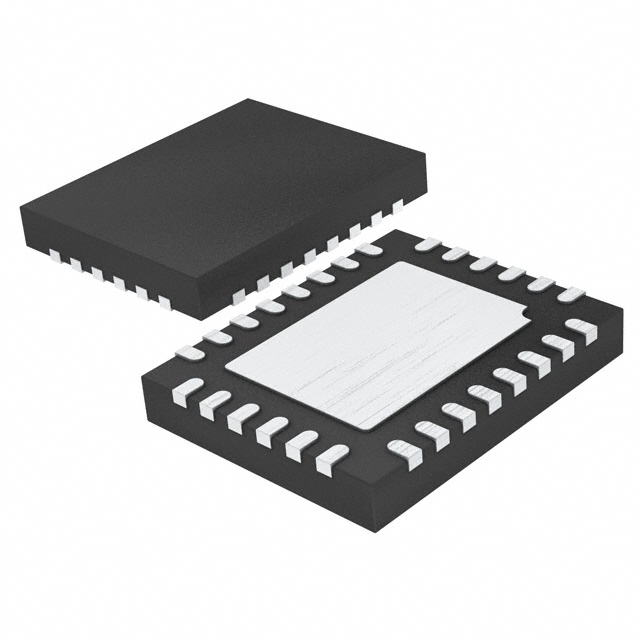

MIC4607-1YML-T5IC GATE DRVR HALF-BRIDGE 28QFN |
0 |
|
- |
- | 28-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Not Verified | Half-Bridge | 3-Phase | 6 | N-Channel MOSFET | 5.25V ~ 16V | 0.8V, 2.2V | 1A, 1A | Inverting, Non-Inverting | 108 V | 20ns, 20ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 28-QFN (4x5) |
|
LT1160CS#TRPBFIC GATE DRVR HALF-BRIDGE 14SOIC |
0 |
|
Datasheet | - | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | Half-Bridge | Independent | 2 | N-Channel MOSFET | 10V ~ 15V | 0.8V, 2V | 1.5A, 1.5A | Non-Inverting | 60 V | 130ns, 60ns | 0°C ~ 125°C (TJ) | - | - | Surface Mount | 14-SO |
|
|
AUIR3240STRIC GATE DRVR HIGH-SIDE 8SO |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | High-Side | Single | 1 | N-Channel MOSFET | 4V ~ 36V | 0.9V, 2.5V | - | Non-Inverting | - | - | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-DSO-8-903 |
|
|
LTC3900HS8#TRPBFIC GATE DRVR LOW-SIDE 8SOIC |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | Low-Side | Synchronous | 2 | N-Channel MOSFET | 4.5V ~ 11V | - | 2A, 2A | Inverting, Non-Inverting | - | 15ns, 15ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SO |
|
MC33395TEWIC GATE DRVR HALF-BRIDGE 32SOIC |
0 |
|
Datasheet | - | 32-BSSOP (0.295", 7.50mm Width) | Tube | Obsolete | Not Verified | Half-Bridge | 3-Phase | 6 | N-Channel MOSFET | 5.5V ~ 24V | - | - | Non-Inverting | - | 350ns, 250ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 32-SOIC |
|
HIP2101IBZT7AIC GATE DRVR HALF-BRIDGE 8SOIC |
14 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | Half-Bridge | Independent | 2 | N-Channel MOSFET | 9V ~ 14V | 0.8V, 2.2V | 2A, 2A | Non-Inverting | 114 V | 10ns, 10ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
LTC1157CS8#TRPBFIC GATE DRVR HI/LOW SIDE 8SOIC |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | High-Side or Low-Side | Independent | 2 | N-Channel MOSFET | 3.3V ~ 5V | - | - | Non-Inverting | - | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-SO |
|
TLF12501AUMA1IC GATE DRVR VIQFN36 |
0 |
|
- |
- | - | Tape & Reel (TR) | Active | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
IR1176SIC GATE DRVR LOW-SIDE 20SSOP |
0 |
|
Datasheet | - | 20-SSOP (0.209", 5.30mm Width) | Tube | Obsolete | Not Verified | Low-Side | Single | 1 | N-Channel MOSFET | 4V ~ 5.25V | - | 4A, 4A | Non-Inverting | - | 20ns, 20ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 20-SSOP |
|
TC4626CPAIC GATE DRVR HI/LOW SIDE 8DIP |
0 |
|
Datasheet | - | 8-DIP (0.300", 7.62mm) | Tube | Active | Not Verified | High-Side or Low-Side | Single | 1 | N-Channel, P-Channel MOSFET | 4V ~ 6V | 0.8V, 2.4V | 1.5A, 1.5A | Inverting | - | 33ns, 27ns | 0°C ~ 70°C (TA) | - | - | Through Hole | 8-PDIP |
