Gate Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) | Input Type | High Side Voltage - Max (Bootstrap) | Rise / Fall Time (Typ) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IR2110PBFIC GATE DRVR HALF-BRIDGE 14DIP |
2,935 |
|
Datasheet | - | 14-DIP (0.300", 7.62mm) | Tube | Not For New Designs | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 3.3V ~ 20V | 6V, 9.5V | 2A, 2A | Non-Inverting | 500 V | 25ns, 17ns | -40°C ~ 150°C (TJ) | - | - | Through Hole | 14-DIP |
|
|
IR2113PBFIC GATE DRVR HALF-BRIDGE 14DIP |
779 |
|
Datasheet | - | 14-DIP (0.300", 7.62mm) | Tube | Not For New Designs | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 3.3V ~ 20V | 6V, 9.5V | 2A, 2A | Non-Inverting | 600 V | 25ns, 17ns | -40°C ~ 150°C (TJ) | - | - | Through Hole | 14-DIP |
|
TLE92108232QXXUMA1IC GATE DRVR HALF-BRIDGE 48VFQFN |
1,665 |
|
Datasheet | MOTIX™ | 48-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 6V ~ 28V | - | 100mA, 100mA | Non-Inverting | 950 V | - | - | - | - | Surface Mount | PG-VQFN-48-31 |
|
FAN7085MX-GF085IC GATE DRVR HIGH-SIDE 8SOIC |
3,675 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | High-Side | Single | 1 | IGBT, N-Channel MOSFET | 4.5V ~ 20V | - | 450mA, 450mA | Inverting | 300 V | 65ns, 25ns | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 8-SOIC |
|
IR2125PBFIC GATE DRVR HIGH-SIDE 8DIP |
2,754 |
|
Datasheet | - | 8-DIP (0.300", 7.62mm) | Tube | Active | Not Verified | High-Side | Single | 1 | IGBT, N-Channel MOSFET | 0V ~ 18V | 0.8V, 2.2V | 1.6A, 3.3A | Non-Inverting | 500 V | 43ns, 26ns | -40°C ~ 150°C (TJ) | - | - | Through Hole | 8-PDIP |
|
TC4432EOA713IC GATE DRVR HI/LOW SIDE 8SOIC |
6,087 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | High-Side or Low-Side | Single | 1 | N-Channel, P-Channel MOSFET | 4.5V ~ 30V | 0.8V, 2.4V | 1.5A, 1.5A | Non-Inverting | - | 25ns, 33ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
IR2085STRPBFIC GATE DRVR HALF-BRIDGE 8SOIC |
985 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Not For New Designs | Not Verified | Half-Bridge | Independent | 2 | N-Channel MOSFET | 10V ~ 15V | - | 1A, 1A | RC Input Circuit | 100 V | 40ns, 20ns | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 8-SOIC |
|
IR2125STRPBFIC GATE DRVR HIGH-SIDE 16SOIC |
3,199 |
|
Datasheet | - | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Not Verified | High-Side | Single | 1 | IGBT, N-Channel MOSFET | 0V ~ 18V | 0.8V, 2.2V | 1.6A, 3.3A | Non-Inverting | 500 V | 43ns, 26ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 16-SOIC |
|
|
TC4431VOA713IC GATE DRVR HI/LOW SIDE 8SOIC |
2,178 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | High-Side or Low-Side | Single | 1 | N-Channel, P-Channel MOSFET | 4.5V ~ 30V | 0.8V, 2.4V | 1.5A, 1.5A | Inverting | - | 25ns, 33ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
LMG1205YFXTIC GATE DRVR HALF-BRIDGE 12DSBGA |
1,509 |
|
Datasheet | - | 12-WFBGA, DSBGA | Tape & Reel (TR) | Active | Not Verified | Half-Bridge | Independent | 2 | N-Channel MOSFET | 4.5V ~ 5.5V | 1.76V, 1.89V | 1.2A, 5A | TTL | 100 V | 7ns, 3.5ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 12-DSBGA |
|
FAN7888MXIC GATE DRVR HALF-BRIDGE 20SOIC |
7,994 |
|
Datasheet | - | 20-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Not Verified | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 1V, 2.5V | 350mA, 650mA | Non-Inverting | 200 V | 50ns, 30ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 20-SOIC |
|
LMG1210RVRRIC GATE DRVR HALF-BRIDGE 19WQFN |
7,171 |
|
Datasheet | - | 19-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Half-Bridge | Independent | 2 | N-Channel MOSFET | 4.75V ~ 5.25V, 6V ~ 18V | - | 1.5A, 3A | Non-Inverting | 200 V | 500ps, 500ps | -40°C ~ 125°C (TJ) | - | - | Surface Mount, Wettable Flank | 19-WQFN (3x4) |
|
ICL7667CBAZA-TIC GATE DRVR HALF-BRIDGE 8SOIC |
16,979 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | Half-Bridge | Independent | 2 | N-Channel MOSFET | 4.5V ~ 15V | 0.8V, 2V | - | Inverting | - | 20ns, 20ns | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-SOIC |
|

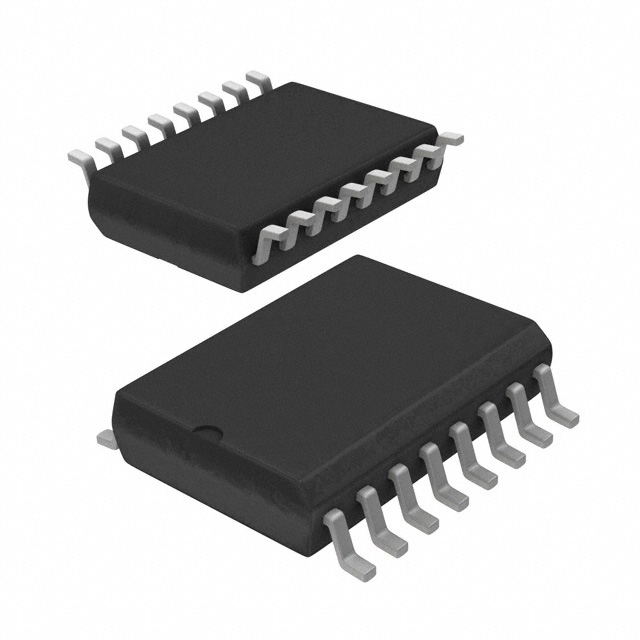

IR2110SPBFIC GATE DRVR HALF-BRIDGE 16SOIC |
525 |
|
Datasheet | - | 16-SOIC (0.295", 7.50mm Width) | Tube | Not For New Designs | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 3.3V ~ 20V | 6V, 9.5V | 2A, 2A | Non-Inverting | 500 V | 25ns, 17ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 16-SOIC |
|
IXDN609SITRIC GATE DRVR LOW-SIDE 8SOIC |
3,168 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Low-Side | Single | 1 | IGBT, N-Channel, P-Channel MOSFET | 4.5V ~ 35V | 0.8V, 3V | 9A, 9A | Non-Inverting | - | 22ns, 15ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC-EP |
|

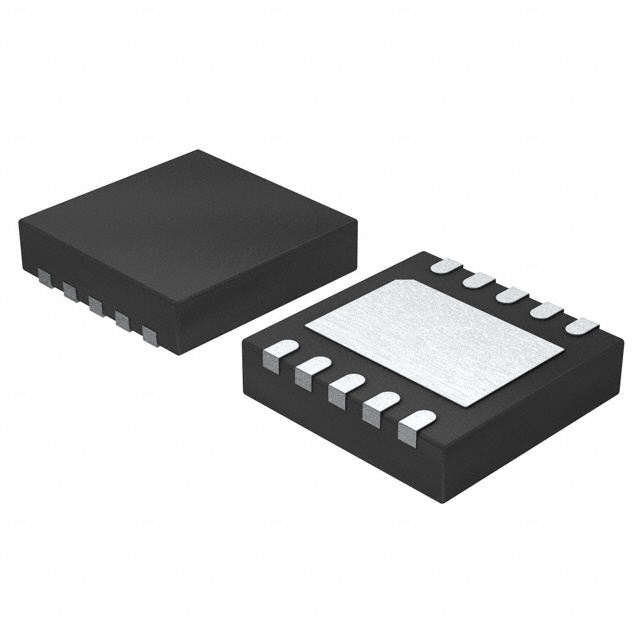

FAN8811TMPXIC GATE DRVR HALF-BRIDGE 10MLP |
17,325 |
|
Datasheet | - | 10-WDFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Half-Bridge | Independent | 2 | N-Channel MOSFET | 8V ~ 16V | 1.3V, 2.5V | 3A, 6A | Non-Inverting | 118 V | 6ns, 4ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-MLP (4x4) |
|
|
IR2112PBFIC GATE DRVR HI/LOW SIDE 14DIP |
964 |
|
Datasheet | - | 14-DIP (0.300", 7.62mm) | Tube | Not For New Designs | Not Verified | High-Side or Low-Side | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 6V, 9.5V | 250mA, 500mA | Non-Inverting | 600 V | 80ns, 40ns | -40°C ~ 150°C (TJ) | - | - | Through Hole | 14-DIP |
|
LM5113QDPRRQ1IC GATE DRVR HALF-BRIDGE 10WSON |
2,385 |
|
Datasheet | - | 10-WDFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Half-Bridge | Independent | 2 | N-Channel MOSFET | 4.5V ~ 5.5V | - | 1.2A, 5A | Non-Inverting | 100 V | 7ns, 3.5ns | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 10-WSON (4x4) |
|
|
IR2113SPBFIC GATE DRVR HALF-BRIDGE 16SOIC |
6,809 |
|
Datasheet | - | 16-SOIC (0.295", 7.50mm Width) | Tube | Not For New Designs | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 3.3V ~ 20V | 6V, 9.5V | 2A, 2A | Non-Inverting | 600 V | 25ns, 17ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 16-SOIC |
|
LMG1020YFFRIC GATE DRVR LOW-SIDE 6DSBGA |
28,836 |
|
Datasheet | - | 6-UFBGA, DSBGA | Tape & Reel (TR) | Active | Not Verified | Low-Side | Single | 1 | N-Channel, P-Channel MOSFET | 4.75V ~ 5.25V | 1.8V, 1.7V | 7A, 5A | Inverting, Non-Inverting | - | 375ps, 350ps | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-DSBGA |
