Full Half-Bridge (H Bridge) Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Applications | Interface | Load Type | Technology | Rds On (Typ) | Current - Output / Channel | Current - Peak Output | Voltage - Supply | Voltage - Load | Operating Temperature | Grade | Qualification | Features | Fault Protection | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CSD97394Q4MTIC HALF BRIDGE DRIVER 20A 8VSON |
494 |
|
Datasheet | NexFET™ | 8-PowerVFDFN | Tape & Reel (TR) | Active | Half Bridge | Synchronous Buck Converters | PWM | Inductive | Power MOSFET | - | 20A | 45A | 4.5V ~ 5.5V | 4.5V ~ 24V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | Shoot-Through, UVLO | Surface Mount | 8-VSON (3.5x4.5) |
.jpg)
|
CSD97370Q5MIC HALF BRIDGE DRIVER 40A 22LSON |
0 |
|
Datasheet | NexFET™ | 22-PowerLFDFN | Tape & Reel (TR) | Active | Half Bridge | Synchronous Buck Converters | PWM | Inductive | Power MOSFET | - | 40A | 60A | 4.5V ~ 5.5V | 3.3V ~ 22V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | Shoot-Through, UVLO | Surface Mount | 22-LSON-CLIP (6x5) |
|
TLE94110ESXUMA1IC HALF BRIDGE DRIVER 24TSDSO |
5,948 |
|
Datasheet | - | 24-TSSOP (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Half Bridge (2) | DC Motors, General Purpose | Logic, PWM, SPI | Inductive, Resistive | - | 1.3Ohm LS, 1.3Ohm HS | - | - | 3V ~ 5.5V | 3V ~ 5.5V | -40°C ~ 150°C (TJ) | - | - | Charge Pump | Current Limiting, Over Current, Over Temperature, Short Circuit | Surface Mount | PG-TSDSO-24 |
|
TLE92104131QXXUMA1IC HALF BRIDGE DRIVER 48VQFN |
1,496 |
|
Datasheet | - | 48-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Half Bridge (4) | DC Motors, General Purpose | Analog, Logic, PWM, SPI | - | - | 40Ohm | - | - | 3V ~ 5.5V | - | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Charge Pump | Over Temperature, Short Circuit | Surface Mount | PG-VQFN-48-29 |
|
HIP4086AABZIC HALF BRIDGE DRIVER 24SOIC |
1,182 |
|
Datasheet | - | 24-SOIC (0.295", 7.50mm Width) | Tube | Active | Half Bridge | DC Motors, General Purpose | Logic, PWM | Capacitive and Resistive | N-Channel MOSFET | - | - | 500mA | 7V ~ 15V | 7V ~ 15V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | - | Surface Mount | 24-SOIC |
|
CSD95372AQ5MIC HALF BRIDGE DRIVER 60A 12LSON |
12,335 |
|
Datasheet | NexFET™ | 12-PowerLFDFN | Tape & Reel (TR) | Active | Half Bridge | Synchronous Buck Converters | PWM | Inductive | Power MOSFET | - | 60A | 90A | 4.5V ~ 5.5V | 4.5V ~ 16V | -55°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Status Flag | Over Temperature, Shoot-Through, UVLO | Surface Mount | 12-LSON-CLIP (5x6) |
|
CSD95496QVMIC HALF BRIDGE DRIVER 40A 18VSON |
2,490 |
|
Datasheet | NexFET™ | 18-PowerTFDFN | Tape & Reel (TR) | Active | Half Bridge (3) | Synchronous Buck Converters | PWM | Inductive, Capacitive | Power MOSFET | - | 40A | 60A | 4.5V ~ 5.5V | 4.5V ~ 16V | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit | Shoot-Through | Surface Mount | 18-VSON (5x4) |
|
FDMF3172IC HALF BRIDGE DRIVER 55A 39QFN |
3,000 |
|
Datasheet | - | 39-PowerVFQFN | Tape & Reel (TR) | Active | Half Bridge (2) | General Purpose | Logic, PWM | Inductive, Capacitive | Power MOSFET | - | 55A | 70A | 4.5V ~ 5.5V | 4.5V ~ 16V | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit | Current Limiting, Over Temperature | Surface Mount | 39-PQFN (5x6) |
|
|
CSD95378BQ5MIC HALF BRIDGE DRIVER 60A 12LSON |
4,918 |
|
Datasheet | NexFET™ | 12-PowerLFDFN | Tape & Reel (TR) | Active | Half Bridge | Synchronous Buck Converters | PWM | Inductive | Power MOSFET | - | 60A | 90A | 4.5V ~ 5.5V | 4.5V ~ 16V | -55°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Status Flag | Current Limiting, Over Temperature, Shoot-Through, Short Circuit, UVLO | Surface Mount | 12-LSON-CLIP (5x6) |
|
|
CSD95373BQ5MTIC HALF BRIDGE DRIVER 45A 12LSON |
750 |
|
Datasheet | NexFET™ | 12-PowerLFDFN | Tape & Reel (TR) | Active | Half Bridge | Synchronous Buck Converters | PWM | Inductive | Power MOSFET | - | 45A | 67A | 4.5V ~ 5.5V | 4.5V ~ 16V | -55°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Status Flag | Current Limiting, Over Temperature, Shoot-Through, Short Circuit, UVLO | Surface Mount | 12-LSON-CLIP (5x6) |
|
PWD5F60TRIC HALF BRIDGE DRV 3.5A 46VFQFPN |
2,500 |
|
Datasheet | - | 46-PowerVQFN | Tape & Reel (TR) | Active | Half Bridge (2) | Industrial | Logic | Inductive | Power MOSFET | 1.38Ohm | 3.5A | 14A | 10V ~ 20V | - | -40°C ~ 125°C (TJ) | - | - | - | UVLO | Surface Mount | 46-VFQFPN (15x7) |
|
|
NCP303152MNTWGINTEGRATED DRIVER & MOSFET |
2,096 |
|
Datasheet | - | 39-PowerVFQFN | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | 4.5V ~ 5.5V | - | -40°C ~ 125°C (TA) | - | - | - | - | Surface Mount | 39-PQFN (5x6) |
|
IRSM807-105MHIC HALF BRIDGE DRIVER 10A 31PQFN |
1,407 |
|
Datasheet | µIPM™ | 31-PowerVQFN | Tray | Active | Half Bridge | AC Motors | Logic | Inductive | UMOS | 580mOhm | 10A | - | 13.5V ~ 16.5V | 400V (Max) | 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Surface Mount | 31-PQFN (8x9) |
|
|
CSD95492QVMTIC HALF BRIDGE DRIVER 20A 18VSON |
4,940 |
|
Datasheet | NexFET™ | 18-PowerTFDFN | Tape & Reel (TR) | Active | Half Bridge (3) | Synchronous Buck Converters | PWM | Inductive, Capacitive | Power MOSFET | - | 20A | 30A | 4.5V ~ 5.5V | 4.5V ~ 16V | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit | Shoot-Through | Surface Mount | 18-VSON (5x4) |
|
|

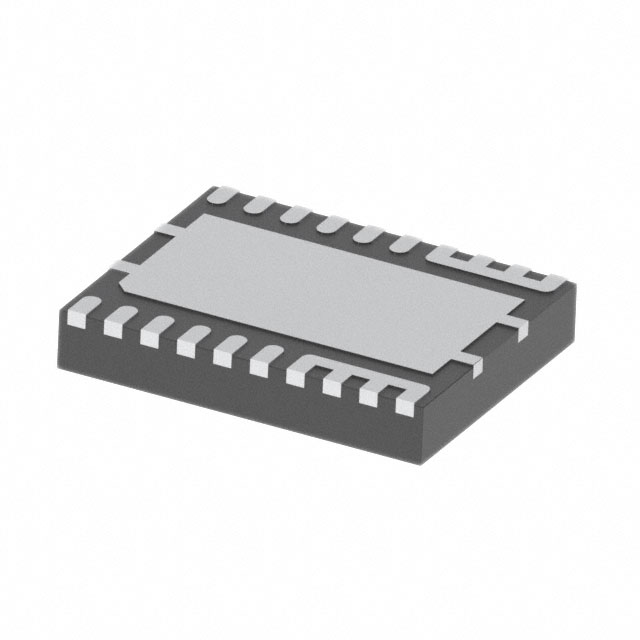

CSD95496QVMTIC HALF BRIDGE DRIVER 40A 18VSON |
730 |
|
Datasheet | NexFET™ | 18-PowerTFDFN | Tape & Reel (TR) | Active | Half Bridge (3) | Synchronous Buck Converters | PWM | Inductive, Capacitive | Power MOSFET | - | 40A | 60A | 4.5V ~ 5.5V | 4.5V ~ 16V | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit | Shoot-Through | Surface Mount | 18-VSON (5x4) |
|
NCV7726DQBR2GIC HALF BRIDGE DRVR 500MA 24SSOP |
2,500 |
|
Datasheet | - | 24-LSSOP (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Half Bridge (12) | DC Motors, General Purpose | Logic, SPI | Inductive | NMOS | 850mOhm LS, 850mOhm HS | 500mA | 1.1A | 3.15V ~ 5.25V | 5.5V ~ 32V | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Charge Pump | Over Current, Over Temperature, Over Voltage, UVLO | Surface Mount | 24-SSOP-EP |
|

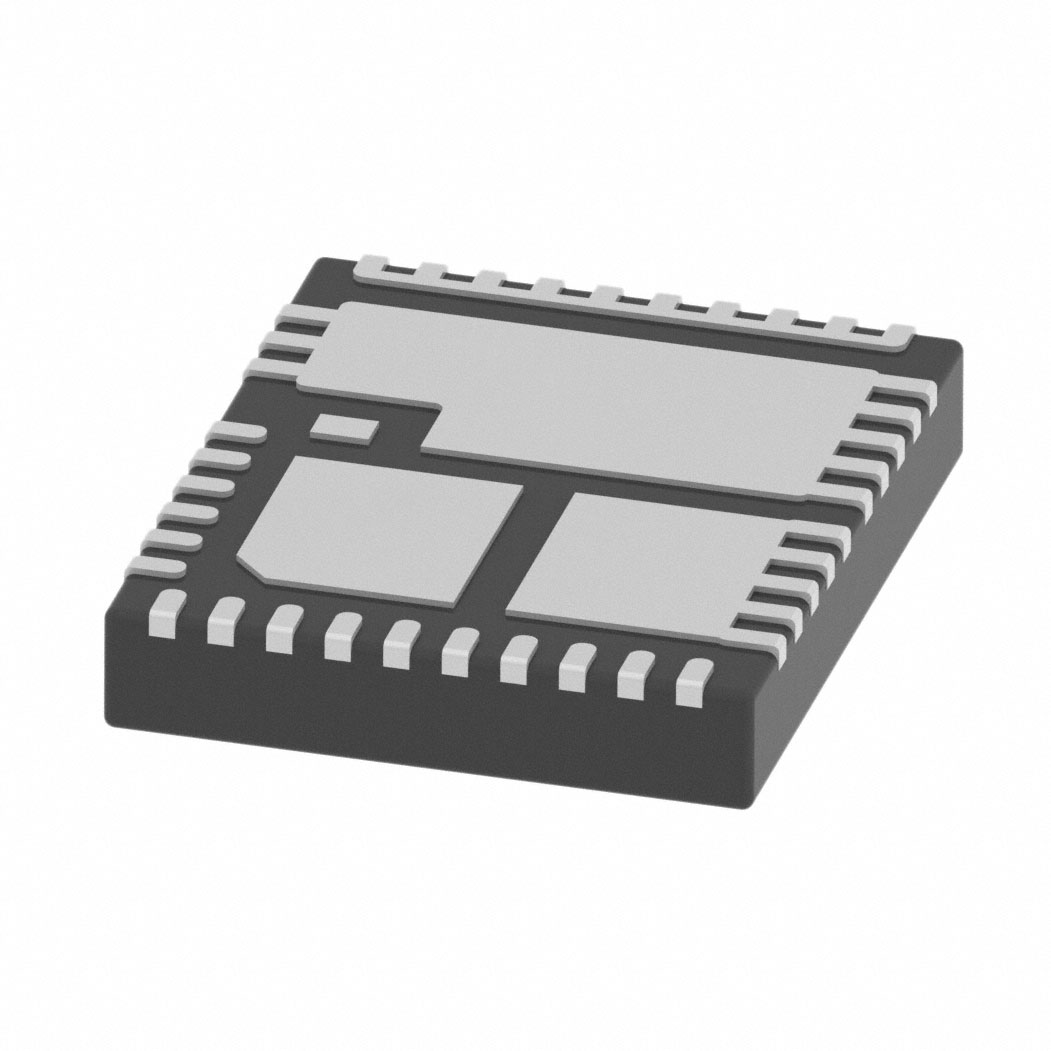

CSD95482RWJTIC HALF BRIDGE DRIVER 40A 41VQFN |
250 |
|
Datasheet | NexFET™ | 41-PowerTFQFN | Tape & Reel (TR) | Active | Half Bridge (3) | Synchronous Buck Converters | PWM | Inductive, Capacitive | Power MOSFET | - | 40A | 60A | 4.5V ~ 5.5V | 4.5V ~ 16V | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit | Shoot-Through | Surface Mount | 41-VQFN-CLIP (5x6) |
|

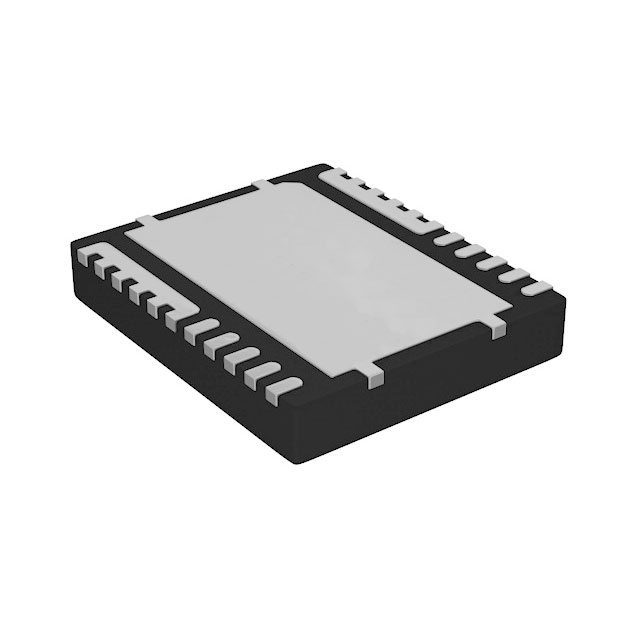

CSD95491Q5MCTIC HALF BRIDGE DRIVER 60A 12VSON |
250 |
|
Datasheet | NexFET™ | 12-PowerTFDFN | Tape & Reel (TR) | Active | Half Bridge (3) | Synchronous Buck Converters | PWM | Inductive, Capacitive | Power MOSFET | - | 60A | 90A | 4.5V ~ 5.5V | 4.5V ~ 16V | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit | Shoot-Through | Surface Mount | 12-VSON-CLIP (5x6) |
|
|
L6207DIC HALF BRIDGE DRIVER 2.8A 24SO |
768 |
|
Datasheet | - | 24-SOIC (0.295", 7.50mm Width) | Tube | Active | Half Bridge (4) | DC Motors, Stepper Motors, Voltage Regulators | Logic | Inductive | DMOS | 300mOhm | 2.8A | 5.6A | 8V ~ 52V | 8V ~ 52V | -25°C ~ 125°C (TJ) | - | - | Bootstrap Circuit | Current Limiting, Over Temperature, UVLO | Surface Mount | 24-SO |
|
|
CSD95472Q5MCTIC SYNC BUCK 60A 12VSON |
210 |
|
Datasheet | NexFET™ | 12-PowerTFDFN | Tape & Reel (TR) | Active | - | Synchronous Buck Converters | PWM | Inductive | Power MOSFET | - | 60A | 90A | 4.5V ~ 5.5V | 4.5V ~ 16V | -55°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Diode Emulation, Status Flag | Current Limiting, Over Temperature | Surface Mount | 12-VSON (5x6) |
