Full Half-Bridge (H Bridge) Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Applications | Interface | Load Type | Technology | Rds On (Typ) | Current - Output / Channel | Current - Peak Output | Voltage - Supply | Voltage - Load | Operating Temperature | Grade | Qualification | Features | Fault Protection | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRSM515-015PAIC HALF BRIDGE DRIVER 1.2A 23SOP |
0 |
|
Datasheet | µIPM™-DIP | 23-PowerSMD Module | Tube | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 5Ohm | 1.2A | 9A | 13.5V ~ 16.5V | 400V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Surface Mount | 23-SOP |
|
IRSM515-025DA4IC HALF BRIDGE DRIVER 1.5A 23DIP |
0 |
|
Datasheet | µIPM™-DIP | 32-PowerDIP Module, 23 Leads | Tube | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 3Ohm | 1.5A | 11A | 13.5V ~ 16.5V | 400V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Through Hole | 23-DIPA |
|
|
IRSM515-035DA2IC HALF BRIDGE DRIVER 2.1A 23DIP |
0 |
|
Datasheet | µIPM™-DIP | 23-DIP Module | Tube | Discontinued at Digi-Key | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 1.8Ohm | 2.1A | 15A | 13.5V ~ 16.5V | 400V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Through Hole | 23-DIPA |
|
|
IRSM515-035PAIC HALF BRIDGE DRIVER 2.1A 23SOP |
0 |
|
Datasheet | µIPM™-DIP | 23-PowerSMD Module | Tube | Discontinued at Digi-Key | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 1.8Ohm | 2.1A | 15A | 13.5V ~ 16.5V | 400V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Surface Mount | 23-SOP |
|
|
IRSM515-044DAIC HALF BRIDGE DRIVER 3A 23DIP |
0 |
|
Datasheet | µIPM™-DIP | 32-PowerDIP Module, 23 Leads | Tube | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 800mOhm | 3A | 15A | 13.5V ~ 16.5V | 200V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Through Hole | 23-DIP |
|
|
IRSM515-044DA2IC HALF BRIDGE DRIVER 3A 23DIP |
0 |
|
Datasheet | µIPM™-DIP | 32-PowerDIP Module, 23 Leads | Tube | Discontinued at Digi-Key | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 800mOhm | 3A | 15A | 13.5V ~ 16.5V | 200V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Through Hole | 23-DIPA |
|
|
IRSM515-084PAIC HALF BRIDGE DRIVER 4.6A 23SOP |
0 |
|
Datasheet | µIPM™-DIP | 23-PowerSMD Module | Tube | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 340mOhm | 4.6A | 15A | 13.5V ~ 16.5V | 200V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Surface Mount | 23-SOP |
|
|
TND321VD-TL-HIC HALF BRIDGE DRIVER SOT28FL |
0 |
|
- |
- | 8-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | Half Bridge (2) | General Purpose | Logic | Inductive | Power MOSFET | 6Ohm LS, 11Ohm HS | - | 800mA, 1A | 4.5V ~ 25V | 4.5V ~ 25V | -55°C ~ 150°C (TJ) | - | - | - | - | Surface Mount | SOT-28FL/VEC8 |
|

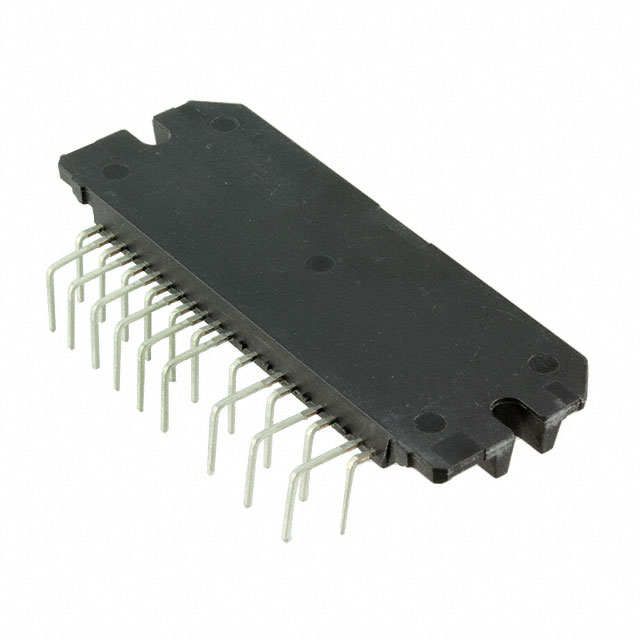

STK541UC60C-EIC HALF BRIDGE DRIVER 10A 23SIP |
0 |
|
Datasheet | - | 23-SIP, 19 Leads, Formed Leads | Bulk | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | IGBT | - | 10A | 20A | 12.5V ~ 17.5V | 450V (Max) | -40°C ~ 150°C (TJ) | - | - | Status Flag | Current Limiting, UVLO | Through Hole | 23-SIP |
|
NCP5338MNR2GIC HALF BRIDGE DRIVER 40A 40QFN |
0 |
|
Datasheet | - | 40-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Half Bridge | Buck Converters | PWM | Inductive | Power MOSFET | - | 40A | - | 4.5V ~ 5.5V | 4.5V ~ 20V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | Over Temperature, UVLO | Surface Mount | 40-QFN (6x6) |
|
NCV7728DPR2GIC HALF BRIDGE DRVR 550MA 24SSOP |
0 |
|
Datasheet | - | 24-SSOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (6) | DC Motors, General Purpose | SPI | Inductive | Power MOSFET | 1Ohm LS, 1Ohm HS | 550mA | - | 3.15V ~ 5.25V | 5.5V ~ 28V | -40°C ~ 150°C (TJ) | - | - | - | Current Limiting, Over Temperature, Over Voltage, UVLO | Surface Mount | 24-SSOP |
|
STK531U369A-EIC HALF BRIDGE DRIVER 10A 29SIP |
0 |
|
Datasheet | - | 29-SSIP Module, 21 Leads, Formed Leads | Tube | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | IGBT | - | 10A | 20A | 12.5V ~ 17.5V | 450V (Max) | -40°C ~ 150°C (TJ) | - | - | Status Flag | Current Limiting, UVLO | Through Hole | 29-SIP |
|
STK5F1U3E3D-EIC HALF BRIDGE DRIVER 50A 44DIP |
0 |
|
- |
- | 44-DIP Module, 37 Leads | Tube | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | IGBT | - | 50A | 76A | 12.5V ~ 17.5V | 450V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Status Flag | Current Limiting, UVLO | Through Hole | 44-DIP |
|
|
STK531U394A-EIC HALF BRIDGE DRIVER 15A 29SIP |
0 |
|
Datasheet | - | 29-SSIP Module, 21 Leads, Formed Leads | Tube | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | IGBT | - | 15A | 30A | 12.5V ~ 17.5V | 450V (Max) | -40°C ~ 150°C (TJ) | - | - | Status Flag | Current Limiting | Through Hole | 29-SIP |
|
ATA6826C-TUQWIC HALF BRIDGE DRIVER 1A 14SOIC |
0 |
|
Datasheet | - | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Half Bridge (3) | Bulbs, DC Motors, Resistors | SPI | Inductive, Capacitive, Resistive | DMOS | 1.5Ohm | 1A | 1.3A | 4.75V ~ 5.25V | 7V ~ 40V | -40°C ~ 150°C | - | - | - | - | Surface Mount | 14-SOIC |
|
|
TDA21215AUMA1IC MOSFET DRIVER IQFN-40 |
0 |
|
Datasheet | * | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TDA21231AUMA1IC HALF BRIDGE DRIVER 55A 31IQFN |
0 |
|
Datasheet | - | 31-PowerVFQFN | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters | PWM | Inductive | DrMOS | - | 55A | - | 4.5V ~ 7V | 5V ~ 16V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | Shoot-Through, UVLO | Surface Mount | PG-IQFN-31-2 |
|
|
IRSM506-076PAIC HALF BRIDGE DRIVER 4A 23SOP |
0 |
|
Datasheet | µIPM™-DIP | 23-PowerSMD Module | Tube | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | IGBT | - | 4A | 15A | 13.5V ~ 16.5V | 480V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Surface Mount | 23-SOP |
|
|
STK534UC60A-E3PHASE INVERTER HIC |
0 |
|
- |
* | - | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
STK534UC90A-E3PHASE INVERTER HIC |
0 |
|
- |
* | - | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
