Full Half-Bridge (H Bridge) Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Applications | Interface | Load Type | Technology | Rds On (Typ) | Current - Output / Channel | Current - Peak Output | Voltage - Supply | Voltage - Load | Operating Temperature | Grade | Qualification | Features | Fault Protection | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UCC27289DRIC HALF BRIDGE DRIVER 8SOIC |
1,310 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Half Bridge | General Purpose | Analog, Logic, PWM | Capacitive and Resistive | Bipolar, NMOS, Power MOSFET | - | - | 2.5A | 8V ~ 16V | 8V ~ 16V | -40°C ~ 125°C | - | - | - | Current Limiting, Over Voltage, Short Circuit, UVLO | Surface Mount | 8-SOIC |
|
STDRIVE101IC HALF BRIDGE DRIVER 24VFQFPN |
3,553 |
|
Datasheet | - | 24-VFQFN Exposed Pad | Tray | Active | Half Bridge (3) | DC Motors, General Purpose | Analog, Logic | Capacitive and Resistive | Power MOSFET, IGBT | 35Ohm | - | 430mA | 9V ~ 20V | - | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit | Over Current, Over Temperature, UVLO | Surface Mount | 24-VFQFPN (4x4) |
|

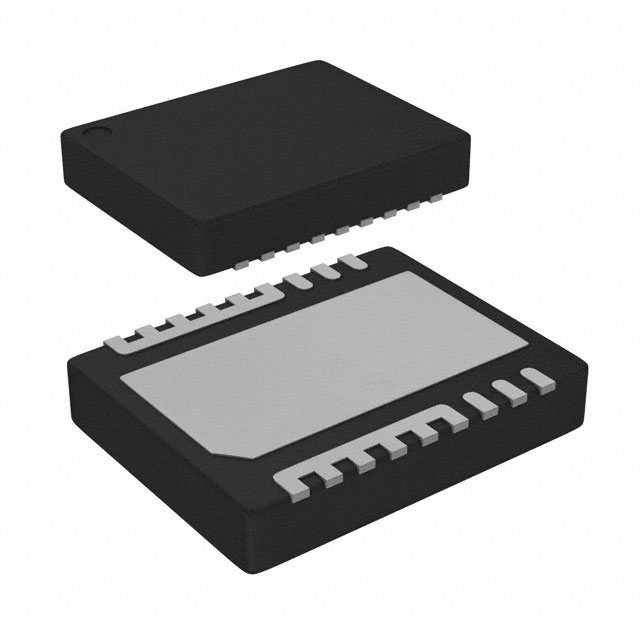

CSD97376Q4MIC HALF BRIDGE DRIVER 20A 8VSON |
4,173 |
|
Datasheet | NexFET™ | 8-PowerVFDFN | Tape & Reel (TR) | Active | Half Bridge | Synchronous Buck Converters | PWM | Inductive | Power MOSFET | - | 20A | 45A | 4.5V ~ 5.5V | 4.5V ~ 24V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | Shoot-Through, UVLO | Surface Mount | 8-VSON (3.5x4.5) |
|
|
CSD97395Q4MIC HALF BRIDGE DRIVER 25A 8VSON |
10,333 |
|
Datasheet | NexFET™ | 8-PowerVFDFN | Tape & Reel (TR) | Active | Half Bridge | Synchronous Buck Converters | PWM | Inductive | Power MOSFET | - | 25A | 60A | 4.5V ~ 5.5V | 4.5V ~ 24V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | Shoot-Through, UVLO | Surface Mount | 8-VSON (3.5x4.5) |
|
DRV8770RGERIC HALF BRIDGE DRVR 1.5A 24VQFN |
2,725 |
|
Datasheet | - | 24-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Half Bridge | DC Motors, General Purpose | Analog, Logic, PWM | Inductive, Capacitive, Resistive | NMOS, Power MOSFET | - | 1.5A | 1.5A | 5V ~ 20V | 5V ~ 20V | -40°C ~ 150°C (TJ) | - | - | - | Shoot-Through | Surface Mount | 24-VQFN (4x4) |
|
CSD97396Q4MIC HALF BRIDGE DRIVER 30A 8VSON |
14,108 |
|
Datasheet | NexFET™ | 8-PowerVFDFN | Tape & Reel (TR) | Active | Half Bridge | Synchronous Buck Converters | PWM | Inductive | Power MOSFET | - | 30A | 65A | 4.5V ~ 5.5V | 4.5V ~ 24V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Diode Emulation | Shoot-Through | Surface Mount | 8-VSON (3.5x4.5) |
|
STSPIN240IC HALF BRIDGE DRV 1.3A 16VFQFPN |
33,285 |
|
Datasheet | STSPIN2 | 16-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Half Bridge (4) | DC Motors, General Purpose | PWM | Inductive | Power MOSFET | 400mOhm LS + HS | 1.3A | - | 0V ~ 5V | 1.8V ~ 10V | -40°C ~ 150°C (TJ) | - | - | - | Current Limiting, Over Temperature, Short Circuit | Surface Mount | 16-VFQFPN (3x3) |
|
NCP51530ADR2GIC HALF BRIDGE DRIVER 2A 8SOIC |
3,775 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Half Bridge (2) | General Purpose | Logic, PWM | Inductive, Capacitive | Power MOSFET | - | 2A | 2.2A | 10V ~ 17V | 700V | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit | UVLO | Surface Mount | 8-SOIC |
|
|
STSPIN233IC HALF BRIDGE DRV 1.3A 16VFQFPN |
8,932 |
|
Datasheet | STSPIN2 | 16-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Half Bridge (3) | DC Motors, General Purpose | Logic | Inductive | Power MOSFET | 400mOhm LS + HS | 1.3A | - | 0V ~ 5V | 1.8V ~ 10V | -40°C ~ 150°C (TJ) | - | - | - | - | Surface Mount | 16-VFQFPN (3x3) |
|
STDRIVEG600IC HALF BRIDGE DRVR 5.5A/6A 16SO |
608 |
|
Datasheet | - | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | Half Bridge | DC-DC Converters | Logic | Inductive, Capacitive, Resistive | Power MOSFET | - | 5.5A, 6A | 5.5A, 6A | 3.3V ~ 5V | - | -40°C ~ 150°C (TJ) | - | - | - | Over Temperature, UVLO | Surface Mount | 16-SO |
|
NCP51530BMNTWGIC HALF BRIDGE DRIVER 2A 10DFN |
5,081 |
|
Datasheet | - | 10-VDFN Exposed Pad | Tape & Reel (TR) | Active | Half Bridge (2) | General Purpose | Logic, PWM | Inductive, Capacitive | Power MOSFET | - | 2A | 3.5A | 10V ~ 17V | 700V | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit | UVLO | Surface Mount | 10-DFN (4x4) |
|
NCP302045MNTWGIC PWR DRIVER P-CHAN 2:1 31PQFN |
2,533 |
|
Datasheet | - | 31-PowerWFQFN | Tape & Reel (TR) | Active | Half Bridge | Synchronous Buck Converters | Logic, PWM | Inductive, Capacitive, Resistive | MOSFET (Metal Oxide) | - | 45A | 75A | 4.5V ~ 5.5V | 4.5V ~ 20V | -40°C ~ 125°C (TA) | - | - | Bootstrap Circuit | Over Temperature, UVLO | Surface Mount | 31-PQFN (5x5) |
|
NCV7721D2R2GIC HALF BRIDGE DRIVER 3A 14SOIC |
1,624 |
|
Datasheet | - | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive, Capacitive | - | 800mOhm LS, 800mOhm HS | 3A | - | 0.3V ~ 40V | 0.3V ~ 40V | -40°C ~ 150°C (TJ) | - | - | Charge Pump | Current Limiting, UVLO | Surface Mount | 14-SOIC |
|
|
NCP252160MNTWGIC HALF BRIDGE DRIVER 60A 31PQFN |
1,257 |
|
Datasheet | - | 31-PowerWFQFN | Tape & Reel (TR) | Active | Half Bridge | DC-DC Converters | PWM | Inductive, Capacitive, Resistive | N-Channel MOSFET | - | 60A | - | 4.5V ~ 5.5V | 4.5V ~ 16V | -40°C ~ 125°C (TA) | - | - | Bootstrap Circuit | - | Surface Mount | 31-PQFN (5x5) |
|
BD6220F-E2IC HALF BRIDGE DRIVER 500MA 8SOP |
5,531 |
|
Datasheet | - | 8-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | Power MOSFET | 1.5Ohm | 500mA | - | 6V ~ 15V | 6V ~ 15V | -40°C ~ 85°C (TA) | - | - | - | Current Limiting, Over Temperature, Over Voltage, UVLO | Surface Mount | 8-SOP |
|
|
DRV8955PRGERIC HALF BRIDGE DRIVER 10A 24VQFN |
2,060 |
|
Datasheet | - | 24-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Half Bridge (4) | DC Motors, Solenoids, Stepper Motors | Logic, PWM | Inductive, Capacitive, Resistive | Power MOSFET | 165mOhm | 10A | 10A | 4.5V ~ 48V | 4.5V ~ 48V | -40°C ~ 125°C (TA) | - | - | Charge Pump | Over Current, Over Voltage, UVLO | Surface Mount | 24-VQFN (4x4) |
.jpg)
|
L6206QIC HALF BRIDGE DRV 2.5A 48VFQFPN |
1,741 |
|
Datasheet | - | 48-VFQFN Exposed Pad | Tray | Active | Half Bridge (4) | DC Motors, Stepper Motors, Voltage Regulators | Logic | Inductive | BCDMOS | 280mOhm LS, 340mOhm HS | 2.5A | 5.6A | 8V ~ 52V | 8V ~ 52V | -25°C ~ 125°C (TJ) | - | - | Bootstrap Circuit | Current Limiting, Over Temperature, UVLO | Surface Mount | 48-VFQFPN (7x7) |
|

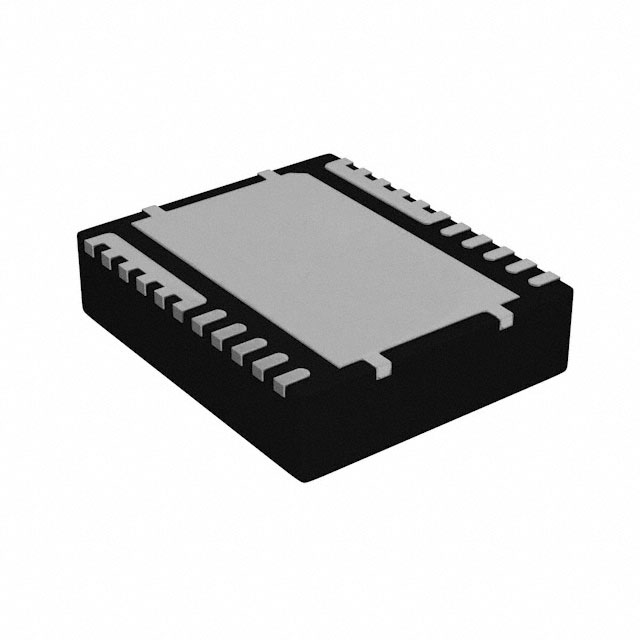

CSD95372BQ5MIC HALF BRIDGE DRIVER 60A 12LSON |
4,516 |
|
Datasheet | NexFET™ | 12-PowerLFDFN | Tape & Reel (TR) | Active | Half Bridge | Synchronous Buck Converters | PWM | Inductive | Power MOSFET | - | 60A | 90A | 4.5V ~ 5.5V | 4.5V ~ 16V | -55°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Status Flag | Current Limiting, Over Temperature, Shoot-Through, Short Circuit, UVLO | Surface Mount | 12-LSON-CLIP (5x6) |
|
NCV7723DQBR2GIC HALF BRIDGE DRVR 500MA 24SSOP |
6,643 |
|
Datasheet | - | 24-LSSOP (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Half Bridge (3) | DC Motors, General Purpose | Logic, PWM, SPI | Capacitive and Resistive | NMOS | 800mOhm LS, 800mOhm HS | 500mA | 1.1A | 3.15V ~ 5.25V | 5.5V ~ 32V | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Charge Pump | Over Current, Over Temperature, Over Voltage, UVLO | Surface Mount | 24-SSOP-EP |
|
ISL55110IVZ-T7AIC HALF BRIDGE DRVR 100MA 8TSSOP |
844 |
|
Datasheet | - | 8-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Half Bridge (2) | Digital Imaging | Logic | Capacitive and Resistive | Power MOSFET | 3Ohm | 100mA | 3.5A | 2.7V ~ 5.5V | 5V ~ 13.2V | -40°C ~ 150°C (TJ) | - | - | - | - | Surface Mount | 8-TSSOP |
