Full Half-Bridge (H Bridge) Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Applications | Interface | Load Type | Technology | Rds On (Typ) | Current - Output / Channel | Current - Peak Output | Voltage - Supply | Voltage - Load | Operating Temperature | Grade | Qualification | Features | Fault Protection | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LB8649W-TBM-EIC HALF BRIDGE DRVR 600MA 48SQFP |
0 |
|
Datasheet | - | 48-LQFP | Tape & Reel (TR) | Obsolete | Half Bridge (12) | DC Motors, General Purpose, Stepper Motors | Logic | Inductive | Bipolar | - | 600mA | - | 1.9V ~ 10V | 1.9V ~ 10V | -20°C ~ 80°C (TA) | - | - | - | Over Temperature | Surface Mount | 48-SQFP (7x7) |
|
LV8014T-MPB-EIC HALF BRIDGE DRVR 1.4A 24TSSOP |
0 |
|
- |
- | 24-TFSOP (0.173", 4.40mm Width) | Tube | Obsolete | Half Bridge (4) | DC Motors, General Purpose | Logic | Inductive | DMOS | 750mOhm | 1.4A | 2.5A | 2.7V ~ 5.5V | 2V ~ 7V | -20°C ~ 75°C (TA) | - | - | - | Over Temperature | Surface Mount | 24-TSSOP |
|
|
LV8014T-TLM-EIC HALF BRIDGE DRVR 1.4A 24TSSOP |
0 |
|
- |
- | 24-TFSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (4) | DC Motors, General Purpose | Logic | Inductive | DMOS | 750mOhm | 1.4A | 2.5A | 2.7V ~ 5.5V | 2V ~ 7V | -20°C ~ 75°C (TA) | - | - | - | Over Temperature | Surface Mount | 24-TSSOP |
|
|
LV8012T-TLM-EIC HALF BRIDGE DRVR 1.4A 24TSSOP |
0 |
|
Datasheet | - | 24-TFSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (4) | DC Motors, General Purpose | Logic | Inductive | Power MOSFET | 750mOhm | 1.4A | - | 2.7V ~ 5.5V | 2V ~ 7V | -20°C ~ 75°C (TA) | - | - | - | Over Temperature | Surface Mount | 24-TSSOP |
|
UC3702NIC QUAD PWM RELAY DRIVER 16-DIP |
1,242 |
|
Datasheet | - | 16-DIP (0.300", 7.62mm) | Tube | Obsolete | - | - | - | - | - | - | 50mA | 175mA | 4.5V ~ 8V | - | 0°C ~ 70°C | - | - | - | - | Through Hole | 16-PDIP |
|
FDMF8811IC HALF BRIDGE DRIVER 20A 36QFN |
0 |
|
Datasheet | PowerTrench® | 36-PowerWFQFN | Tape & Reel (TR) | Not For New Designs | Half Bridge | DC-DC Converters | PWM | Inductive | Power MOSFET | - | 20A | 4A | 8V ~ 14V | - | -40°C ~ 125°C (TJ) | - | - | - | - | Surface Mount | 36-PQFN (7.5x6) |
|
NCP302035MNTWGIC PWR DRIVER P-CHAN 2:1 31PQFN |
2,395 |
|
Datasheet | - | 31-PowerWFQFN | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters | Logic, PWM | Inductive, Capacitive, Resistive | MOSFET (Metal Oxide) | - | 35A | 70A | 4.5V ~ 5.5V | 4.5V ~ 20V | -40°C ~ 125°C (TA) | - | - | Bootstrap Circuit | Over Temperature, UVLO | Surface Mount | 31-PQFN (5x5) |
|
|
NCP302040MNTWGIC PWR DRIVER P-CHAN 2:1 31PQFN |
2,875 |
|
Datasheet | - | 31-PowerWFQFN | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters | Logic, PWM | Inductive, Capacitive, Resistive | MOSFET (Metal Oxide) | - | 40A | 75A | 4.5V ~ 5.5V | 4.5V ~ 20V | -40°C ~ 125°C (TA) | - | - | Bootstrap Circuit | Over Temperature, UVLO | Surface Mount | 31-PQFN (5x5) |
|
FDMF6833CIC HALF BRIDGE DRIVER 50A 40PQFN |
0 |
|
- |
XS™ DrMOS | 40-PowerTFQFN | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters | PWM | Inductive | DrMOS | 1Ohm LS, 1Ohm HS | 50A | - | 4.5V ~ 5.5V | 3V ~ 24V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Status Flag | Over Temperature, Shoot-Through, UVLO | Surface Mount | 40-PQFN (6x6) |
|
FDMF3035IC HALF BRIDGE DRIVER 50A 31PQFN |
5,946 |
|
Datasheet | PowerTrench®, SyncFET™ | 31-PowerWFQFN | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters | PWM | Inductive | UMOS | 1Ohm LS, 1Ohm HS | 50A | 50A | 4.5V ~ 5.5V | 4.5V ~ 24V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Diode Emulation | Shoot-Through, UVLO | Surface Mount | 31-PQFN (5x5) |
.jpg)
|
CSD97370AQ5MIC HALF BRIDGE DRIVER 40A 22LSON |
0 |
|
Datasheet | NexFET™ | 22-PowerLFDFN | Tape & Reel (TR) | Active | Half Bridge | Synchronous Buck Converters | PWM | Inductive | Power MOSFET | - | 40A | 60A | 4.5V ~ 5.5V | 3.3V ~ 22V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | Shoot-Through, UVLO | Surface Mount | 22-LSON-CLIP (6x5) |
|
CSD95420RCBPROTOTYPE |
2,460 |
|
- |
NexFET™ | 27-PowerTFQFN | Bulk | Active | Half Bridge | Synchronous Buck Converters | PWM | Inductive, Capacitive | Power MOSFET | - | 25A | 50A | 4.5V ~ 5.5V | 4.5V ~ 14.5V | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit | Shoot-Through | Surface Mount | 27-QFN (4x5) |
|
|
FDMF6840CIC HALF BRIDGE DRIVER 50A 40PQFN |
0 |
|
Datasheet | - | 40-PowerTFQFN | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters | PWM | Inductive | DrMOS | 1Ohm LS, 1Ohm HS | 50A | - | 4.5V ~ 5.5V | 3V ~ 16V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Status Flag | Over Temperature, Shoot-Through, UVLO | Surface Mount | 40-PQFN (6x6) |
|

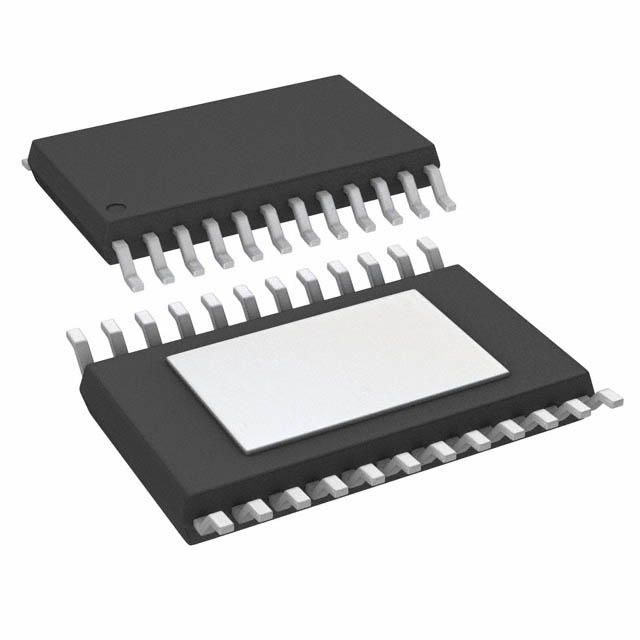

TLE94108ELXUMA1IC HALF BRIDGE DRVR 500MA 24SSOP |
0 |
|
Datasheet | - | 24-LSSOP (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | Half Bridge (8) | AC Motors, DC Motors, General Purpose | SPI | Inductive | Power MOSFET | 850mOhm LS, 850mOhm HS | 500mA | 2A | 3V ~ 5.5V | 5.5V ~ 20V | -40°C ~ 150°C (TJ) | - | - | - | Over Temperature, Short Circuit, UVLO | Surface Mount | PG-SSOP-24-4 |
|
IRSM005-800MHTRIC HALF BRIDGE DRIVER 80A 27QFN |
6,659 |
|
Datasheet | µIPM™ | 27-PowerVQFN | Tape & Reel (TR) | Obsolete | Half Bridge | AC Motors, DC Motors, DC-DC Converters, General Purpose | Logic | Inductive, Capacitive | Power MOSFET | 2.7mOhm | 80A | - | 10V ~ 20V | 40V (Max) | 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Surface Mount | 27-PQFN (7x8) |
|
|
IRSM005-800MHIC HALF BRIDGE DRIVER 80A 27QFN |
1,297 |
|
Datasheet | µIPM™ | 27-PowerVQFN | Tray | Obsolete | Half Bridge | AC Motors, DC Motors, DC-DC Converters, General Purpose | Logic | Inductive, Capacitive | Power MOSFET | 2.7mOhm | 80A | - | 10V ~ 20V | 40V (Max) | 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Surface Mount | 27-PQFN (7x8) |
2-Heat-Tabs.jpg)
|
LV11961HA-AHIC HALF BRIDGE DRIVER 1A 14HSSOP |
0 |
|
- |
- | 14-LSSOP (0.173", 4.40mm Width) + 2 Heat Tabs | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | Bi-CMOS | - | 1A | - | 3.6V ~ 16V | 3.6V ~ 16V | -40°C ~ 150°C (TJ) | - | - | Slew Rate Controlled | Over Temperature, Over Voltage, UVLO | Surface Mount | 14-HSSOP |
|
|
FDMF6821BIC HALF BRIDGE DRIVER 55A 40PQFN |
2,403 |
|
Datasheet | XS™ DrMOS | 40-PowerTFQFN | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters | Logic, PWM | Inductive, Capacitive, Resistive | DrMOS, Power MOSFET | 1Ohm LS, 1Ohm HS | 55A | - | 4.5V ~ 5.5V | 3V ~ 16V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Diode Emulation | Over Temperature, Shoot-Through, UVLO | Surface Mount | 40-PQFN (6x6) |
 36 LEADS.JPG)
|
STK5F1U3C3D-EIC HALF BRIDGE DRIVER 15A 44DIP |
0 |
|
- |
- | 44-DIP Module, 37 Leads | Tube | Obsolete | Half Bridge | AC Motors | Logic | Inductive | IGBT | - | 15A | 49A | 12.5V ~ 17.5V | 450V (Max) | -40°C ~ 150°C (TJ) | - | - | Status Flag | Current Limiting | Through Hole | 44-DIP |
|
UPD168111AMA-6A5-E2-AMOTION CONTROL ELECTRONIC, CMOS |
7,500 |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
