Photointerrupters - Slot Type - Transistor Output
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Sensing Distance | Sensing Method | Output Configuration | Current - DC Forward (If) (Max) | Current - Collector (Ic) (Max) | Voltage - Collector Emitter Breakdown (Max) | Response Time | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H22A6SENSOR OPT SLOT PHOTOTRAN PC PIN |
0 |
|
Datasheet | - | Slotted, PC Pins | Tube | Obsolete | 0.118" (3mm) | Through-Beam | Phototransistor | 60 mA | - | 55 V | 8µs, 50µs | -55°C ~ 100°C | - | - | Through Hole, Flange |
|
RPI-151SENSOR OPT SLOT PHOTOTRANS MODUL |
0 |
|
Datasheet | - | Slotted Module | Bulk | Not For New Designs | - | - | Phototransistor | 50 mA | 30 mA | 30 V | 10µs | -25°C ~ 85°C | - | - | Through Hole |
|
|
H21A4SENSOR OPT SLOT PHOTOTRAN PC PIN |
0 |
|
Datasheet | - | Slotted, PC Pins | Tube | Obsolete | 0.118" (3mm) | Through-Beam | Phototransistor | 50 mA | 20 mA | 55 V | 8µs, 50µs | -55°C ~ 100°C | - | - | Through Hole, Flange |
|
|
H21A5SENSOR OPT SLOT PHOTOTRAN PC PIN |
0 |
|
Datasheet | - | Slotted, PC Pins | Tube | Obsolete | 0.118" (3mm) | Through-Beam | Phototransistor | 50 mA | 20 mA | 55 V | 8µs, 50µs | -55°C ~ 100°C | - | - | Through Hole, Flange |
|
|
H21A6SENSOR OPT SLOT PHOTOTRAN PC PIN |
0 |
|
Datasheet | - | Slotted, PC Pins | Tube | Obsolete | 0.118" (3mm) | Through-Beam | Phototransistor | 50 mA | 20 mA | 55 V | 8µs, 50µs | -55°C ~ 100°C | - | - | Through Hole, Flange |
|
|
QCK3SENSOR OPT SLOT DARL 4SMD GW |
0 |
|
Datasheet | - | 4-SMD, Gull Wing | Tube | Obsolete | 0.157" (4mm) | Through-Beam | Photodarlington | 50 mA | 40 mA | 30 V | - | -40°C ~ 100°C | - | - | Surface Mount |
|
|
QVB21213SENSOR OPT SLOT MODULE |
0 |
|
Datasheet | - | Module, PC Pins, Slot Type | - | Obsolete | - | - | - | - | - | - | - | - | - | - | Through Hole, Flange |
|
|
OPB705SENSOR OPT SLOT PCB MOUNT |
0 |
|
Datasheet | - | PCB Mount | - | Obsolete | - | - | - | - | - | - | - | - | - | - | Through Hole |
|
|
OPB703SENSOR OPT SLOT PCB MOUNT |
0 |
|
Datasheet | - | PCB Mount | - | Obsolete | - | - | - | - | - | - | - | - | - | - | Through Hole |
|
|
OPB703WSENSOR OPT SLOT MODULE |
0 |
|
Datasheet | - | Module, Pre-Wired | - | Obsolete | - | - | - | - | - | - | - | - | - | - | Chassis Mount |
|

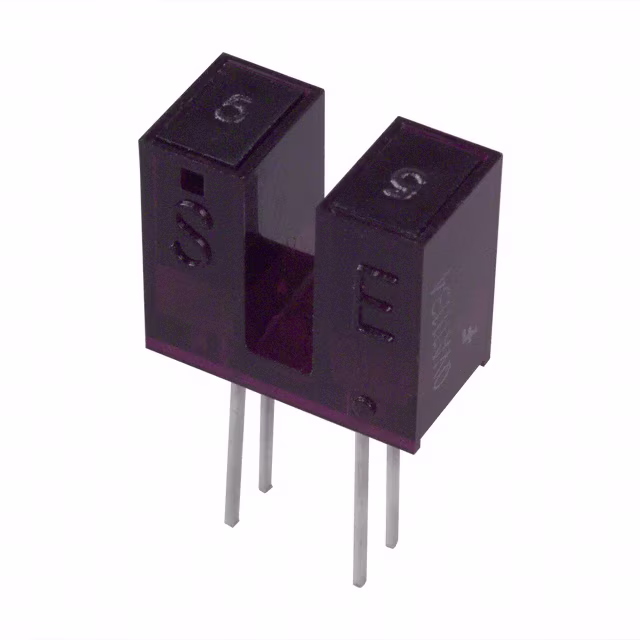

QVA11134SENSOR OPT SLOT PHOTOTRANS MODUL |
0 |
|
Datasheet | QVA | Module, PC Pins, Slot Type | Tube | Obsolete | 0.125" (3.18mm) | Through-Beam | Phototransistor | 50 mA | - | 30 V | - | -40°C ~ 85°C | - | - | Through Hole |
|
QVE11233SENSOR OPT SLOT PHOTOTRANS MODUL |
0 |
|
Datasheet | - | Module, PC Pins, Slot Type | Tube | Obsolete | 0.150" (3.81mm) | Through-Beam | Phototransistor | 50 mA | - | 30 V | - | -40°C ~ 85°C | - | - | Through Hole |
|
|
QVE00832SENSOR OPT SLOT PHOTOTRANS MODUL |
0 |
|
- |
- | Module, PC Pins, Slot Type | Tube | Obsolete | 0.197" (5mm) | Through-Beam | Phototransistor | 60 mA | 20 mA | 30 V | 4µs, 4µs | -55°C ~ 100°C | - | - | Through Hole |
|
|
QVA21114SENSOR OPT SLOT PHOTOTRANS MODUL |
0 |
|
Datasheet | QVA | Module, PC Pins, Slot Type | Tube | Obsolete | 0.125" (3.18mm) | Through-Beam | Phototransistor | 50 mA | - | 30 V | - | -40°C ~ 85°C | - | - | Through Hole |
|
|
QVB21114SENSOR OPT SLOT PHOTOTRANS MODUL |
0 |
|
Datasheet | QVB | Module, PC Pins, Slot Type | Tube | Obsolete | 0.125" (3.18mm) | Through-Beam | Phototransistor | 50 mA | 40 mA | 30 V | - | -40°C ~ 85°C | - | - | Through Hole, Flange |
|
QVE00039SENSOR OPT SLOT PHOTOTRANS MODUL |
0 |
|
- |
- | Module, Pre-Wired | Tube | Obsolete | 0.095" (2.41mm) | Through-Beam | Phototransistor | 50 mA | - | 30 V | 8µs, 50µs | -40°C ~ 85°C | - | - | Chassis Mount |
|
RPI-124FSENSOR OPT SLOT PHOTOTRAN PCB MT |
0 |
|
Datasheet | - | PCB Mount | Bulk | Active | 0.039" (1mm) | Through-Beam | Phototransistor | 50 mA | 30 mA | 30 V | 10µs, 10µs | -25°C ~ 85°C | - | - | Through Hole |
|
RPI-131SENSOR OPT SLOT PHOTOTRAN PCB MT |
0 |
|
Datasheet | - | PCB Mount | Bulk | Obsolete | 0.047" (1.2mm) | Through-Beam | Phototransistor | 50 mA | 30 mA | 30 V | 10µs, 10µs | -25°C ~ 85°C | - | - | Through Hole |
|

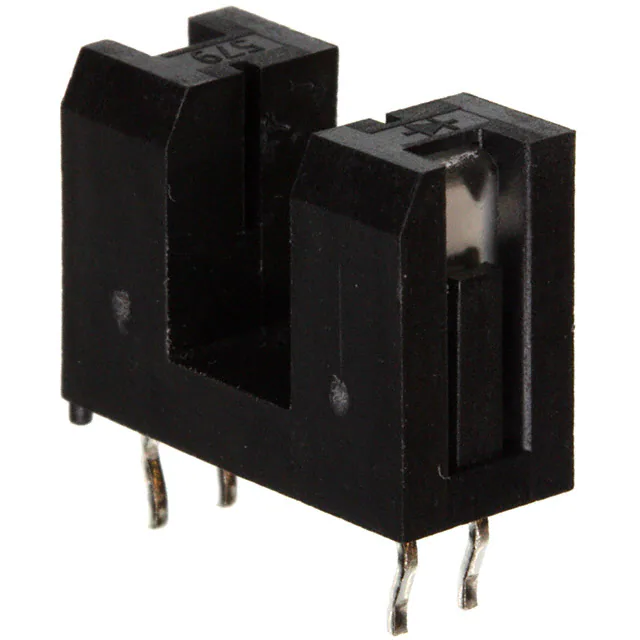

RPI-579N1SENSOR OPT SLOT PHOTOTRAN PCB MT |
0 |
|
Datasheet | - | PCB Mount | Tube | Obsolete | 0.197" (5mm) | Through-Beam | Phototransistor | 50 mA | 30 mA | 30 V | 10µs | -25°C ~ 85°C | - | - | Through Hole |
|
|
QVE00034SENSOR OPT SLOT PHOTOTRANS MODUL |
0 |
|
Datasheet | - | Module, PC Pins, Slot Type | Tube | Obsolete | 0.315" (8mm) | Through-Beam | Phototransistor | 50 mA | 20 mA | 30 V | 4µs, 4µs | -55°C ~ 100°C | - | - | Through Hole |
