Magnetic, Reed Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Circuit | Operate Range | Release Range | Current - Switching | Voltage - Switching AC | Voltage - Switching DC | Power - Rated | Operate Time | Release Time | Mounting Type | Termination Style | Length - Overall | Size - Body | Height Above Board | Operating Temperature | Capacitance | Current - Carry |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MACD-14-25-30SWITCH REED SPST-NO 350MA 140V |
2,193 |
|
Datasheet | MACD-14 | Box | Active | Glass Body Reed | SPST-NO | 25 ~ 30AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.744" (44.30mm) | 0.090" Dia x 0.551" L (2.28mm x 14.00mm) | - | -40°C ~ 125°C | 0.3 pF | 1A (DC) |
|
MLRR-4-22-28SWITCH REED SPST-NO 700MA 140V |
850 |
|
Datasheet | MLRR-4 | Bulk | Active | Glass Body Reed | SPST-NO | 22 ~ 28AT | - | 700mA (AC), 1A (DC) | 140 V | 200 V | 20W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.105" Dia x 0.600" L (2.66mm x 15.24mm) | - | -40°C ~ 125°C | 0.4 pF | 1A (DC) |
|
MDSM-4R-17-23SWITCH REED SPST-NO 350MA 140V |
2,657 |
|
Datasheet | MDSM-4 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 17 ~ 23AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Surface Mount | Gull Wing | 0.760" (19.30mm) | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) | 0.112" (2.85mm) | -40°C ~ 125°C | 0.2 pF | 1.2A (DC) |
|
|
MDSM-4R-12-23SWITCH REED SPST-NO 350MA 140V |
2,087 |
|
Datasheet | MDSM-4 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 12 ~ 23AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Surface Mount | Gull Wing | 0.760" (19.30mm) | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) | 0.112" (2.85mm) | -40°C ~ 125°C | 0.2 pF | 1.2A (DC) |
|
MDSR-4-12-38SWITCH REED SPST-NO 500MA |
1,016 |
|
Datasheet | MDSR-4 | Bulk | Active | Glass Body Reed | SPST-NO | 12 ~ 38AT | - | 500mA (DC) | - | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) | - | -40°C ~ 125°C | 0.2 pF | 1.2A (DC) |
|
MLRR-4-27-33SWITCH REED SPST-NO 700MA 140V |
881 |
|
Datasheet | MLRR-4 | Bulk | Active | Glass Body Reed | SPST-NO | 27 ~ 33AT | - | 700mA (AC), 1A (DC) | 140 V | 200 V | 20W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.105" Dia x 0.600" L (2.66mm x 15.24mm) | - | -40°C ~ 125°C | 0.4 pF | 1A (DC) |
|
59165-1-S-00-CSWITCH REED SPST-NO 350MA 140V |
1,640 |
|
Datasheet | 59165 | Bulk | Active | Molded Body Reed | SPST-NO | 10 ~ 15AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 1 ms | 1 ms | Surface Mount | Gull Wing | 0.795" (20.19mm) | 0.630" L x 0.095" W x 0.095" H (16.00mm x 2.40mm x 2.40mm) | 0.099" (2.52mm) | -40°C ~ 105°C | 0.3 pF | 800mA (DC) |
|
59170-1-T-00-CSWITCH REED SPST-NO 350MA 140V |
1,464 |
|
Datasheet | 59170 | Box | Active | Molded Body Reed | SPST-NO | 15 ~ 20AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 1 ms | 0.5 ms | Surface Mount | Gull Wing | 0.640" (16.26mm) | 0.450" L x 0.090" W x 0.090" H (11.43mm x 2.29mm x 2.29mm) | 0.095" (2.41mm) | -40°C ~ 125°C | 0.3 pF | 800mA (DC) |
|
MRPR-20-22-38SWITCH REED SPST-NO 1.1A 265V |
890 |
|
Datasheet | MRPR-20 | Bulk | Active | Glass Body Reed | SPST-NO | 22 ~ 38AT | - | 1.1A (AC), 1.5A (DC) | 265 V | 250 V | 50W | 0.75 ms | 0.3 ms | Through Hole | Axial | 2.230" (56.64mm) | 0.112" Dia x 0.800" L (2.84mm x 20.32mm) | - | -20°C ~ 125°C | 0.2 pF | 3A (DC) |
|

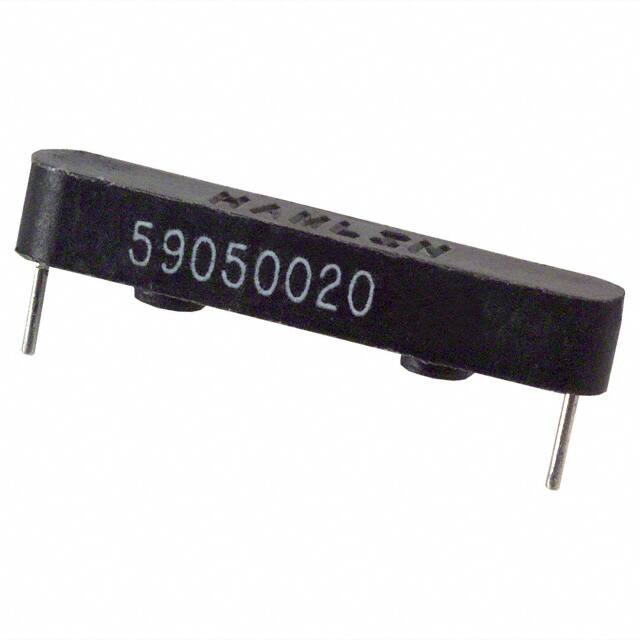

59050-020SWITCH REED SPST-NO 300MA 265V |
194 |
|
Datasheet | 59050 | Bulk | Active | Molded Body Reed | SPST-NO | 17 ~ 23AT | - | 300mA (AC), 400mA (DC) | 265 V | 300 V | 10W | 1 ms | 1 ms | Through Hole | PC Pin | 0.900" (22.86mm) | 0.900" L x 0.170" W x 0.180" H (22.86mm x 4.32mm x 4.57mm) | 0.180" (4.57mm) | -20°C ~ 105°C | 0.2 pF | 1.5A (DC) |
|
MVSR-20-32-38SWITCH REED SPST-NO 350MA 265V |
1,266 |
|
Datasheet | MVSR-20 | Box | Active | Glass Body Reed | SPST-NO | 32 ~ 38AT | - | 350mA (AC), 500mA (DC) | 265 V | 1000 V | 10W | 0.75 ms | 0.3 ms | Through Hole | Axial | 2.235" (56.77mm) | 0.105" Dia x 0.775" L (2.66mm x 19.69mm) | - | -75°C ~ 125°C | 0.2 pF | 1.3A (DC) |
|
MDRR-DT-20-30-USWITCH REED SPDT 180MA 120V |
838 |
|
Datasheet | MDRR-DT | Box | Active | Glass Body Reed | SPDT | 20 ~ 30AT | - | 180mA (AC), 250mA (DC) | 120 V | 175 V | 5W | 0.7 ms | 1 ms | Through Hole | Axial | 2.066" (52.48mm) | 0.100" Dia x 0.580" L (2.54mm x 14.73mm) | - | -40°C ~ 125°C | 1 pF | 1.5A (DC) |
|
|
MDRR-DT-20-25-USWITCH REED SPDT 180MA 120V |
1,000 |
|
Datasheet | MDRR-DT | Box | Active | Glass Body Reed | SPDT | 20 ~ 25AT | - | 180mA (AC), 250mA (DC) | 120 V | 175 V | 5W | 0.7 ms | 1 ms | Through Hole | Axial | 2.066" (52.48mm) | 0.100" Dia x 0.580" L (2.54mm x 14.73mm) | - | -40°C ~ 125°C | 1 pF | 1.5A (DC) |
|
MDRR-DT-30-35-FSWITCH REED SPDT 180MA 120V |
1,000 |
|
Datasheet | MDRR-DT | Box | Active | Glass Body Reed | SPDT | 30 ~ 35AT | - | 180mA (AC), 250mA (DC) | 120 V | 175 V | 5W | 0.7 ms | 1 ms | Through Hole | Axial | 2.034" (51.66mm) | 0.100" Dia x 0.580" L (2.54mm x 14.73mm) | - | -40°C ~ 125°C | 1 pF | 1.5A (DC) |
|
|
MDRR-DT-10-15-USWITCH REED SPDT 180MA 120V |
995 |
|
Datasheet | MDRR-DT | Box | Active | Glass Body Reed | SPDT | 10 ~ 15AT | - | 180mA (AC), 250mA (DC) | 120 V | 175 V | 5W | 0.7 ms | 1 ms | Through Hole | Axial | 2.066" (52.48mm) | 0.100" Dia x 0.580" L (2.54mm x 14.73mm) | - | -40°C ~ 125°C | 1 pF | 1.5A (DC) |
|
MDSM-DTB-20-25SWITCH REED SPDT 180MA 120V |
980 |
|
Datasheet | MDSM-DT | Box | Active | Glass Body Reed | SPDT | 20 ~ 25AT | - | 180mA (AC), 250mA (DC) | 120 V | 175 V | 5W | 0.7 ms | 1 ms | Surface Mount | Gull Wing | 1.000" (25.40mm) | 0.100" Dia x 0.580" L (2.54mm x 14.73mm) | 0.101" (2.56mm) | -40°C ~ 125°C | 1 pF | 1.5A (DC) |
|
MDCG-4-7-13SWITCH REED SPST-NO 350MA 140V |
761 |
|
Datasheet | MDCG-4 | Bulk | Active | Glass Body Reed | SPST-NO | 7 ~ 13AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) | - | -40°C ~ 125°C | 0.2 pF | 1.2A (DC) |
|
MDSR-7-8-10SWITCH REED SPST-NO 350MA 140V |
898 |
|
Datasheet | MDSR-7 | Box | Active | Glass Body Reed | SPST-NO | 8 ~ 10AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.071" Dia x 0.500" L (1.80mm x 12.70mm) | - | -40°C ~ 125°C | 0.3 pF | 800mA (DC) |
|
MATE-12B-12-18REED SWITCH |
1,000 |
|
Datasheet | MATE-12B | Bulk | Active | Glass Body Reed | SPST-NO | 12 ~ 18AT | - | 500mA (DC) | - | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.071" Dia x 0.500" L (1.80mm x 12.70mm) | - | -40°C ~ 125°C | 0.7 pF | 1A (DC) |
|
|
MATE-12B-8-13REED SWITCH |
1,000 |
|
Datasheet | MATE-12B | Bulk | Active | Glass Body Reed | SPST-NO | 8 ~ 13AT | - | 500mA (DC) | - | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.071" Dia x 0.500" L (1.80mm x 12.70mm) | - | -40°C ~ 125°C | 0.7 pF | 1A (DC) |
