Magnetic, Reed Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Circuit | Operate Range | Release Range | Current - Switching | Voltage - Switching AC | Voltage - Switching DC | Power - Rated | Operate Time | Release Time | Mounting Type | Termination Style | Length - Overall | Size - Body | Height Above Board | Operating Temperature | Capacitance | Current - Carry |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MARR-5-37-43SWITCH REED SPST-NO 350MA 265V |
0 |
|
Datasheet | MARR-5 | Box | Obsolete | Glass Body Reed | SPST-NO | 37 ~ 43AT | - | 350mA (AC), 500mA (DC) | 265 V | 1000 V | 10W | 0.75 ms | 0.3 ms | Through Hole | Axial | 2.235" (56.77mm) | 0.105" Dia x 0.775" L (2.66mm x 19.69mm) | - | -75°C ~ 125°C | 0.2 pF | 1.3A (DC) |
|
MARR-5-42-48SWITCH REED SPST-NO 350MA 265V |
0 |
|
Datasheet | MARR-5 | Bulk | Obsolete | Glass Body Reed | SPST-NO | 42 ~ 48AT | - | 350mA (AC), 500mA (DC) | 265 V | 1000 V | 10W | 0.75 ms | 0.3 ms | Through Hole | Axial | 2.235" (56.77mm) | 0.105" Dia x 0.775" L (2.66mm x 19.69mm) | - | -75°C ~ 125°C | 0.2 pF | 1.3A (DC) |
|
|
MARR-5-42-53SWITCH REED SPST-NO 350MA 265V |
0 |
|
Datasheet | MARR-5 | Bulk | Active | Glass Body Reed | SPST-NO | 42 ~ 53AT | - | 350mA (AC), 500mA (DC) | 265 V | 1000 V | 10W | 0.75 ms | 0.3 ms | Through Hole | Axial | 2.235" (56.77mm) | 0.105" Dia x 0.775" L (2.66mm x 19.69mm) | - | -75°C ~ 125°C | 0.2 pF | 1.3A (DC) |
|
MDCG-4-7-18SWITCH REED SPST-NO 350MA 140V |
0 |
|
Datasheet | MDCG-4 | Bulk | Active | Glass Body Reed | SPST-NO | 7 ~ 18AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) | - | -40°C ~ 125°C | 0.2 pF | 1.2A (DC) |
|
MDRR-DT-10-20-USWITCH REED SPDT 180MA 120V |
0 |
|
Datasheet | MDRR-DT | Bulk | Active | Glass Body Reed | SPDT | 10 ~ 20AT | - | 180mA (AC), 250mA (DC) | 120 V | 175 V | 5W | 0.7 ms | 1 ms | Through Hole | Axial | 2.066" (52.48mm) | 0.100" Dia x 0.580" L (2.54mm x 14.73mm) | - | -40°C ~ 125°C | 1 pF | 1.5A (DC) |
|
|
MDRR-DT-15-35-USWITCH REED SPDT 180MA 120V |
0 |
|
Datasheet | MDRR-DT | Bulk | Active | Glass Body Reed | SPDT | 15 ~ 35AT | - | 180mA (AC), 250mA (DC) | 120 V | 175 V | 5W | 0.7 ms | 1 ms | Through Hole | Axial | 2.066" (52.48mm) | 0.100" Dia x 0.580" L (2.54mm x 14.73mm) | - | -40°C ~ 125°C | 1 pF | 1.5A (DC) |
|
MDRR-DT-15-40-FSWITCH REED SPDT 180MA 120V |
0 |
|
Datasheet | MDRR-DT | Bulk | Active | Glass Body Reed | SPDT | 15 ~ 40AT | - | 180mA (AC), 250mA (DC) | 120 V | 175 V | 5W | 0.7 ms | 1 ms | Through Hole | Axial | 2.034" (51.66mm) | 0.100" Dia x 0.580" L (2.54mm x 14.73mm) | - | -40°C ~ 125°C | 1 pF | 1.5A (DC) |
|
|
MDRR-DT-20-40-FSWITCH REED SPDT 180MA 120V |
0 |
|
Datasheet | MDRR-DT | Bulk | Active | Glass Body Reed | SPDT | 20 ~ 40AT | - | 180mA (AC), 250mA (DC) | 120 V | 175 V | 5W | 0.7 ms | 1 ms | Through Hole | Axial | 2.034" (51.66mm) | 0.100" Dia x 0.580" L (2.54mm x 14.73mm) | - | -40°C ~ 125°C | 1 pF | 1.5A (DC) |
|
|
MDRR-DT-25-35-FSWITCH REED SPDT 180MA 120V |
0 |
|
Datasheet | MDRR-DT | Bulk | Active | Glass Body Reed | SPDT | 25 ~ 35AT | - | 180mA (AC), 250mA (DC) | 120 V | 175 V | 5W | 0.7 ms | 1 ms | Through Hole | Axial | 2.034" (51.66mm) | 0.100" Dia x 0.580" L (2.54mm x 14.73mm) | - | -40°C ~ 125°C | 1 pF | 1.5A (DC) |
|
|
MDRR-DT-25-35-USWITCH REED SPDT 180MA 120V |
0 |
|
Datasheet | MDRR-DT | Bulk | Active | Glass Body Reed | SPDT | 25 ~ 35AT | - | 180mA (AC), 250mA (DC) | 120 V | 175 V | 5W | 0.7 ms | 1 ms | Through Hole | Axial | 2.066" (52.48mm) | 0.100" Dia x 0.580" L (2.54mm x 14.73mm) | - | -40°C ~ 125°C | 1 pF | 1.5A (DC) |
|
|
MDRR-DT-40-45-FSWITCH REED SPDT 180MA 120V |
0 |
|
Datasheet | MDRR-DT | Bulk | Active | Glass Body Reed | SPDT | 40 ~ 45AT | - | 180mA (AC), 250mA (DC) | 120 V | 175 V | 5W | 0.7 ms | 1 ms | Through Hole | Axial | 2.034" (51.66mm) | 0.100" Dia x 0.580" L (2.54mm x 14.73mm) | - | -40°C ~ 125°C | 1 pF | 1.5A (DC) |
|
MLRR-4-17-33SWITCH REED SPST-NO 700MA 140V |
0 |
|
Datasheet | MLRR-4 | Bulk | Active | Glass Body Reed | SPST-NO | 17 ~ 33AT | - | 700mA (AC), 1A (DC) | 140 V | 200 V | 20W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.105" Dia x 0.600" L (2.66mm x 15.24mm) | - | -40°C ~ 125°C | 0.4 pF | 1A (DC) |
|
|
MLRR-4-32-43SWITCH REED SPST-NO 700MA 140V |
0 |
|
Datasheet | MLRR-4 | Bulk | Active | Glass Body Reed | SPST-NO | 32 ~ 43AT | - | 700mA (AC), 1A (DC) | 140 V | 200 V | 20W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.105" Dia x 0.600" L (2.66mm x 15.24mm) | - | -40°C ~ 125°C | 0.4 pF | 1A (DC) |
|
MRPR-3-17-23SWITCH REED SPST-NO 1.1A 140V |
0 |
|
Datasheet | MRPR-3 | Bulk | Obsolete | Glass Body Reed | SPST-NO | 17 ~ 23AT | - | 1.1A (AC), 1.5A (DC) | 140 V | 200 V | 50W | 0.75 ms | 0.3 ms | Through Hole | Axial | 2.230" (56.64mm) | 0.112" Dia x 0.775" L (2.84mm x 19.69mm) | - | -40°C ~ 125°C | 0.2 pF | 3A (DC) |
|
MRPR-3-22-28SWITCH REED SPST-NO 1.1A 140V |
0 |
|
Datasheet | MRPR-3 | Box | Obsolete | Glass Body Reed | SPST-NO | 22 ~ 28AT | - | 1.1A (AC), 1.5A (DC) | 140 V | 200 V | 50W | 0.75 ms | 0.3 ms | Through Hole | Axial | 2.230" (56.64mm) | 0.112" Dia x 0.775" L (2.84mm x 19.69mm) | - | -40°C ~ 125°C | 0.2 pF | 3A (DC) |
|
|
MRPR-3-42-48SWITCH REED SPST-NO 1.1A 140V |
0 |
|
Datasheet | MRPR-3 | Bulk | Obsolete | Glass Body Reed | SPST-NO | 42 ~ 48AT | - | 1.1A (AC), 1.5A (DC) | 140 V | 200 V | 50W | 0.75 ms | 0.3 ms | Through Hole | Axial | 2.230" (56.64mm) | 0.112" Dia x 0.775" L (2.84mm x 19.69mm) | - | -40°C ~ 125°C | 0.2 pF | 3A (DC) |
|
MRPR-8-12-18SWITCH REED SPST-NO 700MA 265V |
0 |
|
Datasheet | MRPR-8 | Bulk | Active | Glass Body Reed | SPST-NO | 12 ~ 18AT | - | 700mA (AC), 1A (DC) | 265 V | 250 V | 50W | 0.75 ms | 0.3 ms | Through Hole | Axial | 2.230" (56.64mm) | 0.112" Dia x 0.800" L (2.84mm x 20.32mm) | - | -20°C ~ 125°C | 0.2 pF | 2.5A (DC) |
|

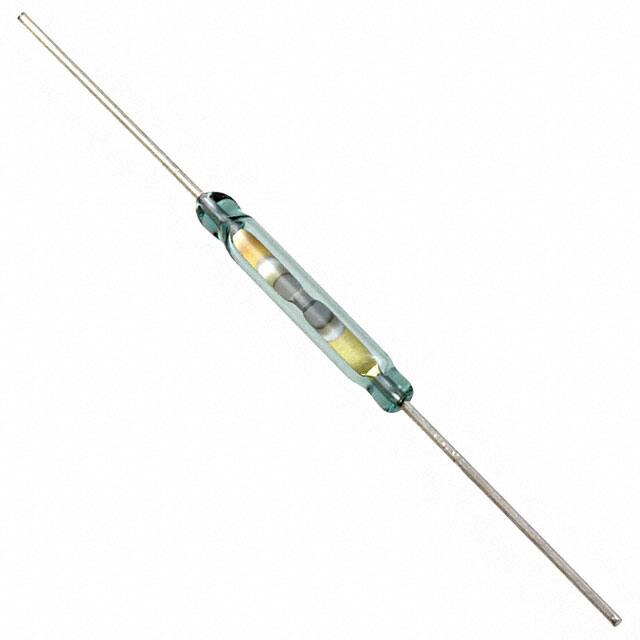

MRPR-8-22-28SWITCH REED SPST-NO 700MA 265V |
0 |
|
Datasheet | MRPR-8 | Bulk | Obsolete | Glass Body Reed | SPST-NO | 22 ~ 28AT | - | 700mA (AC), 1A (DC) | 265 V | 250 V | 50W | 0.75 ms | 0.3 ms | Through Hole | Axial | 2.230" (56.64mm) | 0.112" Dia x 0.800" L (2.84mm x 20.32mm) | - | -20°C ~ 125°C | 0.2 pF | 2.5A (DC) |
|
MRPR-8-27-33SWITCH REED SPST-NO 700MA 265V |
0 |
|
Datasheet | MRPR-8 | Bulk | Obsolete | Glass Body Reed | SPST-NO | 27 ~ 33AT | - | 700mA (AC), 1A (DC) | 265 V | 250 V | 50W | 0.75 ms | 0.3 ms | Through Hole | Axial | 2.230" (56.64mm) | 0.112" Dia x 0.800" L (2.84mm x 20.32mm) | - | -20°C ~ 125°C | 0.2 pF | 2.5A (DC) |
|
|
MRPR-8-27-38SWITCH REED SPST-NO 700MA 265V |
0 |
|
Datasheet | MRPR-8 | Box | Obsolete | Glass Body Reed | SPST-NO | 27 ~ 38AT | - | 700mA (AC), 1A (DC) | 265 V | 250 V | 50W | 0.75 ms | 0.3 ms | Through Hole | Axial | 2.230" (56.64mm) | 0.112" Dia x 0.800" L (2.84mm x 20.32mm) | - | -20°C ~ 125°C | 0.2 pF | 2.5A (DC) |
