Gates and Inverters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN74AHC05NSRIC BUFFER/DRIVER INVERT 6CH |
2,000 |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
74HC3G14GD,125IC INVERTER |
328,611 |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SN74AUP1G06DSF2IC SINGLE |
170,000 |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
74AUP2G00GF,115IC GATE NAND |
85,300 |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
74AUP2G14GN,132IC INVERT SCHMITT 2CH 2INP 6XSON |
75,000 |
|
Datasheet | 74AUP | 6-XFDFN | Bulk | Active | Inverter | 2 | 2 | Schmitt Trigger | 0.8V ~ 3.6V | 500 nA | 4mA, 4mA | 0.1V ~ 0.88V | 0.6V ~ 2.29V | 6.1ns @ 3.3V, 30pF | -40°C ~ 125°C | - | - | Surface Mount | 6-XSON (0.9x1) |
|
|
74AHC3G04GD,125IC INVERTER 3CH 3-INP 8XSON |
43,167 |
|
Datasheet | 74AHC | 8-XFDFN | Bulk | Active | Inverter | 3 | 3 | - | 2V ~ 5.5V | 1 µA | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V | 7.5ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 8-XSON (2x3) |
|
74HC3G04DC,125IC INVERTER 3CH 3-INP 8VSSOP |
33,000 |
|
Datasheet | 74HC | 8-VFSOP (0.091", 2.30mm Width) | Bulk | Active | Inverter | 3 | 3 | - | 2V ~ 6V | 1 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 13ns @ 6V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 8-VSSOP |
|
SN74LVC3G04DCT3IC INVERTER GATE TRPL |
21,000 |
|
Datasheet | 74LVC | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

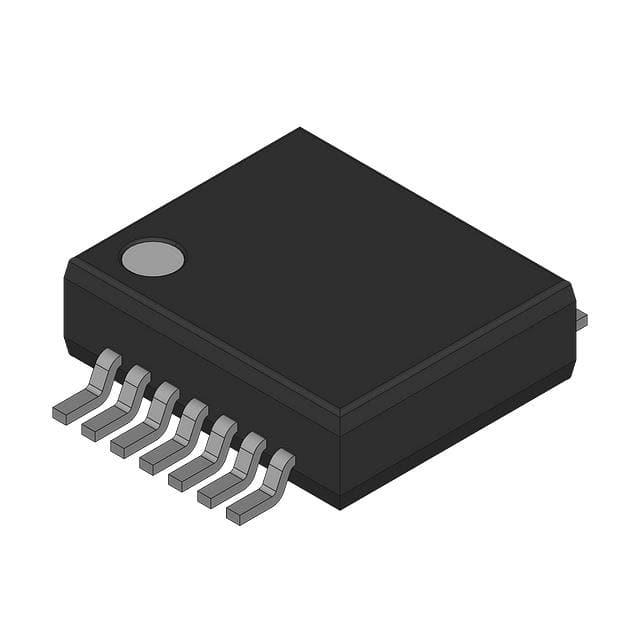

SN74ACT00DBIC GATE NAND 2-INP 14SSOP |
7,840 |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
74HCT2G00DC,125IC GATE NAND 2CH 2-INP 8VSSOP |
7,598 |
|
Datasheet | 74HCT | 8-VFSOP (0.091", 2.30mm Width) | Bulk | Active | NAND Gate | 2 | 2 | - | 4.5V ~ 5.5V | 20 µA | 4mA, 4mA | 0.8V | 2V | 12ns @ 4.5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 8-VSSOP |
|
SN74HC08ANSIC GATE AND 4CH 2-INP 14SO |
6,250 |
|
Datasheet | 74HC | 14-SOIC (0.209", 5.30mm Width) | Bulk | Active | AND Gate | 4 | 2 | - | 2V ~ 6V | 2 µA | 4mA, 4mA | 0.1V ~ 0.26V | 1.9V ~ 5.9V | 13ns @ 6V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SO |
|
|
XC7WH14GT,115IC INVERTER |
3,302 |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SN74HC00QDRHTIC GATE NAND 4CH 2-INP 14SOIC |
2,500 |
|
Datasheet | 74HC | 14-SOIC (0.154", 3.90mm Width) | Bulk | Active | NAND Gate | 4 | 2 | - | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 15ns @ 6V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SOIC |
|
|
74AUP1G386GS,132IC GATE XOR 1CH 3-INP 6XSON |
5,000 |
|
Datasheet | 74AUP | 6-XFDFN | Bulk | Active | XOR (Exclusive OR) | 1 | 3 | - | 0.8V ~ 3.6V | 500 nA | 4mA, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V | 6.1ns @ 3.3V, 30pF | -40°C ~ 125°C | - | - | Surface Mount | 6-XSON, SOT1202 (1x1) |
|
74AUP1G332GN,132IC GATE OR 1CH 3-INP 6XSON |
100,000 |
|
Datasheet | 74AUP | 6-XFDFN | Bulk | Active | OR Gate | 1 | 3 | - | 0.8V ~ 3.6V | 500 nA | 4mA, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V | 5.5ns @ 3.3V, 30pF | -40°C ~ 125°C | - | - | Surface Mount | 6-XSON (0.9x1) |
|
74AUP2G0604GMHIC INVERTER |
95,000 |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
74AUP1G332GN,132NEXPERIA 74AUP1G332 - LOW-POWER |
60,000 |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SN74LV86ATPWRG4Q1SN74LV86A-Q1 - AUTOMOTIVE CATALO |
24,000 |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
74HCT10DB,112IC GATE NAND |
3,868 |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
74LVC3G06GN,115IC INVERTER 3CH 3-INP 8XSON |
183,738 |
|
Datasheet | 74LVC | 8-XFDFN | Bulk | Active | Inverter | 3 | 3 | Open Drain | 1.65V ~ 5.5V | 4 µA | -, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 2.9ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 8-XSON (1.2x1) |
