Gates and Inverters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN74HCT08PWRIC GATE AND 4CH 2-INP 14TSSOP |
6,404 |
|
Datasheet | 74HCT | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | AND Gate | 4 | 2 | - | 4.5V ~ 5.5V | 2 µA | 4mA, 4mA | 0.8V | 2V | 22ns @ 5.5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-TSSOP |
|
SN74AHC02DRIC GATE NOR 4CH 2-INP 14SOIC |
6,196 |
|
Datasheet | 74AHC | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | NOR Gate | 4 | 2 | - | 2V ~ 5.5V | 2 µA | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V | 8.5ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SOIC |
|
|
SN74LVC04ADRIC INVERTER 6CH 1-INP 14SOIC |
5,325 |
|
Datasheet | 74LVC | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Inverter | 6 | 1 | - | 1.65V ~ 3.6V | 1 µA | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 4.3ns @ 3.3V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SOIC |
|
74LVC1G04SE-7IC INVERTER 1CH 1-INP SOT353 |
4,604 |
|
Datasheet | 74LVC | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | Inverter | 1 | 1 | - | 1.65V ~ 5.5V | 10 µA | 32mA, 32mA | 0.58V ~ 1.65V | 1.07V ~ 3.85V | 5ns @ 5V, 50pF | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-353 |
|
|
SN74AHCT02DRIC GATE NOR 4CH 2-INP 14SOIC |
3,416 |
|
Datasheet | 74AHCT | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | NOR Gate | 4 | 2 | - | 4.5V ~ 5.5V | 2 µA | 8mA, 8mA | 0.8V | 2V | 7.5ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOIC |
|
|
SN74AHCT32PWRIC GATE OR 4CH 2-INP 14TSSOP |
2,420 |
|
Datasheet | 74AHCT | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | OR Gate | 4 | 2 | - | 4.5V ~ 5.5V | 2 µA | 8mA, 8mA | 0.8V | 2V | 7.9ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-TSSOP |
|
|
74AHC1G86SE-7IC GATE XOR 1CH 2-INP SOT353 |
360,775 |
|
Datasheet | 74AHC | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | XOR (Exclusive OR) | 1 | 2 | - | 2V ~ 5.5V | 1 µA | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V | 8.8ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | SOT-353 |
|
74AHCT1G08W5-7IC GATE AND 1CH 2-INP SOT25 |
192,323 |
|
Datasheet | 74AHCT | SC-74A, SOT-753 | Tape & Reel (TR) | Active | AND Gate | 1 | 2 | - | 4.5V ~ 5.5V | 1 µA | 8mA, 8mA | 0.8V | 2V | 7.9ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | SOT-25 |
|
|
SN74AHC132DRIC GATE NAND 4CH 2-INP 14SOIC |
4,328 |
|
Datasheet | 74AHC | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | NAND Gate | 4 | 2 | Schmitt Trigger | 2V ~ 5.5V | 2 µA | 8mA, 8mA | 0.9V ~ 1.65V | 2.2V ~ 3.85V | 9.7ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOIC |
|
|
74LVC1G14SE-7IC INVERT SCHMITT 1CH 1IN SOT353 |
81,939 |
|
Datasheet | 74LVC | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | Inverter | 1 | 1 | Schmitt Trigger | 1.65V ~ 5.5V | 10 µA | 32mA, 32mA | 0.3V ~ 1.45V | 1.2V ~ 3.33V | 6.5ns @ 5V, 50pF | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-353 |
|
|
SN74LVC06ADRIC INVERTER 6CH 1-INP 14SOIC |
7,758 |
|
Datasheet | 74LVC | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Inverter | 6 | 1 | Open Drain | 1.65V ~ 3.6V | 1 µA | -, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 3.5ns @ 3.3V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SOIC |
|
|
74LVC1G32SE-7IC GATE OR 1CH 2-INP SOT353 |
61,817 |
|
Datasheet | 74LVC | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | OR Gate | 1 | 2 | - | 1.65V ~ 5.5V | 200 µA | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 1.7ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | SOT-353 |
|

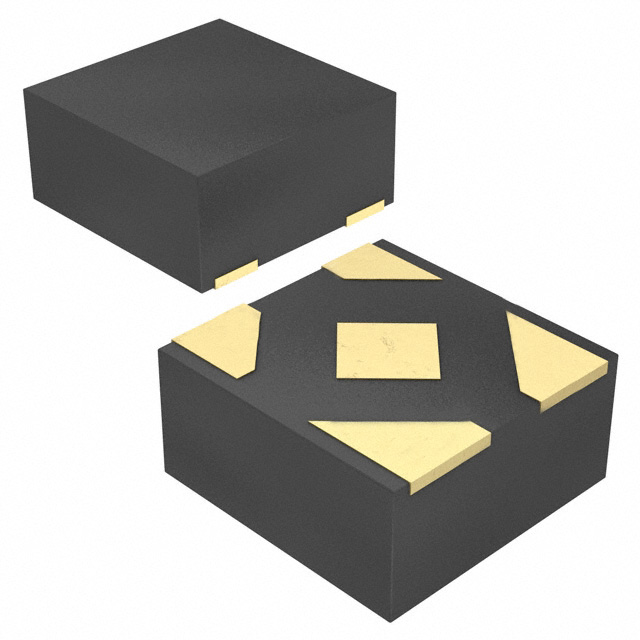

SN74LVC1G04DPWRIC INVERTER 1CH 1-INP 4X2SON |
11,341 |
|
Datasheet | 74LVC | 4-XFDFN Exposed Pad | Tape & Reel (TR) | Active | Inverter | 1 | 1 | - | 1.65V ~ 5.5V | 10 µA | 32mA, 32mA | 0.58V ~ 1.65V | 1.07V ~ 3.85V | 3.7ns @ 5V, 50pF | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-X2SON (0.8x0.8) |
|
|
SN74HCT32DRIC GATE OR 4CH 2-INP 14SOIC |
4,132 |
|
Datasheet | 74HCT | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | OR Gate | 4 | 2 | - | 4.5V ~ 5.5V | 2 µA | 4mA, 4mA | 0.8V | 2V | 22ns @ 5.5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOIC |
|
|
74AHCT1G04W5-7IC INVERTER 1CH 1-INP SOT25 |
28,674 |
|
Datasheet | 74AHCT | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Inverter | 1 | 1 | - | 4.5V ~ 5.5V | 1 µA | 8mA, 8mA | 0.8V | 2V | 7.7ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | SOT-25 |
|
SN74LVC1G08QDCKRQ1IC GATE AND 1CH 2-INP SC70-5 |
23,290 |
|
Datasheet | 74LVC | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | AND Gate | 1 | 2 | - | 1.65V ~ 5.5V | 10 µA | 32mA, 32mA | - | - | 6ns @ 5V, 50pF | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SC-70-5 |
|
SN74LVC1G332DCKRIC GATE OR 1CH 3-INP SC70-6 |
21,811 |
|
Datasheet | 74LVC | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | OR Gate | 1 | 3 | - | 1.65V ~ 5.5V | 10 µA | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 4.5ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | SC-70-6 |
|
|
74AHC1G32SE-7IC GATE OR 1CH 2-INP SOT353 |
20,789 |
|
Datasheet | 74AHC | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | OR Gate | 1 | 2 | - | 2V ~ 5.5V | 1 µA | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V | 7.5ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | SOT-353 |
|
|
74AHC1G00SE-7IC GATE NAND 1CH 2-INP SOT353 |
20,739 |
|
Datasheet | 74AHC | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | NAND Gate | 1 | 2 | - | 2V ~ 5.5V | 1 µA | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V | 7.5ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | SOT-353 |
|
|
74AHC1GU04SE-7IC INVERTER 1CH 1-INP SOT353 |
20,412 |
|
Datasheet | 74AHC | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | Inverter | 1 | 1 | - | 2V ~ 5.5V | 1 µA | 6mA, 6mA | 0.3V ~ 1.1V | 1.7V ~ 4.4V | 7ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SOT-353 |
