Gates and Inverters - Multi-Function, Configurable
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Schmitt Trigger Input | Output Type | Current - Output High, Low | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CLVC1G3208IDCKRQ1IC GATE POS OR-AND 3INP SC70-6 |
5,162 |
|
Datasheet | 74LVC | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | AND/OR Gate | 1 | 3 Input (2, 1) | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 85°C | Automotive | AEC-Q100 | Surface Mount | SC-70-6 |
|
74LVC1G98W6-7IC CONFIG MULT-FUNC GATE SOT26 |
2,770 |
|
- |
74LVC | SOT-23-6 | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | SOT-26 |
|
SN74AUP1G98DSFRIC GATE MULT-FUNC CONFIG 6SON |
13,470 |
|
Datasheet | 74AUP | 6-XFDFN | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 6-SON (1x1) |
|
SN74AUP1G98DRYRIC MULT-FUNC CONFIG GATE LP 6SON |
4,435 |
|
Datasheet | 74AUP | 6-UFDFN | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 6-SON (1.45x1) |
|
|
SN74LVC1G57DSFRIC CONFIG MULTI-FUNC GATE 6SON |
4,152 |
|
Datasheet | 74LVC | 6-XFDFN | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | 6-SON (1x1) |
|
|
SN74LVC1G58DSFRIC CONFIG MULTI-FUNC GATE 6SON |
3,805 |
|
Datasheet | 74LVC | 6-XFDFN | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | 6-SON (1x1) |
|
NL7SZ57DFT2G-QCONFIGURABLE MULTIFUNCTION GATE |
9,000 |
|
Datasheet | 7SZ | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -55°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SC-88/SC70-6/SOT-363 |
|
NL7SZ57DFT2GIC GATE MULTIFUNCT CONF SC-88 |
7,532 |
|
Datasheet | 7SZ | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -55°C ~ 125°C | - | - | Surface Mount | SC-88/SC70-6/SOT-363 |
|
|
NL7SZ58DFT2G-QFLEXIBLE CHOICE LOGIC (9 CONFIGU |
7,080 |
|
Datasheet | 7SZ | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -55°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SC-88/SC70-6/SOT-363 |
|
|
NL7SZ97DFT2G-QFLEXIBLE CHOICE LOGIC (9 CONFIGU |
5,133 |
|
Datasheet | 7SZ | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -55°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SC-88/SC70-6/SOT-363 |
|
|
NL7SZ97DFT2GIC GATE MULTIFUNCT CONF SC-88 |
5,004 |
|
Datasheet | 7SZ | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -55°C ~ 125°C | - | - | Surface Mount | SC-88/SC70-6/SOT-363 |
|
|
NL7SZ58DFT2GIC GATE MULTIFUNCT CONF SC-88 |
4,707 |
|
Datasheet | 7SZ | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -55°C ~ 125°C | - | - | Surface Mount | SC-88/SC70-6/SOT-363 |
|
|
SN74LVC1G98DRYRIC CONFIG MULTI-FUNC GATE 6SON |
3,981 |
|
Datasheet | 74LVC | 6-UFDFN | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | 6-SON (1.45x1) |
|
|
SN74LVC1G98DSFRIC CONFIG MULTI-FUNC GATE 6SON |
2,728 |
|
Datasheet | 74LVC | 6-XFDFN | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | 6-SON (1x1) |
|
SN74AUP1G98DBVRIC CONFIG MULT-FUNC GATE SOT23-6 |
1,814 |
|
Datasheet | 74AUP | SOT-23-6 | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-6 |
|
|
SN74AUP1G98DCKRIC CONFIG MULT-FUNC GATE SC70-6 |
447 |
|
Datasheet | 74AUP | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | SC-70-6 |
|
|
SN74AUP1G57DBVRIC CONFIG MULT-FUNC GATE SOT23-6 |
1,720 |
|
Datasheet | 74AUP | SOT-23-6 | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-6 |
|
CD4019BPWRIC QUAD AND/OR SLCT GATE 16TSSOP |
3,770 |
|
Datasheet | 4000B | 16-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | AND/OR Gate | 4 | 2 Input (1, 1) | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 18V | -55°C ~ 125°C | - | - | Surface Mount | 16-TSSOP |
|
74AUP2G3404FW4-7IC BUFFER/INVERTER SGL 6DFN |
39,241 |
|
Datasheet | 74AUP | 6-XFDFN | Tape & Reel (TR) | Active | Buffer/Inverter | 2 | 2 Input (1, 1) | No | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 125°C | - | - | Surface Mount | X2-DFN1010-6 |
|

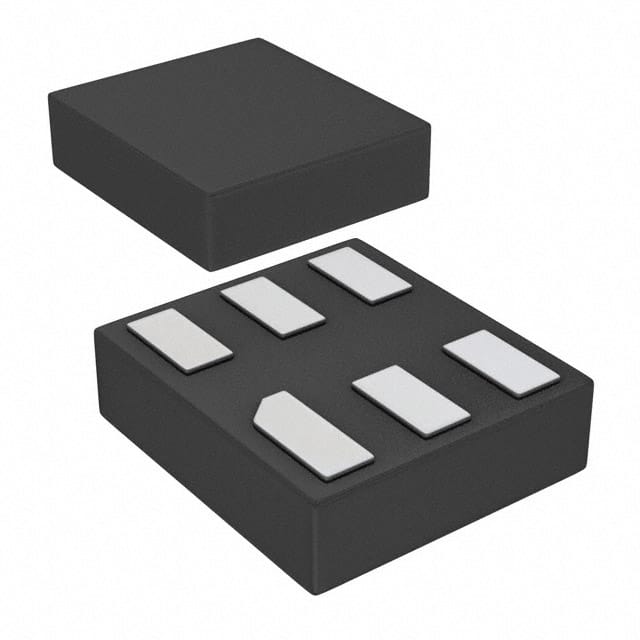

74AUP2G3404FW3-7AUP 2 GATES X2-DFN0910-6 |
4,401 |
|
Datasheet | 74AUP | 6-XFDFN | Tape & Reel (TR) | Active | Buffer/Inverter | 2 | 2 Input (1, 1) | No | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 125°C | - | - | Surface Mount | X2-DFN0910-6 |
