Flip Flops
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Function | Type | Output Type | Number of Elements | Number of Bits per Element | Clock Frequency | Max Propagation Delay @ V, Max CL | Trigger Type | Current - Output High, Low | Voltage - Supply | Current - Quiescent (Iq) | Input Capacitance | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SNJ54ALS374AWOCTAL D-TYPE EDGE TRIGGERED FLIP |
0 |
|
Datasheet | 54ALS | 20-CFlatPack | Tube | Active | Standard | D-Type | Tri-State, Non-Inverted | 1 | 8 | 30 MHz | 17ns @ 5V, 50pF | Positive Edge | 1mA, 12mA | 4.5V ~ 5.5V | 31 mA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 20-CFP |
|
|
M38510/34101BCADUAL POSITIVE-EDGE-TRIGGERED D-T |
0 |
|
Datasheet | 54F | 14-CDIP (0.300", 7.62mm) | Tube | Active | Set(Preset) and Reset | D-Type | Complementary | 2 | 1 | 80 MHz | 10.5ns @ 5V, 50pF | Positive Edge | 1mA, 20mA | 4.5V ~ 5.5V | 16 mA | - | -55°C ~ 125°C (TA) | - | - | Through Hole | 14-CDIP |
|
|
SNJ54ALS174JHEX D-TYPE FLIP-FLOPS WITH CLEAR |
0 |
|
Datasheet | 54ALS | 16-CDIP (0.300", 7.62mm) | Tube | Active | Master Reset | D-Type | Non-Inverted | 1 | 6 | 40 MHz | 24ns @ 5V, 50pF | Positive Edge | 400µA, 4mA | 4.5V ~ 5.5V | 19 mA | - | -55°C ~ 125°C (TA) | - | - | Through Hole | 16-CDIP |
|
|
SNJ54AS823AJT9-BIT BUS INTERFACE FLIP-FLOPS W |
0 |
|
Datasheet | 54AS | 24-CDIP (0.300", 7.62mm) | Tube | Active | Master Reset | D-Type | Tri-State, Non-Inverted | 1 | 9 | - | 14ns @ 5V, 50pF | Positive Edge | 24mA, 32mA | 4.5V ~ 5.5V | 103 mA | - | -55°C ~ 125°C (TA) | - | - | Through Hole | 24-CDIP |
|
|
SNJ5472WAND-GATED J-K MASTER-SLAVE FLIP- |
0 |
|
Datasheet | - | 14-CFlatPack | Tube | Active | Set(Preset) and Reset | JK Type | Complementary | 1 | 1 | 20 MHz | 40ns @ 5V, 15pF | Positive Edge | 400µA, 16mA | 4.5V ~ 5.5V | 20 mA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 14-CFP |
|
|
M38510/34102BFADUAL J-K POSITIVE-EDGE-TRIGGERED |
0 |
|
Datasheet | 54F | 16-CFlatPack | Tube | Active | Set(Preset) and Reset | JK Type | Complementary | 2 | 1 | 150 MHz | 8ns @ 5V, 50pF | Positive Edge | 1mA, 20mA | 4.5V ~ 5.5V | 17 mA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-CFP |
|
|
M38510/34101B2ADUAL POSITIVE-EDGE-TRIGGERED D-T |
0 |
|
Datasheet | 54F | 20-CLCC | Tube | Active | Set(Preset) and Reset | D-Type | Complementary | 2 | 1 | 145 MHz | 8ns @ 5V, 50pF | Positive Edge | 1mA, 20mA | 4.5V ~ 5.5V | 16 mA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 20-LCCC (8.89x8.89) |
|
|
NC7SV74AK8XIC FF D-TYPE SNGL 1BIT US8 |
0 |
|
Datasheet | - | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MC74VHCT374ADTR2GOCTAL D FLIP-FLOP WITH 3-STATE O |
0 |
|
Datasheet | 74VHCT | 20-TSSOP (0.173", 4.40mm Width) | Bulk | Discontinued at Digi-Key | Standard | D-Type | Tri-State, Non-Inverted | 1 | 8 | 130 MHz | 10.4ns @ 5V, 50pF | Positive Edge | 8mA, 8mA | 4.5V ~ 5.5V | 4 µA | 4 pF | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-TSSOP |
|

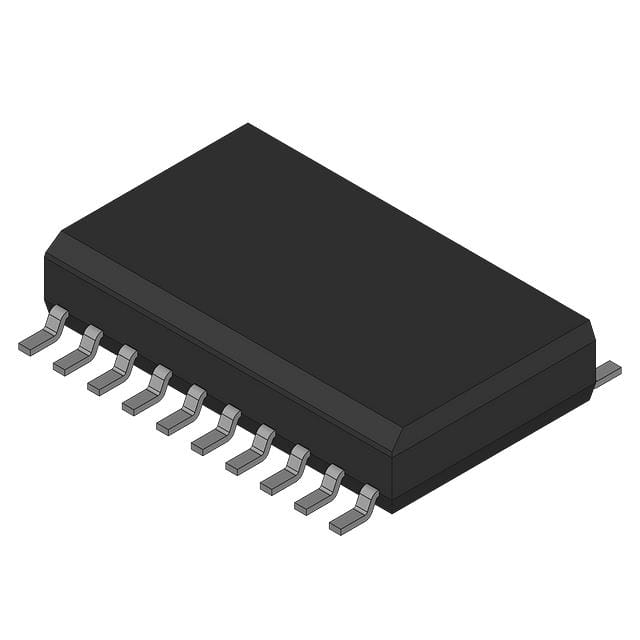

MC74LCX574MLOW VOLTAGE CMOS OCTAL D FLIP-FL |
0 |
|
Datasheet | 74LCX | 20-SOIC (0.209", 5.30mm Width) | Bulk | Discontinued at Digi-Key | Standard | D-Type | Tri-State, Non-Inverted | 1 | 8 | 150 MHz | 8.5ns @ 3.3V, 50pF | Positive Edge | 24mA, 24mA | 2V ~ 3.6V | 10 µA | 7 pF | -55°C ~ 125°C (TA) | - | - | Surface Mount | SOEIAJ-20 |
|
|
MC74VHCT374ADWR2GOCTAL D FLIP-FLOP WITH 3-STATE O |
0 |
|
Datasheet | 74VHCT | 20-SOIC (0.295", 7.50mm Width) | Bulk | Discontinued at Digi-Key | Standard | D-Type | Tri-State, Non-Inverted | 1 | 8 | 130 MHz | 10.4ns @ 5V, 50pF | Positive Edge | 8mA, 8mA | 4.5V ~ 5.5V | 4 µA | 4 pF | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-SOIC |
|
|
MC74HC174ADR2G-QIC FF D-TYPE SNGL 6BIT 16SOIC |
0 |
|
- |
74HC | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Master Reset | D-Type | Non-Inverted | 1 | 6 | 35 MHz | 19ns @ 6V, 50pF | Positive Edge | 5.2mA, 5.2mA | 2V ~ 6V | 4 µA | 10 pF | -55°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 16-SOIC |
