Video Amps and Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Applications | Output Type | Number of Circuits | -3db Bandwidth | Slew Rate | Current - Supply | Current - Output / Channel | Voltage - Supply, Single/Dual (±) | Mounting Type | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CGD1044H,112IC AMP CATV SOT115J |
0 |
|
Datasheet | SOT-115J | - | Bulk | Obsolete | CATV | - | 1 | - | - | 450 mA | - | - | Chassis Mount | - | - | SOT115J |
|
TSL1018IFTIC AMP TFT-LCD 48TQFP |
0 |
|
Datasheet | 48-TQFP Exposed Pad | - | Tape & Reel (TR) | Active | TFT-LCD Panels: Gamma Buffer, VCOM Driver | - | 18 | 3.5 MHz | 1.1V/µs | 8 mA | 150 mA | 5.5V ~ 16.8V | Surface Mount | - | - | 48-TQFP-EP (7x7) |
|
|
TSL1018IFIC AMP TFT-LCD 48TQFP |
0 |
|
Datasheet | 48-TQFP Exposed Pad | - | Tray | Active | TFT-LCD Panels: Gamma Buffer, VCOM Driver | - | 18 | 3.5 MHz | 1.1V/µs | 8 mA | 150 mA | 5.5V ~ 16.8V | Surface Mount | - | - | 48-TQFP-EP (7x7) |
|
LMH6734MQX/NOPBIC AMP CURRENT FEEDBACK 16QSOP |
0 |
|
Datasheet | 16-SSOP (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | Current Feedback | - | 3 | 925 MHz | 3750V/µs | 19.5 mA | 80 mA | 3V ~ 12V, ±1.5V ~ 6V | Surface Mount | - | - | 16-QSOP |
|
ZXFV4089N8TCIC AMP DC RESTORATION 8SOP |
0 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | DC Restoration | - | 1 | 210 MHz | 400V/µs | 8 mA | 40 mA | ±4.75V ~ 5.25V | Surface Mount | - | - | 8-SO |
|
ISL59448IAZIC AMP MPLEX AMP 24QSOP |
0 |
|
Datasheet | 24-SSOP (0.154", 3.90mm Width) | - | Bulk | Obsolete | 2:1 Multiplexer-Amplifier | - | 3 | 570 MHz | 1600V/µs | 31 mA | 180 mA | - | Surface Mount | - | - | 24-QSOP |
|
ISL4089IBZIC AMP GENERAL PURPOSE 8SOIC |
0 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | General Purpose | - | 1 | 300 MHz | 300V/µs | 20 mA | 100 mA | - | Surface Mount | - | - | 8-SOIC |
|
ISL59832IRZIC AMP FILTER 16QFN |
0 |
|
Datasheet | 16-VQFN Exposed Pad | - | Tube | Obsolete | Filter | - | 2 | 9 MHz | - | 14 mA | - | 3V ~ 3.6V | Surface Mount | - | - | 16-QFN (4x4) |
|
|
BGY588C,112IC AMP CATV SOT115J |
0 |
|
Datasheet | SOT-115J | - | Tube | Obsolete | CATV | Push-Pull | 1 | - | - | 325 mA | - | - | Chassis Mount | - | - | SOT115J |
|
|
CGD944C,112IC AMP CATV SOT115J |
0 |
|
Datasheet | SOT-115J | - | Bulk | Obsolete | CATV | - | 1 | - | - | 450 mA | - | - | Chassis Mount | - | - | SOT115J |
|
EL8108ISZIC AMP CURRENT FEEDBACK 8SOIC |
0 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Bulk | Obsolete | Current Feedback | - | 2 | 200 MHz | 800V/µs | 14.3 mA | 450 mA | 5V ~ 12V, ±2.5V ~ 6V | Surface Mount | - | - | 8-SOIC |
|
ISL59311IRZIC VIDEO AMP TRI DIFF 32-QFN |
0 |
|
Datasheet | 32-VFQFN Exposed Pad | - | Bulk | Obsolete | Differential | Differential | 3 | 650 MHz | 1500V/µs | 7 mA | 60 mA | 4.5V ~ 5.5V | Surface Mount | - | - | 32-QFN (5x6) |
|
|
ISL59119IBZIC AMP REC FILTR 8SOIC |
0 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Bulk | Obsolete | Reconstruction Filter | Rail-to-Rail | 3 | 8 MHz | 25V/µs | 9.5 mA | 65 mA | 3V ~ 5.5V | Surface Mount | - | - | 8-SOIC |
|

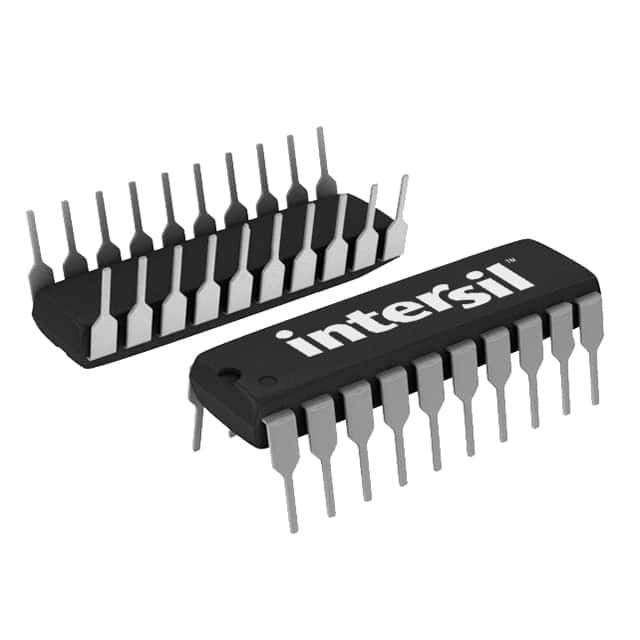

HA5024IPZIC AMP CURRENT FEEDBACK 20DIP |
0 |
|
Datasheet | 20-DIP (0.300", 7.62mm) | - | Tube | Obsolete | Current Feedback | - | 4 | 125 MHz | 350V/µs | 7.5 mA | 20 mA | ±4.5V ~ 18V | Through Hole | - | - | 20-PDIP |
|
HFA1145IPZIC AMP CURRENT FEEDBACK 8DIP |
0 |
|
Datasheet | 8-DIP (0.300", 7.62mm) | - | Tube | Obsolete | Current Feedback | - | 1 | 330 MHz | 2100V/µs | 5.8 mA | 60 mA | 9V ~ 11V, ±4.5V ~ 5.5V | Through Hole | - | - | 8-PDIP |
|
|
HFA1145IBZIC AMP CURRENT FEEDBACK 8SOIC |
0 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | Current Feedback | - | 1 | 330 MHz | 2100V/µs | 5.8 mA | 60 mA | 9V ~ 11V, ±4.5V ~ 5.5V | Surface Mount | - | - | 8-SOIC |
|
HA5023IPZIC AMP CURRENT FEEDBACK 8DIP |
0 |
|
Datasheet | 8-DIP (0.300", 7.62mm) | - | Tube | Obsolete | Current Feedback | - | 2 | 125 MHz | 350V/µs | 7.5 mA | 20 mA | ±4.75V ~ 18V | Through Hole | - | - | 8-PDIP |
|
|
HA3-5020-5ZIC AMP CURRENT FEEDBACK 8DIP |
0 |
|
Datasheet | 8-DIP (0.300", 7.62mm) | - | Tube | Obsolete | Current Feedback | - | 1 | 100 MHz | 1100V/µs | 7.5 mA | 31.7 mA | ±4.5V ~ 18V | Through Hole | - | - | 8-PDIP |
|
ISL59448IAZ-T7IC AMP MPLEX AMP 24QSOP |
0 |
|
Datasheet | 24-SSOP (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | 2:1 Multiplexer-Amplifier | - | 3 | 570 MHz | 1600V/µs | 31 mA | 180 mA | - | Surface Mount | - | - | 24-QSOP |
|
|
ISL59311IRZ-T13IC VIDEO AMP TRI DIFF 32-QFN |
0 |
|
Datasheet | 32-VFQFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | Differential | Differential | 3 | 650 MHz | 1500V/µs | 7 mA | 60 mA | 4.5V ~ 5.5V | Surface Mount | - | - | 32-QFN (5x6) |
