LED Indication - Discrete
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Color | Configuration | Lens Color | Lens Transparency | Millicandela Rating | Lens Style | Lens Size | Voltage - Forward (Vf) (Typ) | Current - Test | Viewing Angle | Mounting Type | Wavelength - Dominant | Wavelength - Peak | Features | Grade | Qualification | Supplier Device Package | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MV6700ALED RED DIFFUSED T-3/4 T/H AXIAL |
0 |
|
Datasheet | - | Axial, Flat Leads | Bulk | Obsolete | Red | Standard | Red | Diffused | 3mcd | Round with Domed Top | 1.75mm Dia | 1.8V | 10mA | 50° | Through Hole, Axial | - | 635nm | - | - | - | T-3/4 | 2.20mm L x 2.10mm W |
|
|
QTLP9132LED RED DIFF SUBMINI T-3/4 AXIAL |
0 |
|
Datasheet | - | Axial, Flat Leads | Bulk | Obsolete | Red | Standard | Red | Diffused | 15mcd | Round with Domed Top | 2mm, T-3/4 | 2V | 20mA | 50° | Through Hole, Axial | - | 635nm | - | - | - | Subminiature T-3/4 | 2.50mm L x 2.00mm W |
|
|
QTLP9134LED GRN DIFF SUBMINI T-3/4 AXIAL |
0 |
|
Datasheet | - | Axial, Flat Leads | Bulk | Obsolete | Green | Standard | Green | Diffused | 5mcd | Round with Domed Top | 2mm, T-3/4 | 2.1V | 20mA | 50° | Through Hole, Axial | - | 565nm | - | - | - | Subminiature T-3/4 | 2.50mm L x 2.00mm W |
|

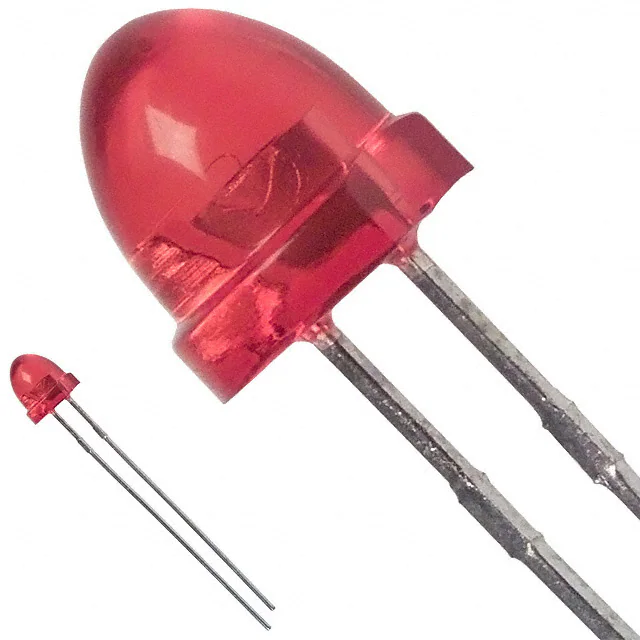

HLMP-3366LED RED CLEAR T-1 3/4 T/H |
0 |
|
Datasheet | - | Radial | Bulk | Active | Red | Standard | Red | Clear | 13.8mcd | Round with Domed Top | 5mm, T-1 3/4 | 1.9V | 10mA | 50° | Through Hole | 626nm | 635nm | - | - | - | T-1 3/4 | - |
|
HLMP-3490LED YELLOW CLEAR T-1 3/4 T/H |
0 |
|
Datasheet | - | Radial | Bulk | Active | Yellow | Standard | Colorless | Clear | 55mcd | Round with Domed Top | 5mm, T-1 3/4 | 2.1V | 20mA | 24° | Through Hole | 585nm | 583nm | - | - | - | T-1 3/4 | - |
|
|
HLMP-EJ15-PS000LED ORANGE CLEAR T-1 3/4 T/H |
0 |
|
Datasheet | - | Radial | Bulk | Active | Orange | Standard | Colorless | Clear | 1690mcd | Round with Domed Top | 5mm, T-1 3/4 | 1.98V | 20mA | 15° | Through Hole | 605nm | 609nm | - | - | - | T-1 3/4 | - |
|
ASMT-UWB2-NX302LED WHITE 2PLCC SMD |
0 |
|
Datasheet | ASMT-UWB2 | 2-PLCC | Tape & Reel (TR) | Active | White | Standard | - | - | - | Round with Flat Top | - | 3.2V | 20mA | 120° | Surface Mount | 4500K ~ 8000K | - | - | - | - | 2-PLCC | 3.20mm L x 2.80mm W |
|
|
ASMT-UWB2-NX3A2LED COOL WHITE 2PLCC SMD |
0 |
|
Datasheet | ASMT-UWB2 | 2-PLCC | Tape & Reel (TR) | Active | White, Cool | Standard | - | - | - | Round with Flat Top | - | 3.2V | 20mA | 120° | Surface Mount | 8000K | - | - | - | - | 2-PLCC | 3.20mm L x 2.80mm W |
|
|
ASMT-UWB2-NX3B2LED COOL WHITE 2PLCC SMD |
0 |
|
Datasheet | ASMT-UWB2 | 2-PLCC | Tape & Reel (TR) | Active | White, Cool | Standard | - | - | - | Round with Flat Top | - | 3.2V | 20mA | 120° | Surface Mount | 6500K | - | - | - | - | 2-PLCC | 3.20mm L x 2.80mm W |
|
|
ASMT-UWB2-NX3C2LED COOL WHITE 2PLCC SMD |
0 |
|
Datasheet | ASMT-UWB2 | 2-PLCC | Tape & Reel (TR) | Active | White, Cool | Standard | - | - | - | Round with Flat Top | - | 3.2V | 20mA | 120° | Surface Mount | 5700K | - | - | - | - | 2-PLCC | 3.20mm L x 2.80mm W |
|
|
ASMT-UWB2-NX3D2LED COOL WHITE 2PLCC SMD |
0 |
|
Datasheet | ASMT-UWB2 | 2-PLCC | Tape & Reel (TR) | Active | White, Cool | Standard | - | - | - | Round with Flat Top | - | 3.2V | 20mA | 120° | Surface Mount | 5000K | - | - | - | - | 2-PLCC | 3.20mm L x 2.80mm W |
|
|
ASMT-UWB2-NX3E2LED WHITE/NEUTRAL 2PLCC SMD |
0 |
|
Datasheet | ASMT-UWB2 | 2-PLCC | Tape & Reel (TR) | Active | White, Neutral | Standard | - | - | - | Round with Flat Top | - | 3.2V | 20mA | 120° | Surface Mount | 4500K | - | - | - | - | 2-PLCC | 3.20mm L x 2.80mm W |
|
|
HLMPQ150ALED RED DIFF SUBMINI T-3/4 AXIAL |
0 |
|
Datasheet | - | Axial, Flat Leads | Bulk | Obsolete | Red | Standard | Red | Diffused | 1.8mcd | Round with Domed Top | 1.75mm Dia | 1.6V | 1mA | 50° | Through Hole, Axial | - | 660nm | - | - | - | Subminiature T-3/4 | 2.20mm L x 2.10mm W |
|
|
SML-012YTT86LED YELLOW CLEAR 1208 SMD |
0 |
|
Datasheet | SML-012x | 1208 (3020 Metric) | Bulk | Active | Yellow | - | Colorless | Clear | 100mcd | Rectangle with Flat Top | 2.30mm x 1.60mm | 2V | 20mA | - | Surface Mount | 590nm | - | - | - | - | 1208 | 3.00mm L x 2.00mm W |
|
|
HSMB-C112LED BLUE CLEAR CHIP SMD R/A |
0 |
|
Datasheet | - | 2-SMD, No Lead | Tape & Reel (TR) | Obsolete | Blue | Standard | Colorless | Clear | 3.1mcd | Rectangle with Domed Top | 2.00mm x 1.00mm | 4V | 10mA | 130° | Surface Mount, Right Angle | 462nm | 428nm | - | - | - | Chip LED | 3.20mm L x 1.00mm W |
|
|
HSMB-C172LED BLUE DIFFUSED CHIP SMD |
0 |
|
Datasheet | - | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Blue | Standard | White | Diffused | 3mcd | Rectangle with Flat Top | 1.40mm x 1.25mm | 4V | 10mA | 170° | Surface Mount | 462nm | 428nm | - | - | - | Chip LED | 2.00mm L x 1.25mm W |
|
|
HSMB-C192LED BLUE DIFFUSED CHIP SMD |
0 |
|
Datasheet | - | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Blue | Standard | White | Diffused | 3mcd | Rectangle with Flat Top | 1.00mm x 0.80mm | 4V | 10mA | 170° | Surface Mount | 462nm | 428nm | - | - | - | Chip LED | 1.60mm L x 0.80mm W |
|
SLB-25MG3FLED GREEN DIFFUSED T/H |
0 |
|
Datasheet | - | Radial | Bulk | Obsolete | Green | Standard | Green | Diffused | 1mcd | Rectangle with Flat Top | 5.00mm x 2.00mm | 2.1V | 10mA | 160° | Through Hole | 572nm | - | - | - | - | - | - |
|
|
QTLP9135LED GRN DIFF SUBMINI T-3/4 AXIAL |
0 |
|
Datasheet | - | Axial, Flat Leads | Bulk | Obsolete | Green | Standard | Green | Diffused | 2.5mcd | Round with Domed Top | 2mm, T-3/4 | 2V | 20mA | 50° | Through Hole, Axial | - | 555nm | - | - | - | Subminiature T-3/4 | 2.50mm L x 2.00mm W |
|

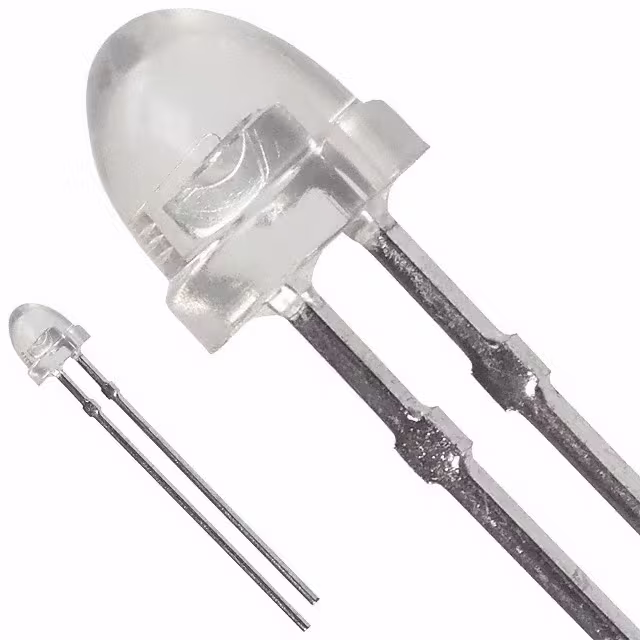

HLMP-3390LED RED CLEAR T-1 3/4 T/H |
0 |
|
Datasheet | - | Radial | Bulk | Active | Red | Standard | Colorless | Clear | 55mcd | Round with Domed Top | 5mm, T-1 3/4 | 1.9V | 20mA | 24° | Through Hole | 626nm | 635nm | - | - | - | T-1 3/4 | - |
