LED Indication - Discrete
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Color | Configuration | Lens Color | Lens Transparency | Millicandela Rating | Lens Style | Lens Size | Voltage - Forward (Vf) (Typ) | Current - Test | Viewing Angle | Mounting Type | Wavelength - Dominant | Wavelength - Peak | Features | Grade | Qualification | Supplier Device Package | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HSMF-A226-A00J1LED AMB/YL/GRN 2PLCC SMD |
7,319 |
|
Datasheet | - | 2-PLCC | Tape & Reel (TR) | Active | Amber, Yellow-Green | - | - | - | 100mcd Amber, 60mcd Yellow-Green | Round with Flat Top | 2.20mm Dia | 1.9V Amber, 1.9V Yellow-Green | 20mA | 120° | Surface Mount | 590nm Amber, 571nm Yellow-Green | 592nm Amber, 575nm Yellow-Green | - | - | - | 2-PLCC | 3.20mm L x 2.80mm W |
|
SMLVN6RGB7W1LED RGB 3528 SMD |
1,954 |
|
Datasheet | SMLVN6RGB7W | 6-SMD, Flat Leads | Tape & Reel (TR) | Active | Red, Green, Blue (RGB) | Independent | - | - | 500mcd Red, 1000mcd Green, 300mcd Blue | Rectangle with Flat Top | - | 2.1V Red, 3.5V Green, 3.3V Blue | 20mA Red, 20mA Green, 20mA Blue | - | Surface Mount | 624nm Red, 527nm Green, 470nm Blue | - | - | - | - | 3528 (1411) | 3.10mm L x 2.80mm W |
|
HLMP-6305LED RED CLEAR AXIAL T/H AXIAL |
8,000 |
|
Datasheet | HLMP-6xxx | Axial, Flat Leads | Bulk | Active | Red | Standard | Colorless | Clear | 40mcd | Round with Domed Top | 1.91mm Dia | 1.8V | 10mA | 28° | Through Hole, Axial | 626nm | 635nm | - | - | - | Axial | 2.08mm L x 2.21mm W |
|
HLMP-7040LED GRN DIFFUSED AXIAL T/H AXIAL |
18,492 |
|
Datasheet | HLMP-70xx | Axial, Flat Leads | Bulk | Active | Green | Standard | Green | Diffused | 0.6mcd | Round with Domed Top | 1.91mm Dia | 2.1V | 2mA | 90° | Through Hole, Axial | 569nm | 565nm | - | - | - | Axial | 2.08mm L x 2.21mm W |
|
HLMP-NM31-R0000LED GREEN CLEAR T-1 T/H |
7,916 |
|
Datasheet | - | Radial | Bulk | Active | Green | Standard | - | Clear | 1500mcd | Round with Domed Top | 3mm, T-1 | 3.2V | 20mA | 30° | Through Hole | 527nm | 520nm | - | - | - | T-1 | - |
|
HLMP-7000LED RED DIFFUSED AXIAL T/H AXIAL |
10,863 |
|
Datasheet | HLMP-70xx | Axial, Flat Leads | Bulk | Active | Red | Standard | Red | Diffused | 1mcd | Round with Domed Top | 1.91mm Dia | 1.8V | 2mA | 90° | Through Hole, Axial | 626nm | 635nm | - | - | - | Axial | 2.08mm L x 2.21mm W |
|
CSL0701UT5LED RED CLEAR SMD |
1,569 |
|
Datasheet | CSL07 | 2-SMD, No Lead | Tape & Reel (TR) | Active | Red | Standard | Colorless | Clear | 18000mcd | Round with Domed Top | 2.10mm Dia | 2.1V | 20mA | - | Surface Mount | 624nm | - | - | - | - | - | 2.90mm L x 2.50mm W |
|
HLMA-QH00-S0011LED RED CLEAR SMD |
11,780 |
|
Datasheet | - | 2-SMD, Gull Wing | Tape & Reel (TR) | Active | Red | Standard | Colorless | Clear | 500mcd | Round with Domed Top | 1.78mm Dia | 1.9V | 20mA | 15° | Surface Mount | 615nm | 621nm | - | - | - | - | 1.99mm L x 2.21mm W |
|
SLA580ENT3FLED GREEN T/H |
854 |
|
Datasheet | SLA580x | Radial | Bulk | Active | Green | Standard | Colorless | Clear | 27000mcd | Round with Domed Top | 5mm, T-1 3/4 | 3.3V | 20mA | 10° | Through Hole | 527nm | - | - | - | - | T-1 3/4 | - |
|
HSMF-C125LED RGB CHIP TOP MNT SMD |
5,439 |
|
Datasheet | - | 0606 (1616 Metric) | Tape & Reel (TR) | Active | Red, Green, Blue (RGB) | Independent | - | - | - | Rectangle with Flat Top | 1.60mm x 1.15mm | 2.15V Red, 3.415V Green, 3.425V Blue | 10mA Red, 10mA Green, 10mA Blue | 130° Red, 150° Green, 150° Blue | Surface Mount | 623nm Red, 522nm Green, 467nm Blue | 630nm Red, 515nm Green, 461nm Blue | - | - | - | - | 1.60mm L x 1.60mm W |
|
HLMT-PL00LED AMBER CLEAR FLAT T/H AXIAL |
7,009 |
|
Datasheet | SunPower | Axial, Flat Leads | Bulk | Active | Amber | Standard | Colorless | Clear | 150mcd | Round with Flat Top | 1.91mm Dia | 2V | 20mA | 125° | Through Hole, Axial | 590nm | 592nm | - | - | - | Flat Top LED | 1.99mm L x 2.21mm W |
|
|
SLA560EN4T3FLED GREEN T/H |
342 |
|
Datasheet | SLA560x | Radial | Bulk | Active | Green | - | - | - | 3000mcd | Round with Domed Top | 5.00mm Dia | 3.2V | 20mA | - | Through Hole | 523nm | - | - | - | - | - | - |
|
|
SMLK28WBNCW1LED WHITE CLEAR 4520 SMD |
1,712 |
|
Datasheet | - | 4-SMD, No Lead | Tape & Reel (TR) | Active | White | - | White | Clear | 5900mcd | Rectangle with Flat Top | 3.50mm x 1.50mm | 3.9V | 90mA | - | Surface Mount | - | - | - | - | - | 4520 (1808) | 4.00mm L x 2.00mm W |
|
HLMP-P156-HK031LED RED CLEAR SMD |
8,997 |
|
Datasheet | HLMP-Pxxx | 2-SMD, Flat Leads | Tape & Reel (TR) | Active | Red | Standard | - | Clear | 2mcd | Round with Flat Top | 1.91mm Dia | 2V | 0.5mA | 75° | Surface Mount | 630nm | 640nm | - | - | - | SMD | 2.09mm L x 2.21mm W |
|
HLMP-NS30-J0000LED BLUE CLEAR T-1 T/H |
636 |
|
Datasheet | - | Radial | Bulk | Active | Blue | Standard | - | Clear | 240mcd | Round with Domed Top | 3mm, T-1 | 3.2V | 20mA | 30° | Through Hole | 470nm | 468nm | - | - | - | T-1 | - |
|
HLMP-6720LED YL DIFFUSED AXIAL T/H AXIAL |
4,362 |
|
Datasheet | HLMP-6xxx | Axial, Flat Leads | Bulk | Active | Yellow | Standard | Yellow | Diffused | 2mcd | Round with Domed Top | 1.78mm Dia | 5V | 10mA | 90° | Through Hole, Axial | 585nm | 583nm | - | - | - | Axial | 2.08mm L x 2.21mm W |
|
HLMP-6000-E0011LED RED DIFFUSED GULL WING SMD |
4,735 |
|
Datasheet | HLMP-6xxx | 2-SMD, Gull Wing | Tape & Reel (TR) | Active | Red | Standard | Red | Diffused | 1.2mcd | Round with Domed Top | 1.78mm Dia | 1.6V | 10mA | 90° | Surface Mount | 640nm | 655nm | - | - | - | Gull Wing | 2.08mm L x 2.21mm W |
|
HLMP-Q102LED RED DIFFUSED AXIAL T/H AXIAL |
8,252 |
|
Datasheet | HLMP-Qxxx | Axial, Flat Leads | Bulk | Active | Red | Standard | Red | Diffused | 100mcd | Round with Domed Top | 1.78mm Dia | 1.9V | 20mA | 35° | Through Hole, Axial | 644nm | 654nm | - | - | - | Axial | 2.09mm L x 2.21mm W |
|
|
HLMP-6400-F0011LED YELLOW DIFF GULL WING SMD |
2,230 |
|
Datasheet | HLMP-6xxx | 2-SMD, Gull Wing | Tape & Reel (TR) | Active | Yellow | Standard | Yellow | Diffused | 9mcd | Round with Domed Top | 1.78mm Dia | 2V | 10mA | 90° | Surface Mount | 585nm | 583nm | - | - | - | Gull Wing | 2.08mm L x 2.21mm W |
|

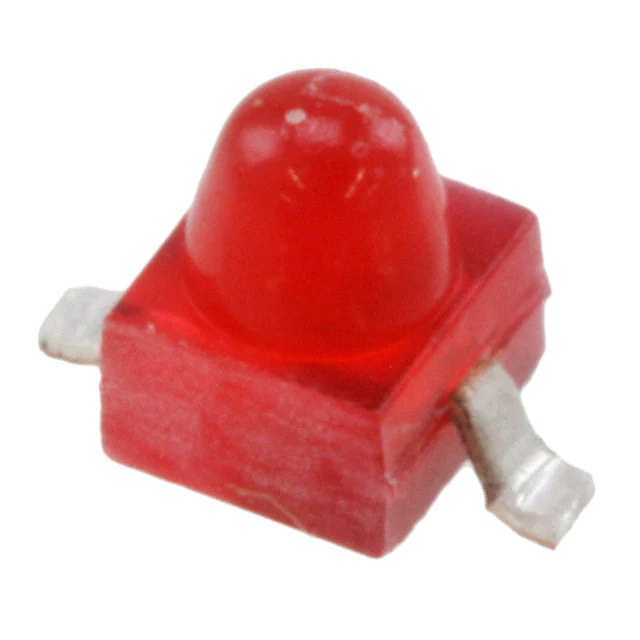

HLMP-6600-G0011LED RED DIFFUSED GULL WING SMD |
10,986 |
|
Datasheet | HLMP-6xxx | 2-SMD, Gull Wing | Tape & Reel (TR) | Active | Red | Standard | Red | Diffused | 5mcd | Round with Domed Top | 1.78mm Dia | 5V | 10mA | 90° | Surface Mount | 626nm | 635nm | - | - | - | Gull Wing | 2.08mm L x 2.21mm W |
