LED Indication - Discrete
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Color | Configuration | Lens Color | Lens Transparency | Millicandela Rating | Lens Style | Lens Size | Voltage - Forward (Vf) (Typ) | Current - Test | Viewing Angle | Mounting Type | Wavelength - Dominant | Wavelength - Peak | Features | Grade | Qualification | Supplier Device Package | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMLD12BN1WT86CLONG LIFE TYPE MINI-MOLD CHIP LE |
3,561 |
|
Datasheet | - | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Blue | - | White | Diffused | 40mcd | Rectangle with Flat Top | 1.20mm x 0.80mm | 2.9V | 5mA | - | Surface Mount | 470nm | - | - | Automotive | AEC-Q102 | 0603 | 1.60mm L x 0.65mm W |
|
HLMP-C115LED RED CLEAR T-1 3/4 T/H |
23,905 |
|
Datasheet | - | Radial | Bulk | Active | Red | Standard | Red | Clear | 600mcd | Round with Domed Top | 5mm, T-1 3/4 | 1.8V | 20mA | 15° | Through Hole | 640nm | 660nm | - | - | - | T-1 3/4 | - |
|
HLMA-KH00-J0000LED RED CLEAR T-1 T/H |
31,984 |
|
Datasheet | - | Radial | Bulk | Active | Red | Standard | Colorless | Clear | 200mcd | Round with Domed Top | 3mm, T-1 | 1.9V | 20mA | 45° | Through Hole | 615nm | 621nm | - | - | - | T-1 | - |
|
ASMT-BB20-NS000LED BLUE CLEAR SMD |
8,394 |
|
Datasheet | - | 1209 (3224 Metric) | Tape & Reel (TR) | Active | Blue | Standard | Colorless | Clear | 650mcd | Round with Domed Top | 1.80mm Dia | 3.2V | 20mA | 15° | Surface Mount | 468nm | 470nm | - | - | - | - | 3.20mm L x 2.40mm W |
|
HLMP-EL08-VY000LED AMBER CLEAR T-1 3/4 T/H |
16,831 |
|
Datasheet | - | Radial | Bulk | Active | Amber | Standard | Colorless | Clear | 8100mcd | Round with Domed Top | 5mm, T-1 3/4 | 2.02V | 20mA | 8° | Through Hole | 590nm | 592nm | - | - | - | T-1 3/4 | - |
|
HLMP-C323LED YELLOW CLEAR T-1 3/4 T/H |
10,802 |
|
Datasheet | - | Radial | Bulk | Active | Yellow | Standard | Yellow | Clear | 170mcd | Round with Domed Top | 5mm, T-1 3/4 | 2.1V | 20mA | 25° | Through Hole | 589nm | 590nm | - | - | - | T-1 3/4 | - |
|
|
HLMP-EG24-PS000LED RED CLEAR T-1 3/4 T/H |
5,685 |
|
Datasheet | - | Radial | Bulk | Active | Red | Standard | Colorless | Clear | 1690mcd | Round with Domed Top | 5mm, T-1 3/4 | 1.9V | 20mA | 23° | Through Hole | 626nm | 635nm | - | - | - | T-1 3/4 | - |
|
SML-020MVTT86LED GREEN/RED CLEAR 1210 SMD |
9,630 |
|
Datasheet | SML-020 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Green, Red | Independent | Colorless | Clear | 20mcd Green, 6.3mcd Red | Rectangle with Flat Top | 2.30mm x 2.10mm | 2.2V Green, 2V Red | 20mA Green, 20mA Red | - | Surface Mount | - | 570nm Green, 650nm Red | - | - | - | 1210 (3025 Metric) | 3.00mm L x 2.50mm W |
|
SMLMN2ECTT86CLED GREEN CLEAR 2012 SMD |
3,668 |
|
Datasheet | SML-MN2x | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Green | - | Colorless | Clear | 140mcd | Rectangle with Flat Top | 1.40mm x 1.25mm | 3V | 5mA | - | Surface Mount | 527nm | - | - | Automotive | AEC-Q102 | 2012 (0805) | 2.00mm L x 1.25mm W |
|

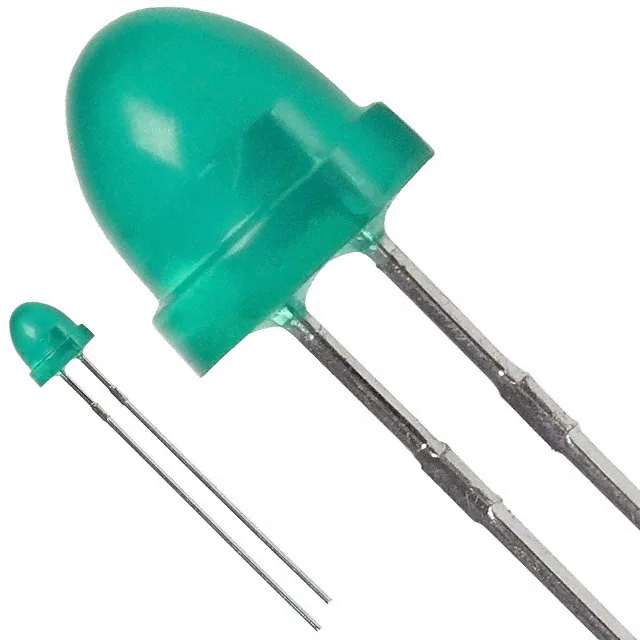

HLMP-3554LED GREEN DIFFUSED T-1 3/4 T/H |
13,906 |
|
Datasheet | - | Radial | Bulk | Active | Green | Standard | Green | Diffused | 6.7mcd | Round with Domed Top | 5mm, T-1 3/4 | 2.1V | 10mA | 50° | Through Hole | 569nm | 565nm | - | - | - | T-1 3/4 | - |
|
|
CSL1103WBDW1LED WHITE 0603 SMD |
4,365 |
|
Datasheet | - | 0603 (1608 Metric) | Tape & Reel (TR) | Active | White | - | - | - | 1500mcd | Rectangle with Flat Top | 1.60mm x 0.80mm | 3.2V | 20mA | - | Surface Mount | - | - | - | - | - | 0603 | 1.60mm L x 0.80mm W |
|
HLMP-1601LED RED DIFFUSED T-1 T/H |
20,674 |
|
Datasheet | - | Radial | Bulk | Active | Red | Standard | Red | Diffused | 2.1mcd | Round with Domed Top | 3mm, T-1 | 12V | 13mA | 60° | Through Hole | 626nm | 635nm | - | - | - | T-1 | - |
|
HLMP-3600LED RED DIFFUSED T-1 3/4 T/H |
17,475 |
|
Datasheet | - | Radial | Bulk | Active | Red | Standard | Red | Diffused | 2.1mcd | Round with Domed Top | 5mm, T-1 3/4 | 5V | 10mA | 60° | Through Hole | 626nm | 635nm | - | - | - | T-1 3/4 | - |
|
HLMP-3650LED YELLOW DIFFUSED T-1 3/4 T/H |
17,115 |
|
Datasheet | - | Radial | Bulk | Active | Yellow | Standard | Yellow | Diffused | 2.2mcd | Round with Domed Top | 5mm, T-1 3/4 | 5V | 10mA | 60° | Through Hole | 585nm | 583nm | - | - | - | T-1 3/4 | - |
|
HLMP-1641LED GREEN DIFFUSED T-1 T/H |
10,496 |
|
Datasheet | - | Radial | Bulk | Active | Green | Standard | Green | Diffused | 1.6mcd | Round with Domed Top | 3mm, T-1 | 12V | 13mA | 60° | Through Hole | 569nm | 565nm | - | - | - | T-1 | - |
|
HLMP-KA45-E0000LED BLUE CLEAR T-1 T/H |
8,970 |
|
Datasheet | - | Radial | Bulk | Active | Blue | Standard | - | Clear | 85mcd | Round with Domed Top | 3mm, T-1 | 3.2V | 20mA | 50° | Through Hole | 470nm | 464nm | - | - | - | T-1 | - |
|
|
HLMP-EL24-PS000LED AMBER CLEAR T-1 3/4 T/H |
8,643 |
|
Datasheet | - | Radial | Bulk | Active | Amber | Standard | Colorless | Clear | 1690mcd | Round with Domed Top | 5mm, T-1 3/4 | 2.02V | 20mA | 23° | Through Hole | 590nm | 592nm | - | - | - | T-1 3/4 | - |
|
|
HLMP-EG08-Y2000LED RED CLEAR T-1 3/4 T/H |
8,389 |
|
Datasheet | - | Radial | Bulk | Active | Red | Standard | Colorless | Clear | 18150mcd | Round with Domed Top | 5mm, T-1 3/4 | 1.9V | 20mA | 8° | Through Hole | 626nm | 635nm | - | - | - | T-1 3/4 | - |
|
|
HLMP-3762LED RED DIFFUSED T-1 3/4 T/H |
5,534 |
|
Datasheet | - | Radial | Bulk | Active | Red | Standard | Red | Diffused | 8.6mcd | Round with Domed Top | 5mm, T-1 3/4 | 1.9V | 10mA | 60° | Through Hole | 626nm | 635nm | - | - | - | T-1 3/4 | - |
|
|
HSMC-C380LED RED SMD |
2,196 |
|
Datasheet | - | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Red | Standard | - | - | - | Round with Domed Top | 1.40mm Dia | 2V | 20mA | 15° | Surface Mount | 630nm | 643nm | - | - | - | - | 3.20mm L x 1.60mm W |
