LED Indication - Discrete
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Color | Configuration | Lens Color | Lens Transparency | Millicandela Rating | Lens Style | Lens Size | Voltage - Forward (Vf) (Typ) | Current - Test | Viewing Angle | Mounting Type | Wavelength - Dominant | Wavelength - Peak | Features | Grade | Qualification | Supplier Device Package | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HLMP-3907-K0002LED GREEN CLEAR T-1 3/4 T/H |
0 |
|
Datasheet | - | Radial | Tape & Reel (TR) | Obsolete | Green | Standard | - | Clear | 111.7mcd | Round with Domed Top | 5mm, T-1 3/4 | 2.2V | 20mA | 24° | Through Hole | 569nm | 565nm | - | - | - | T-1 3/4 | - |
|
|
HLMP-3807-K0002LED YELLOW CLEAR T-1 3/4 T/H |
0 |
|
Datasheet | - | Radial | Tape & Reel (TR) | Obsolete | Yellow | Standard | - | Clear | 96.2mcd | Round with Domed Top | 5mm, T-1 3/4 | 2.1V | 20mA | 24° | Through Hole | 585nm | 583nm | - | - | - | T-1 3/4 | - |
|

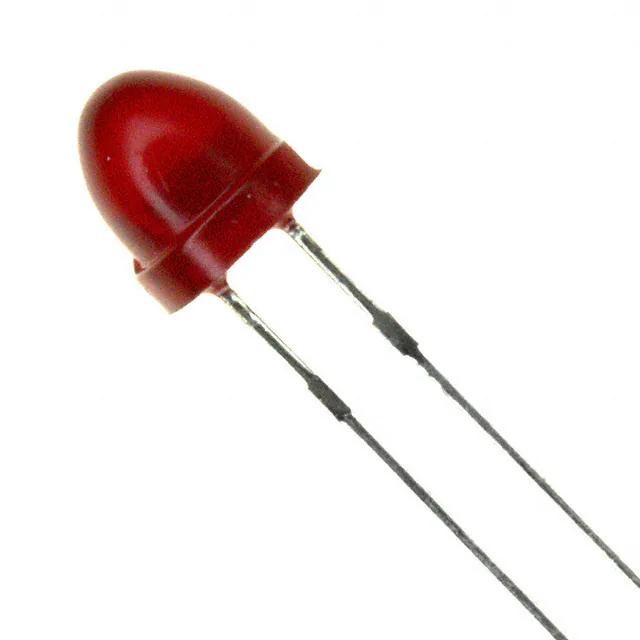

HLMP-3351-F0002LED RED DIFFUSED T-1 3/4 T/H |
0 |
|
Datasheet | - | Radial | Tape & Reel (TR) | Obsolete | Red | Standard | Red | Diffused | 5.4mcd | Round with Domed Top | 5mm, T-1 3/4 | 1.9V | 10mA | 50° | Through Hole | 626nm | 635nm | - | - | - | T-1 3/4 | - |
|
|
HLMP-D155-F0001LED RED CLEAR T-1 3/4 T/H |
0 |
|
Datasheet | - | Radial | Tape & Reel (TR) | Obsolete | Red | Standard | Colorless | Clear | 10mcd | Round with Domed Top | 5mm, T-1 3/4 | 1.7V | 1mA | 24° | Through Hole | 640nm | 660nm | - | - | - | T-1 3/4 | - |
|
|
HLMP-3416-G0002LED YELLOW CLEAR T-1 3/4 T/H |
0 |
|
Datasheet | - | Radial | Tape & Reel (TR) | Obsolete | Yellow | Standard | - | Clear | 50mcd | Round with Domed Top | 5mm, T-1 3/4 | 2V | 10mA | 35° | Through Hole | 585nm | 583nm | - | - | - | T-1 3/4 | - |
|
|
HLMP-Q105-P001SLED RED CLEAR AXIAL T/H |
0 |
|
Datasheet | HLMP-Qxxx | Axial, Right Angle Bend (2.54mm Center) | Bulk | Obsolete | Red | Standard | Colorless | Clear | 200mcd | Round with Domed Top | 1.78mm Dia | 1.8V | 20mA | 28° | Through Hole | 637nm | 645nm | - | - | - | Axial | 2.09mm L x 2.21mm W |
|
|
HLMP-P302-F002SLED YELLOW DIFFUSED AXIAL T/H |
0 |
|
Datasheet | HLMP-Pxxx | Axial, Right Angle Bend (5.08mm Center) | Bulk | Obsolete | Yellow | Standard | White | Diffused | 3mcd | Round with Flat Top | 1.78mm Dia | 2V | 10mA | 125° | Through Hole | 585nm | 583nm | - | - | - | Axial | 2.09mm L x 2.21mm W |
|
|
HLMP-3301-F00R4LED RED DIFFUSED T-1 3/4 T/H |
0 |
|
Datasheet | - | Radial | Tape & Reel (TR) | Obsolete | Red | Standard | Red | Diffused | 5.4mcd | Round with Domed Top | 5mm, T-1 3/4 | 1.9V | 10mA | 60° | Through Hole | 626nm | 635nm | - | - | - | T-1 3/4 | - |
|
|
HLMA-PL00-N0021LED AMBER CLEAR SMD |
0 |
|
Datasheet | - | 2-SMD, Yoke Bend | Tape & Reel (TR) | Obsolete | Amber | Standard | Colorless | Clear | 75mcd | Round with Flat Top | 1.78mm Dia | 1.9V | 20mA | 125° | Surface Mount | 590nm | 592nm | - | - | - | - | 1.99mm L x 2.21mm W |
|
|
HLMP-P405-F0012LED ORANGE CLEAR GULL WING SMD |
0 |
|
Datasheet | HLMP-Pxxx | 2-SMD, Gull Wing | Bulk | Obsolete | Orange | Standard | Colorless | Clear | 6mcd | Round with Flat Top | 1.78mm Dia | 1.9V | 10mA | 125° | Surface Mount | 602nm | 600nm | - | - | - | Gull Wing | 2.09mm L x 2.21mm W |
|
|
HLMA-PH00-N0011LED RED CLEAR SMD |
0 |
|
Datasheet | - | 2-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | Red | Standard | Colorless | Clear | 75mcd | Round with Flat Top | 1.78mm Dia | 1.9V | 20mA | 125° | Surface Mount | 615nm | 621nm | - | - | - | - | 1.99mm L x 2.21mm W |
|
|
HSMH-C660LED RED CLEAR CHIP SMD R/A |
0 |
|
Datasheet | - | 2-SMD, No Lead | Tape & Reel (TR) | Obsolete | Red | Standard | Colorless | Clear | 16mcd | Rectangle with Domed Top | 2.00mm x 1.00mm | 1.8V | 20mA | 155° | Surface Mount, Right Angle | 639nm | 650nm | - | - | - | Chip LED | 3.00mm L x 2.00mm W |
|
|
HSMY-C660LED YELLOW CLEAR CHIP SMD R/A |
0 |
|
Datasheet | - | 2-SMD, No Lead | Tape & Reel (TR) | Obsolete | Yellow | Standard | Colorless | Clear | 5mcd | Rectangle with Domed Top | 2.00mm x 1.00mm | 2.1V | 20mA | 155° | Surface Mount, Right Angle | 586nm | 589nm | - | - | - | Chip LED | 3.00mm L x 2.00mm W |
|
|
HSMH-L640LED RED CLEAR CHIP SMD |
0 |
|
Datasheet | - | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Red | Standard | Colorless | Clear | 32mcd | Round with Flat Top | - | 1.8V | 20mA | 70° | Surface Mount | 639nm | 650nm | - | - | - | Chip LED | 3.00mm L x 1.50mm W |
|
HLMP-P156-EG031LED RED CLEAR ZBEND SMD |
0 |
|
Datasheet | HLMP-Pxxx | 2-SMD, Z-Bend | Tape & Reel (TR) | Obsolete | Red | Standard | Colorless | Clear | 2mcd | Round with Flat Top | 1.78mm Dia | 1.6V | 0.5mA | 75° | Surface Mount | 644nm | 654nm | - | - | - | Z-Bend | 2.09mm L x 2.21mm W |
|
|
HLMP-P156-EG011LED RED CLEAR GULL WING SMD |
0 |
|
Datasheet | HLMP-Pxxx | 2-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | Red | Standard | Colorless | Clear | 2mcd | Round with Flat Top | 1.78mm Dia | 1.6V | 0.5mA | 75° | Surface Mount | 644nm | 654nm | - | - | - | Gull Wing | 2.09mm L x 2.21mm W |
|
|
HLMA-QL00-UV011LED AMBER CLEAR SMD |
0 |
|
Datasheet | - | 2-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | Amber | Standard | Colorless | Clear | 825mcd | Round with Domed Top | 1.78mm Dia | 1.9V | 20mA | 15° | Surface Mount | 590nm | 592nm | - | - | - | - | 1.99mm L x 2.21mm W |
|
|
HLMA-QL00-TVK11LED AMBER CLEAR SMD |
0 |
|
Datasheet | - | 2-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | Amber | Standard | Colorless | Clear | 750mcd | Round with Domed Top | 1.78mm Dia | 1.9V | 20mA | 15° | Surface Mount | 590nm | 592nm | - | - | - | - | 1.99mm L x 2.21mm W |
|
|
HLMP-Q106-TU011LED RED CLEAR GULL WING SMD |
0 |
|
Datasheet | HLMP-Qxxx | 2-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | Red | Standard | Colorless | Clear | 525mcd | Round with Domed Top | 1.78mm Dia | 1.9V | 20mA | 15° | Surface Mount | 644nm | 654nm | - | - | - | Gull Wing | 2.09mm L x 2.21mm W |
|
|
HSMG-L640LED GREEN CLEAR CHIP SMD |
0 |
|
Datasheet | - | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Green | Standard | Colorless | Clear | 18mcd | Round with Flat Top | - | 2.2V | 20mA | 70° | Surface Mount | 572nm | 570nm | - | - | - | Chip LED | 3.00mm L x 1.50mm W |
