LED Indication - Discrete
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Color | Configuration | Lens Color | Lens Transparency | Millicandela Rating | Lens Style | Lens Size | Voltage - Forward (Vf) (Typ) | Current - Test | Viewing Angle | Mounting Type | Wavelength - Dominant | Wavelength - Peak | Features | Grade | Qualification | Supplier Device Package | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SML-H12V8TT86CLED RED CLEAR 2012 SMD |
5,630 |
|
Datasheet | SML-H12 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Red | Standard | Colorless | Clear | 25mcd | Rectangle with Flat Top | 1.52mm x 1.25mm | 2.2V | 20mA | - | Surface Mount | 630nm | - | - | Automotive | AEC-Q101 | 2012 (0805) | 2.00mm L x 1.25mm W |
|
ASMT-RJ45-AQ502LED ORANGE DIFFUSED 0603 SMD |
65,268 |
|
Datasheet | - | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Orange | Standard | White | Diffused | 130mcd | Rectangle with Flat Top | 1.10mm x 0.80mm | 2V | 20mA | 145° | Surface Mount | 605nm | 612nm | - | - | - | 0603 | 1.60mm L x 0.80mm W |
|
HSMG-C177LED GREEN DIFFUSED CHIP SMD |
55,767 |
|
Datasheet | - | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Green | Standard | White | Diffused | 15mcd | Rectangle with Flat Top | 2.00mm x 1.25mm | 2.2V | 20mA | 130° | Surface Mount | 572nm | 570nm | - | - | - | Chip LED | 2.00mm L x 1.25mm W |
|
ASMM-CR03-BV302LED RED 2PLCC SMD |
47,752 |
|
Datasheet | - | 2-PLCC | Tape & Reel (TR) | Active | Red | - | - | - | 800mcd | Round with Flat Top | 2.40mm Dia | 2.1V | 20mA | 120° | Surface Mount | 625nm | 630nm | - | - | - | 2-PLCC | 3.20mm L x 2.80mm W |
|
|
ASMT-RA45-AP932LED AMBER DIFFUSED SMD |
37,303 |
|
Datasheet | - | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Amber | Standard | White | Diffused | 90mcd | Rectangle with Flat Top | 1.10mm x 0.80mm | 2V | 20mA | 145° | Surface Mount | 591nm | 593nm | - | - | - | - | 1.60mm L x 0.80mm W |
|
HLMP-3301-D0000LED RED DIFFUSED T-1 3/4 T/H |
27,840 |
|
Datasheet | - | Radial | Bulk | Active | Red | Standard | Red | Diffused | 2.1mcd | Round with Domed Top | 5mm, T-1 3/4 | 1.9V | 10mA | 60° | Through Hole | 626nm | 635nm | - | - | - | T-1 3/4 | - |
|
HLMP-1503-D0000LED GREEN DIFFUSED T-1 T/H |
24,825 |
|
Datasheet | - | Radial | Bulk | Active | Green | Standard | Green | Diffused | 4.2mcd | Round with Domed Top | 3mm, T-1 | 2.1V | 10mA | 60° | Through Hole | 569nm | 565nm | - | - | - | T-1 | - |
.jpg)
|
SML-D15UWT86CLED RED 1608 SMD |
8,036 |
|
Datasheet | SML-D15 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Red | Standard | White | - | 112mcd | Rectangle with Flat Top | 1.20mm x 0.80mm | 2V | 20mA | - | Surface Mount | 620nm | - | - | Automotive | AEC-Q102 | 1608 (0603) | 1.60mm L x 0.80mm W |
.jpg)
|
SML-D12W8WT86CLED YELLOW 1608 SMD |
2,890 |
|
Datasheet | EXCELED™ | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Yellow | Standard | White | - | 7.1mcd | Rectangle with Flat Top | 1.20mm x 0.80mm | 2V | 2mA | - | Surface Mount | 588nm | - | - | Automotive | AEC-Q102 | 1608 (0603) | 1.60mm L x 0.80mm W |
|
|
SML-D15MWT86CLED YLW-GRN 1608 SMD |
1,503 |
|
Datasheet | SML-D15 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Yellow-Green | Standard | White | - | 71mcd | Rectangle with Flat Top | 1.20mm x 0.80mm | 2.1V | 20mA | - | Surface Mount | 571nm | - | - | Automotive | AEC-Q102 | 1608 (0603) | 1.60mm L x 0.80mm W |
|
SML-D12W8WT86ALED YELLOW CLEAR 1608 SMD |
1,159 |
|
Datasheet | EXCELED™ | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Yellow | - | Colorless | Clear | 7.1mcd | Rectangle with Flat Top | 1.20mm x 0.80mm | 2V | 2mA | - | Surface Mount | 588nm | - | - | - | - | 1608 (0603) | 1.60mm L x 0.80mm W |
|
HSMS-C280LED RED DIFFUSED SMD |
52,520 |
|
Datasheet | - | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Red | Standard | White | Diffused | 10mcd | Rectangle with Flat Top | 1.00mm x 0.50mm | 2.1V | 20mA | 130° | Surface Mount | 626nm | 630nm | - | - | - | - | 1.00mm L x 0.50mm W |
|
|
HSMY-C280LED YELLOW DIFFUSED SMD |
18,779 |
|
Datasheet | - | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Yellow | Standard | White | Diffused | 8mcd | Rectangle with Flat Top | 1.00mm x 0.50mm | 2.1V | 20mA | 130° | Surface Mount | 586nm | 589nm | - | - | - | - | 1.00mm L x 0.50mm W |
|
SML-A12UTT86JLED RED CLEAR 1611 SMD R/A |
2,257 |
|
Datasheet | EXCELED™ | 2-SMD, No Lead | Tape & Reel (TR) | Active | Red | Standard | Colorless | Clear | 100mcd | Rectangle with Flat Top | 1.20mm x 0.55mm | 2V | 20mA | - | Surface Mount, Right Angle | 624nm | - | - | - | - | 1611(0605) | 1.60mm L x 1.15mm W |
|
HSMS-C191LED RED DIFFUSED CHIP SMD |
30,297 |
|
Datasheet | - | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Red | Standard | White | Diffused | 10mcd | Rectangle with Flat Top | 1.00mm x 0.80mm | 2.1V | 20mA | 170° | Surface Mount | 626nm | 630nm | - | - | - | Chip LED | 1.60mm L x 0.80mm W |
|
SML-D12FWT86LED GREEN DIFFUSED 1608 SMD |
17,866 |
|
Datasheet | SML-D12 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Green | Standard | White | Diffused | 18mcd | Rectangle with Flat Top | 1.20mm x 0.80mm | 2.2V | 20mA | - | Surface Mount | 565nm | - | - | - | - | 1608 (0603) | 1.60mm L x 0.80mm W |
|
SML-E12DWT86LED ORANGE DIFFUSED 1608 SMD |
12,310 |
|
Datasheet | EXCELED™ | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Orange | Standard | White | Diffused | 200mcd | Rectangle with Flat Top | 1.20mm x 0.80mm | 1.9V | 20mA | - | Surface Mount | 606nm | - | - | - | - | 1608 (0603) | 1.60mm L x 0.80mm W |
|
|
SML-E12UWT86LED RED DIFFUSED 1608 SMD |
6,930 |
|
Datasheet | EXCELED™ | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Red | Standard | White | Diffused | 100mcd | Rectangle with Flat Top | 1.20mm x 0.80mm | 2.1V | 20mA | - | Surface Mount | 624nm | - | - | - | - | 1608 (0603) | 1.60mm L x 0.80mm W |
|
|
SML-A12MTT86JLED GREEN CLEAR 1611 SMD R/A |
6,664 |
|
Datasheet | EXCELED™ | 2-SMD, No Lead | Tape & Reel (TR) | Active | Green | Standard | Colorless | Clear | 40mcd | Rectangle with Flat Top | 1.20mm x 0.55mm | 2.1V | 20mA | - | Surface Mount, Right Angle | 570nm | - | - | - | - | 1611(0605) | 1.60mm L x 1.15mm W |
|

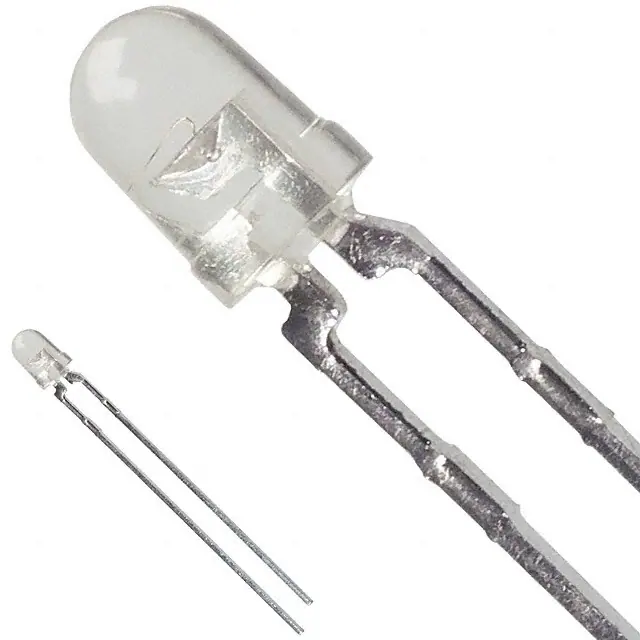

HLMP-1440LED YELLOW CLEAR T-1 T/H |
103,259 |
|
Datasheet | - | Radial | Bulk | Active | Yellow | Standard | Colorless | Clear | 45mcd | Round with Domed Top | 3mm, T-1 | 2.1V | 20mA | 24° | Through Hole | 585nm | 583nm | - | - | - | T-1 | - |
