LED Indication - Discrete
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Color | Configuration | Lens Color | Lens Transparency | Millicandela Rating | Lens Style | Lens Size | Voltage - Forward (Vf) (Typ) | Current - Test | Viewing Angle | Mounting Type | Wavelength - Dominant | Wavelength - Peak | Features | Grade | Qualification | Supplier Device Package | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

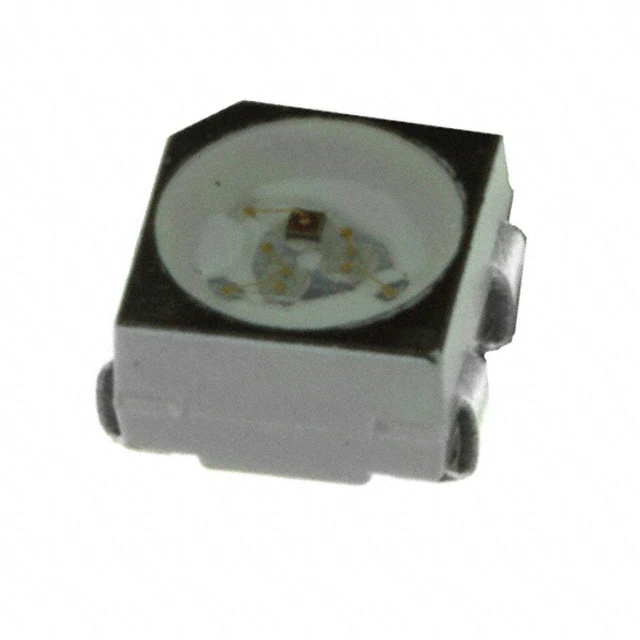

ASMT-QTB0-0AA02LED RGB CLEAR 4PLCC SMD |
0 |
|
Datasheet | - | 4-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Red, Green, Blue (RGB) | Common Anode | Colorless | Clear | 620mcd Red, 1200mcd Green, 280mcd Blue | Round with Flat Top | 2.90mm Dia | 2.1V Red, 3.2V Green, 3.2V Blue | 20mA Red, 20mA Green, 20mA Blue | 120° | Surface Mount | 621nm Red, 528nm Green, 470nm Blue | 629nm Red, 521nm Green, 465nm Blue | - | - | - | 4-PLCC | 3.40mm L x 3.20mm W |
|
HLMA-PL00-N0031LED AMBER CLEAR SMD |
0 |
|
Datasheet | - | 2-SMD, Z-Bend | Tape & Reel (TR) | Active | Amber | Standard | Colorless | Clear | 75mcd | Round with Flat Top | 1.78mm Dia | 1.9V | 20mA | 125° | Surface Mount | 590nm | 592nm | - | - | - | - | 1.99mm L x 2.21mm W |
|
SML311BBTT86LED BLUE CLEAR 0603 SMD |
0 |
|
- |
- | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Blue | Standard | Colorless | Clear | 22mcd | Rectangle with Flat Top | 1.20mm x 0.80mm | 3.5V | 20mA | - | Surface Mount | - | 468nm | - | - | - | 1608 (0603) | 1.60mm L x 0.80mm W |
|
|
HSMF-C655LED BICOLOR DIFF CHIP SMD |
0 |
|
- |
- | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | Surface Mount | - | - | - | - | - | Chip LED | 3.20mm L x 2.70mm W |
|
|
QSME-R193LED YLW-GRN DIFFUSED 0603 SMD |
0 |
|
Datasheet | - | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Yellow-Green | - | - | Diffused | 50mcd | Rectangle with Flat Top | 1.00mm x 0.80mm | 2.35V | 20mA | 170° | Surface Mount | 572nm | 570nm | - | - | - | 0603 | 1.60mm L x 0.80mm W |
|
SMLK34WBEAW1LED COOL WHITE DIFFUSED 4520 SMD |
0 |
|
Datasheet | SML | 1808 (4520 Metric) | Tape & Reel (TR) | Obsolete | White, Cool | Standard | White | Diffused | 3800mcd | Rectangle with Flat Top | - | 3.4V | 60mA | - | Surface Mount | 5000K | - | - | - | - | 4520(1808) | 4.00mm L x 2.00mm W |
|
SMLK34WBEBW1LED WARM WHITE DIFFUSED 4520 SMD |
0 |
|
Datasheet | SML | 1808 (4520 Metric) | Tape & Reel (TR) | Obsolete | White, Warm | Standard | White | Diffused | 3800mcd | Rectangle with Flat Top | - | 3.4V | 60mA | - | Surface Mount | 3000K | - | - | - | - | 4520(1808) | 4.00mm L x 2.00mm W |
|
|
HLMP-6400-F0031LED YELLOW DIFFUSED ZBEND SMD |
0 |
|
Datasheet | HLMP-6xxx | 2-SMD, Z-Bend | Tape & Reel (TR) | Active | Yellow | Standard | Yellow | Diffused | 9mcd | Round with Domed Top | 1.78mm Dia | 2V | 10mA | 90° | Surface Mount | 585nm | 583nm | - | - | - | Z-Bend | 2.08mm L x 2.21mm W |
|
|
HLMP-P005-F0011LED RED CLEAR GULL WING SMD |
0 |
|
Datasheet | HLMP-Pxxx | 2-SMD, Gull Wing | Tape & Reel (TR) | Active | Red | Standard | Colorless | Clear | 2.5mcd | Round with Flat Top | 1.78mm Dia | 1.6V | 10mA | 125° | Surface Mount | 640nm | 655nm | - | - | - | Gull Wing | 2.09mm L x 2.21mm W |
|
|
HLMP-P005-F0031LED RED CLEAR ZBEND SMD |
0 |
|
Datasheet | HLMP-Pxxx | 2-SMD, Z-Bend | Tape & Reel (TR) | Active | Red | Standard | Colorless | Clear | 2.5mcd | Round with Flat Top | 1.78mm Dia | 1.6V | 10mA | 125° | Surface Mount | 640nm | 655nm | - | - | - | Z-Bend | 2.09mm L x 2.21mm W |
|
HLMP-6505-NP000LED GREEN CLEAR AXIAL T/H AXIAL |
0 |
|
Datasheet | HLMP-6xxx | Axial, Flat Leads | Bulk | Obsolete | Green | Standard | Colorless | Clear | - | Round with Domed Top | 1.78mm Dia | 2.1V | 10mA | 28° | Through Hole, Axial | 569nm | 565nm | - | - | - | Axial | 2.08mm L x 2.21mm W |
|
SML011EBTT86LED GREEN CLEAR 3020 SMD |
0 |
|
Datasheet | SML-01 | 1208 (3020 Metric) | Tape & Reel (TR) | Obsolete | Green | Standard | Colorless | Clear | 140mcd | Rectangle with Flat Top | 2.30mm x 1.60mm | 3.5V | 20mA | - | Surface Mount | - | 523nm | - | - | - | 3020 (1208) | 3.00mm L x 2.00mm W |
|
|
HLMP-P502-F0011LED GREEN DIFFUSED GULL WING SMD |
0 |
|
Datasheet | HLMP-Pxxx | 2-SMD, Gull Wing | Tape & Reel (TR) | Active | Green | Standard | White | Diffused | 3mcd | Round with Flat Top | 1.78mm Dia | 2.1V | 10mA | 125° | Surface Mount | 569nm | 565nm | - | - | - | Gull Wing | 2.09mm L x 2.21mm W |
|
|
HLMA-QL00-UVR11LED AMBER CLEAR SMD |
0 |
|
Datasheet | - | 2-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | Amber | Standard | Colorless | Clear | 825mcd | Round with Domed Top | 1.78mm Dia | 1.9V | 20mA | 15° | Surface Mount | 590nm | 592nm | - | - | - | - | 1.99mm L x 2.21mm W |
|
|
HLMA-PL00-PRX11LED AMBER CLEAR SMD |
0 |
|
Datasheet | - | 2-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | Amber | Standard | Colorless | Clear | 120mcd | Round with Flat Top | 1.78mm Dia | 1.9V | 20mA | 125° | Surface Mount | 590nm | 592nm | - | - | - | - | 1.99mm L x 2.21mm W |
|
SLA560WBD2PT2LED WHITE CLEAR T-1 3/4 T/H |
0 |
|
Datasheet | - | Radial | Tape & Box (TB) | Obsolete | White | Standard | Colorless | Clear | 3300mcd | Round with Domed Top | 5mm, T-1 3/4 | 3.2V | 20mA | 40° | Through Hole | - | - | - | - | - | T-1 3/4 | - |
|
SLR343BBT3FLED BLUE CLEAR T-1 T/H |
0 |
|
Datasheet | SLR-343 | Radial | Bulk | Obsolete | Blue | Standard | Colorless | Clear | 350mcd | Round with Domed Top | 3.10mm Dia | 3.5V | 20mA | - | Through Hole | - | 468nm | - | - | - | T-1 | - |
|
|
SLR343EBT3FLED GREEN CLEAR T-1 T/H |
0 |
|
Datasheet | SLR-343 | Radial | Bulk | Obsolete | Green | Standard | Colorless | Clear | 1500mcd | Round with Domed Top | 3.10mm Dia | 3.5V | 20mA | - | Through Hole | - | 523nm | - | - | - | T-1 | - |
|
ASCB-NTC2-0A307LED RGB 4PLCC SMD |
1 |
|
- |
ASCB-NTC2 | 4-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Red, Green, Blue (RGB) | Common Anode | - | - | 180mcd Red, 440mcd Green, 55mcd Blue | Oval with Flat Top | 1.05mm | 2V Red, 2.9V Green, 2.7V Blue | 10mA Red, 10mA Green, 5mA Blue | 105° | Surface Mount | 621nm Red, 524nm Green, 471nm Blue | 629nm Red, 519nm Green, 468nm Blue | - | - | - | 4-PLCC | 1.30mm L x 1.40mm W |
|
SLR343WBD2PT3LED WHITE CLEAR T-1 T/H |
0 |
|
Datasheet | SLR-343 | Radial | Bulk | Obsolete | White | Standard | Colorless | Clear | 3300mcd | Round with Domed Top | 3.10mm Dia | 3.2V | 20mA | 40° | Through Hole | - | - | - | - | - | T-1 | - |
