LED Color Lighting
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Color | Wavelength | Current - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | Luminous Flux @ Current/Temperature | Temperature - Test | Viewing Angle | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASMT-AB00-NMP00LED BLUE 465NM 1W 2SMD |
0 |
|
Datasheet | - | 2-SMD, Gull Wing Exposed Pad | Tube | Obsolete | Blue | 465nm (455nm ~ 475nm) | 350mA | 3.2V | 20 lm/W | 500mA | 22lm (14lm ~ 31lm) | 25°C | 140° | Surface Mount | 2-SMD | 0.315" Dia (8.00mm) | 0.165" (4.20mm) |
|
|
ASMT-JB31-NMP01LED BLUE 465NM 3W |
0 |
|
Datasheet | - | 6-SMD, Flat Lead Exposed Pad | Tape & Reel (TR) | Active | Blue | 465nm (455nm ~ 475nm) | 350mA | 3.2V | 21 lm/W | 700mA | 24lm (18lm ~ 31lm) | 25°C | 165° | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.077" (1.95mm) |
|
|
ASMT-QBBC-NAC0ELED BLUE 470NM 4PLCC |
0 |
|
Datasheet | - | 4-PLCC | Tape & Reel (TR) | Obsolete | Blue | 470nm (460nm ~ 480nm) | 150mA | 3.4V | 14 lm/W | 300mA | 7lm (4lm ~ 9lm) | 25°C | 120° | Surface Mount | 4-PLCC | 0.126" L x 0.110" W (3.20mm x 2.80mm) | 0.083" (2.10mm) |
|
|
ASMT-JG31-NST01LED GREEN 525NM 3W |
0 |
|
Datasheet | - | 6-SMD, Flat Lead Exposed Pad | Tape & Reel (TR) | Obsolete | Green | 525nm (515nm ~ 535nm) | 350mA | 3.2V | 63 lm/W | 700mA | 70lm (52lm ~ 87lm) | 25°C | 165° | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.077" (1.95mm) |
|
|
ASMT-JB31-NNP01LED BLUE 465NM 3W |
0 |
|
Datasheet | - | 6-SMD, Flat Lead Exposed Pad | Tape & Reel (TR) | Active | Blue | 465nm (455nm ~ 475nm) | 350mA | 3.2V | 21 lm/W | 700mA | 24lm (18lm ~ 31lm) | 25°C | 165° | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.077" (1.95mm) |
|
|
ASMT-JG11-NUW01LED GREEN 525NM 1W |
0 |
|
Datasheet | - | 6-SMD, Flat Lead Exposed Pad | Tape & Reel (TR) | Obsolete | Green | 525nm (515nm ~ 535nm) | 350mA | 3.2V | 96 lm/W | 500mA | 108lm (87lm ~ 130lm) | 25°C | 165° | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.077" (1.95mm) |
|

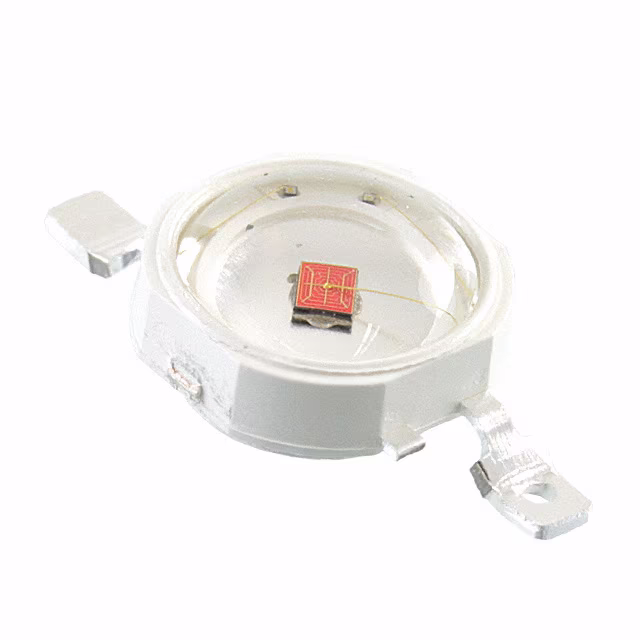

ASMT-AA00-ARS00LED ASMT-AX00 AMBER 592NM 2SMD |
0 |
|
Datasheet | ASMT-Ax00 | 2-SMD, Gull Wing Exposed Pad | Tube | Obsolete | Amber | 592nm (587nm ~ 597nm) | 350mA | 2.1V | 68 lm/W | 500mA | 50lm (Typ) | 25°C | 140° | Surface Mount | 2-SMD | 0.315" Dia (8.00mm) | 0.165" (4.20mm) |
|
ASMT-QGBE-NFH0ELED GREEN 522NM 0.5W 4PLCC |
0 |
|
Datasheet | - | 4-PLCC | Tape & Reel (TR) | Obsolete | Green | 522nm (Typ) | 150mA | 3.6V | 44 lm/W | 300mA | 24lm (15lm ~ 33lm) | 25°C | 120° | Surface Mount | 4-PLCC | 0.126" L x 0.110" W (3.20mm x 2.80mm) | 0.083" (2.10mm) |
|
ASMT-MA00-AGH00LED MOONSTONE AMBER 589NM |
0 |
|
Datasheet | Moonstone™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | Amber | 589nm (582nm ~ 595nm) | 350mA | 2.4V | 40 lm/W | 350mA | 34lm (26lm ~ 43lm) | 25°C | 120° | Surface Mount | - | 0.335" L x 0.335" W (8.50mm x 8.50mm) | 0.134" (3.40mm) |
|
ASMT-AA30-ARS00LED AMBER 590NM 2SMD |
0 |
|
Datasheet | - | 2-SMD, Gull Wing Exposed Pad | Tube | Obsolete | Amber | 590nm (587nm ~ 597nm) | 350mA | 2.1V | 73 lm/W | 700mA | 54lm (40lm ~ 62lm) | 25°C | 140° | Surface Mount | 2-SMD | 0.315" Dia (8.00mm) | 0.165" (4.20mm) |
|
ASMT-MB00-NDF00LED MOONSTONE BLUE 470NM |
0 |
|
Datasheet | Moonstone™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | Blue | 470nm (460nm ~ 480nm) | 350mA | 3.6V | 15 lm/W | 350mA | 19lm (12lm ~ 26lm) | 25°C | 120° | Surface Mount | - | 0.335" L x 0.335" W (8.50mm x 8.50mm) | 0.134" (3.40mm) |
|
ASMT-AG00-NUV00LED GREEN 525NM 1W 2SMD |
0 |
|
Datasheet | - | 2-SMD, Gull Wing Exposed Pad | Tube | Obsolete | Green | 525nm (515nm ~ 535nm) | 350mA | 3.2V | 90 lm/W | 500mA | 101lm (87lm ~ 114lm) | 25°C | 140° | Surface Mount | 2-SMD | 0.315" Dia (8.00mm) | 0.165" (4.20mm) |
|
|
ASMT-MA00-AGHN0LED MOONSTONE AMBER 591NM |
0 |
|
Datasheet | Moonstone™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | Amber | 591nm (587nm ~ 595nm) | 350mA | 2.4V | 40 lm/W | 350mA | 34lm (26lm ~ 43lm) | 25°C | 120° | Surface Mount | - | 0.335" L x 0.335" W (8.50mm x 8.50mm) | 0.134" (3.40mm) |
|
ASM6-SR90-AHK0HLED ASM6-SXXX-XXXXH 625NM 3SMD |
0 |
|
Datasheet | ASM6-Sxxx-xxxxH | 3-SMD, No Lead | Tape & Reel (TR) | Active | Red | 625nm (617nm ~ 635nm) | 350mA | 2.2V | 80 lm/W | 700mA | 62lm (50lm ~ 78lm) | 25°C | 90° | Surface Mount | 3-SMD | 0.136" L x 0.136" W (3.45mm x 3.45mm) | 0.106" (2.70mm) |
|
ASM3-SLD1-NST0HLED HORTICULTURE ROYAL BLUE 3535 |
0 |
|
Datasheet | Horticulture | 1414 (3535 Metric) | Tape & Reel (TR) | Obsolete | Royal Blue | - | 350mA | 3V | - | 700mA | 580mW (530mW ~ 705mW) | 25°C | 130° | Surface Mount | 3535 | 0.136" L x 0.136" W (3.45mm x 3.45mm) | 0.085" (2.15mm) |
|
ASM3-SDD0-ANP0HLED HORTICULTURE DEEP RED 3535 |
0 |
|
Datasheet | Horticulture | 1414 (3535 Metric) | Tape & Reel (TR) | Obsolete | Red | 655nm (650nm ~ 670nm) | 350mA | 2.1V | - | 700mA | 350mW (330mW ~ 430mW) | 25°C | 130° | Surface Mount | 3535 | 0.136" L x 0.136" W (3.45mm x 3.45mm) | 0.085" (2.15mm) |
|
ASM6-SL92-NTV0HLED ASM6-SXXX-XXXXH BLU 3SMD |
0 |
|
Datasheet | ASM6-Sxxx-xxxxH | 3-SMD, No Lead | Tape & Reel (TR) | Obsolete | Royal Blue | 450nm (440nm ~ 460nm) | 350mA | 2.9V | - | 1A | 730mW (610mW ~ 930mW) | 25°C | 90° | Surface Mount | 3-SMD | 0.136" L x 0.136" W (3.45mm x 3.45mm) | 0.106" (2.70mm) |
|
ASM3-S3D0-ALN0HLED HORTICULTURE FAR RED 3535 |
0 |
|
Datasheet | Horticulture | 1414 (3535 Metric) | Tape & Reel (TR) | Obsolete | Red | 735nm (720nm ~ 745nm) | 350mA | 2.1V | - | 700mA | 285mW (230mW ~ 380mW) | 25°C | 130° | Surface Mount | 3535 | 0.136" L x 0.136" W (3.45mm x 3.45mm) | 0.085" (2.15mm) |
|
ASM6-S390-ANQ0HLED ASM6-SXXX-XXXXH FAR RED 3SMD |
0 |
|
Datasheet | ASM6-Sxxx-xxxxH | 3-SMD, No Lead | Tape & Reel (TR) | Active | Red | 735nm (720nm ~ 745nm) | 350mA | 2.1V | - | 700mA | 350mW (330mW ~ 480mW) | 25°C | 90° | Surface Mount | 3-SMD | 0.136" L x 0.136" W (3.45mm x 3.45mm) | 0.106" (2.70mm) |
|
|
ASMT-JB11-NNQ01LED BLUE 465NM 1W |
0 |
|
Datasheet | - | 6-SMD, Flat Lead Exposed Pad | Tape & Reel (TR) | Active | Blue | 465nm (455nm ~ 475nm) | 350mA | 3.2V | 26 lm/W | 500mA | 29lm (18lm ~ 40lm) | 25°C | 165° | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.077" (1.95mm) |
