LED Character and Numeric
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Display Format | Number of Characters | Size / Dimension | Digit/Alpha Size | Display Type | Common Pin | Color | Voltage - Forward (Vf) (Typ) | Current - Test | Millicandela Rating | Wavelength - Peak | Power Dissipation (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HDSP-H101-EF000LED |
0 |
|
Datasheet | HDSP-H10x | 10-DIP (0.600", 15.24mm) | Bulk | Active | - | - | 0.508" H x 0.385" W x 0.250" D (12.90mm x 9.79mm x 6.36mm) | 0.56" (14.20mm) | 7-Segment | Common Anode | Red | 1.7V | 5mA | 4.2mcd | 645nm | 37mW |
|
|
MST6140CDISPLAY 7SEG 0.56" TRP RED 28DIP |
0 |
|
Datasheet | - | 28-DIP (0.600", 15.24mm) | Bulk | Obsolete | - | 3 | 0.752" H x 1.484" W x 0.315" D (19.10mm x 37.70mm x 8.00mm) | 0.56" (14.22mm) | 7-Segment | Common Cathode | Red | 2.1V | 20mA | 0.7mcd | 697nm | 40mW |
|
|
MAN3040ADISPLAY 7-SEG 0.3" SGL RED 14DIP |
0 |
|
Datasheet | - | 14-DIP (0.300", 7.62mm), 10 Leads | Bulk | Obsolete | - | 1 | 0.738" H x 0.386" W x 0.200" D (18.75mm x 9.80mm x 5.08mm) | 0.30" (7.62mm) | 7-Segment | Common Cathode | Red | 1.8V | 20mA | 3.3mcd | 650nm | 37mW |
|
|
MAN3240ADISPLAY 7-SEG 0.3" SGL RED 14DIP |
0 |
|
Datasheet | - | 14-DIP (0.300", 7.62mm), 10 Leads | Bulk | Obsolete | - | 1 | 0.738" H x 0.386" W x 0.200" D (18.75mm x 9.80mm x 5.08mm) | 0.30" (7.62mm) | 7-Segment | Common Cathode | Red | 1.8V | 20mA | 3.3mcd | 650nm | - |
|
|
MAN8440DISPLAY 7SEG 0.8" SGL GRN 18DIP |
0 |
|
Datasheet | - | 18-DIP (0.600", 15.24mm), 14 Leads | Bulk | Obsolete | - | 1 | 0.985" H x 0.735" W x 0.415" D (25.02mm x 18.67mm x 10.54mm) | 0.80" (20.32mm) | 7-Segment | Common Cathode | Green | 2.2V | 20mA | 3.2mcd | 562nm | 600mW |
|
|
MDA6310CDISP 14SEG 0.54" DBL YLW 18DIP |
0 |
|
Datasheet | - | 18-DIP (0.600", 15.24mm) | Bulk | Obsolete | - | 2 | 0.835" H x 0.996" W x 0.307" D (21.20mm x 25.30mm x 7.80mm) | 0.54" (13.72mm) | 14-Segment, Alphanumeric | Common Anode | Yellow | 2.1V | 20mA | 4mcd | 590nm | 70mW |
|
|
MDA6340CDISP 14SEG 0.54" DBL YLW 18DIP |
0 |
|
Datasheet | - | 18-DIP (0.600", 15.24mm) | Bulk | Obsolete | - | 2 | 0.835" H x 0.996" W x 0.307" D (21.20mm x 25.30mm x 7.80mm) | 0.54" (13.72mm) | 14-Segment, Alphanumeric | Common Cathode | Yellow | 2.1V | 20mA | 4mcd | 590nm | 70mW |
|
|
MDA6341CDISP 14SEG 0.54" DBL YLW 18DIP |
0 |
|
Datasheet | - | 18-DIP (0.600", 15.24mm), 14 Leads | Bulk | Obsolete | - | 2 | 0.835" H x 0.996" W x 0.307" D (21.20mm x 25.30mm x 7.80mm) | 0.54" (13.72mm) | 14-Segment, Alphanumeric | Common Cathode | Yellow | 2.1V | 20mA | 4mcd | 590nm | 70mW |
|
|
MDA6941CDISP 14SEG 0.54" DBL RED 18DIP |
0 |
|
Datasheet | - | 18-DIP (0.600", 15.24mm), 14 Leads | Bulk | Obsolete | - | 2 | 0.835" H x 0.996" W x 0.307" D (21.20mm x 25.30mm x 7.80mm) | 0.54" (13.72mm) | 14-Segment, Alphanumeric | Common Cathode | Red | 2V | 20mA | 4mcd | 635nm | 90mW |
|
|
HDSP-F113DISPLAY 7-SEG 0.4" SGL RED 10DIP |
0 |
|
Datasheet | - | 10-DIP (0.300", 7.62mm) | Bulk | Active | - | 1 | 0.508" H x 0.385" W x 0.250" D (12.90mm x 9.79mm x 6.36mm) | 0.40" (10.16mm) | 7-Segment | Common Cathode | Red | 1.7V | 5mA | 3.9mcd | 645nm | 37mW |
|

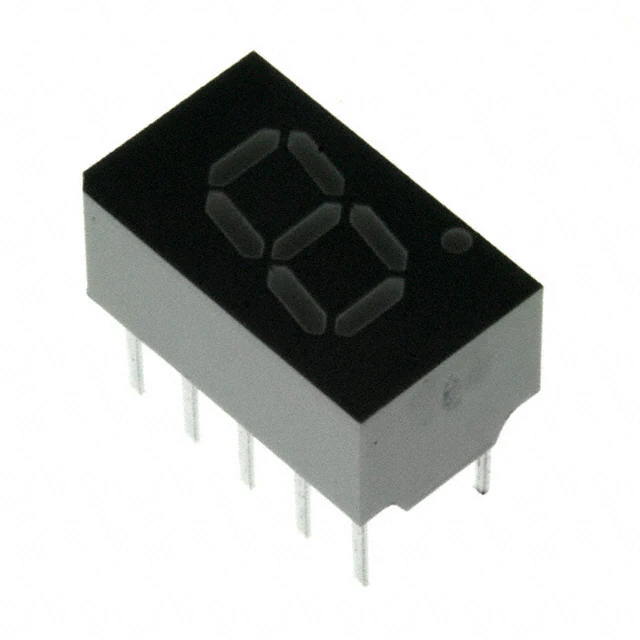

HDSP-7501-CD000DISPLAY 7-SEG 0.3" SGL RED 10DIP |
0 |
|
Datasheet | HDSP-750x | 10-DIP (0.200", 5.08mm) | Bulk | Obsolete | - | 1 | 0.500" H x 0.300" W x 0.240" D (12.70mm x 7.62mm x 6.09mm) | 0.30" (7.62mm) | 7-Segment | Common Anode | Red | 2V | 20mA | 5.39mcd | 635nm | 105mW |
|
|
MSD4410CDISPLAY 7SEG 0.4" DBL GRN 16DIP |
0 |
|
Datasheet | - | 16-DIP (0.500", 12.70mm) | Bulk | Obsolete | - | 2 | 0.630" H x 0.795" W x 0.276" D (16.00mm x 20.20mm x 7.00mm) | 0.40" (10.16mm) | 7-Segment | Common Anode | Green | 2.1V | 20mA | 2.2mcd | 570nm | 70mW |
|
|
MSD4440CDISPLAY 7SEG 0.4" DBL GRN 16DIP |
0 |
|
Datasheet | - | 16-DIP (0.500", 12.70mm) | Bulk | Obsolete | - | 2 | 0.630" H x 0.795" W x 0.276" D (16.00mm x 20.20mm x 7.00mm) | 0.40" (10.16mm) | 7-Segment | Common Cathode | Green | 2.1V | 20mA | 2.2mcd | 570nm | 70mW |
|
|
MSD4940CDISPLAY 7-SEG 0.4" DBL RED 16DIP |
0 |
|
Datasheet | - | 16-DIP (0.500", 12.70mm) | Bulk | Obsolete | - | 2 | 0.630" H x 0.795" W x 0.276" D (16.00mm x 20.20mm x 7.00mm) | 0.40" (10.16mm) | 7-Segment | Common Cathode | Red | 2V | 20mA | 2.2mcd | 635nm | 70mW |
|
|
MAN6750DISP 7SEG 0.56" 1.5DIG RED 18DIP |
0 |
|
Datasheet | - | 18-DIP (0.600", 15.24mm), 15 Leads | Bulk | Obsolete | - | 1.5 | 0.750" H x 0.985" W x 0.315" D (19.05mm x 25.02mm x 8.00mm) | 0.56" (14.22mm) | 7-Segment | Common Cathode | Red | 2V (Max) | 20mA | 0.42mcd | 650nm | 840mW |
|
|
HDSP-F161DISPLAY 7-SEG 0.4" SGL RED 10DIP |
0 |
|
Datasheet | - | 10-DIP (0.300", 7.62mm) | Bulk | Active | - | 1 | 0.508" H x 0.385" W x 0.250" D (12.90mm x 9.79mm x 6.36mm) | 0.40" (10.16mm) | 7-Segment | Common Anode | Red | 1.8V | 20mA | 15mcd | 645nm | 96mW |
|
|
MSQC6142CDISPLAY LED 7-SEG 0.56" QUAD RED |
0 |
|
Datasheet | - | - | Bulk | Obsolete | - | 4 | 0.673" H x 1.984" W x 0.315" D (17.10mm x 50.40mm x 8.00mm) | 0.56" (14.22mm) | 7-Segment | Common Cathode | Red | 2.1V | 20mA | 0.7mcd | 695nm | 40mW |
|
|
HDSP-H111-DE000DISPLAY 7SEG 0.56" SGL RED 10DIP |
0 |
|
Datasheet | - | 10-DIP (0.600", 15.24mm) | Bulk | Active | - | 1 | 0.670" H x 0.495" W x 0.315" D (17.02mm x 12.57mm x 8.00mm) | 0.56" (14.22mm) | 7-Segment | Common Anode | Red | 1.7V | 5mA | 4.2mcd | 645nm | 37mW |
|
|
MSQC6442CDISPLAY 7-SEG 0.56" QUAD GREEN |
0 |
|
Datasheet | - | - | Bulk | Obsolete | - | 4 | 0.673" H x 1.984" W x 0.315" D (17.10mm x 50.40mm x 8.00mm) | 0.56" (14.22mm) | 7-Segment | Common Cathode | Green | 2.1V | 20mA | 2.4mcd | 570nm | 70mW |
|
|
MSQC6410WDISPLAY 7-SEG 0.56" QUAD GREEN |
0 |
|
Datasheet | - | - | Bulk | Obsolete | - | 4 | 0.673" H x 1.984" W x 0.315" D (17.10mm x 50.40mm x 8.00mm) | 0.56" (14.22mm) | 7-Segment | Common Anode | Green | 2.1V | 20mA | 2.4mcd | 570nm | 70mW |
