Analog Switches, Multiplexers, Demultiplexers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADG712BRZIC SWITCH SPST-NOX4 4OHM 16SOIC |
662 |
|
Datasheet | - | Tube | Active | SPST - NO | 1:1 | 4 | 4Ohm | - | 1.8V ~ 5.5V | - | 11ns, 6ns (Typ) | 200MHz | 3pC | 10pF, 10pF | 100pA | -90dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
ADG738BRUZIC MUX 8:1 4.5OHM 16TSSOP |
21,203 |
|
Datasheet | - | Tube | Active | - | 8:1 | 1 | 4.5Ohm | - | 2.7V ~ 5.5V | - | 20ns, 10ns (Typ) | 65MHz | 3pC | 13pF, 85pF | 100pA | -75dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|

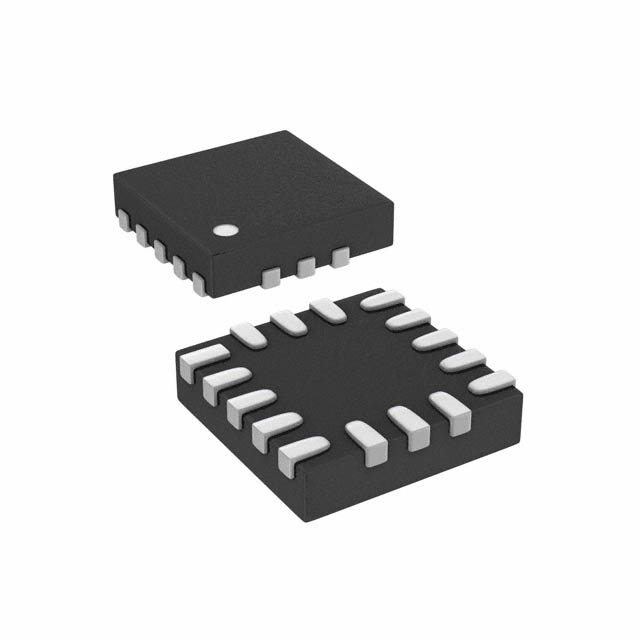

ADG858BCPZ-REEL7IC SWITCH SPDTX2 720MOHM 16LFCSP |
3,296 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:2 | 2 | 720mOhm | 40mOhm | 1.8V ~ 5.5V | - | 27ns, 12ns | 70MHz | 45pC | 25pF | 10pA (Typ) | -85dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-LFCSP-UQ (2.1x2.1) |
|
TMUX7212RUMRIC SWITCH SPST X 4 2.4OHM 16WQFN |
1,593 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST | 1:1 | 4 | 2.4Ohm | 180mOhm | 4.5V ~ 44V | ±4.5V ~ 22V | 185ns, 205ns | 46MHz | 104pC | 28pF, 45pF | 1nA | -93dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-WQFN (4x4) |
|
ADG758BCPZIC MUX 8:1 4.5OHM 20LFCSP |
749 |
|
Datasheet | - | Tray | Active | - | 8:1 | 1 | 4.5Ohm | - | 1.8V ~ 5.5V | ±2.5V | 14ns, 8ns (Typ) | 55MHz | 3pC | 13pF, 85pF | 100pA | -80dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-LFCSP (4x4) |
|
ADG1222BRMZ-REEL7IC SW SPST-NCX2 200OHM 10MSOP |
7,254 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 2 | 200Ohm | 2.5Ohm | 5V ~ 16.5V | ±5V ~ 16.5V | 130ns, 105ns | 960MHz | 0.1pC | 2.2pF, 2.2pF | 100pA | -90dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 10-MSOP |
|
|
ADG1223BRMZ-REEL7IC SW SPST-NO/NCX2 200OHM 10MSOP |
4,850 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NO/NC | 1:1 | 2 | 200Ohm | 2.5Ohm | 5V ~ 16.5V | ±5V ~ 16.5V | 130ns, 105ns | 960MHz | 0.1pC | 2.2pF, 2.2pF | 100pA | -90dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 10-MSOP |
|
|
ADG1223BRMZIC SW SPST-NO/NCX2 200OHM 10MSOP |
364 |
|
Datasheet | - | Tube | Active | SPST - NO/NC | 1:1 | 2 | 200Ohm | 2.5Ohm | 5V ~ 16.5V | ±5V ~ 16.5V | 130ns, 105ns | 960MHz | 0.1pC | 2.2pF, 2.2pF | 100pA | -90dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 10-MSOP |
|
TMUX7236RUMRIC SW SPDT-NO/NCX2 2.4OHM 16WQFN |
2,597 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT - NO/NC | 2:1 | 2 | 2.4Ohm | 100mOhm (Typ) | 4.5V ~ 44V | - | 130ns, 160ns | 35MHz | 104pC | 45pF, 55pF | 1nA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-WQFN (4x4) |
|
ADG821BRMZIC SW SPST-NOX2 600MOHM 8MSOP |
1,582 |
|
Datasheet | - | Tube | Active | SPST - NO | 1:1 | 2 | 600mOhm | 160mOhm | 1.8V ~ 5.5V | - | 45ns, 16ns | 24MHz | 15pC | 85pF, 98pF | 250pA | -82dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-MSOP |
|
|
ADG823BRMZIC SW SPST-NO/NCX2 600MOHM 8MSOP |
250 |
|
Datasheet | - | Tube | Active | SPST - NO/NC | 1:1 | 2 | 600mOhm | 160mOhm | 1.8V ~ 5.5V | - | 45ns, 16ns | 24MHz | 15pC | 85pF, 98pF | 250pA | -82dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-MSOP |
|
|
ADG804YRMZ-REELIC SWITCH SP4TX1 650MOHM 10MSOP |
4,809 |
|
Datasheet | - | Tape & Reel (TR) | Active | SP4T | 4:1 | 1 | 650mOhm | 40mOhm | 1.65V ~ 3.6V | - | 29ns, 6ns | 33MHz | 28pC | 24pF, 105pF | 2nA | -75dB @ 100kHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 10-MSOP |
|
|
ADG836LYRMZIC SWITCH SPDTX2 650MOHM 10MSOP |
1,798 |
|
Datasheet | - | Tube | Active | SPDT | 2:1 | 2 | 650mOhm | 40mOhm | 1.65V ~ 3.6V | - | 26ns, 7ns | 57MHz | 40pC | 25pF | 1nA | -90dB @ 100kHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 10-MSOP |
|
|
ADG733BRUZIC SWITCH SPDTX3 4.5OHM 16TSSOP |
352 |
|
Datasheet | - | Tube | Active | SPDT | 2:1 | 3 | 4.5Ohm | - | 1.8V ~ 5.5V | ±2.5V | 21ns, 10ns (Typ) | 200MHz | 5pC | 11pF | 100pA | -67dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
ADG709BRUZ-REEL7IC SWITCH SP4TX2 4.5OHM 16TSSOP |
4,215 |
|
Datasheet | - | Tape & Reel (TR) | Active | SP4T | 4:1 | 2 | 4.5Ohm | 400mOhm | 1.8V ~ 5.5V | ±2.5V | 14ns, 8ns (Typ) | 55MHz | 3pC | 13pF, 42pF | 10pA (Typ) | -80dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
ADG709BRUZIC SWITCH SP4TX2 4.5OHM 16TSSOP |
995 |
|
Datasheet | - | Tube | Active | SP4T | 4:1 | 2 | 4.5Ohm | 400mOhm | 1.8V ~ 5.5V | ±2.5V | 14ns, 8ns (Typ) | 55MHz | 3pC | 13pF, 42pF | 10pA (Typ) | -80dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
ADG708BRUZ-REELIC MUX 8:1 4.5OHM 16TSSOP |
676 |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 8:1 | 1 | 4.5Ohm | 400mOhm | 1.8V ~ 5.5V | ±2.5V | 14ns, 8ns (Typ) | 55MHz | 3pC | 13pF, 85pF | 10pA (Typ) | -80dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
ADG733BRQZIC SWITCH SPDT X 3 4.5OHM 16QSOP |
389 |
|
Datasheet | - | Tube | Active | SPDT | 2:1 | 3 | 4.5Ohm | - | 1.8V ~ 5.5V | ±2.5V | 21ns, 10ns (Typ) | 200MHz | 5pC | 11pF | 100pA | -67dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-QSOP |
|
|
MUX36D04IRUMRIC MUX DUAL 4:1 170OHM 16WQFN |
9,018 |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 4:1 | 2 | 170Ohm | 2.4Ohm | 10V ~ 36V | ±5V ~ 18V | 136ns, 75ns | - | 0.3pC | 2.4pF, 4.3pF | 40pA | -96dB @ 1MHz | -40°C ~ 125°C | - | - | Surface Mount | 16-WQFN (4x4) |
|
ISL54058IRUZ-TIC SWITCH SP4TX2 750MOHM 16UTQFN |
5,830 |
|
Datasheet | - | Tape & Reel (TR) | Active | SP4T | 4:1 | 2 | 750mOhm | 90mOhm | 1.6V ~ 3.6V | - | - | - | - | 44pF | 4nA | -100dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-UTQFN (2.6x1.8) |
