Analog Switches, Multiplexers, Demultiplexers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TS3A5018RGYRIC SWITCH SPDT X 4 10OHM 16VQFN |
6,478 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 4 | 10Ohm | 300mOhm | 1.65V ~ 3.6V | - | 8ns, 6.5ns | 300MHz | 2pC | 4.5pF, 9pF | 100nA | -48dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-VQFN (4x3.5) |
|
CD4051BEIC MUX 8:1 240OHM 16DIP |
7,334 |
|
Datasheet | - | Bulk | Active | - | 8:1 | 1 | 240Ohm | 5Ohm | 3V ~ 20V | ±2.5V ~ 9V | - | 20MHz | - | 0.2pF, 30pF | 100nA | - | -55°C ~ 125°C (TA) | - | - | Through Hole | 16-PDIP |
|
NX3L2267GM,115IC SWITCH SPDTX2 750MOHM 10XQFN |
20,733 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 750mOhm | 90mOhm | 1.4V ~ 4.3V | - | 40ns, 20ns | 60MHz | 37pC | 35pF | 10nA | -90dB @ 100kHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 10-XQFN (1.55x2) |
|
TS5A3359DCURIC SWITCH SP3TX1 900MOHM 8VSSOP |
5,453 |
|
Datasheet | - | Tape & Reel (TR) | Active | SP3T | 3:1 | 1 | 900mOhm | 100mOhm | 1.65V ~ 5.5V | - | 21ns, 10.5ns | 75MHz | 20pC | 18pF, 54pF | 20nA | -64dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-VSSOP |
|

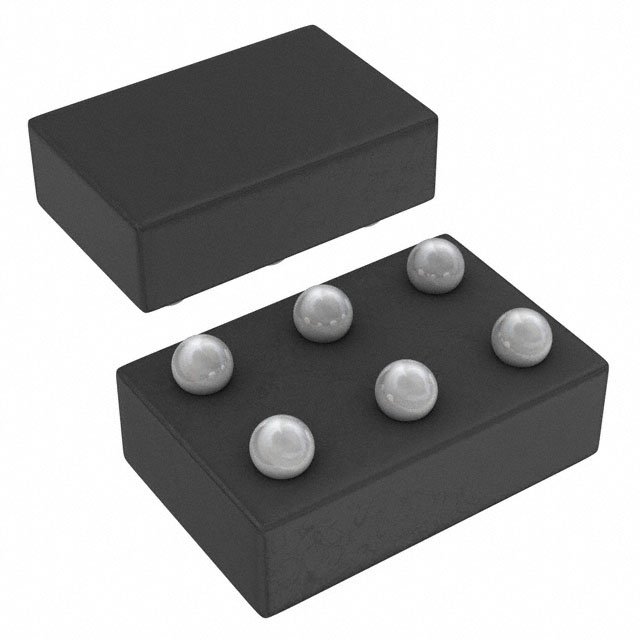

TS5A12301EYFPRIC SWITCH SPDTX1 750MOHM 6DSBGA |
26,161 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 750mOhm | 50mOhm | 2.25V ~ 5.5V | - | 225ns, 215ns | 55MHz | 97pC | 28pF | 20nA | -63dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-DSBGA |
|
NX3L2T66GT,115IC SW SPST-NOX2 750MOHM 8XSON |
18,297 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 2 | 750mOhm | 20mOhm | 1.4V ~ 4.3V | - | 28ns, 20ns | 60MHz | 6pC | 35pF | 10nA | -90dB @ 100kHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-XSON, SOT833-1 (1.95x1) |
|
|
TS5A3357DCURIC SWITCH SP3T X 1 15OHM 8VSSOP |
8,408 |
|
Datasheet | - | Tape & Reel (TR) | Active | SP3T | 3:1 | 1 | 15Ohm | 100mOhm | 1.65V ~ 5.5V | - | 6.5ns, 3.7ns | 334MHz | 3.4pC | 4.5pF, 10.5pF | 100nA | -62dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-VSSOP |
|
TS5A23159RSERIC SWITCH SPDTX2 900MOHM 10UQFN |
10,477 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 900mOhm | 50mOhm | 1.65V ~ 5.5V | - | 13ns, 8ns | 100MHz | -7pC | 18pF | 20nA | -64dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UQFN (2.0x1.5) |
|
SN3257QDYYRQ1IC SWITCH SPDT X 1 5OHM 16SOT23 |
22,303 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 5Ohm | 70mOhm | 1.5V ~ 5.5V | - | 35µs, 95ns | 1.2GHz | 3.5pC | 4pF, 4pF | 900nA (Typ) | -90dB @ 100kHz | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 16-SOT-23-THIN |
|
|
TMUX136RSERIC SWITCH SPDT X 2 9.5OHM 10UQFN |
45,822 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 9.5Ohm | 100mOhm | 2.3V ~ 4.8V | - | - | 6.1GHz | - | 1.6pF, 1.6pF | 2µA | -37dB @ 240MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UQFN (2.0x1.5) |
|
|
TMUX136MRSERIC SWITCH SPDT X 2 9.5OHM 10UQFN |
12,701 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 9.5Ohm | 100mOhm | 2.3V ~ 4.8V | - | - | 6.1GHz | - | 1.6pF, 1.6pF | 2µA | -37dB @ 240MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UQFN (2.0x1.5) |
|
|
TS3A24157RSERIC SWITCH SPDTX2 600MOHM 10UQFN |
8,569 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 600mOhm | 50mOhm | 1.65V ~ 3.6V | - | 35ns, 25ns | 50MHz | 8.75pC | 50pF | 50nA | -72dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UQFN (2.0x1.5) |
|
STG719STRIC SWITCH SPDT X 1 4OHM SOT23-6 |
108,597 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 4Ohm | 100mOhm | 1.8V ~ 5.5V | - | 7ns, 4.5ns (Typ) | 200MHz | - | 19pF | 250pA | -52dB @ 1MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-6 |
|
TS5A21366RSERIC SWITCH SPST-NO X 2 1OHM 8UQFN |
2,334 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 2 | 1Ohm | 40mOhm | 1.65V ~ 5.5V | - | 72ns, 318ns | 260MHz | 1.3pC | 19pF, 17pF | 10nA | -98dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-UQFN (1.5x1.5) |
|
TMUX1575YCJRIC SWITCH SPDT X 4 8OHM 16WLCSP |
12,437 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 4 | 8Ohm | 100mOhm | 1.08V ~ 3.6V | - | 130ns, 60ns | 1.8GHz | 5pC | 3.5pF | 100pA | -90dB @ 100kHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-WLCSP (1.34x1.34) |
|
TS5A22362DGSRIC SWITCH SPDTX2 740MOHM 10VSSOP |
5,428 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 740mOhm | 40mOhm | 2.3V ~ 5.5V | - | 80ns, 70ns | 18.3MHz | 10pC | 70pF | 50nA | -78dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-VSSOP |
|
NX3DV3899GU,115IC SWITCH DPDT X 2 3.3OHM 16XQFN |
2,852 |
|
Datasheet | - | Tape & Reel (TR) | Active | DPDT | 2:2 | 2 | 3.3Ohm | 700mOhm | 1.4V ~ 4.3V | - | 40ns, 20ns | 200MHz | 4pC | 8pF | 5nA | -90dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-XQFN (1.8x2.6) |
|
|
TS5A3357QDCURQ1IC SWITCH SP3T X 1 15OHM 8VSSOP |
3,880 |
|
Datasheet | - | Tape & Reel (TR) | Active | SP3T | 3:1 | 1 | 15Ohm | 100mOhm | 1.65V ~ 5.5V | - | 10ns, 6.5ns | 334MHz | 3.4pC | 4.5pF, 10.5pF | 200nA | -62dB @ 10MHz | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 8-VSSOP |
|
|
TS3A24159DGSRIC SWITCH SPDTX2 300MOHM 10VSSOP |
12,115 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 300mOhm | 10mOhm | 1.65V ~ 3.6V | - | 35ns, 25ns | 23MHz | 9pC | 90pF | 10nA | -96dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-VSSOP |
|
NX3L4051PW,118IC MUX 8:1 750MOHM 16TSSOP |
239 |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 8:1 | 1 | 750mOhm | 70mOhm | 1.4V ~ 4.3V | - | 45ns, 25ns | 15MHz | 15pC | 35pF | 10nA | -90dB @ 100kHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
