Analog Switches, Multiplexers, Demultiplexers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HI9P5051-9ZIC SWITCH SPDT X 2 45OHM 16SOIC |
190 |
|
Datasheet | - | Tube | Active | SPDT | 2:1 | 2 | 45Ohm | 1Ohm | - | ±15V | 500ns, 500ns | - | - | 11pF, 11pF | 2nA | -88dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
HI9P0506-9ZIC MUX 16:1 400OHM 28SOIC |
156 |
|
Datasheet | - | Bulk | Active | - | 16:1 | 1 | 400Ohm | 20Ohm | - | ±15V | 250ns, 250ns (Typ) | - | - | 10pF, 52pF | 30pA (Typ) | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 28-SOIC |
|
|
HI9P0547-9ZIC MUX DUAL 8:1 1.8KOHM 28SOIC |
73 |
|
Datasheet | - | Tube | Active | - | 8:1 | 2 | 1.8kOhm | 126Ohm | - | ±15V | 300ns, 300ns (Typ) | - | - | 10pF, 30pF | 30pA (Typ) | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 28-SOIC |
|

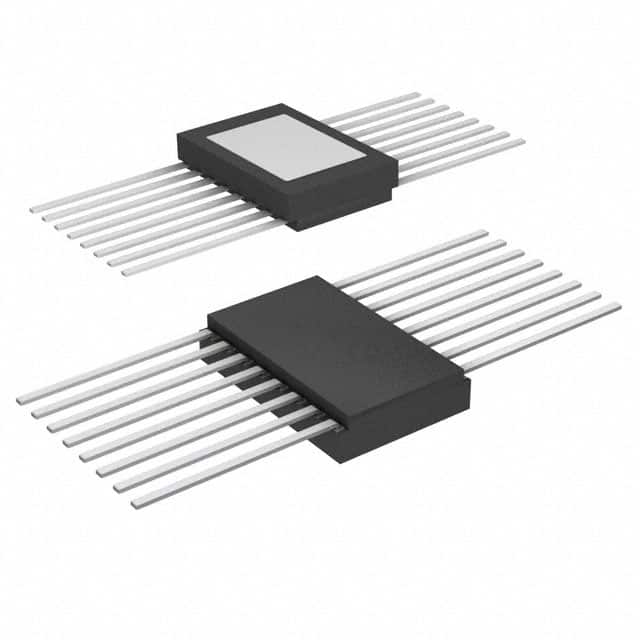

ADG798HFRZIC MUX 8:1 10OHM 16CFLATPACK |
17 |
|
Datasheet | - | Tray | Active | - | 8:1 | 1 | 10Ohm | 1.25Ohm | 3V ~ 5.5V | ±2.5V | 30ns, 20ns | 55MHz | 3pC | 13pF, 85pF | 180nA | -60dB @ 10MHz | -55°C ~ 210°C (TA) | - | - | Surface Mount | 16-CFlatPack |
|
SN74LVC1G66DRYRIC SWITCH SPST-NO X 1 10OHM 6SON |
16,384 |
|
Datasheet | 74LVC | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 1 | 10Ohm | - | 1.65V ~ 5.5V | - | 4.2ns, 5ns | 300MHz | - | 6pF | 100nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-SON (1.45x1) |
|
|
SN74LVC1G3157DRYRIC SWITCH SPDT X 1 15OHM 6SON |
17,345 |
|
Datasheet | 74LVC | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 15Ohm | 100mOhm | 1.65V ~ 5.5V | - | 5.7ns, 3.8ns | 340MHz | 7pC | 5.2pF | 1µA | -54dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-SON (1.45x1) |
|
SN74LVC1G3157DRLRIC SWITCH SPDT X 1 15OHM SOT5X3 |
12,180 |
|
Datasheet | 74LVC | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 15Ohm | 100mOhm | 1.65V ~ 5.5V | - | 5.7ns, 3.8ns | 340MHz | 7pC | 5.2pF | 1µA | -54dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-5X3 |
|
SN4599DBVRQ1Automotive, 5V 2:1 (SPDT) 1-chan |
4,003 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT - Open/Closed | 2:1 | 1 | 7Ohm (Typ) | 100mOhm | 2V ~ 5.5V | - | - | - | 7pC | 5.2pF, 5.2pF | 5nA (Typ) | -54dB @ 1MHz | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SOT-23-6 |
|
TS5A3157DBVRIC SWITCH SPDT X 1 10OHM SOT23-6 |
31,568 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 10Ohm | 150mOhm | 1.65V ~ 5.5V | - | 8.5ns, 6.5ns | 300MHz | 7pC | 5.5pF | 100nA | -66dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-6 |
|
TMUX1308QDYYRQ1IC MUX 8:1 195OHM 16SOT23 |
4,836 |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 8:1 | 1 | 195Ohm | 7Ohm | 1.62V ~ 5.5V | - | 32ns, 40ns | 500MHz | -6.5pC | 14pF, 7pF | 1nA (Typ) | -90dB @ 1MHz | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 16-SOT-23-THIN |
|
TS5A3157DCKRIC SWITCH SPDT X 1 10OHM SC70-6 |
6,872 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 10Ohm | 150mOhm | 1.65V ~ 5.5V | - | 8.5ns, 6.5ns | 300MHz | 7pC | 5.5pF | 100nA | -66dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-6 |
|
TMUX1308PWRIC MUX 8:1 195OHM 16TSSOP |
10,296 |
|
Datasheet | - | Tape & Reel (TR) | Active | SP8T | 8:1 | 1 | 195Ohm | 7Ohm | 1.62V ~ 5.5V | - | 32ns, 40ns | 500MHz | -6.5pC | 2pF, 7pF | 1nA (Typ) | -90dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
TMUX1219DBVRIC SWITCH SPDT X 1 3OHM SOT23-6 |
1,339 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 3Ohm (Typ) | 150mOhm | 1.08V ~ 5.5V | - | - | 250MHz | -10pC | 7pF | 5nA (Typ) | -45dB @ 10MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-6 |
|
SN74LVC2G53DCURIC SWITCH SPDT X 1 13OHM 8VSSOP |
86,500 |
|
Datasheet | 74LVC | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 13Ohm | 2Ohm (Max) | 1.65V ~ 5.5V | - | 4.5ns, 8ns | 300MHz | - | 10pF | 100nA | -58dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-VSSOP |
|
|
TS5A9411DCKRIC SWITCH SPDT X 1 9OHM SC70-6 |
12,959 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 9Ohm | 30mOhm | 2.25V ~ 5.5V | - | 9ns, 7ns | 100MHz | 12.5pC | 3.5pF | 500pA | -85dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-6 |
|
SN74LVC1G66QDCKRQ1IC SWITCH SPST-NOX1 25OHM SC70-5 |
5,840 |
|
Datasheet | 74LVC | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 1 | 25Ohm | - | 1.65V ~ 5.5V | - | 7.2ns, 6.9ns | 300MHz | - | 6pF | 100nA | - | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SC-70-5 |
|
|
TMUX1308DYYRIC MUX 8:1 195OHM 16SOT23 |
4,942 |
|
Datasheet | - | Tape & Reel (TR) | Active | SP8T | 8:1 | 1 | 195Ohm | 7Ohm | 1.62V ~ 5.5V | - | 32ns, 40ns | 500MHz | -6.5pC | 14pF, 7pF | 1nA (Typ) | -90dB @ 1MHz | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 16-SOT-23-THIN |
|
|
TS5A1066DCKRIC SWITCH SPST-NOX1 10OHM SC70-5 |
8,960 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 1 | 10Ohm | - | 1.65V ~ 5.5V | - | 5.5ns, 4.5ns | 400MHz | 1pC | 6.8pF, 6.8pF | 200nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-5 |
|
SN74LV4052ADRIC SWITCH SP4T X 2 75OHM 16SOIC |
8,388 |
|
Datasheet | - | Tape & Reel (TR) | Active | SP4T | 4:1 | 2 | 75Ohm | 700mOhm | 2V ~ 5.5V | - | 14ns, 14ns | 50MHz | - | 0.5pF, 13.1pF | 100nA | -45dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
TMUX1309DYYRIC SWITCH SP4TX2 195OHM 16SOT23 |
8,220 |
|
Datasheet | - | Tape & Reel (TR) | Active | SP4T | 4:1 | 2 | 195Ohm | 7Ohm | 1.62V ~ 5.5V | - | 32ns, 40ns | 500MHz | -6.5pC | 14pF, 7pF | 1nA (Typ) | -90dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-SOT-23-THIN |
