Single IGBTs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Current - Collector Pulsed (Icm) | Vce(on) (Max) @ Vge, Ic | Power - Max | Switching Energy | Input Type | Gate Charge | Td (on/off) @ 25°C | Test Condition | Reverse Recovery Time (trr) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRG4RC10UDPBFIGBT 600V 8.5A TO252AA |
5,933 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | - | 600 V | 8.5 A | 34 A | 2.6V @ 15V, 5A | 38 W | 140µJ (on), 120µJ (off) | Standard | 15 nC | 40ns/87ns | 480V, 5A, 100Ohm, 15V | 28 ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA (DPAK) |
|
IRG4BC30FPBFIGBT 600V 31A TO220AB |
8,851 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | - | 600 V | 31 A | 124 A | 1.8V @ 15V, 17A | 100 W | 230µJ (on), 1.18mJ (off) | Standard | 51 nC | 21ns/200ns | 480V, 17A, 23Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB |
|
IRG4IBC30KDPBFIGBT 600V 17A 45W TO220FP |
8,458 |
|
Datasheet | - | TO-220-3 Full Pack | Tube | Obsolete | - | 600 V | 17 A | 34 A | 2.7V @ 15V, 16A | 45 W | 600µJ (on), 580µJ (off) | Standard | 67 nC | 60ns/160ns | 480V, 16A, 23Ohm, 15V | 42 ns | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB Full-Pak |
|
IRG4PC40KPBFIGBT 600V 42A 160W TO247AC |
5,738 |
|
Datasheet | - | TO-247-3 | Bag | Obsolete | - | 600 V | 42 A | 84 A | 2.6V @ 15V, 25A | 160 W | 620µJ (on), 330µJ (off) | Standard | 120 nC | 30ns/140ns | 480V, 25A, 10Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AC |
|
|
IRG4PC60UPBFIGBT 600V 75A TO247AC |
9,316 |
|
Datasheet | - | TO-247-3 | Tube | Obsolete | - | 600 V | 75 A | 300 A | 2V @ 15V, 40A | 520 W | 280µJ (on), 1.1mJ (off) | Standard | 310 nC | 39ns/200ns | 480V, 40A, 5Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AC |
|
|
IRGIB6B60KDPBFIGBT 600V 11A 38W TO220FP |
3,365 |
|
Datasheet | - | TO-220-3 Full Pack | Tube | Obsolete | NPT | 600 V | 11 A | 22 A | 2.2V @ 15V, 5A | 38 W | 110µJ (on), 135µJ (off) | Standard | 18.2 nC | 25ns/215ns | 400V, 5A, 100Ohm, 15V | 70 ns | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB Full-Pak |
|
|
IRG4PC50KPBFIGBT 600V 52A 200W TO247AC |
2,877 |
|
Datasheet | - | TO-247-3 | Bag | Obsolete | - | 600 V | 52 A | 104 A | 2.2V @ 15V, 30A | 200 W | 490µJ (on), 680µJ (off) | Standard | 200 nC | 38ns/160ns | 480V, 30A, 5Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AC |
|
IRG4P254SPBFIGBT 250V 98A 200W TO247AC |
2,291 |
|
Datasheet | - | TO-247-3 | Bag | Obsolete | - | 250 V | 98 A | 196 A | 1.5V @ 15V, 55A | 200 W | 380µJ (on), 3.5mJ (off) | Standard | 200 nC | 40ns/270ns | 200V, 55A, 5Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AC |
|
|
IRG4PH40KPBFIGBT 1200V 30A TO247AC |
8,826 |
|
Datasheet | - | TO-247-3 | Tube | Obsolete | - | 1200 V | 30 A | 60 A | 3.4V @ 15V, 15A | 160 W | 730µJ (on), 1.66mJ (off) | Standard | 94 nC | 30ns/200ns | 960V, 15A, 10Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AC |
|
|
IRGB8B60KPBFIGBT 600V 28A 167W TO220AB |
3,255 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | NPT | 600 V | 28 A | 26 A | 2.2V @ 15V, 8A | 167 W | 160µJ (on), 160µJ (off) | Standard | 18.2 nC | 23ns/140ns | 400V, 5A, 100Ohm, 15V | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
|
IRGB6B60KPBFIGBT 600V 13A 90W TO220AB |
3,799 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | NPT | 600 V | 13 A | 26 A | 2.2V @ 15V, 5A | 90 W | 110µJ (on), 135µJ (off) | Standard | 18.2 nC | 25ns/215ns | 400V, 5A, 100Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB |
|
|
IRG4PC30KDPBFIGBT 600V 28A TO247AC |
7,229 |
|
Datasheet | - | TO-247-3 | Tube | Obsolete | - | 600 V | 28 A | 58 A | 2.7V @ 15V, 16A | 100 W | 600µJ (on), 580µJ (off) | Standard | 67 nC | 60ns/160ns | 480V, 16A, 23Ohm, 15V | 42 ns | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AC |
|
|
IRG4PC60FPBFIGBT 600V 90A TO247AC |
6,750 |
|
Datasheet | - | TO-247-3 | Tube | Obsolete | - | 600 V | 90 A | 360 A | 1.8V @ 15V, 60A | 520 W | 300µJ (on), 4.6mJ (off) | Standard | 290 nC | 42ns/310ns | 480V, 60A, 5Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AC |
|
|
IRG4PH20KPBFIGBT 1200V 11A TO247AC |
2,062 |
|
Datasheet | - | TO-247-3 | Tube | Obsolete | - | 1200 V | 11 A | 22 A | 4.3V @ 15V, 5A | 60 W | 450µJ (on), 440µJ (off) | Standard | 28 nC | 23ns/93ns | 960V, 5A, 50Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AC |
|
|
IRG4RC20FPBFIGBT 600V 22A TO252AA |
4,062 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | - | 600 V | 22 A | 44 A | 2.1V @ 15V, 12A | 66 W | 190µJ (on), 920µJ (off) | Standard | 27 nC | 26ns/194ns | 480V, 12A, 50Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA (DPAK) |
|

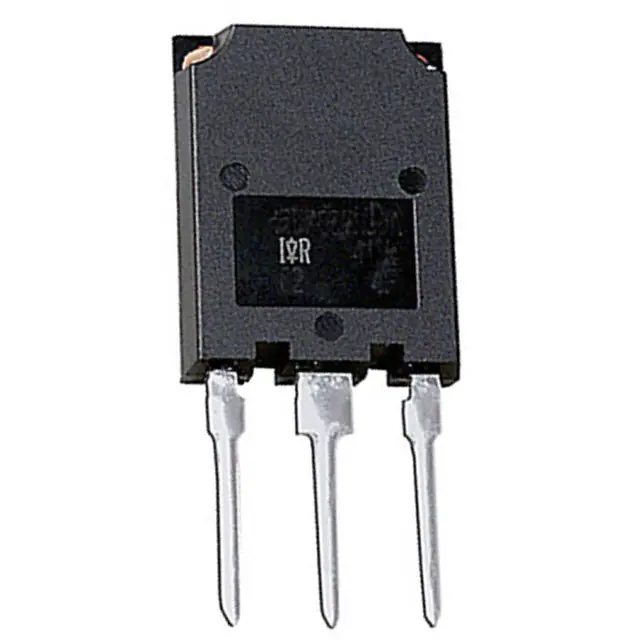

IRG4PSC71UDPBFIGBT 600V 85A 350W SUPER247 |
4,126 |
|
Datasheet | - | TO-274AA | Tube | Obsolete | - | 600 V | 85 A | 200 A | 2V @ 15V, 60A | 350 W | 3.26mJ (on), 2.27mJ (off) | Standard | 340 nC | 90ns/245ns | 480V, 60A, 5Ohm, 15V | 82 ns | -55°C ~ 150°C (TJ) | - | - | Through Hole | SUPER-247™ (TO-274AA) |
|
|
IRGPS40B120UPBFIGBT 1200V 80A 595W SUPER247 |
6,442 |
|
Datasheet | - | TO-274AA | Bag | Obsolete | NPT | 1200 V | 80 A | 160 A | 3.71V @ 15V, 50A | 595 W | 1.4mJ (on), 1.65mJ (off) | Standard | 340 nC | - | 600V, 40A, 4.7Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | SUPER-247™ (TO-274AA) |
|
IRGP30B120KD-EPIGBT 1200V 60A 300W TO247AD |
9,835 |
|
Datasheet | - | TO-247-3 | Tube | Obsolete | NPT | 1200 V | 60 A | 120 A | 4V @ 15V, 60A | 300 W | 1.07mJ (on), 1.49mJ (off) | Standard | 169 nC | - | 600V, 25A, 5Ohm, 15V | 300 ns | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AD |
|
|
IRG4PH40UD2-EPIGBT 1200V 41A TO247AD |
3,846 |
|
Datasheet | - | TO-247-3 | Tube | Obsolete | - | 1200 V | 41 A | 82 A | 3.1V @ 15V, 21A | 160 W | 1.95mJ (on), 1.71mJ (off) | Standard | 100 nC | 22ns/100ns | 800V, 21A, 10Ohm, 15V | 50 ns | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AD |
|
|
IRG4BC20FPBFIGBT 600V 16A 60W TO220AB |
3,728 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | - | 600 V | 16 A | 64 A | 2V @ 15V, 9A | 60 W | 70µJ (on), 600µJ (off) | Standard | 27 nC | 24ns/190ns | 480V, 9A, 50Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB |
