IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FP25R12KT4B15BOSA1IGBT MOD 1200V 25A 160W |
9,108 |
|
- |
EconoPIM™ 2 | Module | Bulk | Discontinued at Digi-Key | Trench Field Stop | Three Phase Inverter | 1200 V | 25 A | 160 W | 2.15V @ 15V, 25A | 1 mA | 1.45 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
NXH80T120L2Q0S2TGMODULE PIM 1200V 80A |
3,960 |
|
- |
- | Module | Bulk | Active | Trench Field Stop | Three Level Inverter | 1200 V | 67 A | 158 W | 2.85V @ 15V, 80A | 300 µA | 19400 pF @ 25 V | Standard | Yes | 150°C (TJ) | Chassis Mount | 20-PIM/Q0PACK (55x32.5) |
|

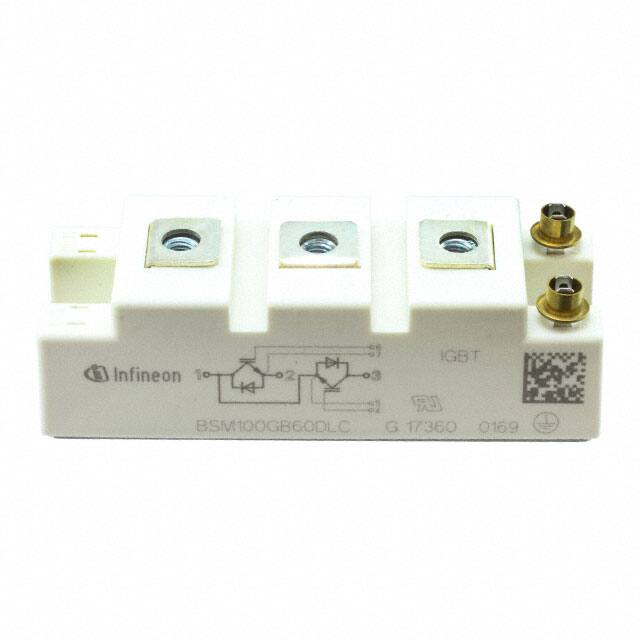

BSM100GB60DLCHOSA1IGBT MOD 600V 130A 445W |
6,479 |
|
- |
- | Module | Bulk | Obsolete | - | Single | 600 V | 130 A | 445 W | 2.45V @ 15V, 100A | 500 µA | - | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
|
|
BSM10GP60BOSA1BSM10GP60 - IGBT MODULE 600V 20A |
125 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BSM50GB120DLCHOSA1IGBT MOD 1200V 115A 460W |
2,515 |
|
- |
- | Module | Bulk | Obsolete | - | Half Bridge | 1200 V | 115 A | 460 W | 2.6V @ 15V, 50A | 5 mA | 3.3 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
|
|
NXH80B120H2Q0SGPIM 1200V, 40A DUAL BOOST |
19 |
|
- |
* | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FS50R12KT4B11BOSA1IGBT MOD 1200V 50A 280W |
7,136 |
|
- |
EconoPACK™ 2 | Module | Bulk | Discontinued at Digi-Key | Trench Field Stop | Full Bridge | 1200 V | 50 A | 280 W | 2.15V @ 15V, 50A | 1 mA | 2.8 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FP50R07N2E4B11BOSA1IGBT MODULE 650V 70A |
2,138 |
|
- |
EconoPIM™ 2 | Module | Bulk | Discontinued at Digi-Key | Trench Field Stop | Three Phase Inverter | 650 V | 70 A | - | 1.95V @ 15V, 50A | 1 mA | 3.1 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
BSM15GD120DLCE3224BOSA1IGBT MOD 1200V 35A 145W |
3,281 |
|
- |
- | Module | Bulk | Obsolete | - | Full Bridge | 1200 V | 35 A | 145 W | 2.6V @ 15V, 15A | 76 µA | 1 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
|
DDB6U134N16RRB11BPSA1IGBT MODULE |
7,994 |
|
- |
EconoPACK™2 | Module | Bulk | Active | - | Single Chopper | 1200 V | 125 A | 400 W | 2.6V @ 15V, 75A | 1 mA | 5.1 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONO2B |
|
FF50R12RT4HOSA1IGBT MOD 1200V 50A 285W |
4,124 |
|
- |
- | Module | Bulk | Obsolete | Trench Field Stop | Half Bridge | 1200 V | 50 A | 285 W | 2.15V @ 15V, 50A | 1 mA | 2.8 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
BSM75GAR120DN2HOSA1IGBT MOD 1200V 30A 235W |
2,640 |
|
- |
- | Module | Bulk | Obsolete | Trench Field Stop | Single | 1200 V | 30 A | 235 W | 2.2V @ 15V, 15A | 400 µA | 1 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | Module |
|
|
BSM100GB120DN2FE325HOSA1BSM100GB120DN2 - IGBT MODULE |
292 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
NXH35C120L2C2ESGIGBT MODULE, CIB 1200 V, 35 A IG |
6,829 |
|
- |
- | 26-PowerDIP Module (1.199", 47.20mm) | Tube | Obsolete | - | Three Phase Inverter with Brake | 1200 V | 35 A | 20 mW | 2.4V @ 15V, 35A | 250 µA | 8.333 nF @ 20 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Through Hole | 26-DIP |
|
|
NXH35C120L2C2S1GIGBT MOD 1200V 35A 26DIP |
8,224 |
|
- |
- | 26-PowerDIP Module (1.199", 47.20mm) | Tube | Obsolete | - | Three Phase Inverter with Brake | 1200 V | 35 A | 20 mW | 2.4V @ 15V, 35A | 250 µA | 8.33 nF @ 20 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Through Hole | 26-DIP |
|
|
BSM75GB120DLCHOSA1IGBT MOD 1200V 170A 690W |
2,636 |
|
- |
- | Module | Bulk | Obsolete | - | 2 Independent | 1200 V | 170 A | 690 W | 2.6V @ 15V, 75A | 5 mA | 5.1 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
|
|
FPF2C8P2NL07AIGBT MODULE 650V 30A 135W F2 |
2,505 |
|
- |
- | F2 Module | Bulk | Obsolete | Field Stop | Three Phase | 650 V | 30 A | 135 W | 2.2V @ 15V, 30A | 250 µA | - | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | F2 |
|
FP40R12KT3BOSA1IGBT MOD 1200V 55A 210W |
2,621 |
|
- |
- | Module | Bulk | Discontinued at Digi-Key | - | Three Phase Inverter | 1200 V | 55 A | 210 W | 2.3V @ 15V, 40A | 5 mA | 2.5 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount | Module |
|
|
BSM15GP60BOSA1IGBT MODULE 600V 25A 100W |
3,588 |
|
- |
- | Module | Bulk | Obsolete | - | Three Phase Inverter | 600 V | 25 A | 100 W | 2.45V @ 15V, 15A | 500 µA | - | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C | Chassis Mount | Module |
|

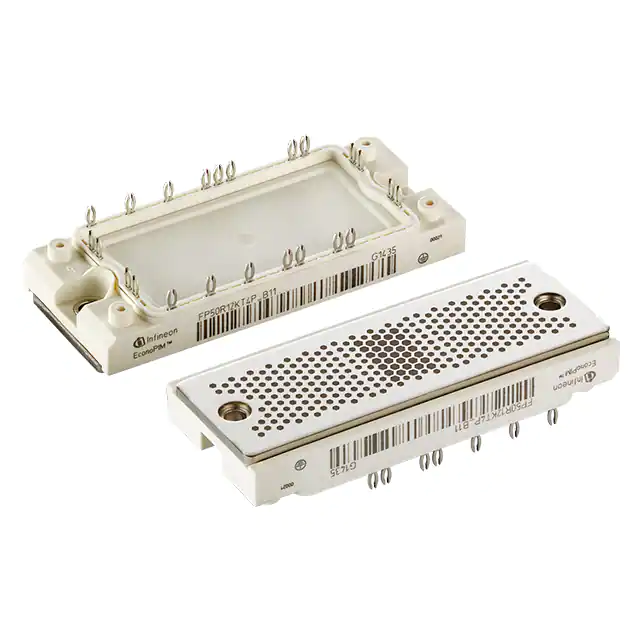

FP50R12KT4PB11BPSA1MOD IGBT LOW PWR ECONO2-4 |
8,078 |
|
- |
EconoPIM™ 2 | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
