IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APT100GT120JU3IGBT MOD 1200V 140A 480W SOT227 |
4,353 |
|
- |
- | ISOTOP | Bulk | Active | Trench Field Stop | Single | 1200 V | 140 A | 480 W | 2.1V @ 15V, 100A | 5 mA | 7.2 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|
FMG2G50US120IGBT MODULE 1200V 50A 320W 7PMGA |
6,779 |
|
- |
- | 7PM-GA | - | Obsolete | - | Half Bridge | 1200 V | 50 A | 320 W | 3V @ 15V, 50A | 3 mA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | 7PM-GA |
|
|
APT80GP60JDQ3IGBT 600V 151A 462W SOT227 |
2,838 |
|
- |
POWER MOS 7® | ISOTOP | Tube | Active | PT | Single | 600 V | 151 A | 462 W | 2.7V @ 15V, 80A | 1.25 mA | 9.84 nF @ 25 V | Standard | No | - | Chassis Mount | ISOTOP® |
|
MG1250S-BA1MMIGBT MODULE 1200V 80A 500W S3 |
6,233 |
|
- |
- | S-3 Module | Bulk | Obsolete | - | Half Bridge | 1200 V | 80 A | 500 W | 1.8V @ 15V, 50A (Typ) | 500 µA | 4.29 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | S3 |
|
FP35R12W2T7PBPSA1LOW POWER EASY |
3,918 |
|
- |
EasyPIM™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 35 A | - | 1.6V @ 15V, 35A | 5.8 µA | 6.62 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-EASY2B |
|
APTGF100DA120TGIGBT MODULE 1200V 135A 568W SP4 |
9,863 |
|
- |
- | SP4 | Bulk | Obsolete | NPT | Single | 1200 V | 135 A | 568 W | 3.7V @ 15V, 100A | 350 µA | 6.9 nF @ 25 V | Standard | Yes | - | Chassis Mount | SP4 |
|
|
FMG2G150US60EIGBT MODULE 600V 150A 500W 7PMGA |
2,231 |
|
- |
- | 7PM-GA | Bulk | Obsolete | - | Half Bridge | 600 V | 150 A | 500 W | 2.8V @ 15V, 150A | 250 µA | 12.84 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | 7PM-GA |
|
|
APTGF180SK60TGIGBT MODULE 600V 220A 833W SP4 |
7,627 |
|
- |
- | SP4 | Bulk | Obsolete | NPT | Single | 600 V | 220 A | 833 W | 2.5V @ 15V, 180A | 300 µA | 8.6 nF @ 25 V | Standard | Yes | - | Chassis Mount | SP4 |
|

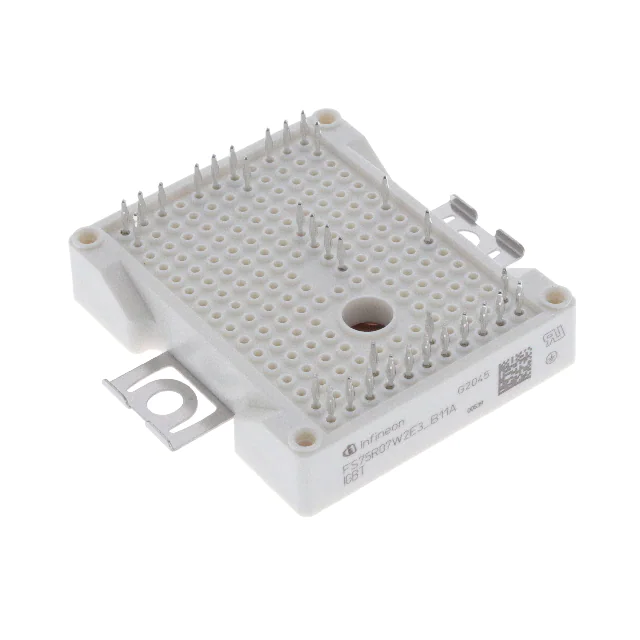

FS75R07W2E3B11ABOMA1IGBT MODULES |
2,847 |
|
- |
EasyPACK™ | Module | Tray | Last Time Buy | Trench Field Stop | Three Phase Inverter | 650 V | 95 A | 275 W | 1.9V @ 15V, 75A | 50 µA | 4.6 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | ACEPACK™ 2 |
|
|
APTGF25X120T3GIGBT MODULE 1200V 40A 208W SP3 |
8,479 |
|
- |
- | SP3 | Bulk | Obsolete | NPT | Three Phase Inverter | 1200 V | 40 A | 208 W | 3.7V @ 15V, 25A | 250 µA | 1.65 nF @ 25 V | Standard | Yes | - | Chassis Mount | SP3 |
|
|
APT75GT120JRDQ3IGBT MOD 1200V 97A 480W ISOTOP |
7,858 |
|
- |
Thunderbolt IGBT® | SOT-227-4, miniBLOC | Tube | Active | NPT | Single | 1200 V | 97 A | 480 W | 3.7V @ 15V, 75A | 200 µA | 5.1 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
|
|
FP50R12W2T7PBPSA1LOW POWER EASY |
9,513 |
|
- |
EasyPIM™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 50 A | - | 1.6V @ 15V, 35A | 5 µA | 11.1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-EASY2B |
|
|
APT200GT60JRIGBT MOD 600V 195A 500W SOT227 |
9,091 |
|
- |
Thunderbolt IGBT® | SOT-227-4, miniBLOC | Tray | Obsolete | NPT | Single | 600 V | 195 A | 500 W | 2.5V @ 15V, 200A | 25 µA | 8.65 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|
|
FMG2G75US120IGBT MODULE 1200V 75A 445W 7PMGA |
6,445 |
|
- |
- | 7PM-GA | - | Obsolete | - | Half Bridge | 1200 V | 75 A | 445 W | 3V @ 15V, 75A | 3 mA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | 7PM-GA |
|
APTGT75DA60T1GIGBT MODULE 600V 100A 250W SP1 |
7,765 |
|
- |
- | SP1 | Bulk | Active | Trench Field Stop | Single | 600 V | 100 A | 250 W | 1.9V @ 15V, 75A | 250 µA | 4.62 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP1 |
|
|
MG1275S-BA1MMIGBT MODULE 1200V 105A 630W S3 |
6,354 |
|
- |
- | S-3 Module | Bulk | Obsolete | - | Half Bridge | 1200 V | 105 A | 630 W | 1.8V @ 15V, 75A (Typ) | 500 µA | 5.52 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | S3 |
|
|
APT50GF120JRDIGBT NPT COMBI 1200V 50A ISOTOP |
8,072 |
|
- |
- | SOT-227-4, miniBLOC | Tube | Active | - | Single | 1200 V | 75 A | 460 W | 3.4V @ 15V, 50A | 750 µA | 3.45 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227 (ISOTOP®) |
|
|
IRG5K100HF12AIGBT MOD 1200V 200A POWIR 34 |
3,576 |
|
- |
- | POWIR® 34 Module | Box | Obsolete | - | Half Bridge | 1200 V | 200 A | 620 W | 2.6V @ 15V, 100A | 1 mA | 12.9 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | POWIR® 34 |
|
|
FS75R12W2T4PBPSA1LOW POWER EASY AG-EASY2B-411 |
6,997 |
|
- |
EasyPACK™ | Module | Tray | Active | Trench Field Stop | Full Bridge Inverter | 1200 V | 107 A | 375 W | 2.15V @ 15V, 75A | 1 mA | 4.3 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-EASY2B |
|
|
FS75R12W2T4PB11BPSA1LOW POWER EASY |
4,189 |
|
- |
* | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
