IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FF600R17ME4BOSA1IGBT MODULE VCES 1700V 600A |
4,041 |
|
- |
EconoDUAL™ 3 | Module | Tray | Active | Trench Field Stop | 2 Independent | 1700 V | - | - | 2.3V @ 15V, 600A | 1 mA | 48 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
APTGT400A60D3GIGBT MODULE 600V 500A 1250W D3 |
1 |
|
- |
- | D-3 Module | Bulk | Active | Trench Field Stop | Half Bridge | 600 V | 500 A | 1250 W | 1.9V @ 15V, 400A | 500 µA | 24 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | D3 |
|
FS300R12OE4BOSA1IGBT MOD 1200V 460A 1650W |
4,771 |
|
- |
- | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 460 A | 1650 W | 2.1V @ 15V, 300A | 3 mA | 18.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
FF1500R12IE5BPSA1IGBT MOD 1200V 1500A 20MW |
9,730 |
|
- |
PrimePACK™3+ B | Module | Tray | Active | Trench Field Stop | 2 Independent | 1200 V | 1500 A | - | 2.15V @ 15V, 1500A | 5 mA | 82 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | Module |
|
FF1200R12IE5PBPSA1IGBT MOD 1200V 2400A 20MW |
8,340 |
|
- |
PrimePACK™2 | Module | Tray | Active | Trench Field Stop | Half Bridge | 1200 V | 2400 A | - | 2.15V @ 15V, 1200A | 5 mA | 65.5 nF @ 25 V | Standard | Yes | -40°C ~ 175°C | Chassis Mount | Module |
|
|
FF1800R12IE5PBPSA1IGBT MOD 1200V 1800A 20MW |
2,508 |
|
- |
PrimePACK™3+ | Module | Tray | Active | Trench Field Stop | 2 Independent | 1200 V | 1800 A | - | 2.15V @ 15V, 1800A | 5 mA | 98.5 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | Module |
|
FF2400RB12IP7PBPSA1PP IHM I XHP 1 7KV AG-PRIME3+-71 |
1 |
|
- |
PrimePACK™3 | - | Tray | Active | - | 2 Independent | 750 V | 2400 A | - | - | - | - | Standard | No | - | - | - |
|

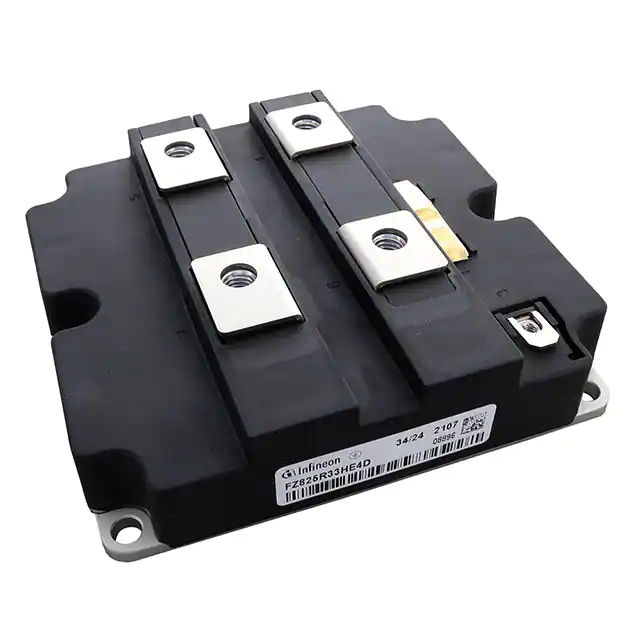

FZ825R33HE4DBPSA1HV B SINGLE SWITCH POWER MODULES |
9,522 |
|
- |
IHM-B | Module | Tray | Active | Trench Field Stop | Single Switch | 3300 V | 825 A | 2400000 W | 2.65V @ 15V, 825A | 5 mA | 93.5 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | AG-IHVB130-3 |
|
FZ2400R17HP4B29BOSA2IGBT MODULE 1700V 4800A |
1 |
|
- |
IHM-B | Module | Tray | Active | Trench Field Stop | Single Switch | 1700 V | 4800 A | 15500 W | 2.25V @ 15V, 2400A | 5 mA | 195 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FZ750R65KE3NOSA1IGBT MOD 6500V 750A A-IHV190-6 |
1 |
|
- |
- | Module | Tray | Active | - | Single | 6500 V | 750 A | 14500 W | 3.4V @ 15V, 750A | 5 mA | 205 nF @ 25 V | Standard | No | -50°C ~ 125°C | Chassis Mount | Module |
|
P2000DL45X168HPSA1PRESS PACK IGBT |
1 |
|
- |
- | TO-200AF | Tray | Active | Trench | Single | 4500 V | 2000 A | - | 2.5V @ 15V, 2000A | 200 µA | 420 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | BG-P16826K-1 |
|
P3000ZL45X168HPSA1PRESS PACK IGBT |
1 |
|
- |
- | TO-200AF | Tray | Active | Trench | Single | 4500 V | 3000 A | - | 2.5V @ 15V, 3000A | 200 µA | 620 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | BG-P16826K-1 |
|
FS50R06W1E3B11BOMA1IGBT MODULE 600V 70A 205W |
8,958 |
|
- |
EasyPACK™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 600 V | 70 A | 205 W | 1.9V @ 15V, 50A | 1 mA | 3.1 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
A1P35S12M3-FIGBT MOD 1200V 35A 250W ACEPACK1 |
9,949 |
|
- |
- | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 35 A | 250 W | 2.45V @ 15V, 35A | 100 µA | 2.154 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | ACEPACK™ 1 |
|
|
FF150R12W2T7EB11BPSA1FF150R12W2T7EB11BPSA1 |
4,870 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FP15R12W2T4BOMA1IGBT MOD 1200V 30A 145W |
4 |
|
- |
EasyPIM™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 30 A | 145 W | 2.25V @ 15V, 15A | 1 mA | 890 pF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FF200R12W2T7EB11BPSA1FF200R12W2T7EB11BPSA1 |
8,506 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
NXH40T120L3Q1SGIGBT MODULE SUNGROW 20KW Q1PACK |
9,918 |
|
- |
- | Module | Tray | Active | - | Three Phase | - | - | - | 2.2V @ 15V, 40A | 400 µA | - | Three Phase Bridge Rectifier | Yes | -40°C ~ 75°C (TJ) | Chassis Mount | - |
|
|
FP35R12N2T7B11BPSA2LOW POWER ECONO |
6,071 |
|
- |
EconoPIM™ 2 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 35 A | - | 1.6V @ 15V, 35A | 7 µA | 6.62 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO2B |
|
FP50R12W3T7B11BPSA1LOW POWER EASY AG-EASY3B-1 |
1 |
|
- |
EasyPIM™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 50 A | - | 1.8V @ 15V, 50A | 13 µA | 6.62 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | Module |
