IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSCGLQ100A65TGPM-IGBT-SP4 |
9 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BSM75GB120DN2_E3223C-SEIGBT MODULE |
23 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FP25R12KS4CBOSA1IGBT MOD 1200V 40A 230W |
6,847 |
|
- |
- | Module | Bulk | Obsolete | - | Single | 1200 V | 40 A | 230 W | 3.7V @ 15V, 25A | 5 mA | 1.5 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount | Module |
|
FS3L40R07W2H5FB11BOMA1IGBT MODULE LOW POWER EASY |
3,291 |
|
- |
EasyPACK™ | Module | Bulk | Active | Trench Field Stop | Three Phase Inverter | 650 V | 40 A | - | 1.81V @ 15V, 20A | 18 µA | 2 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-EASY2B-2 |
|
DDB6U180N16RRB37BOSA1IGBT MODULE |
9,914 |
|
- |
- | Module | Bulk | Discontinued at Digi-Key | - | - | - | - | - | - | - | - | - | - | - | Chassis Mount | Module |
|
FF300R07ME4B11BOSA1IGBT MOD 650V 390A 1100W |
3 |
|
- |
EconoDUAL™ 3 | Module | Bulk | Discontinued at Digi-Key | Trench Field Stop | 2 Independent | 650 V | 390 A | 1100 W | 1.95V @ 15V, 300A | 1 mA | 18.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FD300R06KE3HOSA1IGBT MOD 600V 400A 940W |
5,698 |
|
- |
C | Module | Bulk | Active | Trench Field Stop | Single | 600 V | 400 A | 940 W | 1.9V @ 15V, 300A | 5 mA | 19 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FS75R12KE3B9BOSA1IGBT MOD 1200V 105A 355W |
4,748 |
|
- |
- | Module | Bulk | Discontinued at Digi-Key | Trench Field Stop | Three Phase Inverter | 1200 V | 105 A | 355 W | 2.15V @ 15V, 75A | 1 mA | 5.3 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
|
|
BSM150GB170DN2E3256HDLA1BSM150GB170DN2 - INSULATED GATE |
14 |
|
- |
- | Module | Bulk | Active | - | 2 Independent | 1700 V | 300 A | 1250 W | 3.2V @ 15V, 150A | 300 µA | 10 nF @ 25 V | Standard | No | 150°C (TJ) | Chassis Mount | Module |
|
NXH50C120L2C2ESGIGBT MODULE, CIB 1200 V, 50 A IG |
4,647 |
|
- |
- | 26-PowerDIP Module (1.199", 47.20mm) | Tube | Obsolete | - | Three Phase Inverter with Brake | 1200 V | 50 A | 20 mW | 2.4V @ 15V, 50A | 250 µA | 11.897 nF @ 20 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Through Hole | 26-DIP |
|
FP75R12N2T7BPSA1LOW POWER ECONO AG-ECONO2B-711 |
2 |
|
- |
EconoPIM™ 2 | Module | Tray | Discontinued at Digi-Key | Trench Field Stop | Three Phase Inverter | 1200 V | 75 A | - | 1.55V @ 15V, 75A | 14 µA | 15.1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO2B |
|
|
MSCGLQ200A65TGPM-IGBT-SP4 |
9 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BSM50GD60DLCBOSA1IGBT MODULE 600V 70A 250W |
6,991 |
|
- |
- | Module | Bulk | Obsolete | - | Three Phase Inverter | 600 V | 70 A | 250 W | 2.45V @ 15V, 50A | 500 µA | 2.2 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
|
|
F4100R12N2H3FB11BPSA1LOW POWER ECONO AG-ECONO2B-411 |
2 |
|
- |
* | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DDB6U180N16RRPB37BPSA1LOW POWER ECONO |
16 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DF450R17N2E4PB11BPSA1IGBT MODULE LOW POWER ECONO |
6 |
|
- |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FF400R12KT4PBOSA1FF400R12KT4P - 1200 V, 400 A DUA |
3 |
|
- |
- | Module | Bulk | Active | Trench Field Stop | Dual, Common Source | 1200 V | 400 A | - | 2.05V @ 15V, 400A | 5 mA | 28000 pF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | AG-62MMHB |
|
|
MSCGLQ200SK65TGPM-IGBT-SP4 |
6 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

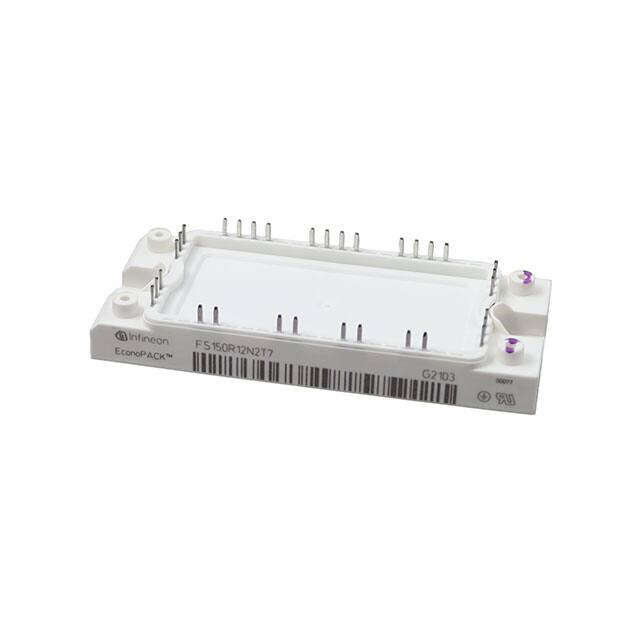

FS150R12N2T7BPSA1LOW POWER ECONO AG-ECONO2-6 |
10 |
|
- |
EconoPACK™ 2 | Module | Tray | Discontinued at Digi-Key | Trench Field Stop | Three Level Inverter | 1200 V | 150 A | - | 1.8V @ 15V, 150A | 1.2 µA | 30.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO2 |
|
|
BSM400GA170DLSIGBT MODULE |
2 |
|
- |
- | Module | Bulk | Active | - | Single | 1700 V | 800 A | 3120 W | 3.3V @ 15V, 400A | 1 mA | 27 nF @ 25 V | Standard | No | 150°C (TJ) | Chassis Mount | Module |
