Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0213002.MXEPFUSE GLASS 2A 250VAC 5X20MM |
862 |
|
Datasheet | 213 | Bulk | Active | Through Hole | Cartridge, Glass | 2 A | 250 V | - | Slow Blow | 35A | 92.705 | BSI, CCC, CE, CSA, PSE, SEMKO, UR, VDE | -55°C ~ 125°C | - | 0.228" Dia x 0.886" L (5.80mm x 22.50mm) | |
|
0235003.MXEPFUSE GLASS 3A 250VAC 5X20MM |
764 |
|
Datasheet | 235 | Bulk | Active | Through Hole | Cartridge, Glass | 3 A | 250 V | - | Fast Blow | 100A | 8.395 | CE, CSA, KC, PSE, UL | -55°C ~ 125°C | - | 0.228" Dia x 0.886" L (5.80mm x 22.50mm) | |
|
0239.600HXPFUSE GLASS 600MA 250VAC 5X20MM |
725 |
|
Datasheet | 239 | Bulk | Active | Requires Holder | Cartridge, Glass | 600 mA | 250 V | - | Slow Blow | 35A | 2.415 | CE, CSA, KC, UL | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
0501012.WRAFUSE BOARD MOUNT 12A 32VDC 1206 |
2,211 |
|
Datasheet | 501A | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 12 A | - | 32 V | Fast Blow | 150A | 20.341 | CSA, cURus | -55°C ~ 125°C | - | 0.126" L x 0.064" W x 0.033" H (3.20mm x 1.63mm x 0.84mm) | |
|
0219.800MXAPFUSE GLASS 800MA 250VAC 5X20MM |
428 |
|
Datasheet | 219XA | Bulk | Active | Requires Holder | Cartridge, Glass | 800 mA | 250 V | - | Slow Blow | 150A | 9.35 | CCC, CE, CSA, SEMKO, UL, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
02393.15HXPFUSE GLASS 3.15A 250VAC 5X20MM |
290 |
|
Datasheet | 239 | Bulk | Active | Requires Holder | Cartridge, Glass | 3.15 A | 250 V | - | Slow Blow | 100A | 128.05 | CE, CSA, KC, PSE, UL | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
0251002.HAT1LFUSE BRD MNT 2A 125VAC/VDC AXIAL |
231 |
|
Datasheet | PICO® II 251 | Cut Tape (CT) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 2 A | 125 V | 125 V | Fast Blow | 50A AC, 300A DC | 0.405 | CCC, CSA, cURus, PSE, TUV | -55°C ~ 125°C | - | 0.110" Dia x 0.280" L (2.80mm x 7.11mm) | |
|
|
021902.5MXAPFUSE GLASS 2.5A 250VAC 5X20MM |
196 |
|
Datasheet | 219XA | Bulk | Active | Requires Holder | Cartridge, Glass | 2.5 A | 250 V | - | Slow Blow | 150A | 138.0 | CCC, CE, CSA, PSE, SEMKO, UL, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
0MIN030.VFUSE AUTO 30A 32VAC 32VDC BLADE |
108 |
|
Datasheet | MINI® | Bulk | Active | Requires Holder | Automotive | 30 A | 32 V | 32 V | Fast Blow | - | - | SAE, UL | - | Green | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|
39504000440FUSE BRD MNT 400MA 125VAC RADIAL |
1,629 |
|
Datasheet | TE5® 395 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 400 mA | 125 V | - | Fast Blow | 100A | 0.015 | cUL, UL | -40°C ~ 85°C | - | 0.335" L x 0.157" W x 0.315" H (8.50mm x 4.00mm x 8.00mm) | |
|
39611600000FUSE BOARD MNT 1.6A 125VAC RAD |
1,400 |
|
Datasheet | TE5® 396 | Cut Tape (CT) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 1.6 A | 125 V | - | Slow Blow | 100A | 6.76 | cUL, PSE/JET, UL | -40°C ~ 85°C | - | 0.335" L x 0.157" W x 0.315" H (8.50mm x 4.00mm x 8.00mm) | |
|
0440004.WRAFUSE BRD MNT 4A 32VAC 32VDC 1206 |
2,915 |
|
Datasheet | 440A | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 4 A | 32 V | 32 V | - | 50A | 2.601 | CSA, UR | -55°C ~ 150°C | - | 0.126" L x 0.064" W x 0.033" H (3.20mm x 1.63mm x 0.84mm) | |
|
37201000431FUSE BRD MNT 100MA 250VAC RADIAL |
159 |
|
Datasheet | TR5® 372 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 100 mA | 250 V | - | Slow Blow | 35A | 0.08 | CCC, cURus, SEMKO, VDE | -40°C ~ 85°C | - | 0.335" Dia x 0.315" H (8.50mm x 8.00mm) | |
|
0224007.HXUPFUSE GLASS 7A 125VAC 2AG |
112 |
|
Datasheet | 224 | Bulk | Active | Through Hole | Cartridge, Glass | 7 A | 125 V | - | Fast Blow | 500A | 40.0 | CE, CSA, PSE, UL | -55°C ~ 125°C | - | 0.185" Dia x 0.570" L (4.70mm x 14.48mm) | |
|
38314000410FUSE BOARD MNT 4A 300VAC RADIAL |
3,323 |
|
Datasheet | TR5® 383 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 4 A | 300 V | - | Slow Blow | 100A | 58.0 | cURus, PSE, VDE | -65°C ~ 125°C | - | 0.335" Dia x 0.315" H (8.50mm x 8.00mm) | |
|
|
38311000410FUSE BOARD MNT 1A 300VAC RADIAL |
833 |
|
Datasheet | TR5® 383 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 1 A | 300 V | - | Slow Blow | 100A | 3.0 | cURus, PSE | -65°C ~ 125°C | - | 0.335" Dia x 0.315" H (8.50mm x 8.00mm) | |
|
0MIN002.VFUSE AUTO 2A 32VAC 32VDC BLADE |
146 |
|
Datasheet | MINI® | Bulk | Active | Requires Holder | Automotive | 2 A | 32 V | 32 V | Fast Blow | - | - | SAE, UL | - | Gray | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|

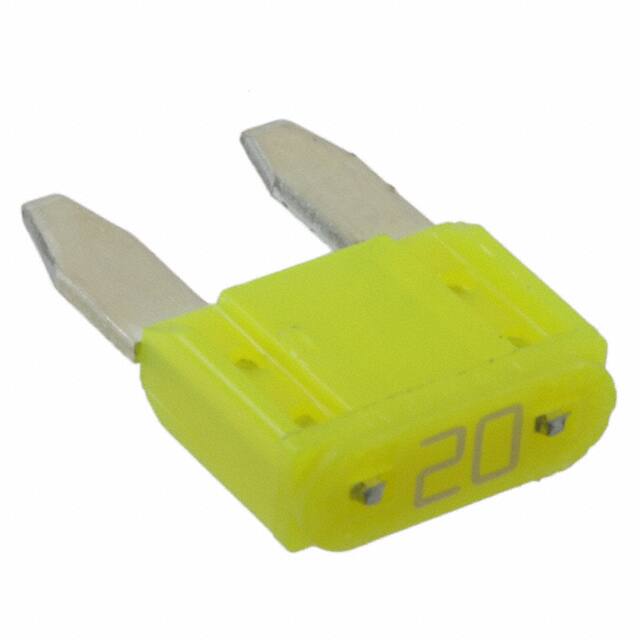

0MIN020.VFUSE AUTO 20A 32VAC 32VDC BLADE |
131 |
|
Datasheet | MINI® | Bulk | Active | Requires Holder | Automotive | 20 A | 32 V | 32 V | Fast Blow | - | - | SAE, UL | - | Yellow | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|
0438003.WRGTFUSE BRD MNT 3A 12VAC 32VDC 0603 |
4,546 |
|
Datasheet | 438GT | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 3 A | 12 V | 32 V | Fast Blow | 50A AC, 50A DC | 0.439 | CSA, cURus | -55°C ~ 150°C | - | 0.061" L x 0.033" W x 0.020" H (1.54mm x 0.85mm x 0.50mm) | |
|
|
0235005.MXEPFUSE GLASS 5A 125VAC 5X20MM |
1,955 |
|
Datasheet | 235 | Bulk | Active | Through Hole | Cartridge, Glass | 5 A | 125 V | - | Fast Blow | 10kA | 27.41 | CE, CSA, KC, PSE, UL | -55°C ~ 125°C | - | 0.228" Dia x 0.886" L (5.80mm x 22.50mm) |
