Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

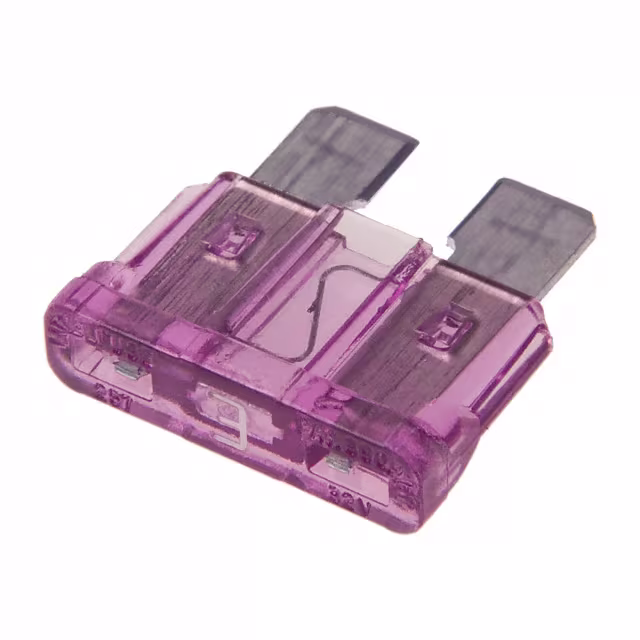

0257003.PXPVFUSE AUTO 3A 32VDC BLADE ATO/ATC |
8,793 |
|
Datasheet | ATO® | Bulk | Obsolete | Requires Holder | Automotive | 3 A | - | 32 V | Fast Blow | 1kA | 7.4 | - | - | Violet | 0.750" L x 0.200" W x 0.480" H (19.05mm x 5.08mm x 12.19mm) | |
|
0257004.PXPVFUSE AUTO 4A 32VDC BLADE ATO/ATC |
4,855 |
|
Datasheet | ATO® | Bulk | Obsolete | Requires Holder | Automotive | 4 A | - | 32 V | Fast Blow | 1kA | 14.0 | - | - | Pink | 0.750" L x 0.200" W x 0.480" H (19.05mm x 5.08mm x 12.19mm) | |
|

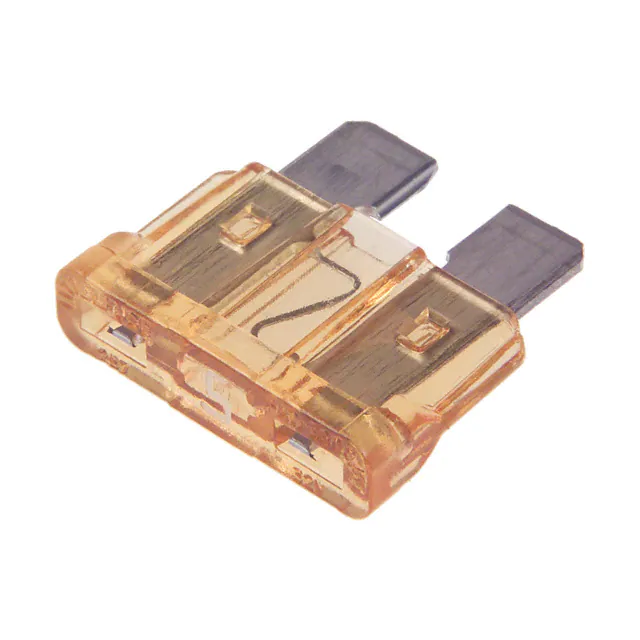

0257005.PXPVFUSE AUTO 5A 32VDC BLADE ATO/ATC |
3,895 |
|
Datasheet | ATO® | Bulk | Obsolete | Requires Holder | Automotive | 5 A | - | 32 V | Fast Blow | 1kA | 26.0 | - | - | Tan | 0.750" L x 0.200" W x 0.480" H (19.05mm x 5.08mm x 12.19mm) | |
|

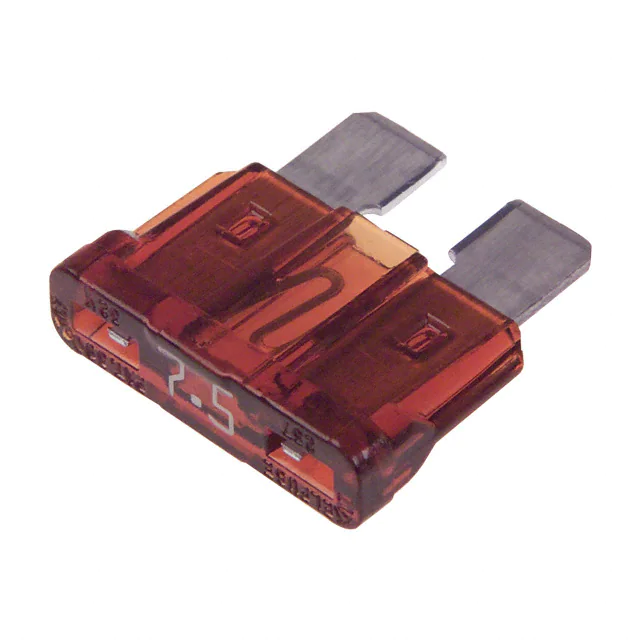

025707.5PXPVFUSE AUTO 7.5A 32VDC BLADE ATO |
2,908 |
|
Datasheet | ATO® | Bulk | Obsolete | Requires Holder | Automotive | 7.5 A | - | 32 V | Fast Blow | 1kA | 60.0 | - | - | Brown | 0.750" L x 0.200" W x 0.480" H (19.05mm x 5.08mm x 12.19mm) | |
|

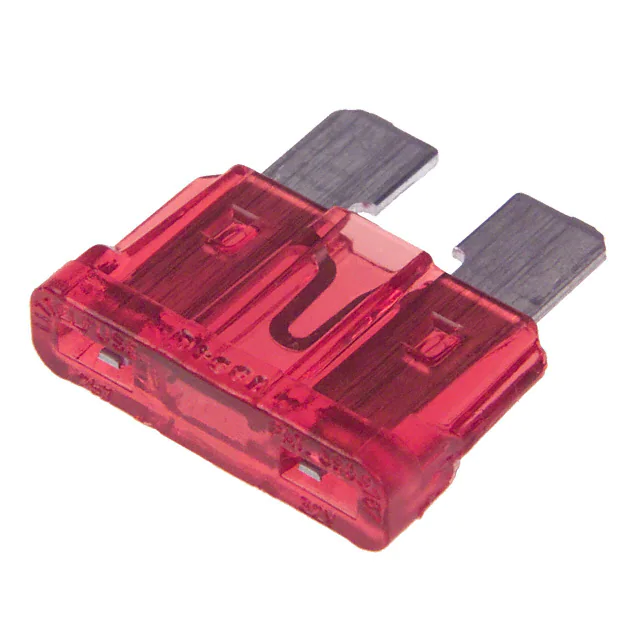

0257010.PXPVFUSE AUTO 10A 32VDC BLADE ATO |
8,859 |
|
Datasheet | ATO® | Bulk | Obsolete | Requires Holder | Automotive | 10 A | - | 32 V | Fast Blow | 1kA | 115.0 | - | - | Red | 0.750" L x 0.200" W x 0.480" H (19.05mm x 5.08mm x 12.19mm) | |
|

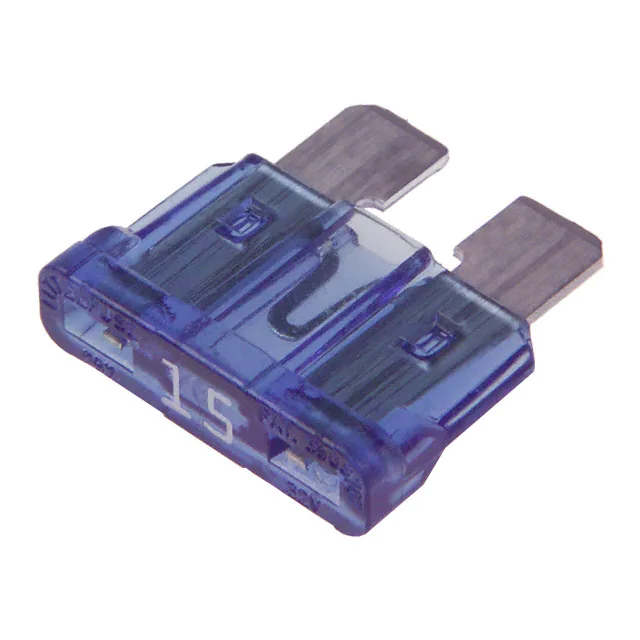

0257015.PXPVFUSE AUTO 15A 32VDC BLADE ATO |
9,570 |
|
Datasheet | ATO® | Bulk | Obsolete | Requires Holder | Automotive | 15 A | - | 32 V | Fast Blow | 1kA | 340.0 | - | - | Blue | 0.750" L x 0.200" W x 0.480" H (19.05mm x 5.08mm x 12.19mm) | |
|
0257020.PXPVFUSE AUTO 20A 32VDC BLADE ATO |
3,272 |
|
Datasheet | ATO® | Bulk | Obsolete | Requires Holder | Automotive | 20 A | - | 32 V | Fast Blow | 1kA | 520.0 | - | - | Yellow | 0.750" L x 0.200" W x 0.480" H (19.05mm x 5.08mm x 12.19mm) | |
|

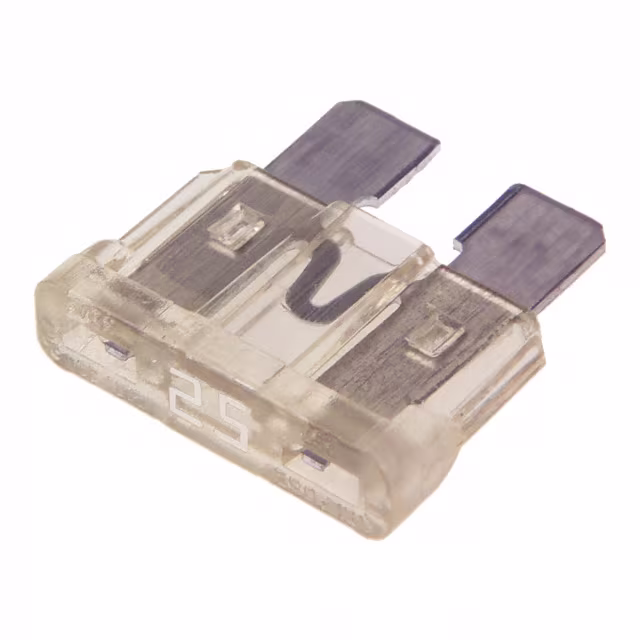

0257025.PXPVFUSE AUTO 25A 32VDC BLADE ATO |
9,652 |
|
Datasheet | ATO® | Bulk | Obsolete | Requires Holder | Automotive | 25 A | - | 32 V | Fast Blow | 1kA | 1080.0 | - | - | Clear | 0.750" L x 0.200" W x 0.480" H (19.05mm x 5.08mm x 12.19mm) | |
|

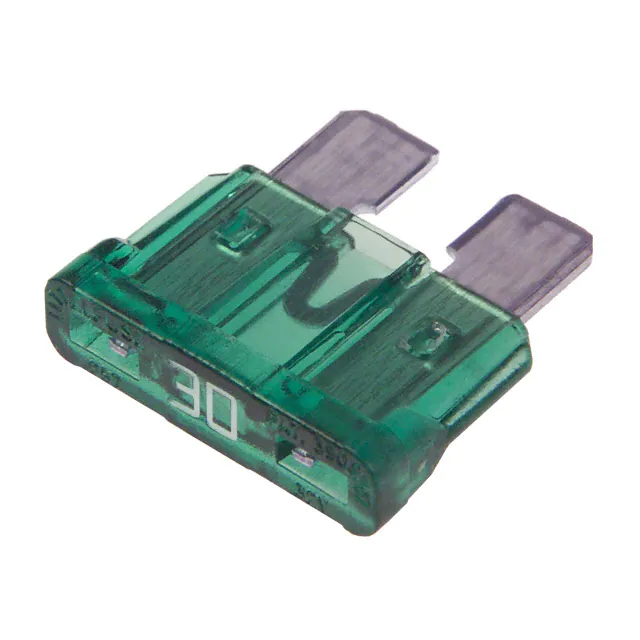

0257030.PXPVFUSE AUTO 30A 32VDC BLADE ATO |
4,444 |
|
Datasheet | ATO® | Bulk | Obsolete | Requires Holder | Automotive | 30 A | - | 32 V | Fast Blow | 1kA | 1510.0 | - | - | Green | 0.750" L x 0.200" W x 0.480" H (19.05mm x 5.08mm x 12.19mm) | |
|
0322010.HFUSE CERM 10A 250VAC 65VDC 3AB |
7,265 |
|
Datasheet | 322 | - | Obsolete | Requires Holder | Cartridge, Ceramic | 10 A | 250 V | 65 V | Fast Blow | 100A | - | UL | - | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
0324003.HFUSE CERM 3A 250VAC 125VDC 3AB |
4,994 |
|
Datasheet | 324 | Bulk | Obsolete | Through Hole | Cartridge, Ceramic | 3 A | 250 V | 125 V | Fast Blow | 100A AC, 10kA DC | 14.6 | CSA, UL | -55°C ~ 125°C | - | 0.275" Dia x 1.288" L (6.99mm x 32.72mm) | |
|

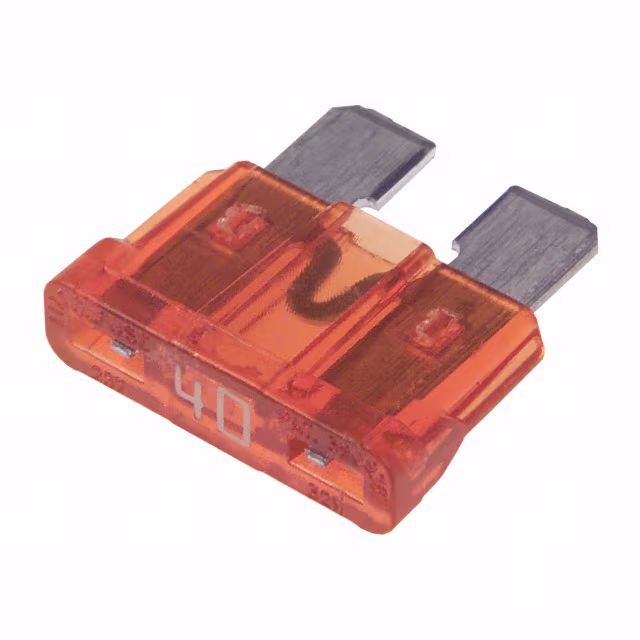

0257040.PXPVFUSE AUTO 40A 32VDC BLADE ATO |
9,173 |
|
Datasheet | ATO® | Bulk | Obsolete | Requires Holder | Automotive | 40 A | - | 32 V | Fast Blow | 1kA | 3310.0 | - | - | Orange | 0.752" L x 0.201" W x 0.484" H (19.10mm x 5.10mm x 12.30mm) | |
|
|
0324008.HFUSE CERM 8A 250VAC 125VDC 3AB |
3,188 |
|
Datasheet | 324 | Bulk | Obsolete | Through Hole | Cartridge, Ceramic | 8 A | 250 V | 125 V | Fast Blow | 750A AC, 10kA DC | 105.0 | CSA, UL | -55°C ~ 125°C | - | 0.275" Dia x 1.288" L (6.99mm x 32.72mm) | |
|
ERB-FE1R50UFUSE 1.5A 32V FAST SMD 0603 |
7,915 |
|
Datasheet | ERBFE | Cut Tape (CT) | Obsolete | Surface Mount | Board Mount (Cartridge Style Excluded) | 1.5 A | - | 32 V | Fast Blow | 50A | - | cUL, UL | -40°C ~ 125°C | - | 0.063" L x 0.031" W x 0.028" H (1.60mm x 0.80mm x 0.70mm) | |
|
0234010.MFUSE CERAMIC 10A 250VAC 5X20MM |
4,012 |
|
Datasheet | 234 | - | Obsolete | Requires Holder | Cartridge, Ceramic | 10 A | 250 V | - | Medium Blow | 200A | 133.0 | CSA, K-MARK, METI, UL | - | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
UNHS20100LIC CIRCUIT PROTECTOR .7A SNMP 2P |
5,543 |
|
Datasheet | UNHS200 | Cut Tape (CT) | Obsolete | Surface Mount | Board Mount (Cartridge Style Excluded) | 700 mA | 50 V | 50 V | Fast Blow | - | - | - | -55°C ~ 125°C | - | 0.118" L x 0.091" W x 0.087" H (3.00mm x 2.30mm x 2.20mm) | |
|
UNHZ20100LFUSE BRD MT 700MA 50VAC 50VDC |
2,769 |
|
Datasheet | UNHZ201 | Tape & Reel (TR) | Obsolete | Surface Mount | Board Mount (Cartridge Style Excluded) | 700 mA | 50 V | 50 V | Fast Blow | - | - | - | -55°C ~ 125°C | - | 0.067" L x 0.049" W x 0.028" H (1.70mm x 1.25mm x 0.70mm) | |
|
|
UNHZ20200LFUSE BRD MNT 1A 50VAC 50VDC 2SMD |
3,216 |
|
Datasheet | UNHZ202 | Tape & Reel (TR) | Obsolete | Surface Mount | Board Mount (Cartridge Style Excluded) | 1 A | 50 V | 50 V | Fast Blow | - | - | - | -55°C ~ 125°C | - | 0.067" L x 0.049" W x 0.028" H (1.70mm x 1.25mm x 0.70mm) | |
|
|
UNHZ20300LIC CIRCUIT PROTCTR 1.2A SMINI 2P |
5,775 |
|
Datasheet | UNHZ203 | Cut Tape (CT) | Obsolete | Surface Mount | Board Mount (Cartridge Style Excluded) | 1.2 A | 50 V | 50 V | Fast Blow | - | - | - | -55°C ~ 125°C | - | 0.067" L x 0.049" W x 0.028" H (1.70mm x 1.25mm x 0.70mm) | |
|
|
20100320001FUSE GLASS 32MA 250VAC 5X20MM |
9,228 |
|
Datasheet | 201 | Bulk | Obsolete | Requires Holder | Cartridge, Glass | 32 mA | 250 V | - | Medium Blow | - | - | - | -25°C ~ 70°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) |
