Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0253015.NRT1FUSE BRD MNT 15A 32VAC 32VDC AXL |
3,284 |
|
Datasheet | PICO® II 253 | Tape & Reel (TR) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 15 A | 32 V | 32 V | Fast Blow | 50A AC, 300A DC | 68.8 | CSA, QPL, UR | -55°C ~ 125°C | - | 0.103" Dia x 0.280" L (2.61mm x 7.11mm) | |
|

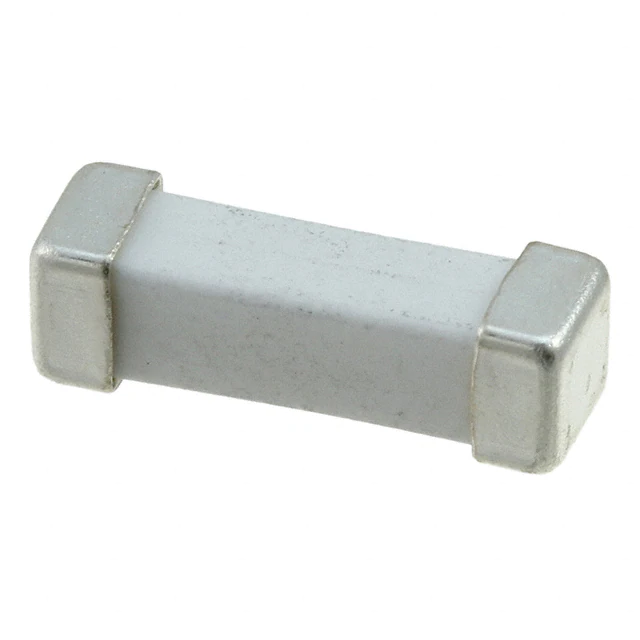

0463040.ERFUSE BRD MT 40A 250VAC 100VDC |
3,036 |
|
Datasheet | 463 | Tape & Reel (TR) | Obsolete | Surface Mount | Board Mount (Cartridge Style Excluded) | 40 A | 250 V | 100 V | Fast Blow | - | - | cURus | -55°C ~ 125°C | - | 0.398" L x 0.123" W x 0.123" H (10.10mm x 3.12mm x 3.12mm) | |
|
0225.375VXPFUSE GLASS 375MA 250VAC 125VDC |
3,329 |
|
Datasheet | 225 | Bulk | Active | Requires Holder | Cartridge, Glass | 375 mA | 250 V | 125 V | Fast Blow | 35A AC, 10kA DC | 0.171 | CE, CSA, UL | -55°C ~ 125°C | - | 0.177" Dia x 0.570" L (4.50mm x 14.48mm) | |
|
|
0253.062MFUSE BRD MNT 62MA 125VAC/VDC AXL |
2,705 |
|
Datasheet | PICO® II 253 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 62 mA | 125 V | 125 V | Fast Blow | 50A AC, 300A DC | 1.13E-4 | CSA, QPL, UR | -55°C ~ 125°C | - | 0.103" Dia x 0.280" L (2.61mm x 7.11mm) | |
|
|
0253.375MFUSE BRD MT 375MA 125VAC/VDC AXL |
5,597 |
|
Datasheet | PICO® II 253 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 375 mA | 125 V | 125 V | Fast Blow | 50A AC, 300A DC | 0.0296 | CSA, QPL, UR | -55°C ~ 125°C | - | 0.103" Dia x 0.280" L (2.61mm x 7.11mm) | |
|
|
0251.062PAT1LFUSE BRD MNT 62MA 125VAC/VDC AXL |
9,868 |
|
Datasheet | PICO® II 251 | Cut Tape (CT) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 62 mA | 125 V | 125 V | Fast Blow | 50A AC, 300A DC | 1.13E-4 | CSA, cURus | -55°C ~ 125°C | - | 0.110" Dia x 0.280" L (2.80mm x 7.11mm) | |
|
0202001.URGFUSE BOARD MOUNT 1A 250VAC 2SMD |
6,553 |
|
Datasheet | FLAT-PAK® 202 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 1 A | 250 V | - | Fast Blow | 50A | 0.192 | CSA, UL | -55°C ~ 125°C | - | 0.372" L x 0.250" W x 0.165" H (9.45mm x 6.35mm x 4.19mm) | |
|
0314025.VXPFUSE CERM 25A 250VAC 125VDC 3AB |
9,160 |
|
Datasheet | 314 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 25 A | 250 V | 125 V | Fast Blow | 100A AC, 400A DC | 1450.0 | CE, KC, PSE, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
|
0314030.VXPFUSE CERM 30A 250VAC 150VDC 3AB |
8,140 |
|
Datasheet | 314 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 30 A | 250 V | 150 V | Fast Blow | 100A AC, 400A DC | 2490.0 | CE, KC, PSE, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
0495025.TFUSE AUTO 25A 32VDC AUTO LINK |
5,692 |
|
Datasheet | JCASE™ 495 | Box | Obsolete | Requires Holder | Automotive | 25 A | - | 32 V | - | 1kA | 3220.0 | - | -40°C ~ 125°C | White | 0.555" L x 0.472" W x 1.063" H (14.10mm x 12.00mm x 27.00mm) | |
|
0495030.TFUSE AUTO 30A 32VDC AUTO LINK |
8,795 |
|
Datasheet | JCASE™ 495 | Box | Obsolete | Requires Holder | Automotive | 30 A | - | 32 V | - | 1kA | 1480.0 | UL | -40°C ~ 125°C | Pink | 0.555" L x 0.472" W x 1.063" H (14.10mm x 12.00mm x 27.00mm) | |
|
|
0495050.TFUSE AUTO 50A 32VDC AUTO LINK |
8,898 |
|
Datasheet | JCASE™ 495 | Box | Obsolete | Requires Holder | Automotive | 50 A | - | 32 V | - | 1kA | 8750.0 | UL | -40°C ~ 125°C | Red | 0.555" L x 0.472" W x 1.063" H (14.10mm x 12.00mm x 27.00mm) | |
|
|
0495040.TFUSE AUTO 40A 32VDC AUTO LINK |
8,105 |
|
Datasheet | JCASE™ 495 | Box | Obsolete | Requires Holder | Automotive | 40 A | - | 32 V | - | 1kA | 3650.0 | UL | -40°C ~ 125°C | Green | 0.555" L x 0.472" W x 1.063" H (14.10mm x 12.00mm x 27.00mm) | |
|
|
0495060.TFUSE AUTO 60A 32VDC AUTO LINK |
3,833 |
|
Datasheet | JCASE™ 495 | Box | Obsolete | Requires Holder | Automotive | 60 A | - | 32 V | - | 1kA | 19500.0 | UL | -40°C ~ 125°C | Yellow | 0.555" L x 0.472" W x 1.063" H (14.10mm x 12.00mm x 27.00mm) | |
|
|
0495020.TFUSE AUTO 20A 32VDC AUTO LINK |
8,851 |
|
Datasheet | JCASE™ 495 | Box | Obsolete | Requires Holder | Automotive | 20 A | - | 32 V | - | 1kA | 1750.0 | UL | -40°C ~ 125°C | Blue | 0.555" L x 0.472" W x 1.063" H (14.10mm x 12.00mm x 27.00mm) | |
|
|
0MIN025.VPGLOFUSE AUTO 25A 32VAC 32VDC BLADE |
6,755 |
|
Datasheet | MINI® | Bulk | Active | Requires Holder | Automotive | 25 A | 32 V | 32 V | Fast Blow | - | - | SAE, UL | - | Clear | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|
|
0315.500VXPFUSE GLASS 500MA 250VAC 3AB 3AG |
5,706 |
|
Datasheet | 315 | Bulk | Active | Through Hole | Cartridge, Glass | 500 mA | 250 V | - | Slow Blow | 35A | 2.55 | CE, CSA, UL | -55°C ~ 125°C | - | 0.275" Dia x 1.275" L (6.99mm x 32.39mm) | |
|
|
0315.600VXPFUSE GLASS 600MA 250VAC 3AB 3AG |
2,995 |
|
Datasheet | 315 | Bulk | Active | Through Hole | Cartridge, Glass | 600 mA | 250 V | - | Slow Blow | 35A | 4.0 | CE, CSA, UL | -55°C ~ 125°C | - | 0.275" Dia x 1.275" L (6.99mm x 32.39mm) | |
|
|
0315.700VXPFUSE GLASS 700MA 250VAC 3AB 3AG |
3,859 |
|
Datasheet | 315 | Bulk | Active | Through Hole | Cartridge, Glass | 700 mA | 250 V | - | Slow Blow | 35A | 5.9 | CE, CSA, UL | -55°C ~ 125°C | - | 0.275" Dia x 1.275" L (6.99mm x 32.39mm) | |
|
|
0315.750VXPFUSE GLASS 750MA 250VAC 3AB 3AG |
8,308 |
|
Datasheet | 315 | Bulk | Active | Through Hole | Cartridge, Glass | 750 mA | 250 V | - | Slow Blow | 35A | 7.16 | CE, CSA, UL | -55°C ~ 125°C | - | 0.275" Dia x 1.275" L (6.99mm x 32.39mm) |
