Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

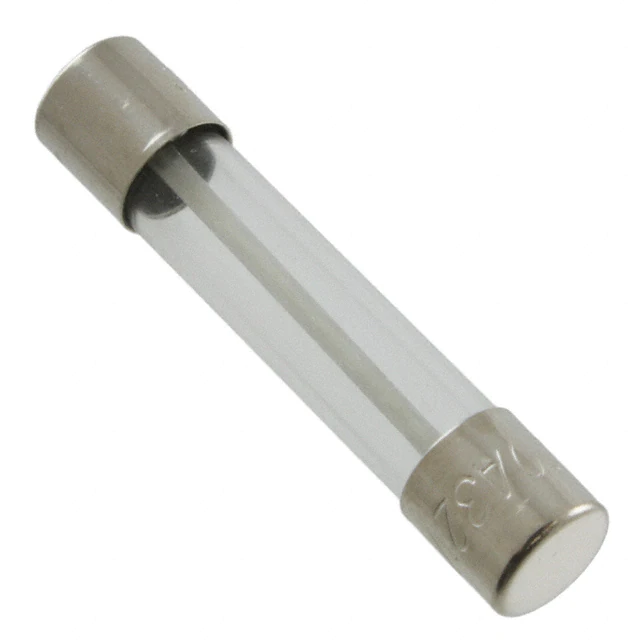

0SFE020.VPFUSE GLASS 32VAC/DC 3AB 5PK CARD |
7,829 |
|
Datasheet | SFE | Bulk | Active | Requires Holder | Cartridge, Glass | 20 A | 32 V | 32 V | - | - | - | - | - | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
0SFE006.VPFUSE GLASS 6A 32VAC/VDC 5PK CARD |
4,578 |
|
Datasheet | SFE | Bulk | Active | Requires Holder | Cartridge, Glass | 6 A | 32 V | 32 V | - | - | - | - | - | - | 0.250" Dia x 0.748" L (6.35mm x 19.00mm) | |
|
|
0SFE014.VPFUSE GLASS 14A 32VAC/VDC 5PK CAR |
5,402 |
|
Datasheet | SFE | Bulk | Active | Requires Holder | Cartridge, Glass | 14 A | 32 V | 32 V | - | - | - | - | - | - | 0.250" Dia x 1.063" L (6.35mm x 27.00mm) | |
|

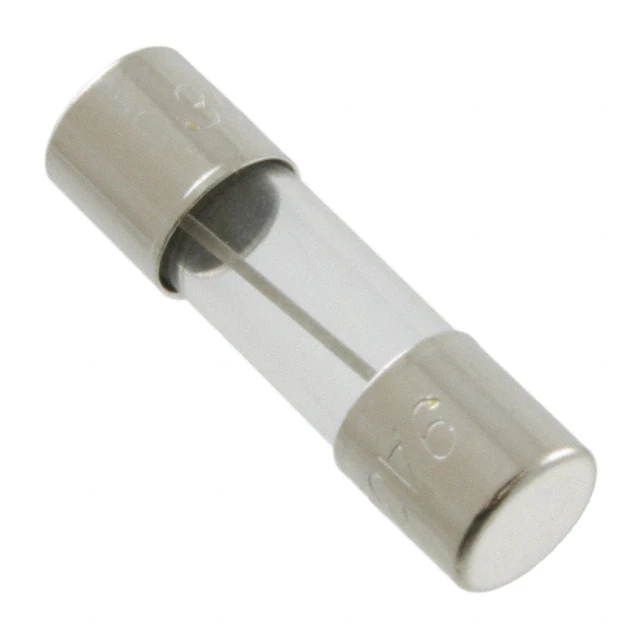

0SFE009.VPFUSE GLASS 32VAC/DC 7AG 5PK CARD |
3,280 |
|
Datasheet | SFE | Bulk | Active | Requires Holder | Cartridge, Glass | 9 A | 32 V | 32 V | - | - | - | - | - | - | 0.250" Dia x 0.875" L (6.35mm x 22.23mm) | |
|
|
0SFE030.VPFUSE GLASS 30A 32VAC/VDC 5PK CAR |
6,193 |
|
Datasheet | SFE | Bulk | Active | Requires Holder | Cartridge, Glass | 30 A | 32 V | 32 V | - | - | - | - | - | - | 0.250" Dia x 1.437" L (6.35mm x 36.50mm) | |
|
0272004.VFUSE BRD MNT 4A 125VAC/VDC RAD |
3,127 |
|
Datasheet | MICRO™ 272 | Bulk | Obsolete | Through Hole | Board Mount (Cartridge Style Excluded) | 4 A | 125 V | 125 V | Fast Blow | 10kA | 1.38 | CSA, QPL, UL | -55°C ~ 125°C | - | 0.235" Dia x 0.287" H (5.97mm x 7.30mm) | |
|
0314001.VXPFUSE CERM 1A 250VAC 125VDC 3AB |
3,053 |
|
Datasheet | 314 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 1 A | 250 V | 125 V | Fast Blow | 100A AC, 10kA DC | 0.69 | CE, CSA, PSE, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
|
0314003.VXPFUSE CERM 3A 250VAC 125VDC 3AB |
3,888 |
|
Datasheet | 314 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 3 A | 250 V | 125 V | Fast Blow | 100A AC, 10kA DC | 14.6 | CE, CSA, KC, PSE, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
|
0688040.MXPFUSE 70VDC 6X25 PB-FREE 40A |
8,281 |
|
- |
688 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 40 A | 250 V | 70 V | - | 1.5kA AC, 2.5kA DC | 7800.0 | cURus | -55°C ~ 125°C | - | 0.248" Dia x 0.992" L (6.30mm x 25.20mm) | |
|
0218.063MXBPFUSE GLASS 63MA 250VAC 5X20MM |
7,855 |
|
Datasheet | 218 | Bulk | Obsolete | Requires Holder | Cartridge, Glass | 63 mA | 250 V | - | Slow Blow | 35A | 0.028 | CCC, CE, CSA, KC, SEMKO, UL, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
0218.100MXBPFUSE GLASS 100MA 250VAC 5X20MM |
2,057 |
|
Datasheet | 218 | Bulk | Obsolete | Requires Holder | Cartridge, Glass | 100 mA | 250 V | - | Slow Blow | 35A | 0.079 | CCC, CE, CSA, KC, SEMKO, UL, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
125.6785.4507FUSE AUTO 5A 125VDC BLADE MINI |
8,721 |
|
- |
FUN MINI® | Bulk | Obsolete | Requires Holder | Automotive | 5 A | - | 125 V | Fast Blow | 1kA | 25.0 | - | - | Tan | 0.469" L x 0.150" W x 0.339" H (11.90mm x 3.80mm x 8.60mm) | |
|
|
125.6785.4407FUSE AUTO 4A 125VDC BLADE MINI |
3,434 |
|
- |
FUN MINI® | Bulk | Obsolete | Requires Holder | Automotive | 4 A | - | 125 V | Fast Blow | 1kA | 14.5 | - | - | Pink | 0.469" L x 0.150" W x 0.339" H (11.90mm x 3.80mm x 8.60mm) | |
|
|
35606300439FUSE 440V TL CERAMIC .630A |
5,006 |
|
- |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
35613150439FUSE 440V TL CERAMIC 3.15A |
4,731 |
|
- |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | |
|
0224006.VXUPFUSE GLASS 6A 125VAC 2AG |
6,637 |
|
Datasheet | 224 | Bulk | Active | Through Hole | Cartridge, Glass | 6 A | 125 V | - | Fast Blow | 500A | 22.1 | CE, CSA, PSE, UL | -55°C ~ 125°C | - | 0.185" Dia x 0.570" L (4.70mm x 14.48mm) | |
|
|
0881060.URFFUSE BOARD MOUNT 60A 75VDC 2SMD |
3,206 |
|
Datasheet | 881 | Tape & Reel (TR) | Obsolete | Surface Mount | Board Mount (Cartridge Style Excluded) | 60 A | - | 75 V | - | 1.5kA | 1050.0 | cURus | -55°C ~ 100°C | - | 0.441" L x 0.394" W x 0.268" H (11.20mm x 10.00mm x 6.80mm) | |
|
|
0224004.VXUPFUSE GLASS 4A 125VAC 2AG |
2,992 |
|
Datasheet | 224 | Bulk | Active | Through Hole | Cartridge, Glass | 4 A | 125 V | - | Fast Blow | 500A | 9.4 | CE, CSA, PSE, UL | -55°C ~ 125°C | - | 0.185" Dia x 0.570" L (4.70mm x 14.48mm) | |
|
0253.250NRT1FUSE BRD MT 250MA 125VAC/VDC AXL |
8,889 |
|
Datasheet | PICO® II 253 | Tape & Reel (TR) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 250 mA | 125 V | 125 V | Fast Blow | 50A AC, 300A DC | 0.0116 | CSA, QPL, UR | -55°C ~ 125°C | - | 0.103" Dia x 0.280" L (2.61mm x 7.11mm) | |
|
|
0253.500NRT1FUSE BRD MT 500MA 125VAC/VDC AXL |
9,469 |
|
Datasheet | PICO® II 253 | Tape & Reel (TR) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 500 mA | 125 V | 125 V | Fast Blow | 50A AC, 300A DC | 0.0598 | CSA, PSE, TUV, UR | -55°C ~ 125°C | - | 0.103" Dia x 0.280" L (2.61mm x 7.11mm) |
