Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0215001.MXG941PFUSE CERAMIC 1A 250VAC RADIAL |
7,770 |
|
Datasheet | 215 | Tape & Reel (TR) | Active | Through Hole | Cartridge, Ceramic | 1 A | 250 V | - | Slow Blow | 1.5kA | 1.52 | CCC, CE, CSA, KC, PSE, SEMKO, UL, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
02301.25VXPFUSE GLASS 1.25A 250VAC 125VDC |
4,917 |
|
Datasheet | 230 | Bulk | Active | Through Hole | Cartridge, Glass | 1.25 A | 250 V | 125 V | Slow Blow | 100A AC, 10kA DC | 9.8 | CE, CSA, PSE, UL | -55°C ~ 125°C | - | 0.177" Dia x 0.571" L (4.50mm x 14.50mm) | |
|
031301.5HXIDPFUSE GLASS 1.5A 250VAC 3AB 3AG |
7,277 |
|
Datasheet | 313 | Bulk | Active | Requires Holder | Cartridge, Glass | 1.5 A | 250 V | - | Slow Blow | 100A | 38.0 | CE, CSA, PSE, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
168.6585.5102FUSE AUTOMOTIVE 10A 32VDC RADIAL |
3,635 |
|
Datasheet | FP1 MINI® | Bulk | Discontinued at Digi-Key | Through Hole | Automotive | 10 A | - | 32 V | Fast Blow | 1kA | 79.2 | cULus | - | Red | 0.469" L x 0.150" W x 0.335" H (11.90mm x 3.80mm x 8.50mm) | |
|

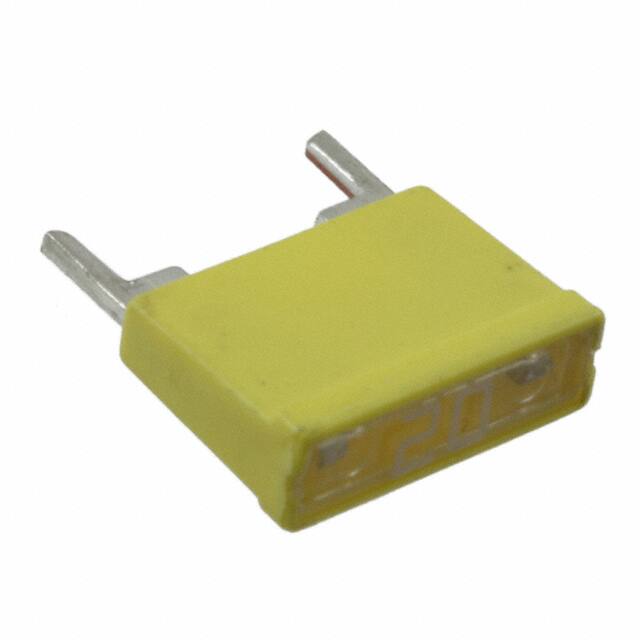

168.6585.5202FUSE AUTOMOTIVE 20A 32VDC RADIAL |
2,344 |
|
Datasheet | FP1 MINI® | Bulk | Discontinued at Digi-Key | Through Hole | Automotive | 20 A | - | 32 V | Fast Blow | 1kA | 331.0 | cULus | - | Yellow | 0.469" L x 0.150" W x 0.335" H (11.90mm x 3.80mm x 8.50mm) | |
|
168.6585.4752FUSE AUTO 7.5A 32VDC RADIAL |
6,816 |
|
Datasheet | FP1 MINI® | Bulk | Discontinued at Digi-Key | Through Hole | Automotive | 7.5 A | - | 32 V | Fast Blow | 1kA | 44.5 | cULus | - | Brown | 0.469" L x 0.150" W x 0.335" H (11.90mm x 3.80mm x 8.50mm) | |
|
168.6585.5152FUSE AUTOMOTIVE 15A 32VDC RADIAL |
9,048 |
|
Datasheet | FP1 MINI® | Bulk | Discontinued at Digi-Key | Through Hole | Automotive | 15 A | - | 32 V | Fast Blow | 1kA | 178.0 | cULus | - | Blue | 0.469" L x 0.150" W x 0.335" H (11.90mm x 3.80mm x 8.50mm) | |
|
168.6585.5302FUSE AUTOMOTIVE 30A 32VDC RADIAL |
6,792 |
|
Datasheet | FP1 MINI® | Bulk | Discontinued at Digi-Key | Through Hole | Automotive | 30 A | - | 32 V | Fast Blow | 1kA | 1264.0 | cULus | - | Green | 0.469" L x 0.150" W x 0.335" H (11.90mm x 3.80mm x 8.50mm) | |
|
|
168.6585.5252FUSE AUTOMOTIVE 25A 32VDC RADIAL |
4,815 |
|
Datasheet | FP1 MINI® | Bulk | Discontinued at Digi-Key | Through Hole | Automotive | 25 A | - | 32 V | Fast Blow | 1kA | 653.0 | cULus | - | Clear | 0.469" L x 0.150" W x 0.335" H (11.90mm x 3.80mm x 8.50mm) | |
|
0215.800MXF34PFUSE CERAMIC 800MA 250VAC RADIAL |
9,701 |
|
Datasheet | 215 | Bulk | Obsolete | Through Hole | Cartridge, Ceramic | 800 mA | 250 V | - | Slow Blow | 1.5kA | 0.975 | CE, CSA, SEMKO, UL, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
37305000000FUSE BRD MNT 500MA 250VAC RADIAL |
8,060 |
|
Datasheet | TR5® 373 | Cut Tape (CT) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 500 mA | 250 V | - | Fast Blow | 50A | 0.025 | CSA, cULus | -40°C ~ 85°C | - | 0.335" Dia x 0.315" H (8.50mm x 8.00mm) | |
|
0674.100DRT4PFUSE CERAMIC 100MA 250VAC AXIAL |
4,589 |
|
Datasheet | 674 | Tape & Reel (TR) | Obsolete | Through Hole | Cartridge, Ceramic | 100 mA | 250 V | - | Fast Blow | 50A | 0.00192 | CSA, UL | - | - | 0.154" Dia x 0.433" L (3.90mm x 11.00mm) | |
|
|
0674.125DRT4PFUSE CERAMIC 125MA 250VAC AXIAL |
8,666 |
|
Datasheet | 674 | Tape & Reel (TR) | Obsolete | Through Hole | Cartridge, Ceramic | 125 mA | 250 V | - | Fast Blow | 50A | 0.00299 | CSA, UL | - | - | 0.154" Dia x 0.433" L (3.90mm x 11.00mm) | |
|
|
0674.200DRT4PFUSE CERAMIC 200MA 250VAC AXIAL |
3,564 |
|
Datasheet | 674 | Tape & Reel (TR) | Obsolete | Through Hole | Cartridge, Ceramic | 200 mA | 250 V | - | Fast Blow | 50A | 0.0114 | CSA, UL | - | - | 0.154" Dia x 0.433" L (3.90mm x 11.00mm) | |
|
|
0674.250DRT4PFUSE CERAMIC 250MA 250VAC AXIAL |
5,822 |
|
Datasheet | 674 | Tape & Reel (TR) | Obsolete | Through Hole | Cartridge, Ceramic | 250 mA | 250 V | - | Fast Blow | 50A | 0.0225 | CSA, UL | - | - | 0.154" Dia x 0.433" L (3.90mm x 11.00mm) | |
|
|
0674.300DRT4PFUSE CERAMIC 300MA 250VAC AXIAL |
8,418 |
|
Datasheet | 674 | Tape & Reel (TR) | Obsolete | Through Hole | Cartridge, Ceramic | 300 mA | 250 V | - | Fast Blow | 50A | 0.0295 | CSA, UL | - | - | 0.154" Dia x 0.433" L (3.90mm x 11.00mm) | |
|
|
0674.400DRT4PFUSE CERAMIC 400MA 250VAC AXIAL |
6,624 |
|
Datasheet | 674 | Tape & Reel (TR) | Obsolete | Through Hole | Cartridge, Ceramic | 400 mA | 250 V | - | Fast Blow | 50A | 0.0688 | CSA, UL | - | - | 0.154" Dia x 0.433" L (3.90mm x 11.00mm) | |
|
0312.250HXCCPFUSE GLASS 250MA 250VAC 3AB 3AG |
5,869 |
|
Datasheet | 312 | Bulk | Active | Requires Holder | Cartridge, Glass | 250 mA | 250 V | - | Fast Blow | 35A | 0.0355 | CE, CSA, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
0315030.MXBBPFUSE GLASS 30A 32VAC 3AB 3AG |
7,472 |
|
Datasheet | 315 | Bulk | Active | Through Hole | Cartridge, Glass | 30 A | 32 V | - | Slow Blow | 300A | 26900.0 | UL | -55°C ~ 125°C | - | 0.275" Dia x 1.275" L (6.99mm x 32.39mm) | |
|
0451.100MRSNFUSE BOARD MNT 100MA 125VAC 2SMD |
9,755 |
|
Datasheet | NANO²® 451 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 100 mA | 125 V | - | Fast Blow | 50A | 0.00138 | CSA, UR | -55°C ~ 125°C | - | 0.240" L x 0.106" W x 0.106" H (6.10mm x 2.69mm x 2.69mm) |
