Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0255.375MFUSE BRD MT 375MA 125VAC/VDC AXL |
8,448 |
|
Datasheet | PICO® 255 | - | Obsolete | Through Hole | Board Mount (Cartridge Style Excluded) | 375 mA | 125 V | 125 V | Fast Blow | 50A AC, 300A DC | - | CSA, UL | - | - | 0.095" Dia x 0.280" L (2.41mm x 7.11mm) | |
|
|
0255.500MFUSE BRD MT 500MA 125VAC/VDC AXL |
3,539 |
|
Datasheet | PICO® 255 | - | Obsolete | Through Hole | Board Mount (Cartridge Style Excluded) | 500 mA | 125 V | 125 V | Fast Blow | 50A AC, 300A DC | - | CSA, UL | - | - | 0.095" Dia x 0.280" L (2.41mm x 7.11mm) | |
|

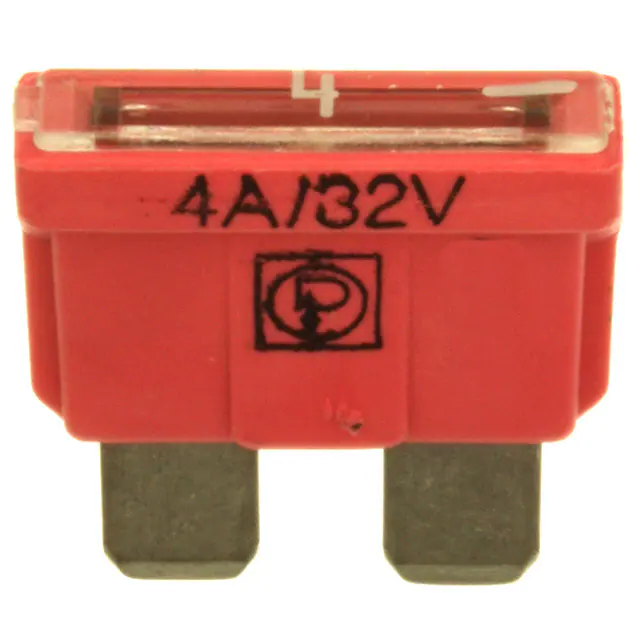

162.6185.4402FUSE AUTO 4A 32VDC BLADE ATO/ATC |
6,354 |
|
Datasheet | FKS ATO® | Bulk | Obsolete | Requires Holder | Automotive | 4 A | - | 32 V | Fast Blow | 1kA | 25.0 | cULus | - | Pink | 0.748" L x 0.197" W x 0.520" H (19.00mm x 5.00mm x 13.20mm) | |
|
162.6185.4302FUSE AUTO 3A 32VDC BLADE ATO/ATC |
3,152 |
|
Datasheet | FKS ATO® | Bulk | Obsolete | Requires Holder | Automotive | 3 A | - | 32 V | Fast Blow | 1kA | 15.0 | cULus | - | Violet | 0.748" L x 0.197" W x 0.520" H (19.00mm x 5.00mm x 13.20mm) | |
|
162.6185.4202FUSE AUTO 2A 32VDC BLADE ATO/ATC |
2,699 |
|
Datasheet | FKS ATO® | Bulk | Obsolete | Requires Holder | Automotive | 2 A | - | 32 V | Fast Blow | 1kA | 8.0 | cULus | - | Gray | 0.748" L x 0.197" W x 0.520" H (19.00mm x 5.00mm x 13.20mm) | |
|
162.6185.4102FUSE AUTO 1A 32VDC BLADE ATO/ATC |
2,037 |
|
Datasheet | FKS ATO® | Bulk | Obsolete | Requires Holder | Automotive | 1 A | - | 32 V | Fast Blow | 1kA | 2.0 | cULus | - | Black | 0.748" L x 0.197" W x 0.520" H (19.00mm x 5.00mm x 13.20mm) | |
|
|
20106300001PFUSE GLASS 630MA 250VAC 5X20MM |
8,092 |
|
Datasheet | 201P | Bulk | Active | Requires Holder | Cartridge, Glass | 630 mA | 250 V | - | Medium Blow | 80A | 0.6 | cULus | -25°C ~ 70°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
0217.080MXEPFUSE GLASS 80MA 250VAC 5X20MM |
7,467 |
|
Datasheet | 217 | Bulk | Active | Through Hole | Cartridge, Glass | 80 mA | 250 V | - | Fast Blow | 35A | 8.3E-4 | CCC, CE, CSA, K-MARK, SEMKO, UL, VDE | -55°C ~ 125°C | - | 0.236" Dia x 0.886" L (6.00mm x 22.50mm) | |
|
|
0217.100MXEPFUSE GLASS 100MA 250VAC 5X20MM |
2,288 |
|
Datasheet | 217 | Bulk | Active | Through Hole | Cartridge, Glass | 100 mA | 250 V | - | Fast Blow | 35A | 0.0045 | CCC, CE, CSA, K-MARK, SEMKO, UL, VDE | -55°C ~ 125°C | - | 0.236" Dia x 0.886" L (6.00mm x 22.50mm) | |
|
|
0217.125MXEPFUSE GLASS 125MA 250VAC 5X20MM |
3,042 |
|
Datasheet | 217 | Bulk | Active | Through Hole | Cartridge, Glass | 125 mA | 250 V | - | Fast Blow | 35A | 0.00478 | CCC, CE, CSA, K-MARK, SEMKO, UL, VDE | -55°C ~ 125°C | - | 0.236" Dia x 0.886" L (6.00mm x 22.50mm) | |
|
|
0217.200MXEPFUSE GLASS 200MA 250VAC 5X20MM |
6,345 |
|
Datasheet | 217 | Bulk | Active | Through Hole | Cartridge, Glass | 200 mA | 250 V | - | Fast Blow | 35A | 0.02 | CCC, CE, CSA, K-MARK, SEMKO, UL, VDE | -55°C ~ 125°C | - | 0.236" Dia x 0.886" L (6.00mm x 22.50mm) | |
|
|
0217.315MXEPFUSE GLASS 315MA 250VAC 5X20MM |
4,602 |
|
Datasheet | 217 | Bulk | Active | Through Hole | Cartridge, Glass | 315 mA | 250 V | - | Fast Blow | 35A | 0.11 | CCC, CE, CSA, K-MARK, SEMKO, UL, VDE | -55°C ~ 125°C | - | 0.236" Dia x 0.886" L (6.00mm x 22.50mm) | |
|
0217.315MXBPFUSE GLASS 315MA 250VAC 5X20MM |
9,974 |
|
Datasheet | 217 | Bulk | Active | Requires Holder | Cartridge, Glass | 315 mA | 250 V | - | Fast Blow | 35A | 0.11 | CCC, CE, CSA,KC, SEMKO, UL, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
0217.160MXBPFUSE GLASS 160MA 250VAC 5X20MM |
2,063 |
|
Datasheet | 217 | Bulk | Active | Requires Holder | Cartridge, Glass | 160 mA | 250 V | - | Fast Blow | 35A | 0.01 | CCC, CE, CSA,KC, SEMKO, UL, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
0217.250MXBPFUSE GLASS 250MA 250VAC 5X20MM |
2,396 |
|
Datasheet | 217 | Bulk | Active | Requires Holder | Cartridge, Glass | 250 mA | 250 V | - | Fast Blow | 35A | 0.04 | CCC, CE, CSA,KC, SEMKO, UL, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
0217.200MXBPFUSE GLASS 200MA 250VAC 5X20MM |
3,792 |
|
Datasheet | 217 | Bulk | Active | Requires Holder | Cartridge, Glass | 200 mA | 250 V | - | Fast Blow | 35A | 0.02 | CCC, CE, CSA,KC, SEMKO, UL, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
0217.125MXBPFUSE GLASS 125MA 250VAC 5X20MM |
9,771 |
|
Datasheet | 217 | Bulk | Active | Requires Holder | Cartridge, Glass | 125 mA | 250 V | - | Fast Blow | 35A | 0.00478 | CCC, CE, CSA,KC, SEMKO, UL, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
047303.5MAT1LFUSE BRD MNT 3.5A 125VAC/VDC AXL |
3,479 |
|
Datasheet | PICO® II 473 | Tape & Box (TB) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 3.5 A | 125 V | 125 V | Slow Blow | 50A | 26.8 | CSA, PSE, UR | -55°C ~ 125°C | - | 0.135" Dia x 0.280" L (3.43mm x 7.11mm) | |
|
|
0473.750MAT1LFUSE BRD MT 750MA 125VAC/VDC AXL |
2,085 |
|
Datasheet | PICO® II 473 | Tape & Box (TB) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 750 mA | 125 V | 125 V | Slow Blow | 50A | 0.76 | CSA, UR | -55°C ~ 125°C | - | 0.135" Dia x 0.280" L (3.43mm x 7.11mm) | |
|
|
0473007.MAT1JLFUSE BRD MNT 7A 125VAC/VDC AXIAL |
5,986 |
|
- |
PICO® II 473 | Tape & Box (TB) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 7 A | 125 V | 125 V | Slow Blow | 50A | 105.0 | CSA, UR | -55°C ~ 125°C | - | 0.135" Dia x 0.280" L (3.43mm x 7.11mm) |
