Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0466002.NRHFFUSE BRD MNT 2A 63VAC 63VDC 1206 |
4,828 |
|
Datasheet | SlimLine™ 466 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 2 A | 63 V | 63 V | Fast Blow | 50A | 0.2326 | CSA, UL | -55°C ~ 90°C | - | 0.125" L x 0.060" W x 0.023" H (3.18mm x 1.52mm x 0.58mm) | |
|
|
046601.5NRFUSE BRD MNT 1.5A 63VAC/VDC 1206 |
4,258 |
|
Datasheet | SlimLine™ 466 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 1.5 A | 63 V | 63 V | Fast Blow | 50A | 0.1103 | CSA, UL | -55°C ~ 90°C | - | 0.125" L x 0.060" W x 0.023" H (3.18mm x 1.52mm x 0.58mm) | |
|
0314010.VXPFUSE CERM 10A 250VAC 125VDC 3AB |
1,036 |
|
Datasheet | 314 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 10 A | 250 V | 125 V | Fast Blow | 750A AC, 10kA DC | 206.0 | CE, CSA, KC, PSE, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
37205000411FUSE BRD MNT 500MA 250VAC RADIAL |
13,324 |
|
Datasheet | TR5® 372 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 500 mA | 250 V | - | Slow Blow | 35A | 2.0 | CCC, cURus, SEMKO, VDE | -40°C ~ 85°C | - | 0.335" Dia x 0.315" H (8.50mm x 8.00mm) | |
|
|
37213150411FUSE BRD MNT 3.15A 250VAC RADIAL |
3,105 |
|
Datasheet | TR5® 372 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 3.15 A | 250 V | - | Slow Blow | 35A | 77.3955 | CCC, cURus, PSE, SEMKO, VDE | -40°C ~ 85°C | - | 0.335" Dia x 0.315" H (8.50mm x 8.00mm) | |
|
|
37216300411FUSE BOARD MNT 6.3A 250VAC RAD |
1,052 |
|
Datasheet | TR5® 372 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 6.3 A | 250 V | - | Slow Blow | 50A | 138.915 | cURus, SEMKO, VDE | -40°C ~ 85°C | - | 0.335" Dia x 0.315" H (8.50mm x 8.00mm) | |
|
|
37215000411FUSE BOARD MNT 5A 250VAC RADIAL |
1,035 |
|
Datasheet | TR5® 372 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 5 A | 250 V | - | Slow Blow | 50A | 115.0 | CCC, cURus, PSE, SEMKO, VDE | -40°C ~ 85°C | - | 0.335" Dia x 0.315" H (8.50mm x 8.00mm) | |
|
099707.5WXNFUSE AUTO 7.5A 58VDC BLADE MINI |
3,860 |
|
Datasheet | MINI® 997 | Bulk | Active | Requires Holder | Automotive | 7.5 A | - | 58 V | Fast Blow | 1kA | 68.0 | - | -40°C ~ 125°C | Brown | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|
0997004.WXNFUSE AUTOMOTIVE 4A 58VDC BLADE |
3,395 |
|
Datasheet | MINI® 997 | Bulk | Active | Requires Holder | Automotive | 4 A | - | 58 V | Fast Blow | 1kA | 17.0 | - | -40°C ~ 125°C | Pink | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|
0997010.WXNFUSE AUTO 10A 58VDC BLADE MINI |
2,959 |
|
Datasheet | MINI® 997 | Bulk | Active | Requires Holder | Automotive | 10 A | - | 58 V | Fast Blow | 1kA | 93.0 | - | -40°C ~ 125°C | Red | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|
0997015.WXNFUSE AUTO 15A 58VDC BLADE MINI |
2,914 |
|
Datasheet | MINI® 997 | Bulk | Active | Requires Holder | Automotive | 15 A | - | 58 V | Fast Blow | 1kA | 270.0 | - | -40°C ~ 125°C | Blue | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|

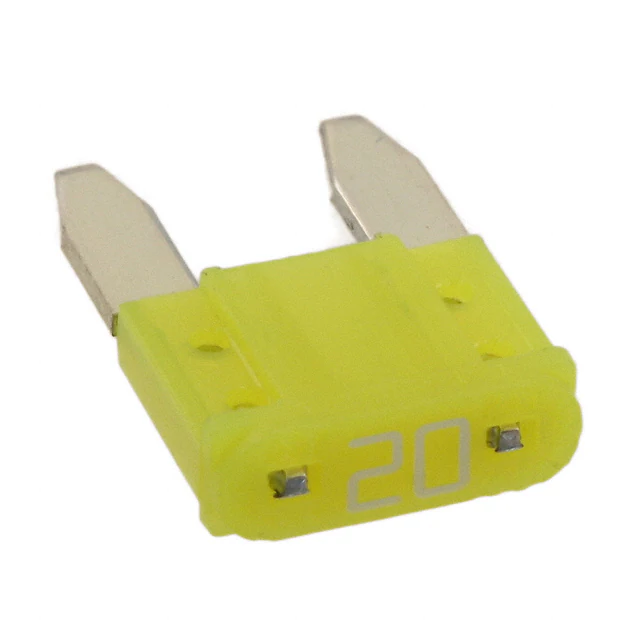

0997020.WXNFUSE AUTO 20A 58VDC BLADE MINI |
2,427 |
|
Datasheet | MINI® 997 | Bulk | Active | Requires Holder | Automotive | 20 A | - | 58 V | Fast Blow | 1kA | 380.0 | - | -40°C ~ 125°C | Yellow | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|

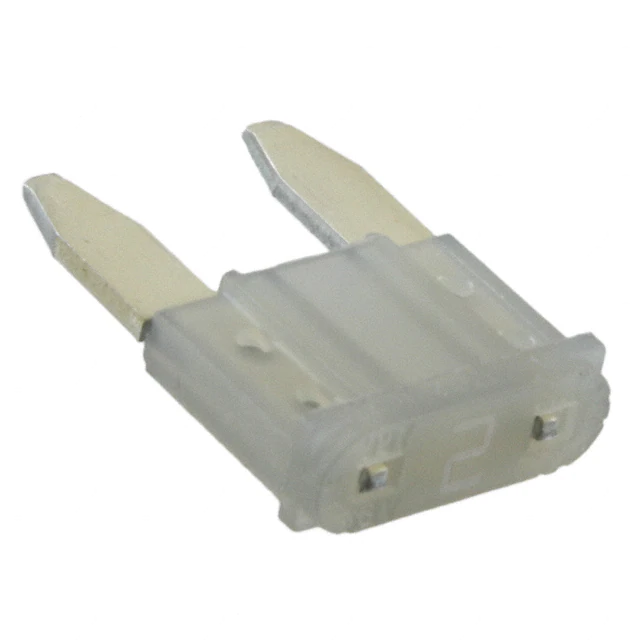

0997002.WXNFUSE AUTOMOTIVE 2A 58VDC BLADE |
2,414 |
|
Datasheet | MINI® 997 | Bulk | Active | Requires Holder | Automotive | 2 A | - | 58 V | Fast Blow | 1kA | 2.8 | - | -40°C ~ 125°C | Gray | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|
0229003.MXSPFUSE GLASS 3A 250VAC 125VDC 2AG |
1,558 |
|
Datasheet | 229 | Bulk | Active | Requires Holder | Cartridge, Glass | 3 A | 250 V | 125 V | Slow Blow | 35A AC, 10kA DC | 77.0 | CE, CSA, PSE, UL | -55°C ~ 125°C | - | 0.177" Dia x 0.570" L (4.50mm x 14.48mm) | |
.JPG)
|
0232003.MXPFUSE GLASS 3A 250VAC 5X20MM |
6,774 |
|
Datasheet | 232 | Bulk | Active | Requires Holder | Cartridge, Glass | 3 A | 250 V | - | Medium Blow | 100A | 17.19 | CE, KC, PSE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
37211000001FUSE BOARD MNT 1A 250VAC RADIAL |
3,050 |
|
Datasheet | TR5® 372 | Cut Tape (CT) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 1 A | 250 V | - | Slow Blow | 35A | 7.5 | CCC, cURus, PSE, SEMKO, VDE | -40°C ~ 85°C | - | 0.335" Dia x 0.315" H (8.50mm x 8.00mm) | |
|
0467.750NRFUSE BRD MT 750MA 32VAC 32VDC |
41,701 |
|
Datasheet | 467 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 750 mA | 32 V | 32 V | Fast Blow | 50A | 0.0171 | CSA, UL | -55°C ~ 90°C | - | 0.063" L x 0.032" W x 0.012" H (1.60mm x 0.81mm x 0.31mm) | |
|
|
0467003.NRHFFUSE BRD MNT 3A 32VAC 32VDC 0603 |
31,672 |
|
Datasheet | 467 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 3 A | 32 V | 32 V | Fast Blow | 35A | 0.2403 | CSA, UL | -55°C ~ 90°C | - | 0.063" L x 0.032" W x 0.012" H (1.60mm x 0.81mm x 0.31mm) | |
|
0438002.WRGTFUSE BRD MNT 2A 12VAC 32VDC 0603 |
27,448 |
|
Datasheet | 438GT | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 2 A | 12 V | 32 V | Fast Blow | 50A AC, 50A DC | 0.181 | CSA, cURus | -55°C ~ 150°C | - | 0.061" L x 0.033" W x 0.020" H (1.54mm x 0.85mm x 0.50mm) | |
|
|
0467001.NRHFFUSE BRD MNT 1A 32VAC 32VDC 0603 |
25,564 |
|
Datasheet | 467 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 1 A | 32 V | 32 V | Fast Blow | 50A | 0.0212 | CSA, UL | -55°C ~ 90°C | - | 0.063" L x 0.032" W x 0.012" H (1.60mm x 0.81mm x 0.31mm) |
