Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
061701.6MXPFUSE GLASS 1.6A 250VAC 5X20MM |
68 |
|
Datasheet | 617 | Bulk | Active | Requires Holder | Cartridge, Glass | 1.6 A | 250 V | - | Fast Blow | 35A | 4.615 | CCC, CE, CSA, UR. VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
0617.500MXPFUSE GLASS 500MA 250VAC 5X20MM |
3,195 |
|
Datasheet | 617 | Bulk | Active | Requires Holder | Cartridge, Glass | 500 mA | 250 V | - | Fast Blow | 35A | 0.215 | CCC, CE, CSA, UR. VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
0617002.MXPFUSE GLASS 2A 250VAC 5X20MM |
8,015 |
|
Datasheet | 617 | Bulk | Active | Requires Holder | Cartridge, Glass | 2 A | 250 V | - | Fast Blow | 35A | 5.73 | CCC, CE, CSA, UR. VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
061706.3MXPFUSE GLASS 6.3A 250VAC 5X20MM |
4,489 |
|
Datasheet | 617 | Bulk | Active | Requires Holder | Cartridge, Glass | 6.3 A | 250 V | - | Fast Blow | 63A | 62.465 | CCC, CE, CSA, UR. VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
029707.5WXTFUSE AUTO 7.5A 32VDC BLADE MINI |
4,400 |
|
Datasheet | MINI® 297 | Bulk | Active | Requires Holder | Automotive | 7.5 A | - | 32 V | Fast Blow | 1kA | 68.0 | UR | -40°C ~ 125°C | Brown | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|
0618002.MXPFUSE GLASS 2A 250VAC 5X20MM |
6,534 |
|
Datasheet | 618 | Bulk | Active | Requires Holder | Cartridge, Glass | 2 A | 250 V | - | Slow Blow | 35A | 14.45 | CCC, CE, CSA, UR, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
0618004.MXPFUSE GLASS 4A 250VAC 5X20MM |
9,471 |
|
Datasheet | 618 | Bulk | Active | Requires Holder | Cartridge, Glass | 4 A | 250 V | - | Slow Blow | 40A | 69.1 | CCC, CE, CSA, UR, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
061806.3MXPFUSE GLASS 6.3A 250VAC 5X20MM |
9,754 |
|
Datasheet | 618 | Bulk | Active | Requires Holder | Cartridge, Glass | 6.3 A | 250 V | - | Slow Blow | 63A | 198.5 | CCC, CE, CSA, UR, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
ERB-RE5R00VFUSE BOARD MOUNT 5A 32VDC 0603 |
2,359 |
|
Datasheet | ERB-RE | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 5 A | - | 32 V | Fast Blow | 50A | - | cUL, UL | -40°C ~ 125°C | - | 0.063" L x 0.032" W x 0.025" H (1.60mm x 0.81mm x 0.63mm) | |
|
0287020.UFUSE AUTO 20A 32VDC BLADE ATO |
47 |
|
Datasheet | ATOF® | Bulk | Active | Requires Holder | Automotive | 20 A | - | 32 V | - | 1kA | 520.0 | - | -40°C ~ 105°C | Yellow | 0.752" L x 0.201" W x 0.484" H (19.10mm x 5.10mm x 12.30mm) | |
|

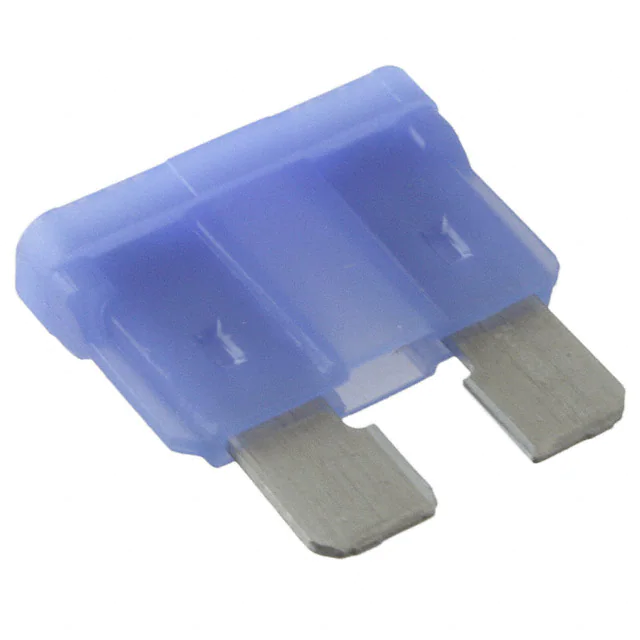

0287015.PXCNFUSE AUTO 15A 32VDC BLADE ATO |
5,579 |
|
Datasheet | ATOF® | Bulk | Active | Requires Holder | Automotive | 15 A | - | 32 V | - | - | 340.0 | CSA, UL | -40°C ~ 105°C | Blue | 0.752" L x 0.201" W x 0.484" H (19.10mm x 5.10mm x 12.30mm) | |
|
0312002.MXPFUSE GLASS 2A 250VAC 3AB 3AG |
100 |
|
Datasheet | 312 | Bulk | Active | Requires Holder | Cartridge, Glass | 2 A | 250 V | - | Fast Blow | 100A | 5.2 | CE, CSA, KC, PSE, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
|
03121.25MXPFUSE GLASS 1.25A 250VAC 3AB 3AG |
58 |
|
Datasheet | 312 | Bulk | Active | Requires Holder | Cartridge, Glass | 1.25 A | 250 V | - | Fast Blow | 100A | 1.45 | CE, CSA, KC, PSE, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
021706.3TXPFUSE GLASS 6.3A 250VAC 5X20MM |
58 |
|
Datasheet | 217 | Bulk | Active | Requires Holder | Cartridge, Glass | 6.3 A | 250 V | - | Fast Blow | 63A | 62.465 | BSI, CCC, CE, CSA, KC, PSE, SEMKO, UR, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
0217001.MXPFUSE GLASS 1A 250VAC 5X20MM |
6,965 |
|
Datasheet | 217 | Bulk | Active | Requires Holder | Cartridge, Glass | 1 A | 250 V | - | Fast Blow | 35A | 1.045 | BSI, CE, CCC, CSA, KC, PSE, SEMKO, UR, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
0217005.TXPFUSE GLASS 5A 250VAC 5X20MM |
40 |
|
Datasheet | 217 | Bulk | Active | Requires Holder | Cartridge, Glass | 5 A | 250 V | - | Fast Blow | 50A | 42.795 | BSI, CE, CCC, CSA, KC, PSE, SEMKO, UR, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
0217.800MXPFUSE GLASS 800MA 250VAC 5X20MM |
8,504 |
|
Datasheet | 217 | Bulk | Active | Requires Holder | Cartridge, Glass | 800 mA | 250 V | - | Fast Blow | 35A | 0.85 | CCC, CE, CSA, K-MARK, SEMKO, UL, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
0217010.MXPFUSE GLASS 10A 250VAC 5X20MM |
3,624 |
|
Datasheet | 217 | Bulk | Active | Requires Holder | Cartridge, Glass | 10 A | 250 V | - | Fast Blow | 100A | 217.635 | CE, K-MARK, PSE, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
0617001.MXPFUSE GLASS 1A 250VAC 5X20MM |
6,607 |
|
Datasheet | 617 | Bulk | Active | Requires Holder | Cartridge, Glass | 1 A | 250 V | - | Fast Blow | 35A | 1.045 | CCC, CE, CSA, UR. VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
0217.630HXPFUSE GLASS 630MA 250VAC 5X20MM |
50 |
|
Datasheet | 217 | Bulk | Active | Requires Holder | Cartridge, Glass | 630 mA | 250 V | - | Fast Blow | 35A | 0.41 | CCC, CE, CSA, K-MARK, SEMKO, UL, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) |
