Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Series.jpg)
|
0505030.MXEPFUSE CERM 30A 500VAC 500VDC 3AB |
4,352 |
|
Datasheet | 505 | Bulk | Active | Through Hole | Cartridge, Ceramic | 30 A | 500 V | 500 V | Fast Blow | 30kA AC, 20kA DC | 280.0 | CE, cULus | -55°C ~ 125°C | - | 0.275" Dia x 1.288" L (6.99mm x 32.72mm) | |
|

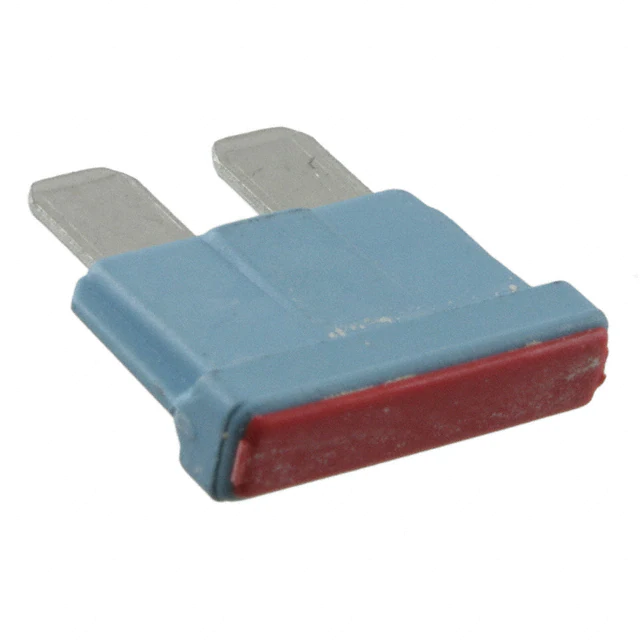

166.7000.5152FUSE AUTO 15A 80VDC BLADE ATO |
944 |
|
Datasheet | FKS ATO® | Bulk | Active | Requires Holder | Automotive | 15 A | - | 80 V | Slow Blow | 1kA | 162.0 | cULus | - | Blue | 0.748" L x 0.197" W x 0.520" H (19.00mm x 5.00mm x 13.20mm) | |
|

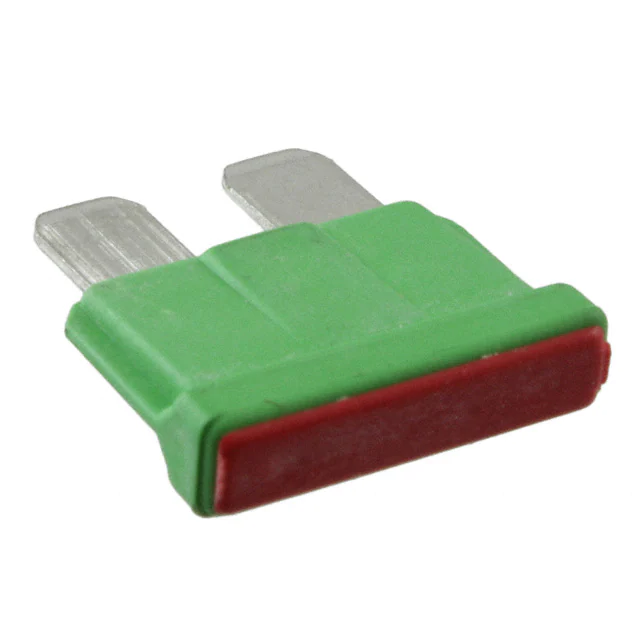

166.7000.5302FUSE AUTO 30A 80VDC BLADE ATO |
508 |
|
Datasheet | FKS ATO® | Bulk | Active | Requires Holder | Automotive | 30 A | - | 80 V | Slow Blow | 1kA | 1500.0 | cULus | - | Green | 0.748" L x 0.197" W x 0.520" H (19.00mm x 5.00mm x 13.20mm) | |
|

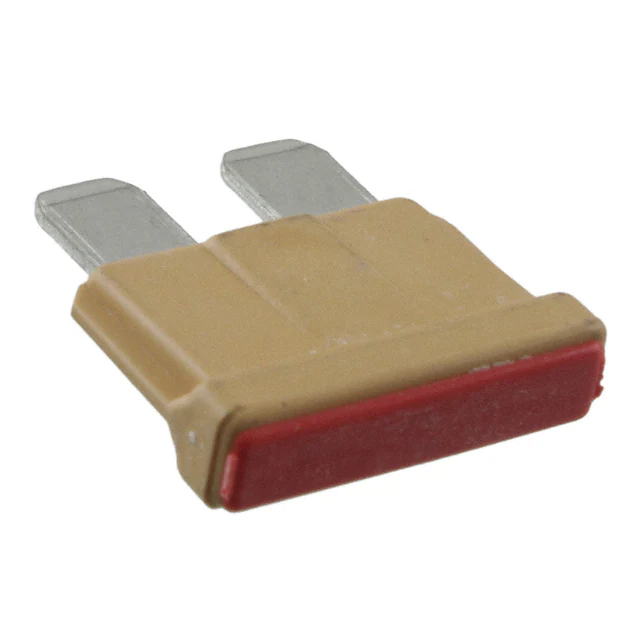

166.7000.4502FUSE AUTO 5A 80VDC BLADE ATO/ATC |
502 |
|
Datasheet | FKS ATO® | Bulk | Active | Requires Holder | Automotive | 5 A | - | 80 V | Slow Blow | 1kA | 24.3 | cULus | - | Tan | 0.748" L x 0.197" W x 0.520" H (19.00mm x 5.00mm x 13.20mm) | |
|
0273004.HFUSE BRD MNT 4A 125VAC/VDC RAD |
674 |
|
Datasheet | MICRO™ 273 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 4 A | 125 V | 125 V | Fast Blow | 10kA | 1.38 | CSA, QPL, UL | -55°C ~ 85°C | - | 0.250" Dia x 0.350" H (6.35mm x 8.89mm) | |
|
|
0273005.HFUSE BRD MNT 5A 125VAC/VDC RAD |
598 |
|
Datasheet | MICRO™ 273 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 5 A | 125 V | 125 V | Fast Blow | 10kA | 2.21 | CSA, QPL, UL | -55°C ~ 85°C | - | 0.250" Dia x 0.350" H (6.35mm x 8.89mm) | |
|
|
0273002.HFUSE BRD MNT 2A 125VAC/VDC RAD |
480 |
|
Datasheet | MICRO™ 273 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 2 A | 125 V | 125 V | Fast Blow | 10kA | 0.3 | CSA, QPL, UL | -55°C ~ 85°C | - | 0.250" Dia x 0.350" H (6.35mm x 8.89mm) | |
|
0508.500MXPFUSE CERM 500MA 1KVAC 1000VDC |
864 |
|
Datasheet | 508 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 500 mA | 1 kV | 1000 V | Fast Blow | 10kA | 0.259 | CE, cULus | -55°C ~ 125°C | - | 0.248" Dia x 1.260" L (6.30mm x 32.00mm) | |
|
0881060.URFUSE BOARD MOUNT 60A 75VDC 2SMD |
3,118 |
|
Datasheet | 881 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 60 A | - | 75 V | - | 1.5kA | 1050.0 | cURus | -55°C ~ 100°C | - | 0.394" L x 0.441" W x 0.268" H (10.00mm x 11.20mm x 6.80mm) | |
|
0508001.MXEPFUSE CERM 1A 1KVAC 1000VDC 3AB |
9,072 |
|
Datasheet | 508 | Bulk | Active | Through Hole | Cartridge, Ceramic | 1 A | 1 kV | 1000 V | Fast Blow | 10kA | 0.449 | CE, cULus | -55°C ~ 125°C | - | 0.275" Dia x 1.288" L (6.99mm x 32.72mm) | |
|
0606050.UXTHPFUSE CARTRIDGE 50A 500VAC |
154 |
|
Datasheet | 606 | Tray | Active | Through Hole | Cartridge | 50 A | 500 V | - | - | 2kA | 4800.0 | cURus | -55°C ~ 125°C | - | 0.482" Dia x 1.315" L (12.25mm x 33.40mm) | |
|
0298400.ZXHFUSE AUTO 400A 32VDC AUTO LINK |
117 |
|
Datasheet | MEGA® | Bulk | Active | Bolt Mount | Automotive | 400 A | - | 32 V | Slow Blow | 2kA | - | - | -40°C ~ 125°C | Violet | 1.149" L x 0.750" W x 0.422" H (29.20mm x 19.05mm x 10.72mm) | |
|
|
0606063.UXTHPFUSE CARTRIDGE 63A 500VAC |
147 |
|
Datasheet | 606 | Tray | Active | Through Hole | Cartridge | 63 A | 500 V | - | - | 2kA | 7000.0 | cURus | -55°C ~ 125°C | - | 0.482" Dia x 1.315" L (12.25mm x 33.40mm) | |
|
|
0273.200VFUSE BOARD MNT 200MA 125VAC/VDC |
358 |
|
Datasheet | MICRO™ 273 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 200 mA | 125 V | 125 V | Fast Blow | 10kA | 0.00409 | CSA, QPL, UL | -55°C ~ 85°C | - | 0.250" Dia x 0.350" H (6.35mm x 8.89mm) | |
|
0881125.UR881 FUSE 125A |
1,181 |
|
Datasheet | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
0881100.URFUSE BOARD MOUNT 100A 75VDC 2SMD |
2,858 |
|
Datasheet | 881 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 100 A | - | 75 V | - | 1.5kA | 6900.0 | cURus | -55°C ~ 100°C | - | 0.394" L x 0.441" W x 0.268" H (10.00mm x 11.20mm x 6.80mm) | |
|
|
0881100.URFFUSE BOARD MOUNT 100A 75VDC 2SMD |
194 |
|
Datasheet | 881 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 100 A | - | 75 V | - | 1.5kA | 6900.0 | cURus | -55°C ~ 100°C | - | 0.441" L x 0.394" W x 0.268" H (11.20mm x 10.00mm x 6.80mm) | |
|
0526050.ZXISOPFUSE CERM 50A 500VAC/VDC BOLT DN |
712 |
|
Datasheet | 526 | Tray | Active | Bolt Mount | Cartridge, Ceramic | 50 A | 500 V | 500 V | Fast Blow | 10kA | 3850.0 | cURus | -55°C ~ 125°C | - | 0.450" Dia x 1.386" L (11.43mm x 35.20mm) | |
|
0272.031VFUSE BRD MT 31MA 125VAC/VDC RAD |
215 |
|
Datasheet | MICRO™ 272 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 31 mA | 125 V | 125 V | Fast Blow | 10kA | 8.1E-6 | CSA, QPL, UL | -55°C ~ 125°C | - | 0.235" Dia x 0.287" H (5.97mm x 7.30mm) | |
|
ERB-RE1R40VFUSE BOARD MOUNT 1.4A 32VDC 0603 |
2,515 |
|
Datasheet | ERB-RE | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 1.4 A | - | 32 V | Fast Blow | 50A | - | cUL | -40°C ~ 125°C | - | 0.063" L x 0.032" W x 0.025" H (1.60mm x 0.81mm x 0.63mm) |
