Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0322012.HXPFUSE CERAMIC 12A 65VAC/VDC 3AB |
100 |
|
Datasheet | 322 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 12 A | 65 V | 65 V | Fast Blow | 200A AC, 1kA DC | 60.0 | CE, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
0507005.MXPFUSE CERAMIC 5A 650VDC SMD |
29 |
|
Datasheet | 507 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 5 A | - | 650 V | - | 150A | 12.5 | CE, cURus | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
0895040.TFUSE AUTO 40A 58VDC AUTO LINK |
29 |
|
Datasheet | JCASE® | Box | Active | Requires Holder | Automotive | 40 A | - | 58 V | - | 1kA | 5470.0 | - | -40°C ~ 125°C | Green | 0.571" L x 0.472" W x 0.630" H (14.50mm x 12.00mm x 16.00mm) | |
|
0203002.HXGFUSE BOARD MOUNT 2A 250VAC 2SMD |
90 |
|
Datasheet | FLAT-PAK® 203 | Tube | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 2 A | 250 V | - | Slow Blow | 50A | 1.7 | CSA, UL | -55°C ~ 125°C | - | 0.372" L x 0.250" W x 0.165" H (9.45mm x 6.35mm x 4.19mm) | |
.jpg)
|
0MIN003.VPGLOFUSE AUTO 3A 32VAC 32VDC BLADE |
42 |
|
Datasheet | MINI® | Bulk | Active | Requires Holder | Automotive | 3 A | 32 V | 32 V | Fast Blow | - | - | SAE, UL | - | Violet | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|
|
0322030.HXPFUSE CERAMIC 30A 65VAC/VDC 3AB |
65 |
|
Datasheet | 322 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 30 A | 65 V | 65 V | Fast Blow | 200A AC, 1kA DC | 540.0 | CE, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
0MIN010.VPGLOFUSE AUTO 10A 32VAC 32VDC BLADE |
40 |
|
Datasheet | MINI® | Bulk | Active | Requires Holder | Automotive | 10 A | 32 V | 32 V | Fast Blow | - | - | SAE, UL | - | Red | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|

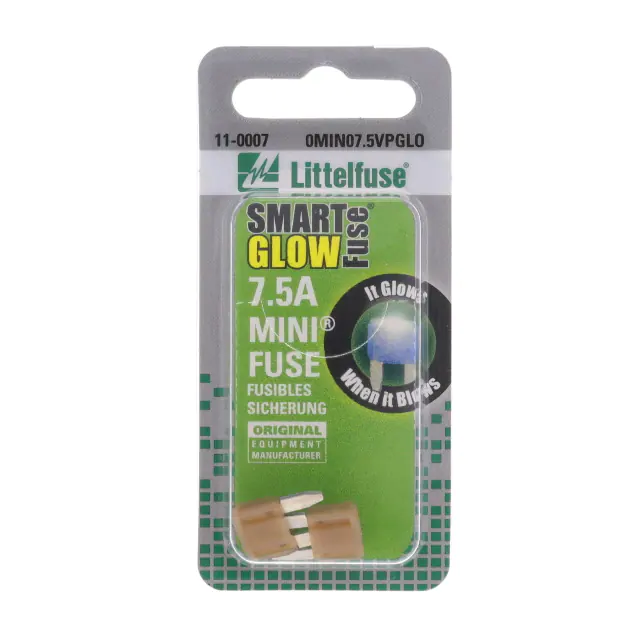

0MIN07.5VPGLOFUSE AUTO 7.5A 32VAC/VDC BLADE |
35 |
|
Datasheet | MINI® | Bulk | Active | Requires Holder | Automotive | 7.5 A | 32 V | 32 V | Fast Blow | - | - | SAE, UL | - | Brown | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|
0MEG125.LFUSE AUTO 125A 32VAC/VDC 50PK |
43 |
|
Datasheet | MEGA® | Bulk | Active | Bolt Mount | Automotive | 125 A | 32 V | 32 V | Slow Blow | - | - | - | - | Green | 1.149" L x 0.770" W x 0.390" H (29.20mm x 19.50mm x 9.90mm) | |
|
153.5395.6202FUSE AUTO 200A 32VDC AUTO LINK |
86 |
|
Datasheet | BF2 | Bulk | Active | Bolt Mount | Automotive | 200 A | - | 32 V | Slow Blow | 2kA | 288000.0 | - | - | Blue | 1.142" L x 0.740" W x 0.382" H (29.00mm x 18.80mm x 9.70mm) | |
|
JCAS040.XFUSE AUTO 40A 32VAC 32VDC |
45 |
|
Datasheet | JCASE® | Bulk | Active | Requires Holder | Automotive | 40 A | 32 V | 32 V | Slow Blow | - | - | - | - | Green | 0.555" L x 0.472" W x 1.063" H (14.10mm x 12.00mm x 27.00mm) | |
|
0273.125HFUSE BOARD MNT 125MA 125VAC/VDC |
94 |
|
Datasheet | MICRO™ 273 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 125 mA | 125 V | 125 V | Fast Blow | 10kA | 9.61E-4 | CSA, QPL, UL | -55°C ~ 85°C | - | 0.250" Dia x 0.350" H (6.35mm x 8.89mm) | |
|
153.5395.6252FUSE AUTO 250A 32VDC AUTO LINK |
88 |
|
Datasheet | BF2 | Bulk | Active | Bolt Mount | Automotive | 250 A | - | 32 V | Slow Blow | 2kA | 292500.0 | - | - | Pink | 1.142" L x 0.740" W x 0.382" H (29.00mm x 18.80mm x 9.70mm) | |
|
0251005.VXLFUSE BRD MNT 5A 125VAC/VDC AXIAL |
35 |
|
Datasheet | PICO® II 251 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 5 A | 125 V | 125 V | Fast Blow | 50A AC, 300A DC | 4.14 | CCC, CSA, cURus, PSE, TUV | -55°C ~ 125°C | - | 0.125" Dia x 0.280" L (3.18mm x 7.10mm) | |
|
0MEG100.LFUSE AUTO 100A 32VAC/VDC 50PK |
29 |
|
Datasheet | MEGA® | Bulk | Active | Bolt Mount | Automotive | 100 A | 32 V | 32 V | Slow Blow | - | - | - | - | Yellow | 1.149" L x 0.770" W x 0.390" H (29.20mm x 19.50mm x 9.90mm) | |
|
0606040.UXTHPFUSE CARTRIDGE 40A 500VAC |
86 |
|
Datasheet | 606 | Tray | Active | Through Hole | Cartridge | 40 A | 500 V | - | - | 2kA | 2500.0 | cURus | -55°C ~ 125°C | - | 0.482" Dia x 1.315" L (12.25mm x 33.40mm) | |
|
153.5395.6101FUSE AUTO 100A 32VDC AUTO LINK |
10 |
|
Datasheet | BF2 | Bulk | Active | Bolt Mount | Automotive | 100 A | - | 32 V | Slow Blow | 2kA | 46800.0 | - | - | Yellow | 1.142" L x 0.740" W x 0.382" H (29.00mm x 18.80mm x 9.70mm) | |
|
0272.250HFUSE BOARD MNT 250MA 125VAC/VDC |
75 |
|
Datasheet | MICRO™ 272 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 250 mA | 125 V | 125 V | Fast Blow | 10kA | 0.0064 | CSA, QPL, UL | -55°C ~ 125°C | - | 0.235" Dia x 0.287" H (5.97mm x 7.30mm) | |
|
|
0272.100HFUSE BOARD MNT 100MA 125VAC/VDC |
53 |
|
Datasheet | MICRO™ 272 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 100 mA | 125 V | 125 V | Fast Blow | 10kA | 3.85E-4 | CSA, QPL, UL | -55°C ~ 125°C | - | 0.235" Dia x 0.287" H (5.97mm x 7.30mm) | |
|

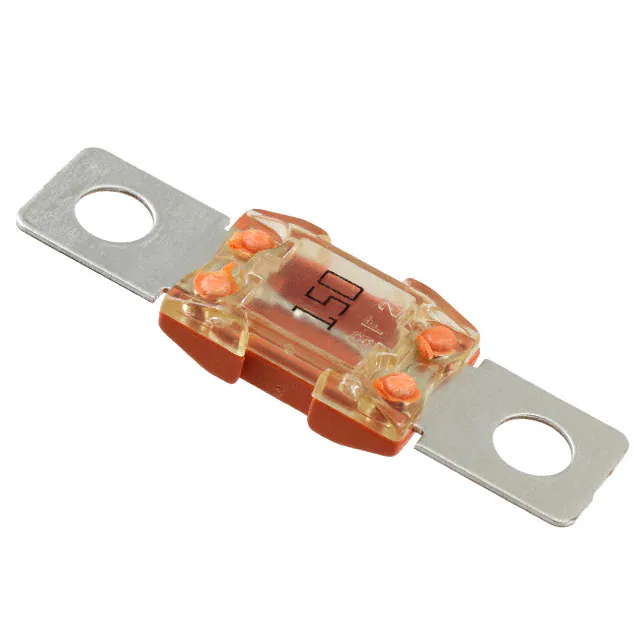

153.5395.6151FUSE AUTO 150A 32VDC AUTO LINK |
35 |
|
Datasheet | BF2 | Bulk | Active | Bolt Mount | Automotive | 150 A | - | 32 V | Slow Blow | 2kA | 113400.0 | - | - | Orange | 1.142" L x 0.740" W x 0.382" H (29.00mm x 18.80mm x 9.70mm) |
