Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0487016.MXEPFUSE CERAMIC 16A 420VDC 5X20MM |
1,338 |
|
Datasheet | 487 | Bulk | Active | Through Hole | Cartridge, Ceramic | 16 A | - | 420 V | Fast Blow | 200A | 260.0 | TUV, UR | -55°C ~ 125°C | - | 0.217" Dia x 0.846" L (5.50mm x 21.50mm) | |
|
0326.150MXPFUSE CERM 150MA 250VAC 3AB 3AG |
994 |
|
Datasheet | 326 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 150 mA | 250 V | - | Slow Blow | 100A | 0.143 | CE | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
|
0322025.MXPFUSE CERAMIC 25A 65VAC/VDC 3AB |
1,545 |
|
Datasheet | 322 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 25 A | 65 V | 65 V | Fast Blow | 200A AC, 1kA DC | 325.0 | CE, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
0485002.DRFUSE BOARD MOUNT 2A 600VDC 2SMD |
900 |
|
Datasheet | 485 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 2 A | - | 600 V | Fast Blow | 100A | 0.896 | CSA, UL | -55°C ~ 125°C | - | 0.476" L x 0.177" W x 0.177" H (12.10mm x 4.50mm x 4.50mm) | |
|
39500500000FUSE BOARD MNT 50MA 125VAC RAD |
1,400 |
|
Datasheet | TE5® 395 | Cut Tape (CT) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 50 mA | 125 V | - | Fast Blow | 100A | 1.0E-4 | cUL, UL | -40°C ~ 85°C | - | 0.335" L x 0.157" W x 0.315" H (8.50mm x 4.00mm x 8.00mm) | |
|
166.7000.5202FUSE AUTO 20A 80VDC BLADE ATO |
191 |
|
Datasheet | FKS ATO® | Bulk | Obsolete | Requires Holder | Automotive | 20 A | - | 80 V | Slow Blow | 1kA | 475.0 | cULus | - | Yellow | 0.748" L x 0.197" W x 0.520" H (19.00mm x 5.00mm x 13.20mm) | |
|
0328021.MXEPFUSE CERM 21A 300VAC/100VDC AXL |
992 |
|
Datasheet | 328 | Bulk | Active | Through Hole | Cartridge, Ceramic | 21 A | 300 V | 100 V | Slow Blow | 200A | 4800.0 | TUV, UR | -55°C ~ 125°C | - | 0.275" Dia x 1.288" L (6.99mm x 32.72mm) | |
|
0253005.MFUSE BRD MNT 5A 125VAC/VDC AXIAL |
842 |
|
Datasheet | PICO® II 253 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 5 A | 32 V | 32 V | Fast Blow | 50A AC, 300A DC | 4.14 | CCC, CSA, PSE, QPL, TUV, UR | -55°C ~ 125°C | - | 0.103" Dia x 0.280" L (2.61mm x 7.11mm) | |
|
|
0332010.MXPFUSE CERM 10A 250VAC 125VDC 3AB |
2,159 |
|
Datasheet | 332 | Bulk | Obsolete | Requires Holder | Cartridge, Ceramic | 10 A | 250 V | 125 V | Fast Blow | 100A | 24.0 | CE, cULus, PSE | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
CCMR1.250FUSE, 1-1/4A, 600VAC/250VDC, CC, |
209 |
|
Datasheet | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | |
|
ERB-RD0R50XFUSE BOARD MNT 500MA 32VDC 0402 |
191 |
|
Datasheet | ERB-RD | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 500 mA | - | 32 V | Fast Blow | 35A | - | cUL, UL | -40°C ~ 125°C | - | 0.040" L x 0.020" W x 0.019" H (1.00mm x 0.50mm x 0.48mm) | |
|
0297005.WXNVFUSE AUTOMOTIVE 5A 32VDC BLADE |
410 |
|
Datasheet | MINI® 297 | Bulk | Active | Requires Holder | Automotive | 5 A | - | 32 V | Fast Blow | 1kA | 25.0 | UR | -40°C ~ 125°C | Tan | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|
0312001.HXPFUSE GLASS 1A 250VAC 3AB 3AG |
883 |
|
Datasheet | 312 | Bulk | Active | Requires Holder | Cartridge, Glass | 1 A | 250 V | - | Fast Blow | 35A | 0.76 | CE, CSA, KC, PSE, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
0235003.HXPFUSE GLASS 3A 250VAC 5X20MM |
487 |
|
Datasheet | 235 | Bulk | Active | Requires Holder | Cartridge, Glass | 3 A | 250 V | - | Fast Blow | 100A | 8.395 | CE, CSA, KC, PSE, UL | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
38312000000FUSE BOARD MNT 2A 300VAC RADIAL |
1,011 |
|
Datasheet | TR5® 383 | Cut Tape (CT) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 2 A | 300 V | - | Slow Blow | 100A | 12.0 | cURus, PSE | -65°C ~ 125°C | - | 0.335" Dia x 0.315" H (8.50mm x 8.00mm) | |
|
0467.500NRFUSE BRD MT 500MA 32VAC 32VDC |
87 |
|
Datasheet | 467 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 500 mA | 32 V | 32 V | Fast Blow | 50A | 0.0087 | CSA, UL | -55°C ~ 90°C | - | 0.063" L x 0.032" W x 0.012" H (1.60mm x 0.81mm x 0.31mm) | |
|
0157002.DRTFUSE BRD MNT 2A 125VAC/VDC 2SMD |
93 |
|
Datasheet | NANO²® 157T | Tape & Reel (TR) | Active | Requires Holder, Surface Mount | Board Mount (Cartridge Style Excluded) | 2 A | 125 V | 125 V | Slow Blow | 50A | 8.2 | cULus, PSE | -55°C ~ 125°C | - | 0.256" L x 0.146" W x 0.154" H (6.50mm x 3.70mm x 3.90mm) | |
|

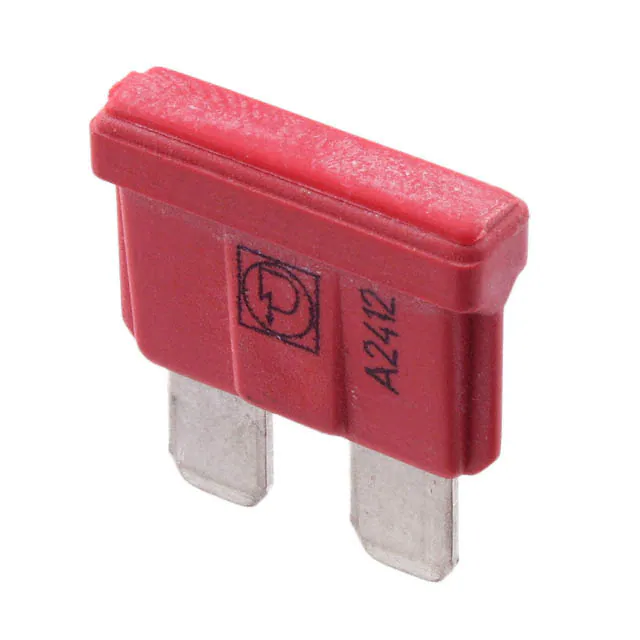

166.7000.5102FUSE AUTO 10A 80VDC BLADE ATO |
46 |
|
Datasheet | FKS ATO® | Bulk | Active | Requires Holder | Automotive | 10 A | - | 80 V | Fast Blow | 1kA | 86.4 | cULus | - | Red | 0.748" L x 0.197" W x 0.520" H (19.00mm x 5.00mm x 13.20mm) | |
|

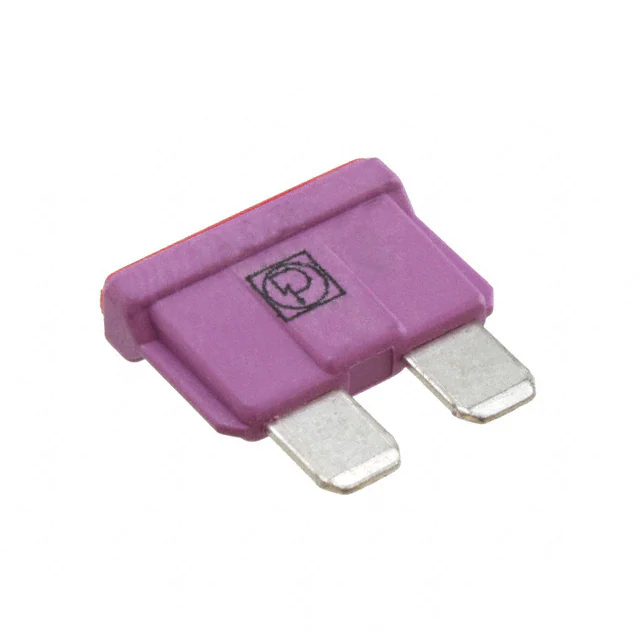

166.7000.4302FUSE AUTO 3A 80VDC BLADE ATO/ATC |
31 |
|
Datasheet | FKS ATO® | Bulk | Active | Requires Holder | Automotive | 3 A | - | 80 V | Slow Blow | 1kA | 8.1 | cULus | - | Violet | 0.748" L x 0.197" W x 0.520" H (19.00mm x 5.00mm x 13.20mm) | |
|
0508001.MXPFUSE CERM 1A 1KVAC 1000VDC 3AB |
80 |
|
Datasheet | 508 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 1 A | 1 kV | 1000 V | Fast Blow | 10kA | 0.449 | CE, cULus | -55°C ~ 125°C | - | 0.248" Dia x 1.260" L (6.30mm x 32.00mm) |
