Fuseholders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Fuse Size | Current Rating (Amps) | For Use With/Related Products | Fuse Type | Fuseholder Type | Number of Circuits | Voltage | Orientation | Termination Style | Contact Material | Contact Finish | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
01530002HFUSE HOLDER BLADE 20A IN LINE |
9,634 |
|
Datasheet | 153 | Bulk | Active | Free Hanging (In-Line) | 0.433" L x 0.152" W (11.00mm x 3.85mm) | 20 A | Miniature (ATM) | Blade | Holder | 1 | - | - | Crimp | Copper Alloy | Tin | - |
|
65600001409FUSE BLOK CARTRIDGE 250V 10A PCB |
417 |
|
Datasheet | 656 | Bulk | Active | Through Hole | 0.197" Dia x 0.787" L (5mm x 20mm) | 10 A | 5mm x 20mm | Cartridge | Block | 1 | 250V | Horizontal | PC Pin | Copper Alloy | Tin | - |
|
05200003ZFUSE BLOCK CART 600V 10A CHASSIS |
649 |
|
Datasheet | OMNI-BLOK® 520 | Bulk | Active | Chassis Mount | 0.197" Dia x 0.787" L (5mm x 20mm) | 10 A | 5mm x 20mm | Cartridge | Block | 1 | 600V | - | Quick Connect - 0.110" (2.8mm) | Brass | Tin | - |
|
01000066ZHIGH PROF. BLOCK ATO FUSE THT 30 |
2,000 |
|
Datasheet | 100 | Bulk | Active | Through Hole | 0.197" Dia (5mm) | 30 A | ATO® | Blade | Clip | 1 | 500V | Horizontal | PC Pin | Copper Alloy | Tin | - |
|
|
01530003HFUSE HOLDER BLADE 30A IN LINE |
277 |
|
Datasheet | 153 | Bulk | Active | Free Hanging (In-Line) | 0.433" L x 0.152" W (11.00mm x 3.85mm) | 30 A | Miniature (ATM) | Blade | Holder | 1 | - | - | Crimp | Copper Alloy | Tin | - |
|
01220088Z-13AG/3AB PCB FUSE CLIP WITH ANGLE |
256 |
|
Datasheet | 122 | Bulk | Active | Through Hole | 1/4" Dia Fuses | 30 A | 1/4" Dia Fuses | Cartridge | Clip | 1 | - | Horizontal and Vertical | PC Pin | Tin | Copper | - |
|
01210002ZFUSE CLIP CART 250V 30A CHASSIS |
608 |
|
Datasheet | 121 | Bulk | Active | Chassis Mount | 0.25" Dia (6.35mm) | 30 A | 1/4" Dia Fuses | Cartridge | Clip | 1 | 250V | - | Solder Lug | Beryllium Copper | Silver | - |
|
01250005HEAR CLIP CART 30A T/H MIDGET |
673 |
|
Datasheet | 125 | Box | Active | Through Hole | 0.394" Dia (10mm) | 30 A | 13/32" Dia Fuses | Cartridge | Clip | 1 | - | Horizontal | PC Pin | Phosphorus Bronze | Silver | - |
|
01550020ZXUFUSE HOLDER CART 32V 20A IN LINE |
1,417 |
|
Datasheet | 155 | Bulk | Active | Free Hanging (In-Line) | 0.25" Dia x 1.26" L (6.35mm x 32mm) | 20 A | 3AG, 1/4" x 1-1/4" (SFE-20) | Cartridge | Holder | - | 32V | - | Crimp | Brass | Tin | - |
|
01240040HFUSE CLIP RIVET/SMT 10MM 63A |
841 |
|
Datasheet | 124 | Bulk | Active | Through Hole | 0.394" Dia (10mm) | 63 A | 3AB, 3AG | Cartridge | Clip | 1 | - | Horizontal | PC Pin | Tin | Tin Nickel | - |
|
02810008HFUSE HLDR RADIAL 125V 5A PNL MNT |
1,784 |
|
Datasheet | 281 | Bulk | Active | Through Hole | Radial 0.1" (2.54mm) Pitch | 5 A | Radial Can | Radial | Holder | 1 | 125V | - | PC Pin | Beryllium Copper | Silver | - |
|
03540002ZXGYFUSE BLOCK CART 600V 30A CHASSIS |
278 |
|
Datasheet | OMNI-BLOK® 354 | Bulk | Active | Chassis Mount | 0.25" Dia x 1.26" L (6.35mm x 32mm) | 30 A | 3AG, 1/4" x 1-1/4" (SFE-20) | Cartridge | Block | 2 | 600V | - | Solder Lug | Phosphorus Bronze | Tin | - |
|
85000001009FUSE HLDR CART 250V 10A PNL MNT |
224 |
|
Datasheet | 850 | Bulk | Active | Panel Mount | 0.197" Dia x 0.787" L (5mm x 20mm) | 10 A | 5mm x 20mm | Cartridge | Holder | 1 | 250V | - | Solder Lug | Copper Alloy | Tin | - |
|
01550100ZFUSE HOLDER CART 32V 20A IN LINE |
841 |
|
Datasheet | 155 | Bulk | Active | Free Hanging (In-Line) | 0.25" Dia x 0.625" ~ 1.26" L (6.35mm x 15.88mm ~ 32mm) | 20 A | 1AG, 3AG, 7AG, 8AG, SFE-14, SFE-6 | Cartridge | Holder | 1 | 32V | - | Wire Leads | Brass | Nickel | - |
|
03453LF4ZX010FUSE HLDR CART 250V 20A PNL MNT |
481 |
|
Datasheet | 345 | Bulk | Active | Panel Mount | 0.25" Dia x 1.26" L (6.35mm x 32mm) | 20 A | 3AG, 1/4" x 1-1/4" (SFE-20) | Cartridge | Holder | 1 | 250V | - | Quick Connect - 0.187" (4.7mm) | Copper Alloy | Tin | - |
|

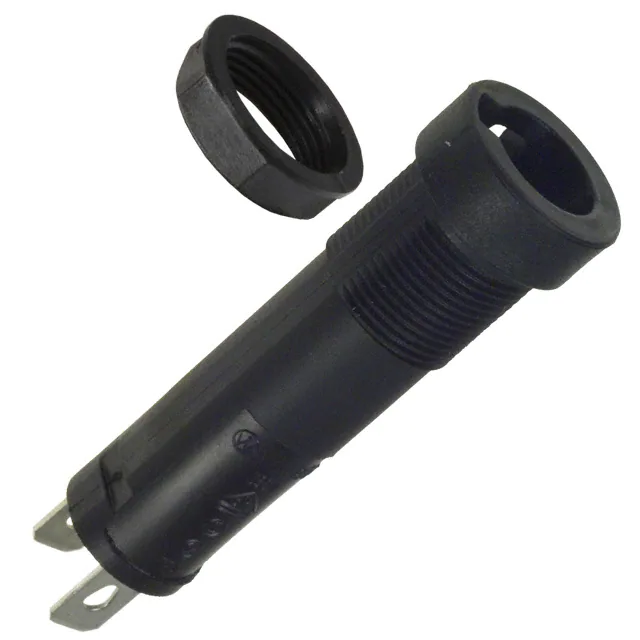

80000000005FUSE HLDR CART 250V 6.3A PNL MNT |
855 |
|
Datasheet | 800 | Bulk | Active | Panel Mount | 0.25" Dia x 1.26" L (6.35mm x 32mm), 5mm x 20mm | 6.3 A | 3AG, 1/4" x 1-1/4", 5mm x 20mm | Cartridge | Holder | 1 | 250V | - | Quick Connect - 0.187" (4.7mm) | Copper Alloy | Tin | - |
|

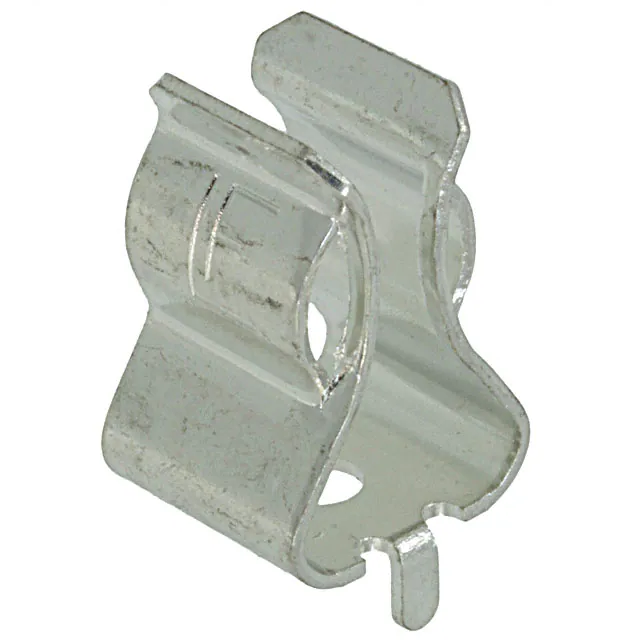

01250003HFUSE CLIP CARTRIDGE 250V 30A PCB |
1,582 |
|
Datasheet | 125 | Bulk | Active | Through Hole | 0.394" Dia (10mm) | 30 A | 13/32" Dia Fuses | Cartridge | Clip | 1 | 250V | Horizontal | PC Pin | Beryllium Copper | Tin | - |
|

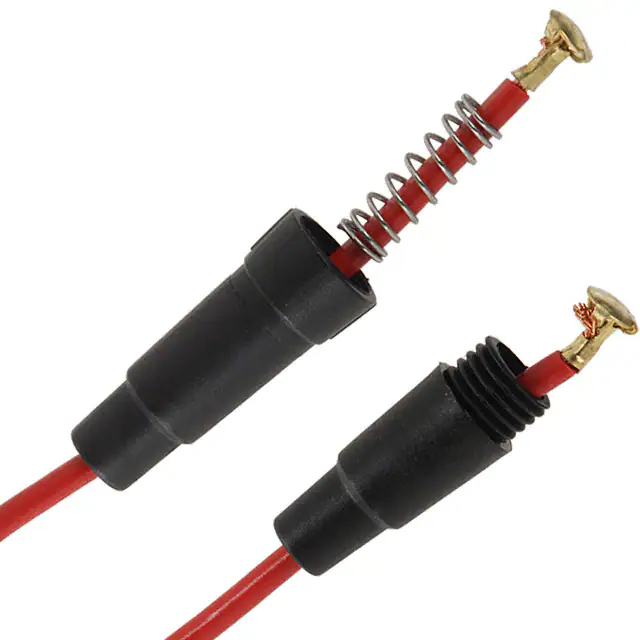

01500274LXNFUSE HLDR CART 350V 10A IN LINE |
168 |
|
Datasheet | 150 | Bulk | Active | Free Hanging (In-Line) | 0.197" Dia x 0.591" ~ 0.787" L (5mm x 15mm ~ 20mm) | 10 A | 2AG, 5mm x 15mm, 5mm x 20mm | Cartridge | Holder | 1 | 350V | - | Wire Leads | Brass | - | - |
|
03540803ZXGYFUSE BLOCK CART 600V 20A CHASSIS |
517 |
|
Datasheet | OMNI-BLOK® 354 | Bulk | Active | Chassis Mount | 0.25" Dia x 1.26" L (6.35mm x 32mm) | 20 A | 3AG, 1/4" x 1-1/4" (SFE-20) | Cartridge | Block | 3 | 600V | - | Quick Connect - 0.250" (6.3mm) | Phosphorus Bronze | Tin | - |
|
|
03540701ZXGYOMNI-BLOK 1 POLE 30A HIGH BODY O |
690 |
|
Datasheet | OMNI-BLOK® 354 | Bulk | Active | Surface Mount | - | 30 A | 3AB, 3AG | Cartridge | Block | 1 | 600V | Horizontal | Solder Lug | Phosphorus Bronze | - | - |
