Fuseholders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Fuse Size | Current Rating (Amps) | For Use With/Related Products | Fuse Type | Fuseholder Type | Number of Circuits | Voltage | Orientation | Termination Style | Contact Material | Contact Finish | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LFH600302PFUSE BLOK CART 600V 30A DIN RAIL |
1 |
|
Datasheet | LF | Box | Active | DIN Rail | - | 30 A | Class H(K), Class R Fuses | Cartridge | Holder | 2 | 600V | - | Screw Terminal, Pressure Plate | - | - | - |
|
LFH600302PIDFUSE BLOK CART 600V 30A DIN RAIL |
1 |
|
Datasheet | LF | Box | Active | DIN Rail | - | 30 A | Class H(K), Class R Fuses | Cartridge | Block | 2 | 600V | - | Screw Terminal, Pressure Plate | - | - | - |
|
LFT600303PFUSE BLOK CART 600V 30A DIN RAIL |
4,919 |
|
Datasheet | LFT | Box | Active | DIN Rail | 0.563" Dia x 1.5" L (14.3mm x 38.1mm) | 30 A | Class T Fuses | Cartridge | Block | 3 | 600V | - | Screw Terminal, Pressure Plate | - | - | - |
|
LFR600303CIDFUSE BLOK CART 600V 30A DIN RAIL |
9,092 |
|
Datasheet | LFR | Box | Active | DIN Rail | 0.563" Dia x 2" L (14.3mm x 50.8mm) | 30 A | Class R Fuses | Cartridge | Block | 3 | 600V | - | Box Lug | - | - | - |
|
LFC600603CFUSE BLOK CART 600V 60A DIN RAIL |
1 |
|
Datasheet | LF | Box | Active | DIN Rail | 0.850" Dia x 1.880" L (21.6mm x 47.8mm) | 60 A | Class CC/CD Fuses | Cartridge | Holder | 3 | 600V | Horizontal | Box Lug | Copper Alloy | - | - |
|
LFJ600303CIDFUSE BLOK CART 600V 30A DIN RAIL |
1 |
|
Datasheet | LF | Box | Active | DIN Rail | 0.813" Dia x 2.25" L (20.65mm x 57.15mm) | 30 A | Class J Fuses | Cartridge | Block | 3 | 600V | - | Box Lug | - | - | - |
|
LFG600153PQDINRFUSE BLOK CART 600V 15A DIN RAIL |
1 |
|
Datasheet | LF | Box | Active | DIN Rail | 0.394" Dia x 1.313" L (10mm x 33.35mm) | 15 A | Class G Fuses, 13/32" x 1-5/16" | Cartridge | Block | 3 | 600V | - | Screw Terminal, Pressure Plate | - | - | - |
|
|
LFJ600603CFUSE BLOK CART 600V 60A DIN RAIL |
1 |
|
Datasheet | LF | Box | Active | DIN Rail | - | 60 A | Class J Fuses | Cartridge | Holder | 3 | 600V | - | Box Lug | - | - | - |
|
LFPSJ602.ZFUSE HLDR CART 600V 60A DIN RAIL |
1 |
|
Datasheet | LFPSJ | Box | Active | DIN Rail | 1.063" Dia x 2.374" L (27mm x 60.3mm) | 60 A | Class J Fuses | Cartridge | Holder | 2 | 600V | - | Screw Terminal, Pressure Plate | - | - | - |
|
LFR251003CIDFUSE BLOCK CART 250V 100A DIN |
1 |
|
Datasheet | LFR | Box | Active | DIN Rail | 1.063" Dia x 5.874" L (27mm x 149.2mm) | 100 A | Class R Fuses | Cartridge | Block | 3 | 250V | - | Box Lug | - | - | - |
|
LFT601003CSFUSE BLOCK CART 600V 100A DIN |
1 |
|
Datasheet | LFT | Box | Active | DIN Rail | 0.827" Dia x 2.953" L (21mm x 75mm) | 100 A | Class T Fuses | Cartridge | Block | 3 | 600V | - | Box Lug | - | - | - |
|
01290001ZFUSE CLIP CART 250V 60A CHASSIS |
2 |
|
Datasheet | 129 | Bulk | Obsolete | Chassis Mount | 0.813" Dia (20.65mm) | 60 A | 13/16" Dia Fuses | Cartridge | Clip | 1 | 250V | - | Solder Lug | Beryllium Copper | Silver | - |
|
|
04450023NFUSE CLIP |
7,979 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | Tin | - |
|
|
04450726MAFUSE HOLDER |
6,876 |
|
- |
- | Tape & Box (TB) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | Tin | - |
|
|
04450023HFUSE CLIP |
3,583 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | Tin | - |
|
3522FUSE CLIP BLADE |
4,197 |
|
- |
- | - | Obsolete | - | 0.75" L x 0.2" W (19.1mm x 5.1mm) | - | ATC, ATO | Blade | - | - | - | - | - | - | - | - |
|

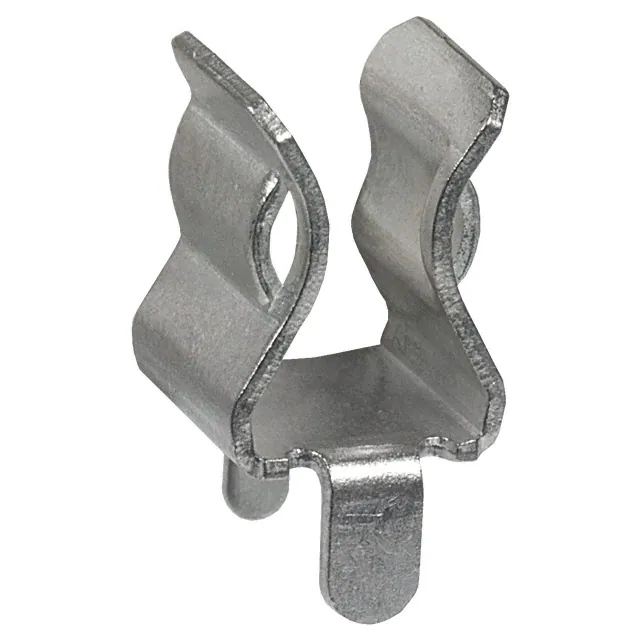

3518PFUSE CLIP 5MM |
7,217 |
|
- |
- | - | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
01000056NFUSE CLIP CARTRIDGE 250V 10A PCB |
5,495 |
|
Datasheet | 100 | Bulk | Obsolete | Through Hole | 0.197" Dia (5mm) | 10 A | 5mm Dia Fuses | Cartridge | Clip | 1 | 250V | Horizontal | PC Pin | Spring Brass | Tin | - |
|
|
01000054NFUSE CLIP CARTRIDGE 250V 10A PCB |
3,824 |
|
Datasheet | 100 | - | Obsolete | Through Hole | 0.197" Dia (5mm) | 10 A | 5mm Dia Fuses | Cartridge | Clip | 1 | 250V | Horizontal | PC Pin | Spring Brass | Silver | - |
|
01000057NFUSE CLIP BLADE 125V 15A PCB |
8,636 |
|
Datasheet | 100_57 | - | Obsolete | Through Hole | - | 15 A | ATC, ATO | Blade | Clip | 1 | 125V | Vertical | PC Pin | Spring Brass | Tin | - |
