Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SBCP-11HY4R7HFIXED IND 4.7UH 4.1A 30 MOHM TH |
0 |
|
Datasheet | SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 4.1 A | 14.6A | Unshielded | 30mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.492" Dia (12.50mm) | 0.472" (12.00mm) |
|
|
SBCP-11HY3R3HFIXED IND 3.3UH 4.4A 20 MOHM TH |
0 |
|
Datasheet | SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 4.4 A | 18.5A | Unshielded | 20mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.492" Dia (12.50mm) | 0.472" (12.00mm) |
|
|
SBCP-11HY2R2HFIXED IND 2.2UH 4.7A 20 MOHM TH |
0 |
|
Datasheet | SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 4.7 A | 21.4A | Unshielded | 20mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.492" Dia (12.50mm) | 0.472" (12.00mm) |
|
|
SBCP-11HY220HFIXED IND 22UH 2.5A 60 MOHM TH |
0 |
|
Datasheet | SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 2.5 A | 6.4A | Unshielded | 60mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.492" Dia (12.50mm) | 0.472" (12.00mm) |
|
|
SBCP-11HY151HFIXED IND 150UH 1.1A 260 MOHM TH |
0 |
|
Datasheet | SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 1.1 A | 2.4A | Unshielded | 260mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.492" Dia (12.50mm) | 0.472" (12.00mm) |
|
|
SBCP-11HY150HFIXED IND 15UH 2.8A 50 MOHM TH |
0 |
|
Datasheet | SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2.8 A | 7.9A | Unshielded | 50mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.492" Dia (12.50mm) | 0.472" (12.00mm) |
|
|
SBCP-11HY100HFIXED IND 10UH 3.1A 40 MOHM TH |
0 |
|
Datasheet | SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 3.1 A | 9.6A | Unshielded | 40mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.492" Dia (12.50mm) | 0.472" (12.00mm) |
|
|
SBCP-11HY471HFIXED IND 470UH 660MA 760MOHM TH |
0 |
|
Datasheet | SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 660 mA | 1.4A | Unshielded | 760mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.492" Dia (12.50mm) | 0.472" (12.00mm) |
|
MPXV1D1250LR47FIXED IND 470NH 34.8A 1.8MOHM SM |
0 |
|
Datasheet | METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 470 nH | ±20% | 34.8 A | 55A | Shielded | 1.8mOhm Max | - | 54MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.197" (5.00mm) |
|
MPX1D1264L1R0FIXED IND 1UH 32.2A 2.3 MOHM SMD |
0 |
|
Datasheet | METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1 µH | ±20% | 32.2 A | 45A | Shielded | 2.3mOhm Max | - | 30MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.252" (6.40mm) |
|
|
MPX1D1264LR33FIXED IND 330NH 45.6A 1.2MOHM SM |
0 |
|
Datasheet | METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 330 nH | ±20% | 45.6 A | 70A | Shielded | 1.2mOhm Max | - | 61MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.252" (6.40mm) |
|
|
MPX1D1264LR68FIXED IND 680NH 35.4A 1.9MOHM SM |
0 |
|
Datasheet | METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 680 nH | ±20% | 35.4 A | 50A | Shielded | 1.9mOhm Max | - | 45MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.252" (6.40mm) |
|
|
MPXV1D1264LR22FIXED IND 220NH 53A 1.1MOHM SMD |
0 |
|
Datasheet | METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 220 nH | ±20% | 53 A | 100A | Shielded | 1.1mOhm Max | - | 90MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.252" (6.40mm) |
|

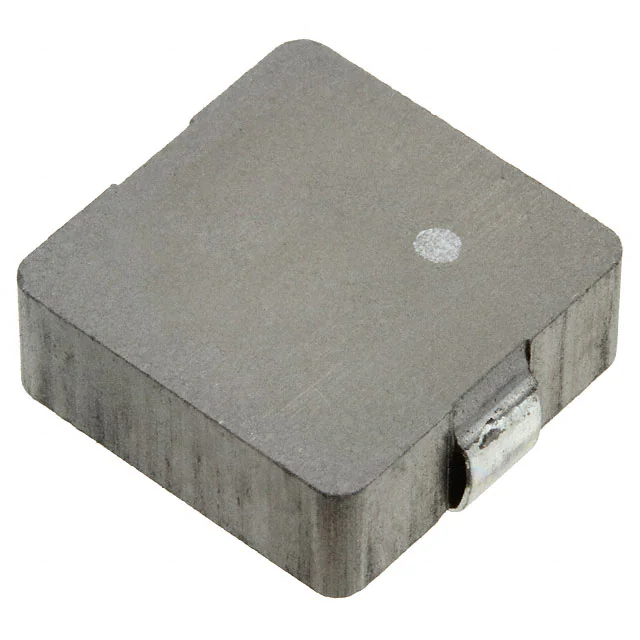

MPCH1250L1R5FIXED IND 1.5UH 21A 2.2 MOHM SMD |
0 |
|
Datasheet | MPCH | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 1.5 µH | ±20% | 21 A | 21A | Shielded | 2.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.563" L x 0.492" W (14.30mm x 12.50mm) | 0.197" (5.00mm) |
|
SHBC10-0R8A0107VCMC 107UH 3A 2LN TH |
0 |
|
Datasheet | SHBC | Radial, Vertical (Open) | Bulk | Active | Toroidal | Alloy Powder | 107 µH | ±20% | 3 A | - | Unshielded | 53mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial | 0.866" Dia (22.00mm) | 0.866" (22.00mm) |
|
|
SHBC14-1R2A0067VCMC 67UH 8A 2LN TH |
0 |
|
Datasheet | SHBC | Radial, Vertical (Open) | Bulk | Active | Toroidal | Alloy Powder | 67 µH | ±20% | 8 A | - | Unshielded | 22.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial | 1.319" Dia (33.50mm) | 1.319" (33.50mm) |
|
SNG-25DB-086FIXED IND 86UH 20 MOHM CHAS MNT |
0 |
|
Datasheet | SNG | Vertical, 2 Wire Leads | Bulk | Obsolete | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 86 µH | -30%, +50% | - | - | Unshielded | 20mOhm Max | - | - | - | -25°C ~ 105°C | 160 kHz | - | Chassis Mount | - | 1.929" L x 0.945" W (49.00mm x 24.00mm) | 1.535" (39.00mm) |
|
|
MPXV1D1770L330FIXED IND 33UH 7.5A 47.3MOHM SMD |
0 |
|
Datasheet | METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 33 µH | ±20% | 7.5 A | 12A | Shielded | 47.3mOhm Max | - | 3.5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.669" L x 0.673" W (17.00mm x 17.10mm) | 0.276" (7.00mm) |
|
|
SHBC20-1R7A0097VCMC 97UH 12A 2LN TH |
0 |
|
Datasheet | SHBC | Radial, Vertical (Open) | Bulk | Active | Toroidal | Alloy Powder | 97 µH | ±20% | 12 A | - | Unshielded | 16mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial | 1.622" Dia (41.20mm) | 1.622" (41.20mm) |
|
|
SNG-19B-080FIXED IND 80UH 10 MOHM CHAS MNT |
0 |
|
Datasheet | SNG | Vertical, 2 Wire Leads | Bulk | Obsolete | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 80 µH | -30%, +50% | - | - | Unshielded | 10mOhm Max | - | - | - | -25°C ~ 105°C | 160 kHz | - | Chassis Mount | - | 1.654" L x 0.787" W (42.00mm x 20.00mm) | 1.181" (30.00mm) |
