Fixed Inductors

Mfr. Part #	Availability	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Type	Material - Core	Inductance	Tolerance	Current Rating (Amps)	Current - Saturation (Isat)	Shielding	DC Resistance (DCR)	Q @ Freq	Frequency - Self Resonant	Ratings	Operating Temperature	Inductance Frequency - Test	Features	Mounting Type	Supplier Device Package	Size / Dimension	Height - Seated (Max)

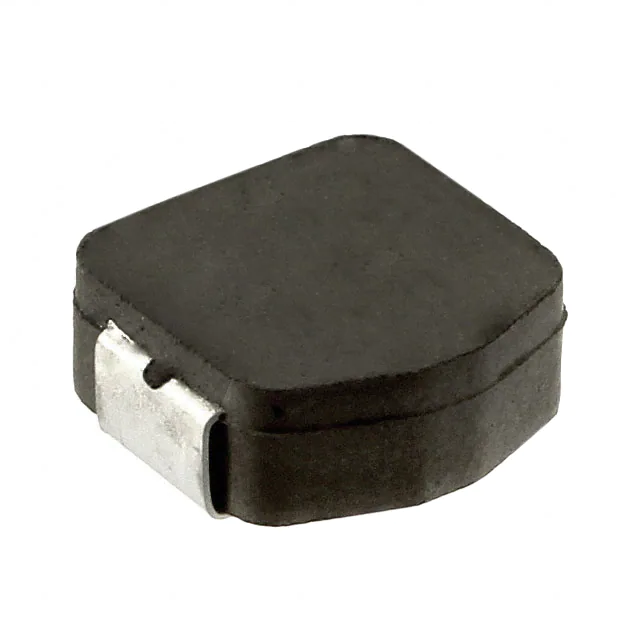

MPLCG0630L3R3 FIXED IND 3.3UH 6.5A 0.03OHM SMD KEMET	1,696	RFQ	Datasheet	MPLCG	Nonstandard	Tape & Reel (TR)	Active	Drum Core, Wirewound	Metal Composite	3.3 µH	±20%	6.5 A	6.3A	Shielded	30mOhm Max	-	-	-	-40°C ~ 125°C	100 kHz	Low DCR, Low Loss	Surface Mount	-	0.295" L x 0.264" W (7.50mm x 6.70mm)	0.118" (3.00mm)
MPCH0730LR12 FIXED IND 120NH 31A 0.65MOHM SMD KEMET	1,781	RFQ	Datasheet	MPCH	Nonstandard	Tape & Reel (TR)	Active	-	Metal Composite	120 nH	±20%	31 A	32A	Shielded	0.65mOhm	-	-	-	-40°C ~ 125°C	100 kHz	-	Surface Mount	-	0.315" L x 0.264" W (8.00mm x 6.70mm)	0.118" (3.00mm)

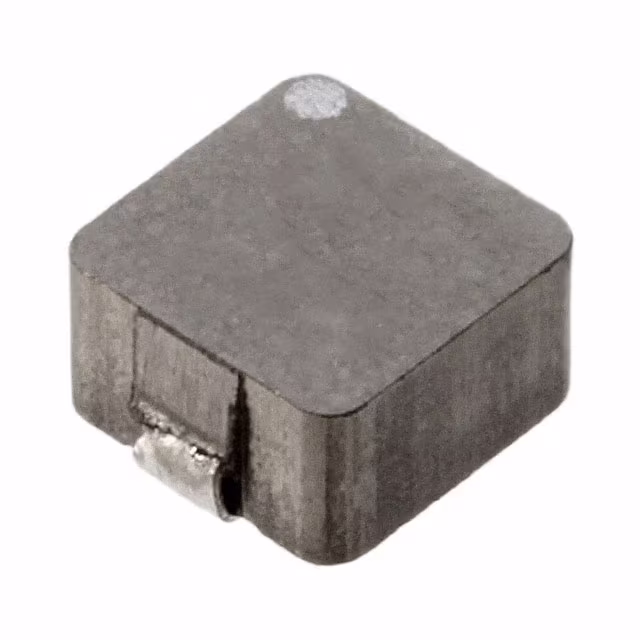

MPCH0740LR15 FIXED IND 150NH 29A 0.93MOHM SMD KEMET	2,641	RFQ	Datasheet	MPCH	Nonstandard	Tape & Reel (TR)	Active	-	Metal Composite	150 nH	±20%	29 A	31A	Shielded	0.93mOhm	-	-	-	-40°C ~ 125°C	100 kHz	-	Surface Mount	-	0.315" L x 0.264" W (8.00mm x 6.70mm)	0.157" (4.00mm)

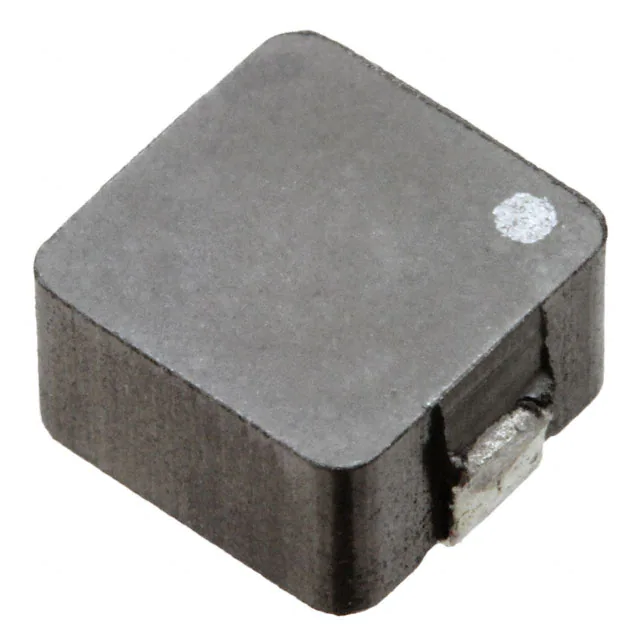

MPCH0740LR24 FIXED IND 240NH 27A 1 MOHM SMD KEMET	3,166	RFQ	Datasheet	MPCH	Nonstandard	Tape & Reel (TR)	Active	-	Metal Composite	240 nH	±20%	27 A	20A	Shielded	1mOhm	-	-	-	-40°C ~ 125°C	100 kHz	-	Surface Mount	-	0.315" L x 0.264" W (8.00mm x 6.70mm)	0.157" (4.00mm)
SBC6-152-451 FIXED IND 1.5MH 450MA 1.8 OHM TH KEMET	418	RFQ	Datasheet	SBC	Radial, Vertical Cylinder	Bulk	Active	Drum Core, Wirewound	Ferrite	1.5 mH	±10%	450 mA	900mA	Unshielded	1.8Ohm Max	-	-	-	-20°C ~ 105°C	10 kHz	-	Through Hole	-	0.472" Dia (12.00mm)	0.728" (18.50mm)
SBC6-102-561 FIXED IND 1MH 560MA 1.21 OHM TH KEMET	308	RFQ	Datasheet	SBC	Radial, Vertical Cylinder	Bulk	Active	Drum Core, Wirewound	Ferrite	1 mH	±10%	560 mA	1.1A	Unshielded	1.21Ohm Max	-	-	-	-20°C ~ 105°C	10 kHz	-	Through Hole	-	0.472" Dia (12.00mm)	0.728" (18.50mm)

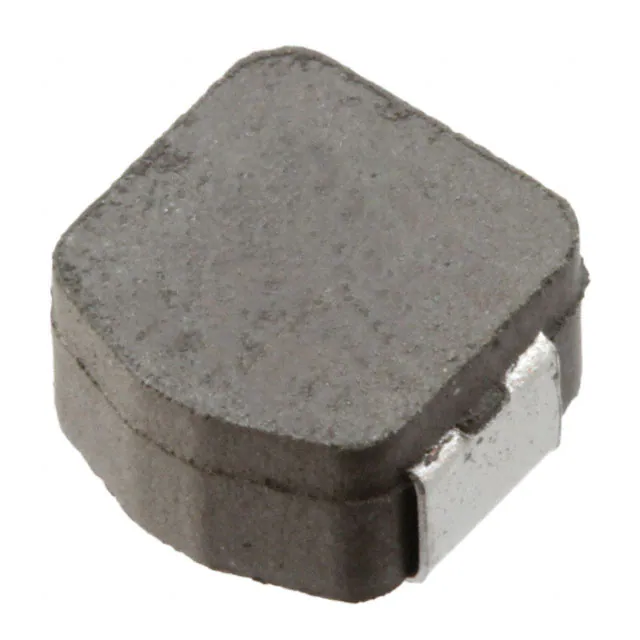

MPLCG0530L2R2 FIXED IND 2.2UH 4.5A 0.0364OHM KEMET	14,216	RFQ	Datasheet	MPLCG	Nonstandard	Tape & Reel (TR)	Active	Drum Core, Wirewound	Metal Composite	2.2 µH	±20%	4.5 A	5A	Shielded	36.4mOhm Max	-	-	-	-40°C ~ 125°C	100 kHz	Low DCR, Low Loss	Surface Mount	-	0.217" L x 0.197" W (5.50mm x 5.00mm)	0.118" (3.00mm)
MPLC0730L4R7 FIXED IND 4.7UH 5A 41 MOHM SMD KEMET	3,145	RFQ	Datasheet	MPLC	2-SMD, J-Lead	Tape & Reel (TR)	Active	Wirewound	-	4.7 µH	±20%	5 A	5.6A	Shielded	41mOhm Max	-	-	-	-20°C ~ 120°C	100 kHz	-	Surface Mount	-	0.303" L x 0.264" W (7.70mm x 6.70mm)	0.118" (3.00mm)
SBC6-681-631 FIXED IND 680UH 630MA 980MOHM TH KEMET	508	RFQ	Datasheet	SBC	Radial, Vertical Cylinder	Bulk	Active	Drum Core, Wirewound	Ferrite	680 µH	±10%	630 mA	1.3A	Unshielded	980mOhm Max	-	-	-	-20°C ~ 105°C	10 kHz	-	Through Hole	-	0.472" Dia (12.00mm)	0.728" (18.50mm)
SNT-D10 CMC 2.5UH 3A 2LN TH KEMET	704	RFQ	Datasheet	SNT	Vertical, 2 PC Pin	Bulk	Active	Toroidal	Nickel Zinc Ferrite (NiZn)	2.5 µH	-	3 A	-	Unshielded	25mOhm	-	-	-	-20°C ~ 60°C	100 kHz	-	Through Hole	Nonstandard, 2 Lead	0.374" L x 0.236" W (9.50mm x 6.00mm)	0.500" (12.70mm)
SBC8-221-182 FIXED IND 220UH 1.8A 170 MOHM TH KEMET	583	RFQ	Datasheet	SBC	Radial, Vertical Cylinder	Bulk	Active	Drum Core, Wirewound	Ferrite	220 µH	±10%	1.8 A	2.4A	Unshielded	170mOhm Max	-	-	-	-20°C ~ 105°C	10 kHz	-	Through Hole	-	0.591" Dia (15.00mm)	0.748" (19.00mm)
MPLCV0654L4R7 FIXED IND 4.7UH 6.3A 20 MOHM SMD KEMET	3,510	RFQ	Datasheet	MPLCV	Nonstandard	Tape & Reel (TR)	Active	-	Metal Composite	4.7 µH	±20%	6.3 A	10.5A	Shielded	20mOhm	-	-	AEC-Q200	-55°C ~ 155°C	100 kHz	-	Surface Mount	-	0.311" L x 0.264" W (7.90mm x 6.70mm)	0.213" (5.40mm)
TPI078060L047N FIXED IND 47NH 53A 0.31 MOHM SMD KEMET	3,151	RFQ	Datasheet	TPI	Nonstandard	Tape & Reel (TR)	Active	-	Ferrite	47 nH	±10%	53 A	90A	Shielded	0.31mOhm	-	-	-	-40°C ~ 125°C	100 kHz	-	Surface Mount	-	0.315" L x 0.276" W (8.00mm x 7.00mm)	0.236" (6.00mm)
SBCP-14HY331B FIXED IND 330UH 950MA 380MOHM TH KEMET	1,568	RFQ	Datasheet	SBCP	Radial, Vertical Cylinder (Open)	Bulk	Active	Drum Core, Wirewound	Ferrite	330 µH	±10%	950 mA	1.84A	Unshielded	380mOhm Max	-	-	-	-20°C ~ 105°C	10 kHz	-	Through Hole	-	0.472" Dia (12.00mm)	0.591" (15.00mm)

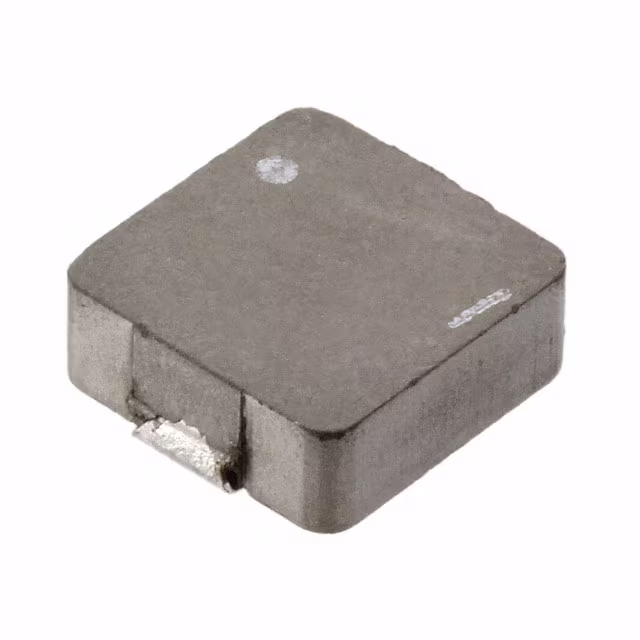

MPC1040LR56C FIXED IND 560NH 23A 1.3 MOHM SMD KEMET	1,138	RFQ	Datasheet	MPC	2-SMD, J-Lead	Tape & Reel (TR)	Active	-	Ferrite	560 nH	±20%	23 A	25A	Shielded	1.3mOhm Max	-	-	-	-20°C ~ 120°C	100 kHz	-	Surface Mount	-	0.453" L x 0.394" W (11.50mm x 10.00mm)	0.157" (4.00mm)
SBCP-14HY471B FIXED IND 470UH 800MA 540MOHM TH KEMET	1,308	RFQ	Datasheet	SBCP	Radial, Vertical Cylinder (Open)	Bulk	Active	Drum Core, Wirewound	Ferrite	470 µH	±10%	800 mA	1.48A	Unshielded	540mOhm Max	-	-	-	-20°C ~ 105°C	10 kHz	-	Through Hole	-	0.472" Dia (12.00mm)	0.591" (15.00mm)

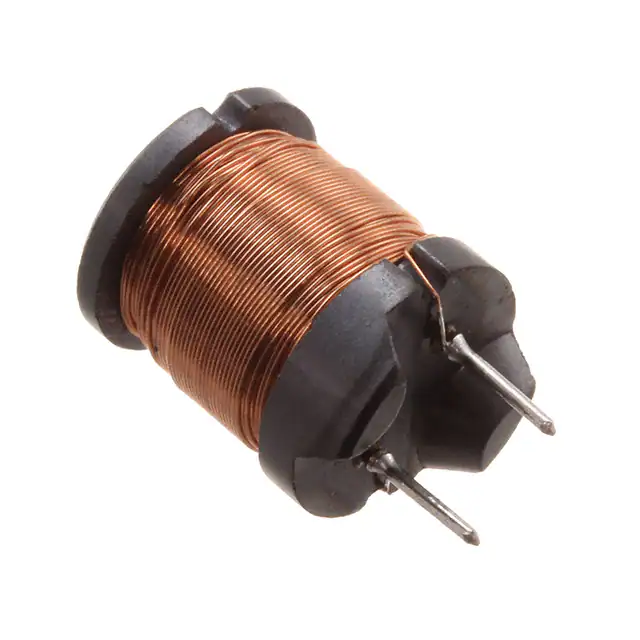

SBCP-14HY103B FIXED IND 10MH 170MA 10.86OHM TH KEMET	973	RFQ	Datasheet	SBCP	Radial, Vertical Cylinder (Open)	Bulk	Active	Drum Core, Wirewound	Ferrite	10 mH	±10%	170 mA	310mA	Unshielded	10.86Ohm Max	-	-	-	-20°C ~ 105°C	10 kHz	-	Through Hole	-	0.472" Dia (12.00mm)	0.591" (15.00mm)
SBCP-11HY470H FIXED IND 47UH 2A 100 MOHM TH KEMET	1,957	RFQ	Datasheet	SBCP	Radial, Vertical Cylinder	Tape & Reel (TR)	Active	Drum Core, Wirewound	Ferrite	47 µH	±20%	2 A	4.4A	Unshielded	100mOhm Max	-	-	-	-20°C ~ 105°C	10 kHz	-	Through Hole	-	0.492" Dia (12.50mm)	0.472" (12.00mm)
SBC8-471-112 FIXED IND 470UH 1.1A 420 MOHM TH KEMET	249	RFQ	Datasheet	SBC	Radial, Vertical Cylinder	Bulk	Active	Drum Core, Wirewound	Ferrite	470 µH	±10%	1.1 A	1.6A	Unshielded	420mOhm Max	-	-	-	-20°C ~ 105°C	10 kHz	-	Through Hole	-	0.591" Dia (15.00mm)	0.748" (19.00mm)
MPX1D1250L330 FIXED IND 33UH 5.4A 72 MOHM SMD KEMET	637	RFQ	Datasheet	METCOM MPX	Nonstandard	Tape & Reel (TR)	Active	Drum Core, Wirewound	Metal Composite	33 µH	±20%	5.4 A	7.5A	Shielded	72mOhm Max	-	5MHz	-	-55°C ~ 155°C	100 kHz	-	Surface Mount	-	0.520" L x 0.492" W (13.20mm x 12.50mm)	0.197" (5.00mm)

Total 1409 Record«Prev 1 2 3 456 7 8...71 Next»
