Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L0603B470KPWFTFIXED IND 47UH 90MA 5.8 OHM SMD |
0 |
|
Datasheet | L-PWF | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 90 mA | - | Unshielded | 5.8Ohm | - | 11MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.035" (0.90mm) |
|
|
L0603B100MDWFTFIXED IND 10UH 380MA 360MOHM SMD |
0 |
|
Datasheet | L-DWF | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 380 mA | - | Unshielded | 360mOhm | - | 32MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
.jpg)
|
LPWI201610S1R5TFIXED IND 1.5UH 2.2A 110MOHM SMD |
0 |
|
Datasheet | LPWI | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | Metal Composite | 1.5 µH | ±20% | 2.2 A | 2.4A | Shielded | 110mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
L0805C470MDWITFIXED IND 47UH 120MA 5.8 OHM SMD |
0 |
|
Datasheet | L-DWI | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 120 mA | - | Unshielded | 5.8Ohm | - | 11MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.083" L x 0.059" W (2.11mm x 1.50mm) | 0.041" (1.04mm) |
|
|
L0603B470MDWFTFIXED IND 47UH 140MA 2.5 OHM SMD |
0 |
|
Datasheet | L-DWF | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 140 mA | - | Unshielded | 2.5Ohm | - | 11MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
L0603B470KDWFTFIXED IND 47UH 140MA 2.5 OHM SMD |
0 |
|
Datasheet | L-DWF | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 140 mA | - | Unshielded | 2.5Ohm | - | 11MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
L0805B101MDWLTFIXED IND 100UH SMD |
0 |
|
Datasheet | L-DWL | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | - | - | Unshielded | - | - | - | - | -40°C ~ 105°C | - | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
L0805C1R0MDMITFIXED IND 1UH 1A 140 MOHM SMD |
0 |
|
Datasheet | L-DMI | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 1 µH | ±20% | 1 A | - | Shielded | 140mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.049" (1.25mm) |
|
|
L0805C2R2MDMITFIXED IND 2.2UH 800MA 200MOHM SM |
0 |
|
Datasheet | L-DMI | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 2.2 µH | ±20% | 800 mA | - | Shielded | 200mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.049" (1.25mm) |
|
|
L0805C3R3MDMITFIXED IND 3.3UH 700MA 240MOHM SM |
0 |
|
Datasheet | L-DMI | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 3.3 µH | ±20% | 700 mA | - | Shielded | 240mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.049" (1.25mm) |
|
LPWI201608HR47TFIXED IND 470NH 4A 27 MOHM SMD |
10 |
|
Datasheet | LPWI | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal Composite | 470 nH | ±20% | 4 A | 4.7A | Shielded | 27mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.031" (0.80mm) |
|
|
LPWI201610SR24TFIXED IND 240NH 4.7A 23 MOHM SMD |
0 |
|
Datasheet | LPWI | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | Metal Composite | 240 nH | ±20% | 4.7 A | 5.1A | Shielded | 23mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
MPC1040LR36CFIXED IND 360NH 25.5A 1.05 MOHM |
0 |
|
Datasheet | MPC | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | - | Ferrite | 360 nH | ±20% | 25.5 A | 30A | Shielded | 1.05mOhm Max | - | - | - | -20°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|

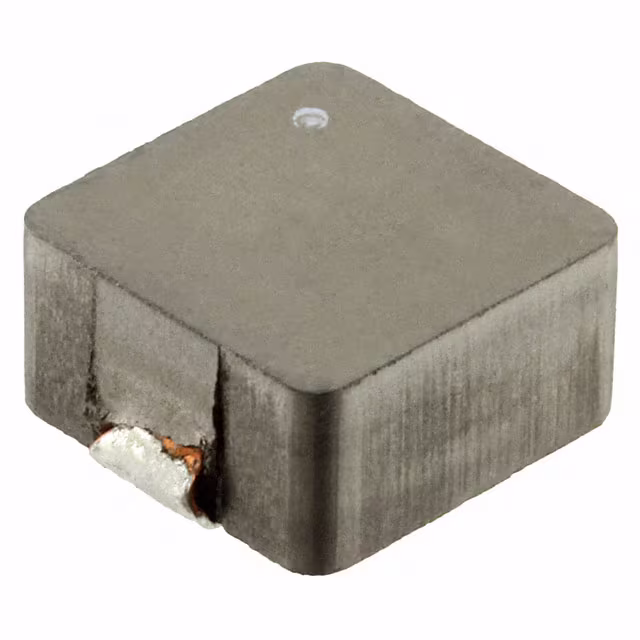

MPC1055LR36CFIXED IND 360NH 32A 0.75MOHM SMD |
0 |
|
Datasheet | MPC | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | - | Ferrite | 360 nH | ±20% | 32 A | 35A | Shielded | 0.75mOhm | - | - | - | -20°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.461" L x 0.394" W (11.70mm x 10.00mm) | 0.217" (5.50mm) |
|
L1210R100MDWITFIXED IND 10UH 900MA 133MOHM SMD |
0 |
|
Datasheet | L-DWI | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 900 mA | - | Unshielded | 133mOhm | - | 23MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.106" (2.70mm) |
|
SBCP-47HY680BFIXED IND 68UH 600MA 397 MOHM TH |
0 |
|
Datasheet | SBCP | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 600 mA | 600mA | Unshielded | 397mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.197" Dia (5.00mm) | 0.335" (8.50mm) |
|
|
SBCP-47HY561BFIXED IND 560UH 210MA 3.1 OHM TH |
0 |
|
Datasheet | SBCP | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±10% | 210 mA | 210mA | Unshielded | 3.1Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.197" Dia (5.00mm) | 0.335" (8.50mm) |
|
|
SBCP-47HY390BFIXED IND 39UH 790MA 213 MOHM TH |
0 |
|
Datasheet | SBCP | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±20% | 790 mA | 790mA | Unshielded | 213mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.197" Dia (5.00mm) | 0.335" (8.50mm) |
|
|
SBCP-47HY330BFIXED IND 33UH 870MA 169 MOHM TH |
0 |
|
Datasheet | SBCP | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 870 mA | 870mA | Unshielded | 169mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.197" Dia (5.00mm) | 0.335" (8.50mm) |
|
|
SBCP-47HY2R7BFIXED IND 2.7UH 2.45A 32 MOHM TH |
0 |
|
Datasheet | SBCP | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.7 µH | ±20% | 2.45 A | 2.92A | Unshielded | 32mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.197" Dia (5.00mm) | 0.335" (8.50mm) |
