Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPLC1040L3R3FIXED IND 3.3UH 8.8A 14 MOHM SMD |
0 |
|
Datasheet | MPLC | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±20% | 8.8 A | 9.3A | Shielded | 14mOhm Max | - | - | - | -20°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|

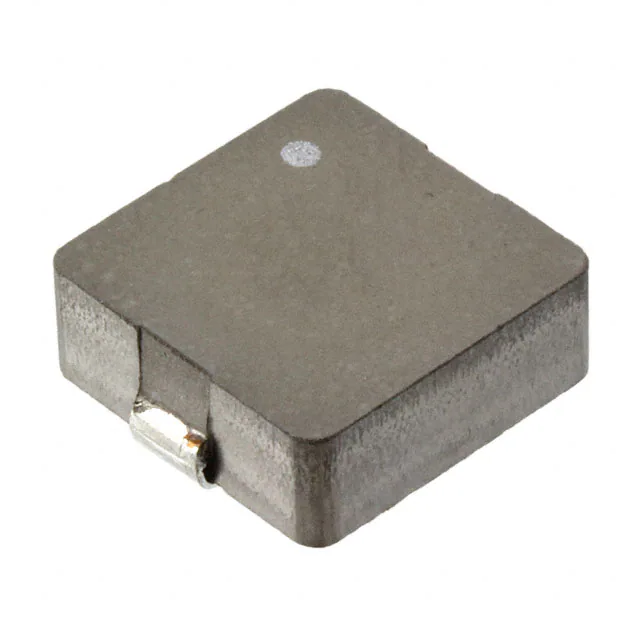

MPC1260LR45FIXED IND 450NH SMD |
0 |
|
Datasheet | MPC | 2-SMD, J-Lead | Tape & Reel (TR) | Not For New Designs | - | Ferrite | 450 nH | ±20% | - | - | Shielded | - | - | - | - | -20°C ~ 120°C | 100 kHz | - | Surface Mount | - | - | - |
|
SBCP-14HY150BFIXED IND 15UH 2.8A 50 MOHM TH |
198 |
|
Datasheet | SBCP | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2.8 A | 8.07A | Unshielded | 50mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
|
SBCP-14HY330BFIXED IND 33UH 2.4A 70 MOHM TH |
170 |
|
Datasheet | SBCP | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 2.4 A | 5.63A | Unshielded | 70mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
|
SBCP-14HY151BFIXED IND 150UH 1.3A 200 MOHM TH |
138 |
|
Datasheet | SBCP | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 1.3 A | 2.7A | Unshielded | 200mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
|
|
SBCP-14HY100BFIXED IND 10UH 3A 40 MOHM TH |
123 |
|
Datasheet | SBCP | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 3 A | 10.3A | Unshielded | 40mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
|
MPXV1D1250L3R3FIXED IND 3.3UH 16.8A 7.4MOHM SM |
186 |
|
Datasheet | METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 3.3 µH | ±20% | 16.8 A | 22A | Shielded | 7.4mOhm Max | - | 17MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.197" (5.00mm) |
|
|
MPXV1D1250L1R5FIXED IND 1.5UH 24.2A 3.6MOHM SM |
235 |
|
Datasheet | METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 1.5 µH | ±20% | 24.2 A | 32A | Shielded | 3.6mOhm Max | - | 25MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.197" (5.00mm) |
|
SBCP-11HY331HFIXED IND 330UH 740MA 600MOHM TH |
267 |
|
Datasheet | SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 740 mA | 1.6A | Unshielded | 600mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.492" Dia (12.50mm) | 0.472" (12.00mm) |
|
|
SBCP-11HY102HFIXED IND 1MH 420MA 1.7 OHM TH |
177 |
|
Datasheet | SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 420 mA | 960mA | Unshielded | 1.7Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.492" Dia (12.50mm) | 0.472" (12.00mm) |
|
SNT-D30CMC 20UH 500MA 2LN TH |
483 |
|
Datasheet | SNT | Vertical, 2 PC Pin | Bulk | Active | Toroidal | Nickel Zinc Ferrite (NiZn) | 20 µH | - | 500 mA | - | Unshielded | 98mOhm | - | - | - | -20°C ~ 60°C | 100 kHz | - | Through Hole | Nonstandard, 2 Lead | 0.374" L x 0.236" W (9.50mm x 6.00mm) | 0.500" (12.70mm) |
|
MPCV1260L1R0FIXED IND 1UH 32A 1.65 MOHM SMD |
194 |
|
Datasheet | MPCV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 1 µH | ±20% | 32 A | 42A | Shielded | 1.65mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.571" L x 0.492" W (14.50mm x 12.50mm) | 0.236" (6.00mm) |
|
MPX1D1235LR15FIXED IND 150NH 39.9A 1.3MOHM SM |
465 |
|
Datasheet | METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 150 nH | ±20% | 39.9 A | 85A | Shielded | 1.3mOhm Max | - | 128MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.138" (3.50mm) |
|
|
MPX1D1235L2R2FIXED IND 2.2UH 15.2A 8.4MOHM SM |
490 |
|
Datasheet | METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 2.2 µH | ±20% | 15.2 A | 23A | Shielded | 8.4mOhm Max | - | 21MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.138" (3.50mm) |
|
|
MPX1D1250LR68FIXED IND 680NH 32.7A 2 MOHM SMD |
230 |
|
Datasheet | METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 680 nH | ±20% | 32.7 A | 45A | Shielded | 2mOhm Max | - | 45MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.197" (5.00mm) |
|
TPI111065L210NFIXED IND 210NH SMD |
0 |
|
Datasheet | TPI | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 210 nH | - | - | - | Shielded | - | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | - | - |
|
MPX1D1740L1R5FIXED IND 1.5UH 23.5A 3.8MOHM SM |
0 |
|
Datasheet | METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1.5 µH | ±20% | 23.5 A | 28A | Shielded | 3.8mOhm Max | - | 24MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.669" L x 0.673" W (17.00mm x 17.10mm) | 0.157" (4.00mm) |
|
SHBC13-1R2A0081VCMC 81UH 6A 2LN TH |
0 |
|
Datasheet | SHBC | Radial, Vertical (Open) | Bulk | Active | Toroidal | Alloy Powder | 81 µH | ±20% | 6 A | - | Unshielded | 24.7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial | 1.181" Dia (30.00mm) | 1.181" (30.00mm) |
|
SNG-19DB-014FIXED IND 14UH 10 MOHM CHAS MNT |
224 |
|
Datasheet | SNG | Vertical, 2 Wire Leads | Bulk | Obsolete | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 14 µH | -30%, +50% | - | - | Unshielded | 10mOhm Max | - | - | - | -25°C ~ 105°C | 160 kHz | - | Chassis Mount | - | 1.654" L x 0.787" W (42.00mm x 20.00mm) | 1.181" (30.00mm) |
|
|
SNG-19DA-014FIXED INDUCTOR 14UH 10 MOHM |
141 |
|
Datasheet | SNG | Vertical, 2 Wire Leads | Bulk | Obsolete | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 14 µH | -30%, +50% | - | - | Unshielded | 10mOhm Max | - | - | - | -25°C ~ 105°C | 160 kHz | - | User Defined | - | 1.181" Dia (30.00mm) | 0.787" (20.00mm) |
