Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R76MF2220JB30KCAP FILM AUTO POLYPROP RAD |
9,174 |
|
Datasheet | Radial | 0.022 µF | ±10% | 250V | 400V | Polypropylene (PP), Metallized | 29 mOhms | -55°C ~ 110°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.358" (9.10mm) | PC Pins | 0.394" (10.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
R76MD2120DQ40JCAP FILM AUTO POLYPROP RAD |
5,763 |
|
Datasheet | Radial | 0.012 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | 53 mOhms | -55°C ~ 110°C | Through Hole | 0.394" L x 0.157" W (10.00mm x 4.00mm) | 0.358" (9.10mm) | PC Pins | 0.295" (7.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
R747I1120JHH3JCAP FILM METAL RAD POLYPROP |
4,376 |
|
Datasheet | Radial | 1200 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 125°C | Through Hole | 0.709" L x 0.157" W (18.00mm x 4.00mm) | 0.398" (10.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
R46KF2330DQH1KCAP FILM SAFETY/EMI SUPP RAD |
5,141 |
|
Datasheet | Radial | 0.033 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | X2 | - |
|
|
R76TI1330JE30KCAP FILM AUTO POLYPROP RAD |
8,553 |
|
Datasheet | Radial | 3300 pF | ±10% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 193 mOhms | -55°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
R76TI1330SE30KCAP FILM AUTO POLYPROP RAD |
9,342 |
|
Datasheet | Radial | 3300 pF | ±10% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 193 mOhms | -55°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
R76TI1330JH30KCAP FILM AUTO POLYPROP RAD |
3,050 |
|
Datasheet | Radial | 3300 pF | ±10% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 193 mOhms | -55°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
F462BE183K1L2ZCAP FILM POLYPROP RAD |
2,976 |
|
Datasheet | Radial | 0.018 µF | ±10% | 400V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.217" W (18.00mm x 5.50mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | - |
|
|
R76UI1120CK30KCAP FILM AUTO POLYPROP RAD |
8,301 |
|
Datasheet | Radial | 1200 pF | ±10% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 531 mOhms | -55°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
F872AP103J480L.010UF 480V |
2,593 |
|
Datasheet | Radial | 10000 pF | ±5% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | X1 | - |
|
|
R76MI2330JH00KCAP FILM AUTO POLYPROP RAD |
2,699 |
|
Datasheet | Radial | 0.033 µF | ±10% | 250V | 400V | Polypropylene (PP), Metallized | 19 mOhms | -55°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
R76MI2330JE00KCAP FILM AUTO POLYPROP RAD |
3,342 |
|
Datasheet | Radial | 0.033 µF | ±10% | 250V | 400V | Polypropylene (PP), Metallized | 19 mOhms | -55°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
F462BG123J1K6ACAP FILM POLYPROP RAD |
2,185 |
|
Datasheet | Radial | 0.012 µF | ±5% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | - |
|
|
R76QD1100CK40KCAP FILM AUTO POLYPROP RAD |
5,899 |
|
Datasheet | Radial | 1000 pF | ±10% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | 637 mOhms | -55°C ~ 110°C | Through Hole | 0.394" L x 0.157" W (10.00mm x 4.00mm) | 0.358" (9.10mm) | PC Pins | 0.295" (7.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
ECQ-UBAF473VHCAP FILM 0.047UF 10% 300VAC RADI |
6,611 |
|
Datasheet | Radial | 0.047 µF | ±10% | 300V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.728" L x 0.276" W (18.50mm x 7.00mm) | 0.669" (17.00mm) | PC Pins | 0.492" (12.50mm) | EMI, RFI Suppression | X1 | - |
|
|
F461KJ184K160CCAP FILM POLYPROP RAD |
9,996 |
|
Datasheet | Radial | 0.18 µF | ±10% | 90V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.394" L x 0.197" W (10.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.295" (7.50mm) | High Pulse, DV/DT | - | - |
|
|
F872BE273M480ZCAP FILM POLYPROP RAD X1 |
4,146 |
|
Datasheet | Radial | 0.027 µF | ±20% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.217" W (18.00mm x 5.50mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X1 | - |
|
|
F462AP223K1K0RCAP FILM POLYPROP RAD |
5,977 |
|
Datasheet | Radial | 0.022 µF | ±10% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
|
R76MF2390CK30JCAP FILM AUTO POLYPROP RAD |
2,052 |
|
Datasheet | Radial | 0.039 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | 16 mOhms | -55°C ~ 110°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.394" (10.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|

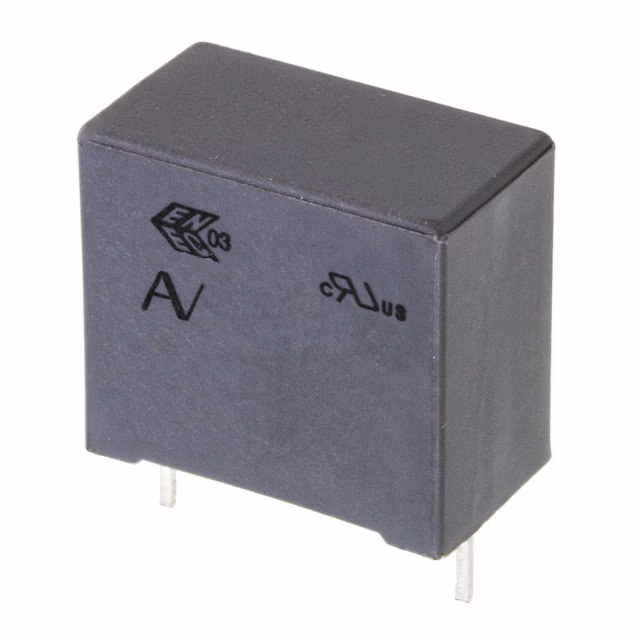

R49AI31500001MCAP FILM 0.15UF 20% 800VDC RAD |
6,328 |
|
Datasheet | Radial | 0.15 µF | ±20% | 310V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.394" W (18.00mm x 10.00mm) | 0.630" (16.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X1 | - |
