Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R463I333000N0MCAP FILM 0.33UF 20% 630VDC RAD |
4,452 |
|
Datasheet | Radial | 0.33 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.575" (14.60mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
ECH-U1H101JB5CAP FILM 100PF 5% 50VDC 0805 |
3,737 |
|
Datasheet | 0805 (2012 Metric) | 100 pF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) | Solder Pads | - | General Purpose | - | - |
|
|
ECH-U1H221JB5CAP FILM 220PF 5% 50VDC 0805 |
2,245 |
|
Datasheet | 0805 (2012 Metric) | 220 pF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) | Solder Pads | - | General Purpose | - | - |
|
R46KI3220DQM2MCAP FILM 0.22UF 20% 560VDC RAD |
1,905 |
|
Datasheet | Radial | 0.22 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.535" (13.60mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
R76TI218050H4JCAP FILM 0.018UF 5% 1.6KVDC RAD |
1,582 |
|
Datasheet | Radial | 0.018 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 106 mOhms | -55°C ~ 125°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.535" (13.60mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R75QI268050H0JCAP FILM 0.068UF 5% 1KVDC RADIAL |
1,421 |
|
Datasheet | Radial | 0.068 µF | ±5% | 250V | 1000V (1kV) | Polypropylene (PP), Metallized | 23.4 mOhms | -55°C ~ 125°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.575" (14.60mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
ECW-FD2W105KBCAP FILM 1UF 10% 450VDC RADIAL |
1,138 |
|
Datasheet | Radial | 1 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689" L x 0.307" W (17.50mm x 7.80mm) | 0.630" (16.00mm) | PC Pins | 0.295" (7.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
 J1.jpg)
|
ECH-U1C562JB5CAP FILM 5600PF 5% 16VDC 0805 |
5,352 |
|
Datasheet | 0805 (2012 Metric) | 5600 pF | ±5% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) | Solder Pads | - | General Purpose | - | - |
|
|
R76QF04704000JCAP FILM 470PF 5% 1KVDC RADIAL |
5,118 |
|
Datasheet | Radial | 470 pF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 4.064 Ohms | -55°C ~ 110°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.358" (9.10mm) | PC Pins | 0.394" (10.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R463I3220CKH1KCAP FILM 0.22UF 10% 630VDC RAD |
2,458 |
|
Datasheet | Radial | 0.22 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.575" (14.60mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
R49AI310040A2KCAP FILM 0.1UF 10% 800VDC RAD |
1,782 |
|
Datasheet | Radial | 0.1 µF | ±10% | 330V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.693" (17.60mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X1 | - |
|
R413N268050T0KCAP FILM 0.068UF 10% 1.5KVDC RAD |
1,780 |
|
Datasheet | Radial | 0.068 µF | ±10% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.634" (16.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
|
R413I233040M1MCAP FILM 0.033UF 20% 1KVDC RAD |
1,168 |
|
Datasheet | Radial | 0.033 µF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.535" (13.60mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
R66DD4100Z37AKCAP FILM 1UF 10% 63VDC RADIAL |
1,165 |
|
Datasheet | Radial | 1 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.394" L x 0.157" W (10.00mm x 4.00mm) | 0.358" (9.10mm) | PC Pins | 0.295" (7.50mm) | Automotive | AEC-Q200 | - |
|
F862BK104K310ZCAP FILM 0.1UF 10% 630VDC RADIAL |
19,626 |
|
Datasheet | Radial | 0.1 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.532" (13.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | AEC-Q200, X2 | - |
|

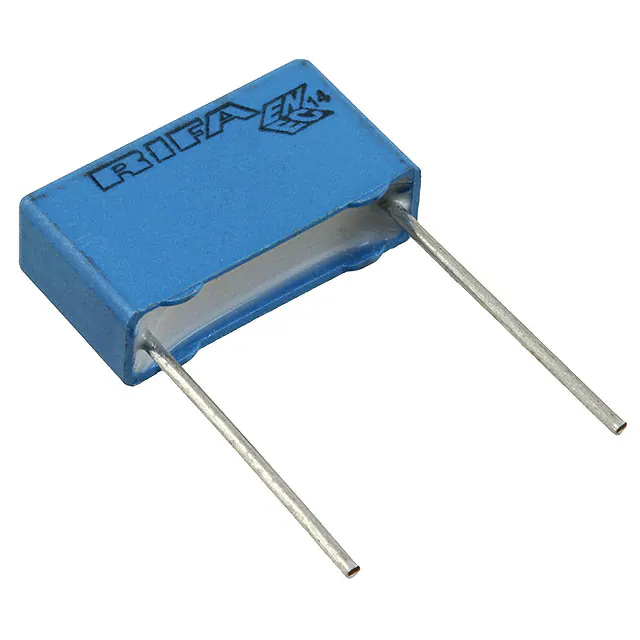

PHE840MB5470MB04R17CAP FILM 0.047UF 20% 760VDC RAD |
4,435 |
|
Datasheet | Radial | 0.047 µF | ±20% | 275V | 760V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.217" W (18.00mm x 5.50mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|

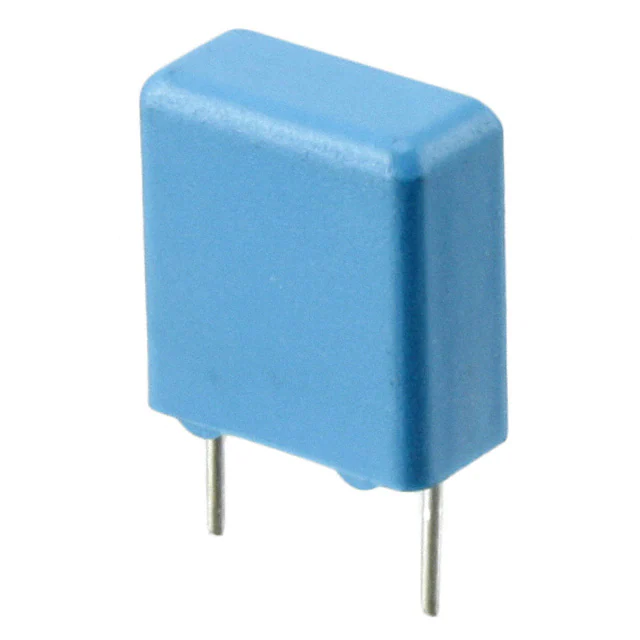

PHE450MK5100JR05CAP FILM 10000PF 5% 630VDC RAD |
4,187 |
|
Datasheet | Radial | 10000 pF | ±5% | 300V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.394" L x 0.197" W (10.00mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.295" (7.50mm) | High Frequency, Switching | - | - |
|
ECQ-UBAF683MCAP FILM 0.068UF 20% 300VAC RADI |
1,715 |
|
Datasheet | Radial | 0.068 µF | ±20% | 300V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.728" L x 0.315" W (18.50mm x 8.00mm) | 0.512" (13.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X1 | - |
|
R75QD0470DQ30JCAP FILM 470PF 5% 1KVDC RADIAL |
3,556 |
|
Datasheet | Radial | 470 pF | ±5% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.394" L x 0.118" W (10.00mm x 3.00mm) | 0.319" (8.10mm) | PC Pins | 0.295" (7.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R523F247050P0KCAP FILM 0.047UF 10% 630VDC RAD |
2,641 |
|
Datasheet | Radial | 0.047 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.366" (9.30mm) | PC Pins | 0.394" (10.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
