Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R75MI2680JB30JCAP FILM AUTO POLYPROP RAD |
7,696 |
|
Datasheet | Radial | 0.068 µF | ±5% | 220V | 400V | Polypropylene (PP), Metallized | 23.4 mOhms | -55°C ~ 105°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
R76MD2120SE40JCAP FILM AUTO POLYPROP RAD |
8,646 |
|
Datasheet | Radial | 0.012 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | 53 mOhms | -55°C ~ 110°C | Through Hole | 0.394" L x 0.157" W (10.00mm x 4.00mm) | 0.358" (9.10mm) | PC Pins | 0.295" (7.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
R76MD2120JE40JCAP FILM AUTO POLYPROP RAD |
2,142 |
|
Datasheet | Radial | 0.012 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | 53 mOhms | -55°C ~ 110°C | Through Hole | 0.394" L x 0.157" W (10.00mm x 4.00mm) | 0.358" (9.10mm) | PC Pins | 0.295" (7.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
F871BB392J330A3900PF 330V |
8,885 |
|
- |
Radial | 3900 pF | ±5% | 330V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.157" W (18.00mm x 4.00mm) | 0.394" (10.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X1 | - |
|
|
F872BB332K480ZCAP FILM POLYPROP RAD X1 |
6,103 |
|
Datasheet | Radial | 3300 pF | ±10% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.157" W (18.00mm x 4.00mm) | 0.394" (10.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X1 | - |
|
|
F881BB332K300ZCAP FILM POLYPROP RAD Y2 |
9,858 |
|
Datasheet | Radial | 3300 pF | ±10% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.157" W (18.00mm x 4.00mm) | 0.394" (10.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | Y2 | - |
|
|
F871BB332K330ZCAP FILM POLYPROP RAD X1 |
4,984 |
|
Datasheet | Radial | 3300 pF | ±10% | 330V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.157" W (18.00mm x 4.00mm) | 0.394" (10.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X1 | - |
|
|
F861BB393K310ZCAP FILM POLYPROP RAD X2 |
9,344 |
|
Datasheet | Radial | 0.039 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.157" W (18.00mm x 4.00mm) | 0.394" (10.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
|
F861BB124M310ZCAP FILM POLYPROP RAD X2 |
5,770 |
|
Datasheet | Radial | 0.12 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.157" W (18.00mm x 4.00mm) | 0.394" (10.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|

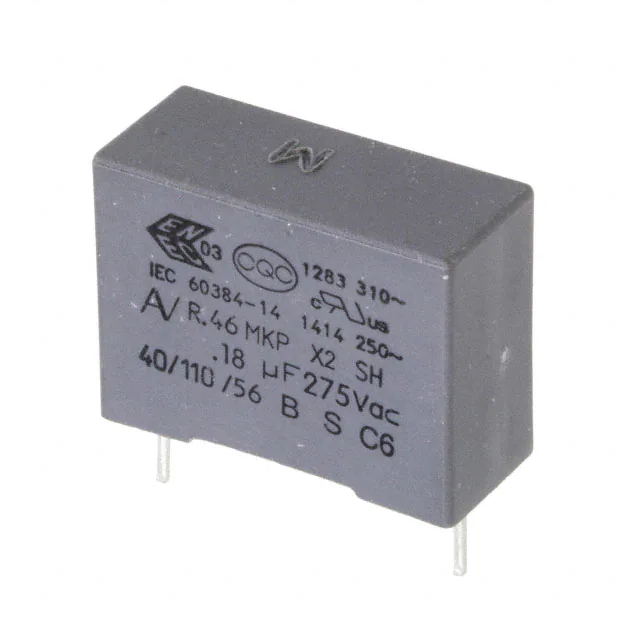

R46KI318000M1MCAP FILM 0.18UF 20% 560VDC RAD |
6,816 |
|
Datasheet | Radial | 0.18 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | - | - | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
|
R71PI32205030KCAP FILM METAL RAD POLYPROP |
6,774 |
|
Datasheet | Radial | 0.22 µF | ±10% | 275V | 630V | Polypropylene (PP), Metallized | 253 mOhms | -55°C ~ 105°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.535" (13.60mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching; High Pulse, DV/DT; Power Factor Correction (PFC) | - | - |
|
|
R60EF3680CK6AKCAP FILM AUTOMOTIVE |
3,421 |
|
Datasheet | Radial | 0.68 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.358" (9.10mm) | PC Pins | 0.394" (10.00mm) | Automotive | AEC-Q200 | - |
|
|
R79IC2560AA40KCAP FILM METAL RAD POLYPROP |
2,783 |
|
Datasheet | Radial | 0.056 µF | ±10% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.177" W (7.20mm x 4.50mm) | 0.378" (9.60mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching | - | - |
|
|
R413F1680JE00MCAP FILM 6800PF 20% 1KVDC RADIAL |
9,652 |
|
Datasheet | Radial | 6800 pF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.394" (10.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
|
R75MD2390AAB0JCAP FILM AUTO POLYPROP RAD |
5,910 |
|
Datasheet | Radial | 0.039 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | 28.6 mOhms | -55°C ~ 105°C | Through Hole | 0.394" L x 0.197" W (10.00mm x 5.00mm) | 0.417" (10.60mm) | PC Pins | 0.295" (7.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
R75MD2390JEB0JCAP FILM AUTO POLYPROP RAD |
6,597 |
|
Datasheet | Radial | 0.039 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | 28.6 mOhms | -55°C ~ 105°C | Through Hole | 0.394" L x 0.197" W (10.00mm x 5.00mm) | 0.417" (10.60mm) | PC Pins | 0.295" (7.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
F461BB563K400LCAP FILM POLYPROP RAD |
5,257 |
|
Datasheet | Radial | 0.056 µF | ±10% | 220V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.157" W (18.00mm x 4.00mm) | 0.394" (10.00mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | - |
|
|
R75RI2100JB30KCAP FILM AUTO POLYPROP RAD |
4,493 |
|
Datasheet | Radial | 10000 pF | ±10% | 600V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 79.6 mOhms | -55°C ~ 105°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
PHE850EA4560MA04R17CAP FILM RAD |
9,002 |
|
Datasheet | Radial | 5600 pF | ±20% | 300V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | Y2 | - |
|
|
F871BB103K330CCAP FILM POLYPROP RAD X1 |
3,071 |
|
Datasheet | Radial | 10000 pF | ±10% | 330V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.157" W (18.00mm x 4.00mm) | 0.394" (10.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X1 | - |
